Manufacturer Overview
Hastelloy X (UNS N06002) Forged Parts from China
Jiangsu Liangyi is a professional Chinese manufacturer and supplier of Hastelloy X (UNS N06002) forged parts and Alloy X components, including custom open-die forgings and seamless rolled rings. Our products are produced to international material specifications such as AMS 5754, ASTM B572 and ASME SB564, with material data referenced from published ASTM International specifications. (Hastelloy® X is the grade originated by Haynes International, Inc.; see trademark note below.)
All of our Hastelloy X raw material is produced by VIM/ESR (Vacuum Induction Melting + Electro-Slag Remelting) or VIM/VAR (Vacuum Induction Melting + Vacuum Arc Remelting), ensuring that every finished Alloy X part has a fine-grained microstructure, superior mechanical properties and long-term durability under high-temperature, high-pressure service. Our factory is only 150 km from Shanghai Port and 200 km from Ningbo Port, giving us convenient global logistics to North America, Europe, Southeast Asia, the Middle East and beyond.
Main Production & Testing Equipment
- 4,000 T fast forging press and 2,000 T hydraulic press for open-die forging
- Ring rolling mill for seamless rolled rings up to 5,000 mm diameter
- Vacuum heat-treatment furnace for precise microstructure control
- Optical emission spectrometer for 100% chemical verification
- Ultrasonic (UT) and magnetic particle (MT) non-destructive testing
- Universal testing machine for tensile, yield and elongation
- Metallographic microscope for grain size and microstructure
Solution Heat-Treatment Process
To guarantee high-temperature performance and microstructural stability, we apply a solution heat-treatment process to AMS 2750 with full parameter traceability:
- Heating: controlled rate ≤150 °C/h, uniform to 1175 °C ±15 °C to avoid thermal stress
- Soaking: 2.5 min per mm of effective thickness for full homogenization
- Cooling: rapid water quench or forced air to lock the solution structure and prevent grain-boundary carbides
- Inspection: 100% hardness (HB 170–230), metallography and mechanical verification

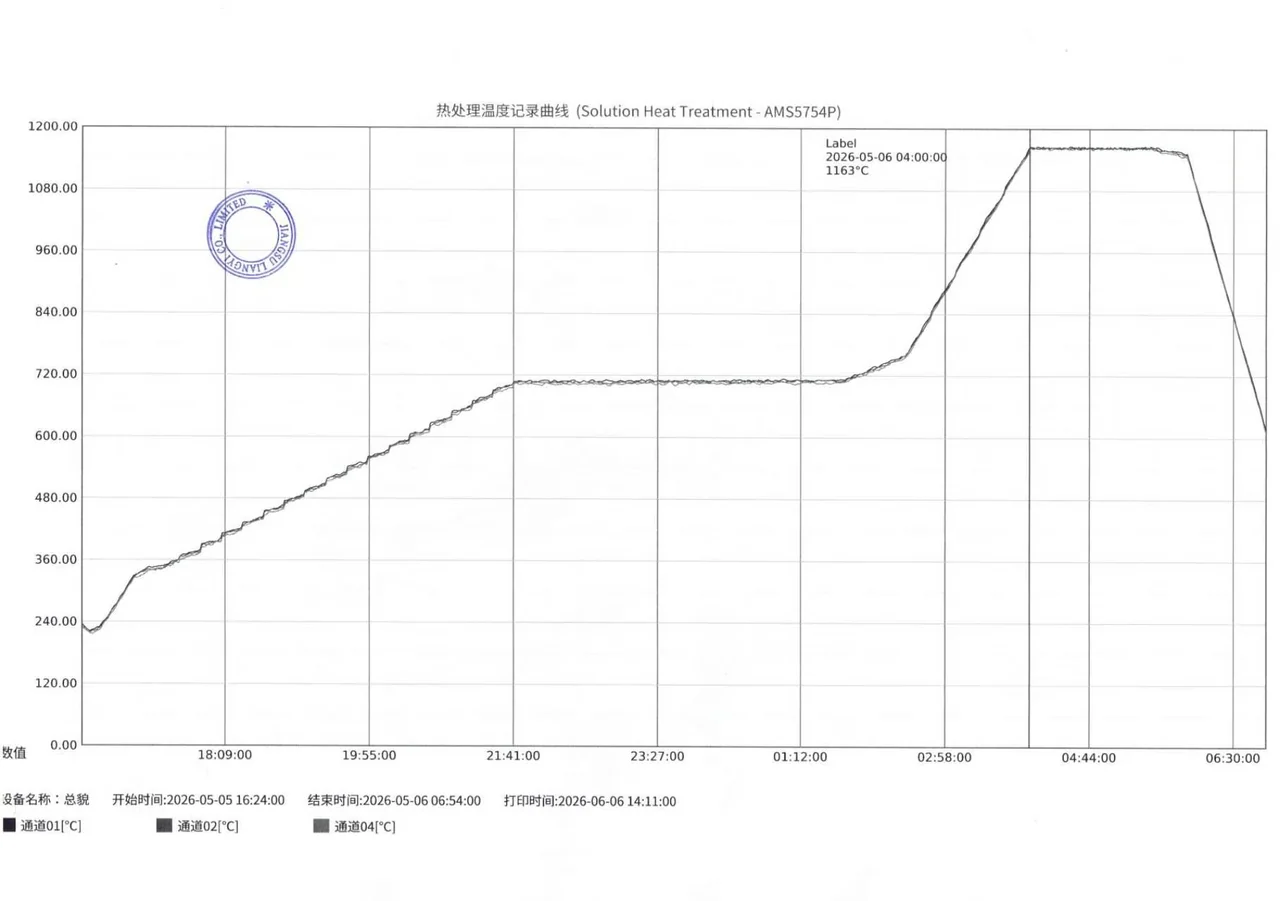

Complete heat-treatment curves, metallographic photos (100×/500×) and process records are supplied per batch — fully meeting aerospace and nuclear requirements.

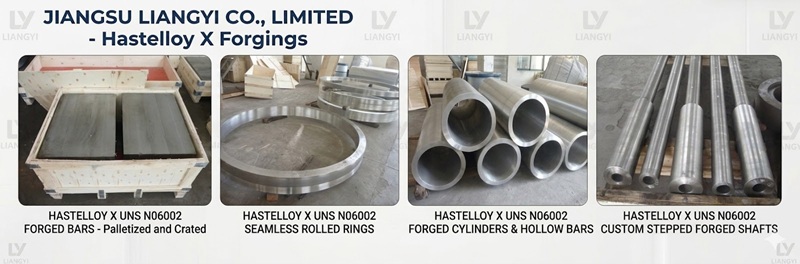

Product Range
Custom Hastelloy X Forged Products | UNS N06002
As a professional Hastelloy X manufacturer, we supply custom-shaped UNS N06002 forgings made 100% to client drawings and technical specifications. Our main product range includes:
Indicative price: USD 20–35 per kg, depending on size, shape, quantity and specification. Final price is confirmed on quotation — request a quote.
- Hastelloy X forged round, square, flat and rectangular bars and rods
- Seamless rolled rings and custom forged rings
- Hubs, housings, shells, sleeves, bushes and hollow bars
- Forged plates, discs, blocks and sheets
- Forged tubes, pipes, casings and pressure-vessel shells
Core Forging Processes
Open-Die Forging (Free Forging)
For large, small-batch and special-shaped forgings, cylinders and shafts, with forged weight up to 30 tons.
Ring Rolling (Seamless Rolled Rings)
For large-diameter thin-walled rings, flanges and cylinders — high roundness, uniform wall thickness and minimal machining allowance to reduce client machining costs.
Theoretical Weight Calculator
Density 8.22 g/cm³ — for round bar, disc and ring-blank forgings.
Inside Our Workshop
Hastelloy X Forging Process — Video
See real Hastelloy X (UNS N06002) production on our shop floor — from VIM/ESR raw-material melting through open-die forging and ring rolling to final inspection, for structural integrity and grain flow in critical high-temperature applications.
This footage shows the actual equipment and process behind the parts we ship. More videos are on our YouTube channel.
Industrial Applications
Where Hastelloy X (UNS N06002) Forgings Are Used
Hastelloy X is a high-performance nickel–chromium–iron–molybdenum superalloy with exceptional high-temperature oxidation resistance, thermal stability and corrosion resistance. This makes our forged parts a leading choice for gas turbines, steam turbines, nuclear systems, boilers, heat exchangers and pressure vessels under critical service conditions.
Verified Delivery Case Study — Indian Power Generation Plant
This is a real, fully documented Hastelloy X delivery — not a generic claim. Every figure below (inspection certificate, heat-treatment record, NDT photos and the ocean bill of lading) comes from this single traceable order.

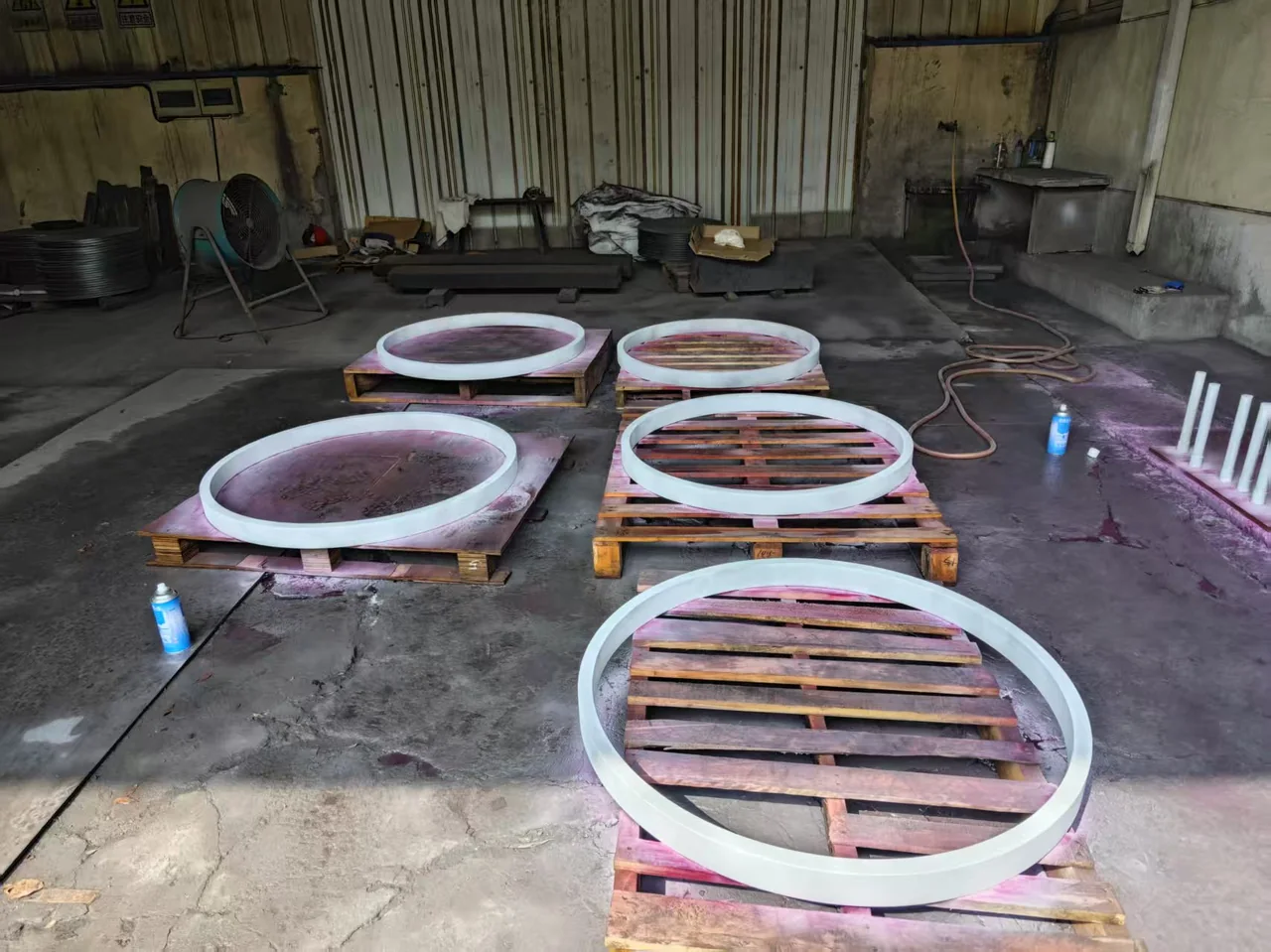

Hastelloy X Forged & Rolled Rings — Shroud Rings & Spacer Rings
Customer: A major power-generation plant in India (customer name confidential under NDA).
Application: steam-turbine shroud rings and spacer rings.
Supplied: Hastelloy X (UNS N06002 / Alloy X) forged & seamless-rolled rings, OD 1075 mm × ID 1015 mm × H 68 mm, 5 pcs, VIM + ESR melted in China.
Certified to AMS 5754 Rev. P (2024-09), with an EN 10204:2004 Type 3.1 inspection certificate.
Heat No.: HX24-0856 · Lot: LY24-89072
Specification: AMS 5754 Rev. P · EN 10204 3.1

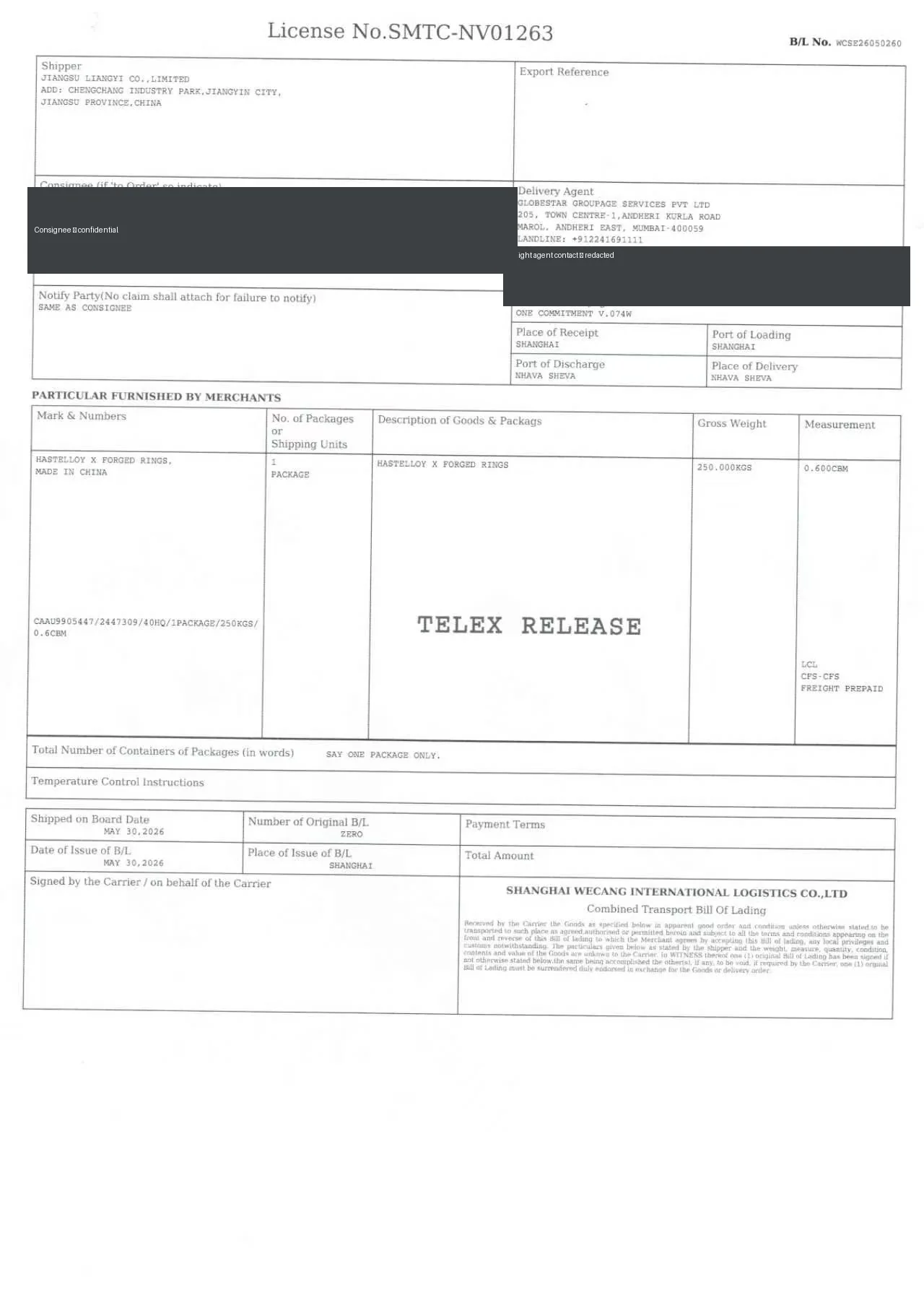

B/L No.: WCSE26050260
Shipped: 30 May 2026, Shanghai → Nhava Sheva
Gross weight: 250 kg · 0.6 CBM
Representative Mill Test Report — Heat HX24-0856 (actual measured values)
| Element | Spec min | Spec max | Actual (HX24-0856) |
|---|---|---|---|
| C | 0.05 | 0.15 | 0.082 |
| Cr | 20.50 | 23.00 | 21.76 |
| Mo | 8.00 | 10.00 | 9.08 |
| Fe | 17.00 | 20.00 | 18.42 |
| Co | 0.50 | 2.50 | 1.48 |
| W | 0.20 | 1.00 | 0.57 |
| P | — | 0.040 | 0.011 |
| S | — | 0.030 | 0.002 |
| Ni | Bal. | — | 47.34 |
| Sample | Result | Verdict |
|---|---|---|
| Ring No. 1 | 197 HBW | PASS |
| Ring No. 2 | 201 HBW | PASS |
| Ring No. 3 | 195 HBW | PASS |
| Parameter | Result | Verdict |
|---|---|---|
| Time to rupture (req. ≥24 h) | 41.5 h | PASS |
| Elongation in 4D (req. ≥10%) | 24% | PASS |

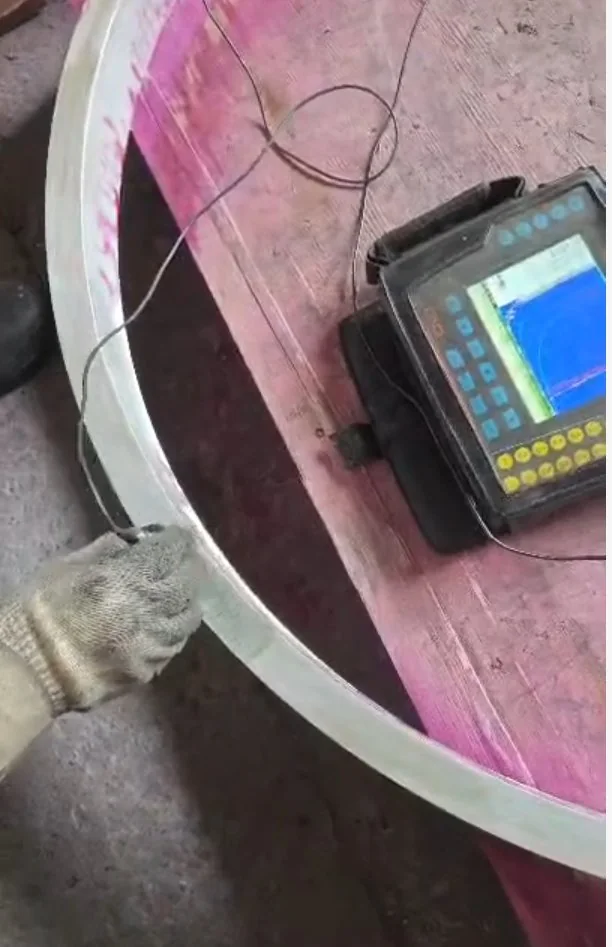

Non-destructive testing on this lot: 100% ultrasonic testing per AMS-STD-2154, Level A — accepted; liquid (dye) penetrant testing per ASTM E165 / E165M — accepted. Solution heat treated at 2125 °F (1163 °C), held 90 min, air-cooled, with pyrometry per AMS 2750; visual and dimensional inspection per the customer drawing — conforms.

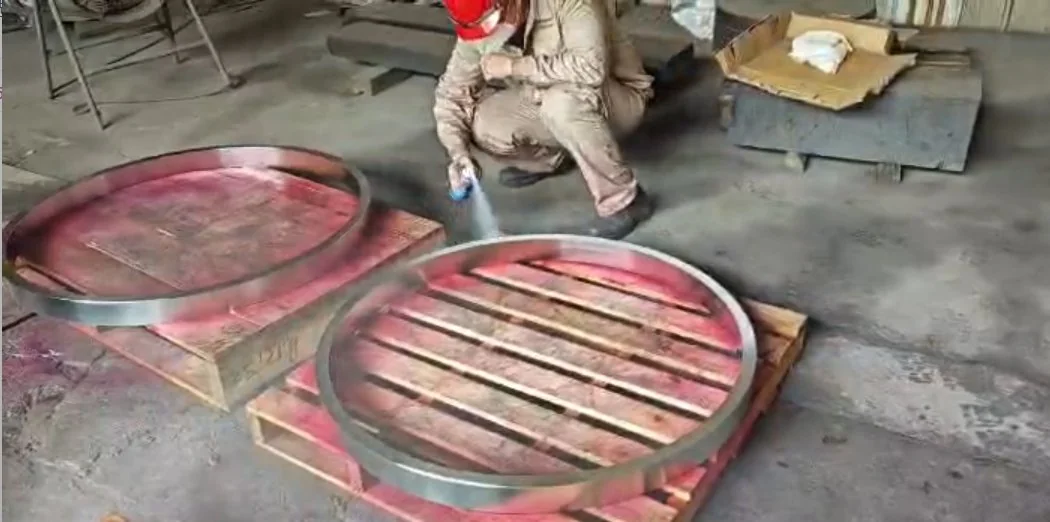

Documented Evidence
Component Catalogue

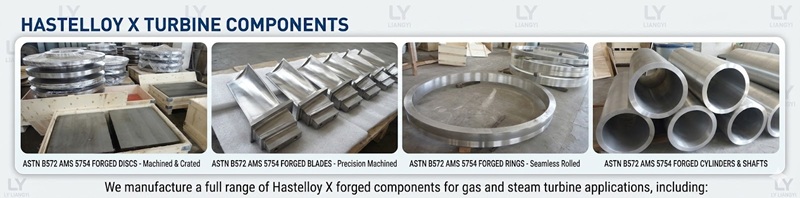

Turbine, Boiler & Nuclear Forgings
Gas & Steam Turbine
- Turbine blades, nozzle vanes
- Turbine disks, impellers, blisks
- Guide, seal, labyrinth & packing rings
- LPT 1st & 2nd stage casings
- Valve discs, spindles, seats and bonnets (MSV/GV/CV/CRV)
Boiler, Heat Exchanger & Pressure Vessel
- Forged tubes, pipes and shells
- Tube sheets and baffle plates
- Reactor, heater and vessel nozzles
- Channel flanges
Nuclear Power Forgings
- Steam-generator flowmeter & venturi forgings
- Pressurizer surge-line tubes, reactor nozzles
- End rings, rotor stack plates, closure rings
- RPV upper shells, shell strakes, transition cones
- Containment plates, rings & closure heads
These nuclear-application forgings are produced to client drawings and the applicable material specifications, with full traceability from raw material to finished part and EN 10204 3.1 mill certificates (3.2 via third-party inspection on request).

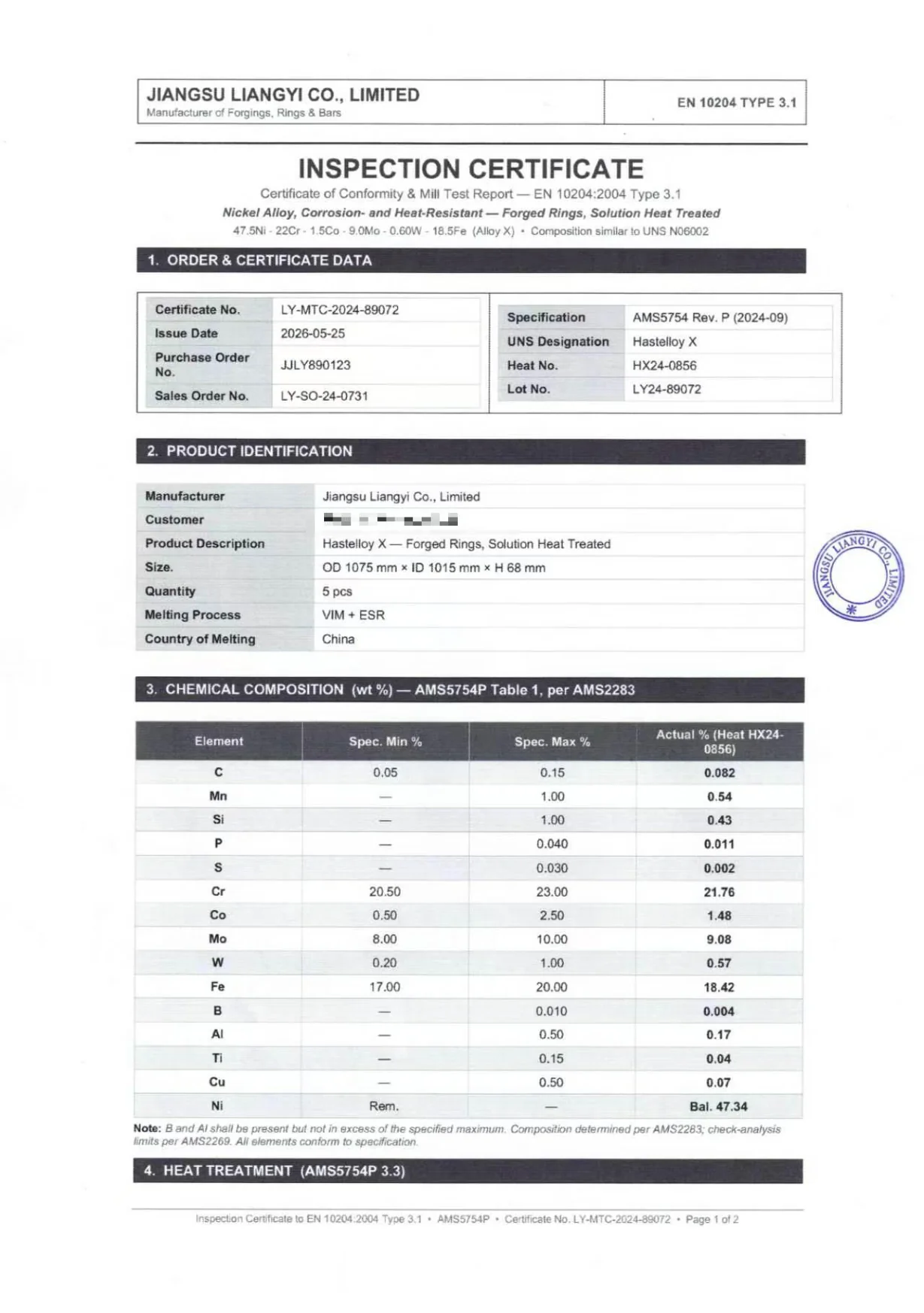

View Sample Inspection Certificate (PDF)Material Data
Hastelloy X (UNS N06002) Chemical Composition
All forged parts meet the chemical-composition requirements of ASTM B572 and ASME SB564, with full test reports per shipment.
| Element | Content (wt%) | Element | Content (wt%) |
|---|---|---|---|
| Carbon (C) | 0.05–0.15 | Cobalt (Co) | 0.50–2.50 |
| Manganese (Mn) | ≤1.00 | Molybdenum (Mo) | 8.00–10.00 |
| Silicon (Si) | ≤1.00 | Tungsten (W) | 0.20–1.00 |
| Phosphorus (P) | ≤0.040 | Iron (Fe) | 17.00–20.00 |
| Sulfur (S) | ≤0.030 | Boron (B) | ≤0.010 |
| Chromium (Cr) | 20.50–23.00 | Nickel (Ni) | Balance |
Fine-Grain Control (ASTM No. 6)
Through controlled melting, forging and heat treatment, our Hastelloy X forgings achieve a uniform fine grain — measured at ASTM grain size No. 6 per ASTM E112 on the sample above — which supports:
- Higher strength: more grain-boundary area raises yield strength at room and elevated temperature
- Better fatigue life: good resistance to thermal fatigue and vibration in turbines
- Reliable ductility: high elongation retained under demanding service
- Strict phase control: 100% inspection — no mu-phase or continuous grain-boundary carbides

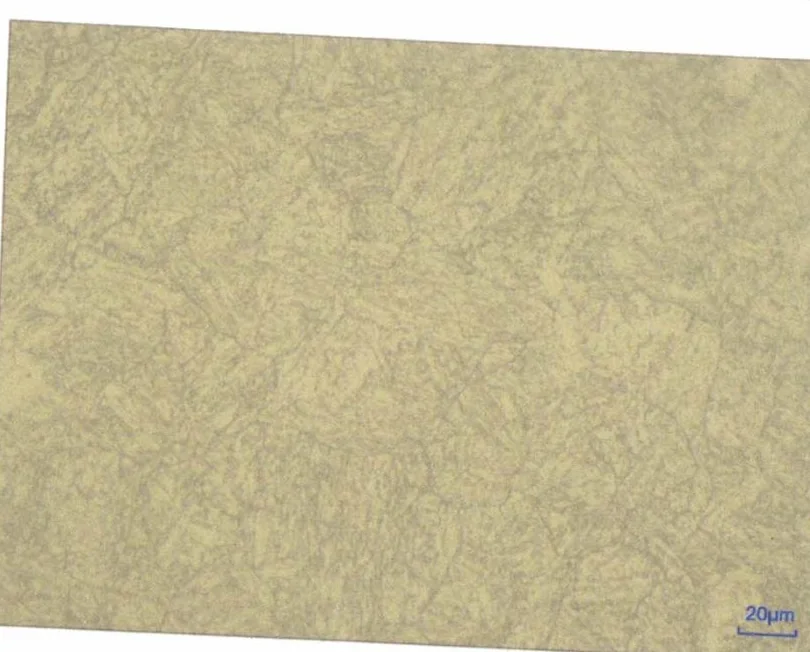

A uniform ASTM No. 6 grain size (per ASTM E112) is verified by metallographic testing on our Hastelloy X forgings, supporting consistent mechanical performance batch to batch. — Jiangsu Liangyi Metallurgical QA
Mechanical Properties
Hastelloy X Mechanical Properties (per AMS 5754)
| Nominal Thickness (in.) | Tensile (psi) | 0.2% Yield (psi) | Elongation (% in 2 in.) |
|---|---|---|---|
| 0.010 (exc)–0.020 (exc) | 105,000 | 45,000 | 29 |
| 0.020–0.187 (incl) | 105,000 | 45,000 | 35 |
| 0.187–2.000 (incl) | 100,000 | 40,000 | 35 |
| Over 2.000 | 95,000 | 40,000 | 35 |
| Nominal Thickness (in.) | Stress (psi) | Life (hrs) | Elongation (% in 2 in.) |
|---|---|---|---|
| 0.010–0.020 (exc) | 16,000 | 15 | 3 |
| 0.020 and over | 16,000 | 24 | 8 |
- Bend test: no cracking at room temperature (180°/150° per thickness, inspected at 20×)
- Grain size: ASTM No. 4 (finer) for ≤0.125 in; No. 3 for 0.125–0.188 in; No. 2 for 0.188–2.00 in (per ASTM B572)
- Metallography: total intergranular crack depth ≤0.0005 in (0.0127 mm), inspected at ≥500×
Quality Assurance
Testing & Production Standards
Every batch of UNS N06002 forgings is fully tested to client drawings and technical manuals. All results are documented in certified Mill Test Reports (MTR), supplied in triplicate per shipment.
Testing Standards
- ASTM E8 — Tension testing of metallic materials
- ASTM E38 — Chemical analysis of nickel–chromium alloys
- ASTM E112 — Average grain size estimation
- ASTM E139 — Creep and stress-rupture testing
- ASTM A370 — Mechanical testing of steel products
Production & Material Standards
- AMS 5754, AMS 5536 (UNS N06002)
- ASTM B572, ASME SB564
- Pratt & Whitney LCS F-17
- GE / Rolls-Royce / Pratt & Whitney specs — to customer requirement
- Rolls-Royce specifications · AMS 2269 (check analysis)
- EN 10204 3.1 mill certificates (3.2 via third party on request)
The specifications above are manufacturing and testing references we work to where required by the customer; listing them does not imply approval by, or affiliation with, the issuing organizations.
Certifications & Verifiable Documentation
ISO 9001:2015 Quality Management System
Certificate No.: 4469Q231026026RS
Issued by: The High Performance Assessment Ltd (HPA)
Accreditation: UKAS 4469 · IAF member
Scope: production of alloy steel, stainless steel, nickel alloy, titanium, copper and aluminium alloy materials and products
Valid: 26 Oct 2023 – 25 Oct 2026
Why Choose Us
Why Source Hastelloy X Forgings from Jiangsu Liangyi
- Professional forging expertise. Decades of experience in seamless rolled rings and superalloy open-die forgings, with long-term clients across the EU, USA, Southeast Asia and the Middle East. We also produce Inconel 617, Inconel 625 and Inconel 718 forgings.
- Full custom production. Components in custom shapes, sizes and specifications, made 100% to client drawings and technical manuals.
- Advanced melting. VIM/ESR and VIM/VAR routes ensure high purity and a uniform microstructure for stable performance in extreme service.
- Standards we work to. We manufacture and test to ASTM, AMS and ASME material specifications, and can work to GE, Rolls-Royce and Pratt & Whitney requirements where specified by the customer.
- Complete quality assurance. Full test reports per shipment, with EN 10204 3.2 certificates from third parties (SGS, BV, TUV) on request.
- Proven delivery. 2,000+ superalloy forgings in worldwide high-temperature, high-pressure service with long-term stable operation.
- Reliable logistics. 72-hour quotes, 15–30 day sea shipping from Shanghai / Ningbo, and expedited production for urgent orders.
FAQ
Frequently Asked Questions
How do your Alloy X forgings meet the GE B50A463 specification?
Where a customer specifies GE B50A463 for gas turbine parts, our Hastelloy X (UNS N06002) forgings can be produced and tested to its requirements through a controlled process:
- Melting control: VIM/ESR double melting with tight trace-element limits (P ≤0.020%, S ≤0.010%).
- Precision forging: minimum 3:1 forging ratio for critical parts and multi-directional forging for a uniform ASTM No. 4 (or finer) grain, eliminating porosity and segregation.
- Heat treatment: solution treatment to AMS 2750 at 1175 °C ±10 °C with controlled quench.
- Testing: 100% chemistry, room/high-temperature tensile, stress-rupture, grain size and UT/MT with zero rejectable defects.
- Traceability: full MTR from melting through finished part, including EN 10204 3.1 certificates.
What melting processes do you use for Hastelloy X?
We use VIM/ESR (Vacuum Induction Melting + Electro-Slag Remelting) or VIM/VAR (Vacuum Induction Melting + Vacuum Arc Remelting). These double-melting routes deliver superior purity, a uniform fine-grained microstructure and stable mechanical performance in extreme high-temperature, corrosive environments.
What is the lead time for custom Hastelloy X forgings?
Standard lead time is 15–30 days, depending on drawing complexity and size. Expedited production as short as 7–10 days is available for urgent orders.
Do you provide third-party inspection reports?
Yes. Every shipment includes original Mill Test Reports (MTR) covering chemical analysis, mechanical properties, heat-treatment records and non-destructive testing. Third-party inspection from SGS, BV or TUV is available on request.
What is the minimum order quantity (MOQ) for Hastelloy X forgings?
There is no strict MOQ. We accept single-piece prototype orders for R&D and qualification as well as full production volumes for ongoing projects.
What is the maximum size of your Hastelloy X forgings?
Open-die forgings up to 12,000 mm in length and 5,000 mm in diameter; seamless rolled rings up to 5,000 mm outer diameter. Custom oversized components are available on request.
Can you show proof of a real Hastelloy X delivery?
Yes. In May 2026 we supplied Hastelloy X (UNS N06002) forged & rolled shroud rings and spacer rings (OD 1075 × ID 1015 × H 68 mm, 5 pcs, VIM+ESR) to a major power-generation plant in India (customer confidential), certified to AMS 5754 Rev. P with an EN 10204 3.1 certificate (No. LY-MTC-2024-89072, heat HX24-0856). It passed hardness, stress-rupture (41.5 h at 816 °C / 15 ksi), 100% UT per AMS-STD-2154 Level A and dye-penetrant per ASTM E165. The certificate, heat-treatment chart, NDT photos and bill of lading are all shown in the case study above.
Technical Review
Reviewed for technical accuracy
Liu Mingru (刘明如) — Senior Metallurgical Engineer, Jiangsu Liangyi
Educated at Zhejiang University, with over 10 years (since 2016) in nickel-based superalloy forging, melting and metallographic quality control. This page was last reviewed on against ASTM B572, AMS 5754 and ASME SB564. View LinkedIn profile.
