📊 Key Facts: 32CrMo12 (1.7361) at a Glance
Grade: 32CrMo12 | EN Material No.: 1.7361 | Standard: EN 10083 | Quality: MQ (ISO 6336-5)
Tensile Rm >900 MPa | Yield Re >680 MPa | Elongation A >12% | Impact KV ≥20 J
Cr: 2.80–3.30% | Mo: 0.30–0.50% | C: 0.28–0.35% | Ni: ≤0.60%
Harden: 890–940°C (oil/polymer quench) → Temper: 550–740°C (air cool)
Jiangsu Liangyi Co., Limited | Est. 1997 | ISO 9001:2015 | Jiangyin, China | 50+ countries
30–30,000 KGS per piece | 120,000T/year capacity | Lead time: 2–8 weeks | MTC 3.1/3.2
About 32CrMo12 (1.7361) Chromium-Molybdenum Alloy Steel
32CrMo12 (material number 1.7361) is a high-strength, high-hardenability, high-fatigue-resistance chromium-molybdenum alloy steel. It has excellent comprehensive mechanical properties, good hardenability, good tempering resistance and good dimensional stability after heat treatment. Our 32CrMo12 forgings are the best choice for core load-bearing components under high-load, high-torque, high-impact and alternating stress working conditions.
Manufacturing Process & Quality Control
Our 32CrMo12 (1.7361) forging parts are produced with the following strict manufacturing process, and fully meet the EN 10083 standard:
- Steel Melting: Electric arc furnace (EAF) or oxygen blast converter + ladle treatment (LF) + vacuum degassing (VD/VOD)
- Raw Material Inspection: Radioactivity testing and chemical composition testing
- Open Die Forging: 0.75T/1T/3T/6T/9T electro-hydraulic forging hammer, 2000T/4000T/6300T hydraulic forging presses, and a reasonable forging ratio to improve grain structure
- Heat Treatment: Standardized hardening (890-940°C) + tempering (550-740°C), but can be changed to meet customer needs
- Machining (Optional): CNC machining, turning, milling, drilling, and grinding according to customer drawings
- Full Quality Inspection: Dimensional inspection, chemical composition analysis, mechanical property test, metallographic test, ultrasonic test (UT), magnetic particle test (MT), surface crack examination
- Packaging & Delivery: Anti-rust packaging, seaworthy packaging, complete Mill Test Certificate (MTC) 3.1/3.2
Chemical Composition of 32CrMo12 (1.7361)
The chemical composition of our 32CrMo12 (1.7361) forged parts strictly meets the requirements of EN 10083. We carry out element control to make sure their stable material properties.
| Element | Symbol | Content Range (%) |
|---|---|---|
| Carbon | C | 0.28 ~ 0.35 |
| Silicon | Si | ≤0.40 |
| Manganese | Mn | 0.40 ~ 0.70 |
| Phosphorus (Max) | P | ≤0.035 |
| Sulfur (Max) | S | ≤0.035 |
| Chromium | Cr | 2.80 ~ 3.30 |
| Molybdenum | Mo | 0.30 ~ 0.50 |
| Nickel (Max) | Ni | ≤0.60 |
Heat Treatment Specification & Mechanical Properties
To achieve optimal comprehensive mechanical properties, our 32CrMo12 (1.7361) forgings adopt standardized heat treatment process:
- Hardening: Austenitize at 890 – 940°C, quench in oil or polymer
- Tempering: Temper at 550 – 740°C, air cool
| Section Size | Tensile Strength (Rm) | Yield Point (Re) | Longitudinal Elongation (A) | Transverse Elongation (A) | Impact Resistance (KV20°C) |
|---|---|---|---|---|---|
| <160mm | >900 MPa | >680 MPa | >12% | >8% | >20 J |
| 160 – 330mm | >850 MPa | >630 MPa | >13% | >9% | >20 J |
| >330mm | >900 MPa | >680 MPa | >15% | >11% | >20 J |

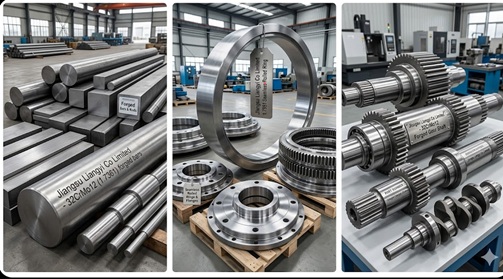

Custom 32CrMo12 (1.7361) Forging Products We Supply
We can customize various shapes and specifications of 32CrMo12 (1.7361) forging products according to your drawings, technical requirements and material standards. Our product range is listed below:
Reference price for all products shown below: USD 2.00 per kg.

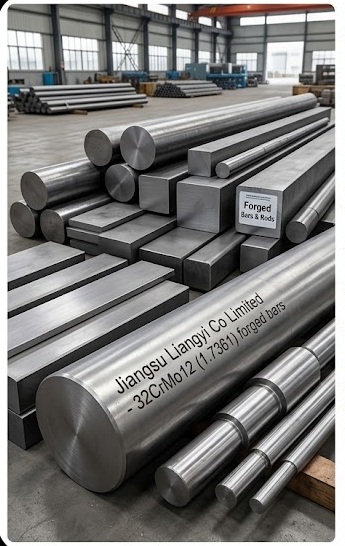

Forged Bars & Rods
Reference price: USD 2.00/kg
32CrMo12 forged round bars, square bars, flat bars, rectangular bars and step rods, with customizable size range, suitable for various industrial structural parts and machining blanks.
Request Quote for Bars →

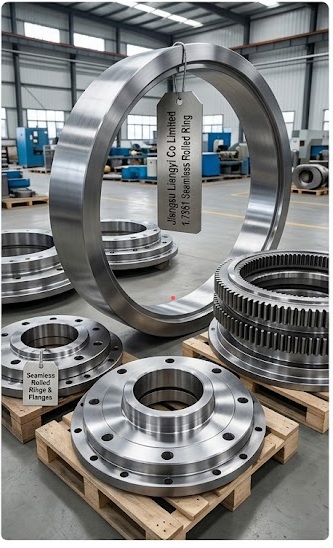

Seamless Rolled Rings & Flanges
Reference price: USD 2.00/kg
1.7361 seamless rolled rings, flanges, riding rings, gear rings and slewing bearing races, produced with 1m and 5m seamless rolling machines, with uniform structure and excellent mechanical properties.
Request Quote for Rings →

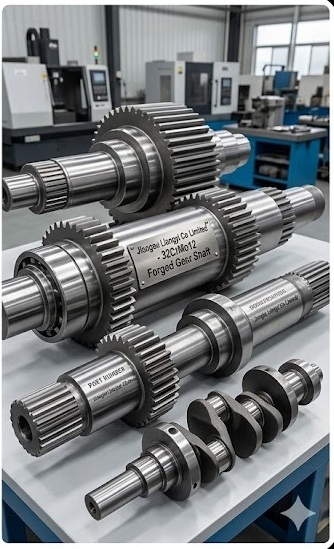

Forged Shafts & Gear Components
Reference price: USD 2.00/kg
32CrMo12 forged gear shafts, pinion shafts, spindles, eccentric shafts, crankshafts, gear wheels, pinions and ring gears, and they are suitable for various transmission systems.
Request Quote for Shafts →Additional Custom Forging Types
- Forged Housings, Sleeves & Bushes — Reference price: USD 2.00/kg
- Forged Discs, Plates & Blocks — Reference price: USD 2.00/kg
Industrial Applications of 32CrMo12 (1.7361) Forgings
Our 32CrMo12 (1.7361) forging parts have excellent comprehensive mechanical properties, high fatigue resistance and good hardenability, so they are used in many heavy industrial fields.
🏭 Sugar Mill
Gear shafts, pinion shafts, roller shafts, flanges and couplings
🏗️ Cement Plant
Rotary kiln pinion shafts, pull torque rods, riding gear rings
🌬️ Wind Power
Wind turbine gearbox gear shafts, ring gears and planetary gears
🚂 Transportation
Locomotive transmission shafts, truck ring gears, crane wheels
⚡ Energy
Hydro turbine shafts, gas compressor crankshafts, oil drilling tools
⛏️ Mining
Crusher eccentric shafts, excavator slewing bearing races, mine hoist shafts
🚢 Marine
Ship gear wheels, dragline swing shafts, dredger components
🌿 Environmental Protection
Flue gas desulfurization (FGD) atomizer shafts
⚙️ General Machinery
Gearboxes, reducers, hydraulic cylinders, conveyor pulleys
32CrMo12 (1.7361) Forging Parts Application Case Studies
Our 32CrMo12 (1.7361) forging parts are used in different industries and regions.The real application cases are listed below:
Case 1: 32CrMo12 Forged Gear Shafts for 5000 TCD Southeast Asian Sugar Mill
Client: Large-scale sugarcane mill in Thailand (5000 tons crushed per day)
Problem: Frequent fatigue fracture of main drive gear shafts made of ordinary alloy steel, causing 2-3 unplanned shutdowns per year, each lasting 3-5 days, resulting in millions of USD in losses.
Solution: Custom 32CrMo12 (1.7361) forged gear shafts, pinion shafts and roller shafts, produced in strict accordance with EN 10083 standard, with case hardening treatment, full ultrasonic test and surface crack examination.
Result: There were no failures after three years of continuous high-load operation (24/7 during the crushing season). The cost of maintenance went down by 78%, the efficiency of production went up by 12%, and the client has placed repeat orders for 8 years in a row.
Case 2: 1.7361 Forged Pinion Shafts for Chinese Cement Plant Rotary Kiln with a capacity of 5000 T/D
Client: A new dry process cement production line from a top 10 Chinese cement group can make 5000 tons of cement a day.
Problem: The main drive pinion shafts of the rotary kiln wear fast and need to be replaced every 18 months.
Solution: 1.7361 (32CrMo12) forged pinion shafts that are melted in an electric arc furnace, treated in a ladle, vacuum degassed, forged in an open die with a 6:1 forging ratio, and case-hardened ground
Result: The forgings work perfectly in high torque (1,200,000 N·m), high temperature (350°C) and dusty harsh working conditions. Service life increased by 42% (to 25.5 months), and the client is now a long-term strategic partner for us.
Case 3: 32CrMo12 forged parts for the gearboxes of 2.5MW European wind turbines
Client: A top German wind turbine OEM in Europe
Problem: The client needed forged parts for 2.5MW onshore wind turbine gearboxes that were highly reliable and durable, with strict MQ quality grade requirements (ISO 6336-5).
Solution: Custom 32CrMo12 (1.7361) forged planetary gears, ring gears, and gear shafts, with a full quality check and MTC 3.2.
Result: After quenching and tempering, the forgings have a low-temperature impact energy KV ₂₀ °C ≥ 22 J, which exceeds the customer's requirement of ≥ 20 J. We have sent more than 1,200 sets of these forgings for this project, and none of them were broken.
32CrMo12 (1.7361) vs 42CrMo4 (1.7225): Material Comparison
The table below shows the differences between 32CrMo12 (1.7361) and 42CrMo4 (1.7225) which are two common Cr-Mo alloy steels used in industrial forgings. Engineers can choose the right material by knowing how they are different.
| Property | 32CrMo12 (1.7361) | 42CrMo4 (1.7225) |
|---|---|---|
| Standard | EN 10083 | EN 10083 |
| Carbon (C) % | 0.28 – 0.35 | 0.38 – 0.45 |
| Chromium (Cr) % | 2.80 – 3.30 (Higher) | 0.90 – 1.20 |
| Molybdenum (Mo) % | 0.30 – 0.50 | 0.15 – 0.30 |
| Hardenability | Excellent (large sections >330mm) | Good (sections up to 160mm) |
| Tensile Strength (Rm) | >900 MPa (<160mm) | >900 MPa (<100mm) |
| ISO 6336-5 Grade | MQ (minimum) | MQ (minimum) |
| Typical Applications | Wind turbine gear shafts, sugar mill main shafts, large-section forgings | General engineering shafts, gearboxes, machine components |
| Best For | High-load, large cross-section, high-fatigue parts | General strength applications, smaller to medium sections |
Jiangsu Liangyi Co., Limited manufactures both 32CrMo12 and 42CrMo4 forgings. Contact our engineers to confirm the optimal material grade for your application: [email protected]
Frequently Asked Questions (FAQ) About 32CrMo12 (1.7361) Forgings
32CrMo12 (material number 1.7361) is a high-strength, high-hardenability chromium-molybdenum alloy steel. It is used for heavy-duty, high-load, high-torque and impact-resistant industrial including sugar mill gear shafts, pinion shafts and roller shafts; cement plant rotary kiln pinion shafts and riding gear rings; wind turbine gearbox gear shafts, ring gears and planetary gears; locomotive transmission shafts; crane wheels; hydro turbine shafts; gas compressor crankshafts; mining machinery crusher eccentric shafts; marine equipment gear wheels; and general industrial gearboxes, reducers and hydraulic cylinders.
Here is the standard heat treatment process for 32CrMo12 (1.7361) to get the best mechanical properties: 1.Hardening: Heat to 890–940°C and then cool in oil or polymer. 2.Tempering: Heat it up to 550–740°C and then let it cool in the air. We can also change the heat treatment settings according to your requirement.
Our 32CrMo12 (1.7361) forgings fully comply with EN 10083 standard, and the quality grade reaches at least MQ in accordance with ISO 6336-5 or DIN 3990-5. We also comply with other international standards including ASTM, AMS, AISI, API 6A, GE, DIN, EN and JIS upon customer request. We provide complete Mill Test Certificates (MTC) 3.1 or 3.2 with all test results.
The main differences between 32CrMo12 (1.7361) and 42CrMo4 (1.7225) are as follows: 1.Chemical Composition: 32CrMo12 has a lot more chromium (2.80–3.30% vs. 0.90–1.20%) and a little less carbon (0.28–0.35% vs. 0.38–0.45%). 2.Hardening: 32CrMo12 hardens better, so it can be used for bigger pieces (up to 330mm+).3.Uses: 32CrMo12 is better for heavy-duty, large-section, and high-fatigue jobs, like the main drive shafts of sugar mills and wind turbine gearboxes. 42CrMo4 is more common for general engineering uses.
1.Standard Products: 2–4 weeks. 2.Semi-Custom Products: 4–6 weeks. Complex Custom Products: 6–8 weeks. Jiangsu Liangyi can make 120,000 tons of products each year and can make forged steel products that weigh anywhere from 30 KGS to 30,000 KGS. Please send us your drawings, material needs, and quantity so we can give you a specific quote and lead time.
Jiangsu Liangyi Co., Limited is located at Chengchang Industry Park, Jiangyin City, Wuxi, Jiangsu Province, China (Postal Code: 214400). GPS coordinates: 31.9100°N, 120.2700°E. Our factory covers 80,000m² with 40M USD in fixed assets and 120,000 tons annual capacity. We are an ISO 9001:2015 certified manufacturer established in 1997, serving clients in 50+ countries.
The chemical composition of 32CrMo12 (1.7361) per EN 10083: Carbon (C) 0.28–0.35%, Silicon (Si) ≤0.40%, Manganese (Mn) 0.40–0.70%, Phosphorus (P) ≤0.035%, Sulfur (S) ≤0.035%, Chromium (Cr) 2.80–3.30%, Molybdenum (Mo) 0.30–0.50%, Nickel (Ni) ≤0.60%. The distinctively high chromium content (2.80–3.30%) is what gives 32CrMo12 its superior hardenability, making it the preferred choice over 42CrMo4 for large-section, high-load forgings.
Quality Control & Mill Test Certificate (MTC)
We check the quality of every batch of 32CrMo12 (1.7361) forging parts, from melting the raw materials to delivering the finished product. We have high-tech inspection tools in our factory, such as:
- Nondestructive Testing (NDT) Equipment: Ultrasonic test (UT) equipment, magnetic particle test (MT) equipment and liquid penetrant test (PT) equipment
- Chemical Composition Testing Equipment: Direct-reading spectrometer, carbon-sulfur analyzer and oxygen-nitrogen analyzer
- Mechanical Property Testing Equipment: Universal testing machine, impact testing machine and hardness tester (Rockwell, Brinell and Vickers)
- Metallographical Testing Equipment: A microscope and image analyzer for metallography
The following detailed contents will be fully provided in the Mill Test Certificate (MTC) 3.1 or 3.2 of finished 32CrMo12 forged steel:
- Heat number and melting type of the raw material
- Dimensional inspection report
- Detailed heat treatment cycle records
- Chemical analysis results including tramp elements
- Mechanical test results including hardness test (all individual values reported)
- Ultrasonic test results
- Surface crack examination results
- Visual inspection confirmation
- Verification inspection confirmation
- Results of additional tests required in the drawing or order
Contact Us for Custom 32CrMo12 (1.7361) Forging Solutions
Jiangsu Liangyi Co., Limited is your reliable 32CrMo12 forging parts manufacturer and supplier from Jiangyin, Wuxi, Jiangsu, China. We support OEM and ODM custom production, with fast delivery, strict quality control and a reference export price of USD 2.00/kg for all 32CrMo12 products listed on this page. Contact us today with your drawings, material requirements and quantity for a free quotation!
