AL-6XN (UNS N08367) Forged Parts — ISO-Certified Manufacturer & Supplier In China
Jiangsu Liangyi is a leading ISO 9001:2015 certified manufacturer of high-quality AL-6XN (UNS N08367) forged parts. Our main products are open die forgings, seamless rolled rings, and custom forged parts. With over 27 years of experience in the forging industry, we can provide great austenitic stainless steel forgings that meet the most strict industries’ need.
Our AL-6XN (UNS N08367) forged parts are produced using an advanced triple melt process (VIM + ESR + VAR) to get great material purity, uniform microstructure, and good corrosion resistance. Suitable for hard environments like high chloride concentrations, acids, and extreme temperatures. Our forgings are widely used in oil & gas, nuclear power, desalination, chemical, and marine industries worldwide.

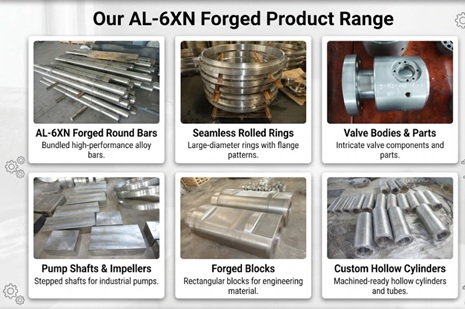

Our AL-6XN Forged Product Range
AL-6XN Forged Round Bars

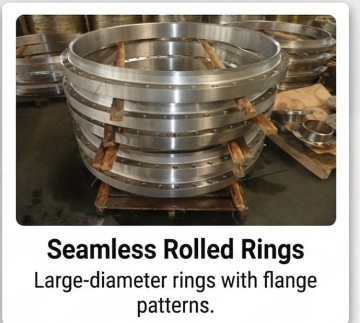

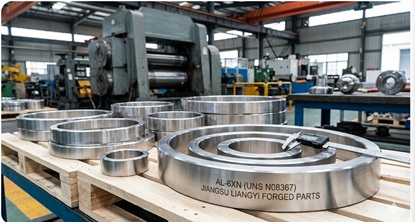

Seamless Rolled Rings
Forged Flanges & Fittings
Valve Bodies & Parts

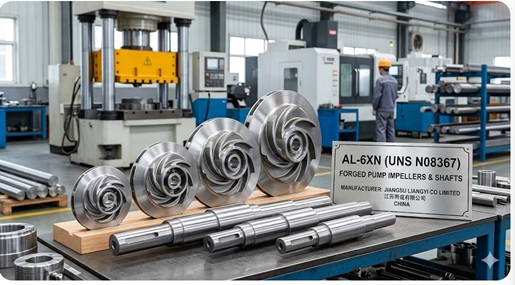

Pump Impellers & Shafts
Custom Forged Parts
AL-6XN (UNS N08367) Chemical Composition
| Element | Cr | Ni | Mo | N | C | Si | Mn | P | S | Cu | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Content (%) | 20.0-22.0 | 23.5-25.5 | 6.00-7.00 | 0.18-0.25 | Max 0.030 | Max 1.00 | Max 2.00 | Max 0.040 | Max 0.030 | Max 0.75 | Balance |
Swipe horizontally to view full table
Mechanical Properties (Solution Annealed Condition)
| Mechanical Property | Minimum Value | Unit |
|---|---|---|
| Tensile Strength (Rm) | 650 | MPa |
| 0.2% Proof Yield Strength (Rp0.2) | 275 | MPa |
| Elongation at Break (A50) | 35 | % |
| Reduction of Area (Z) | 50 | % |
| Maximum Brinell Hardness | 250 | HB |
Swipe horizontally to view full table
Main Features of AL-6XN (UNS N08367) Forgings
- Great resistance to chloride pitting and crevice corrosion with a PREN value > 42
- Good mechanical properties at both room and elevated temperatures up to 450°C
- Good weldability with minimal post-weld heat treatment required for most uses
- High strength and toughness for high-required structural and pressure-containing uses
- Good resistance to stress corrosion cracking (SCC) in hard chemical and marine environments
- Good triple melt to get good material purity, uniform microstructure, and consistent
- Full accordance with international standards including ASTM A479, ASTM A182, EN 10088, and API 6A
- Full set of traceable materials from raw material melting to final delivery
Main Industrial Uses
- Offshore oil & gas platforms, subsea equipment, and christmas tree systems
- Seawater desalination plants (RO systems, heat exchangers, pressure vessels)
- Nuclear power plant primary and secondary system parts
- Chemical processing equipment including reactors, storage tanks, and piping systems
- Flue gas desulfurization (FGD) systems for thermal power plants
- Marine propulsion systems, shipbuilding parts, and offshore structures
- Pharmaceutical and food processing equipment requiring high purity and good corrosion resistance
- Wastewater treatment and industrial pollution control equipment
Production & Quality Standards
Full In-House Production Equipment
- Smelting Facilities: 30t Electric Arc Furnace (EAF), 30t Ladle Refining Furnace (LF), Medium Frequency Induction Melting Furnace, 30t Vacuum Oxygen Decarburization Furnace (VOD)
- Forging Equipment: 2000T Fast Forging Hydraulic Press, 4000T Hydraulic Press, 6300T Hydraulic Press, 5T & 3T Electro-hydraulic Forging Hammers, 1M & 5M Seamless Ring Rolling Machines
- Heat Treatment Equipment: 18M Semi-automatic Heat Treatment Furnaces, 16M Quenching Tanks, Hydrogen Bake-out Furnaces up to 14M
- Testing & Inspection Equipment: Metallography Microscope, Universal Mechanical Testing Machine, High Temperature Creep Tester, Full Non-Destructive Testing (NDT) Equipment
Quality & Standards
- Great Melting: Vacuum Induction Melting (VIM) + Electroslag Remelting (ESR) + Vacuum Arc Remelting (VAR) Triple Melt Process
- Quality Certifications: ISO 9001:2015, EN 10204 3.1/3.2, TÜV, DNV, ABS, Lloyd's Register
- Material Standards: ASTM A479, ASTM A182, ASTM A240, EN 10088-1, EN 10250-4, API 6A
- Non-Destructive Testing: Ultrasonic (UT), Magnetic Particle (MT), Liquid Penetrant (PT), Radiographic (RT) Testing
- Full Inspection: 100% Size Inspection, Mechanical Testing, Chemical Composition Analysis, and Microstructure Inspection
Check our production capabilities on our Equipment page, and our global case references on our Project Reference page.
AL-6XN vs. 316L Stainless Steel vs. Hastelloy C-276
When choosing corrosion-resistant alloys for hard environments, AL-6XN (UNS N08367) offers an good balance of corrosion and cost efficiency compared with common alternatives:
| Property | AL-6XN (N08367) | 316L SS | Hastelloy C-276 |
|---|---|---|---|
| PREN Value | 42–43 | ~24 | ~73 |
| Ni Content (%) | 23.5–25.5 | 10–14 | ~57 |
| Mo Content (%) | 6.0–7.0 | 2.0–3.0 | 15–17 |
| Min. Tensile Strength | ≥650 MPa | ≥485 MPa | ≥690 MPa |
| Seawater Resistance | Excellent | Limited | Great |
| Relative Cost | Medium-High | Low | Very High |
| Main Uses | Desalination, Offshore, FGD | General Industrial | Severe Acid/Chloride |
← Scroll horizontally on mobile →
Reference: ASTM International standards; ATI Allegheny Ludlum AL-6XN Alloy Datasheet.
Frequently Asked Questions (FAQ)
Our AL-6XN (UNS N08367) forged parts are produced as per ISO 9001:2015. Material test reports are provided per EN 10204 3.1 (standard) or 3.2 (third-party witnessed) certification. We are also in accordance with ASTM A479, ASTM A182, and API 6A requirements for oil & gas and pressure vessel uses.
AL-6XN (UNS N08367) has a PREN (Pitting Resistance Equivalent Number) of 42+, much better than 316L stainless steel (PREN ~24). Hastelloy C-276 offers higher corrosion resistance (PREN ~73), AL-6XN provides a more cost-effective solution for seawater desalination, offshore platforms, and FGD systems where medium corrosion resistance is enough.
Jiangsu Liangyi makes AL-6XN (UNS N08367) forged parts from 30 kg to 30,000 kg per piece. Details as below: forged bars up to OD 800mm, seamless rolled rings from OD 200mm to 3,000mm, and custom open die forgings per customer drawings. Standard lead time is 8–12 weeks depending on the complexity and quantity.
Request a Custom Quote for AL-6XN (UNS N08367) Forged Parts
We provide custom AL-6XN (UNS N08367) forging solutions to meet your specific requirements. Our engineering team can work with your drawings and technical manuals to deliver high-quality forgings that meet your exact project needs.
