Professional Incoloy 926 Forging Capabilities
Jiangsu Liangyi Co., Limited is an ISO 9001:2015 certified professional Chinese manufacturer and supplier of high-quality Incoloy 926 (or Alloy 926, also referred to as UNS N08926) open die forging and seamless rolled forged rings. Jiangsu Liangyi Co., Limited was founded in 1997. With more than 25 years of experience in manufacturing forged products, a modern factory (80,000㎡), and a production capacity of 120,000 tons per year, we could supply forgings Alloy 926 material from melting, forging, heat treatment, and final machining as per all clients' drawings all around the world.
Our UNS N08926 forged bars are manufactured by a minimum forging ratio of 3:1 for this super austenitic stainless steel to make sure that all our raw materials have superior integrity, refined grain structure, and great mechanical properties. We could supply a full manufacturing process from melting, forging, heat treatment, and final machining according to customer drawings and technical specifications. Production capacity ranges from 30KGS to 30,000KGS per one forged piece.
Incoloy 926 forgings are exported to more than 50 countries, including North America, Europe, the Middle East, Asia Pacific, and South America for clients in chemical plant,oil gas field company, Marine & Offshore company around the world.
Our workshop has advanced Incoloy 926 forging equipment and ISO 17025 inspection facilities to guarantee the best quality of each part forged, such as 6300T hydraulic presses, 5M seamless rolling machines and ISO 17025 accredited testing laboratories.
Our Incoloy 926 Forging Product Range
Full Range of Custom Incoloy 926 Forging Products
We can manufacture a wide range of custom Incoloy 926 forged components in the shape, size, and drawing as per different clients need. The basic product capabilities we have are:
Incoloy 926 Forged Bars & Shafts
Forged round bars, square bars, flat bars, rectangular bars, step shafts, gear shafts, and custom profile rods are used in machinery, valves, turbines. The bars are produced by strict control of the grain size and the homogeneous mechanical properties.

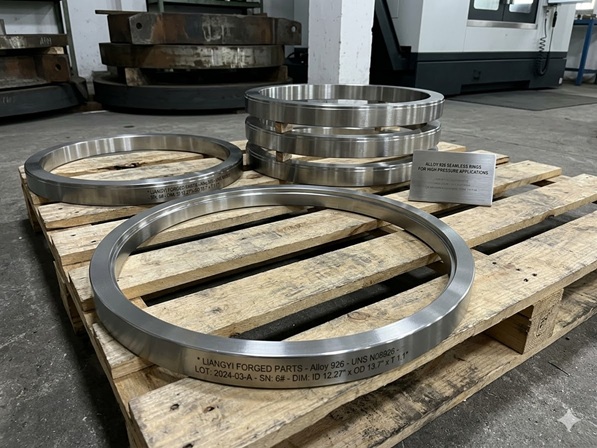

Alloy 926 Seamless Rolled Rings
Seamless Rolled rings, gear rings, flanges, custom seamless ring forgings for pressure vessel, valve, wellhead equipment, and rotating equipment ring-shaped components. Our advance rolling technology make sure that all our delivery rolled rings have great strength and make them suitable for high-pressure and highly corrosive environments.

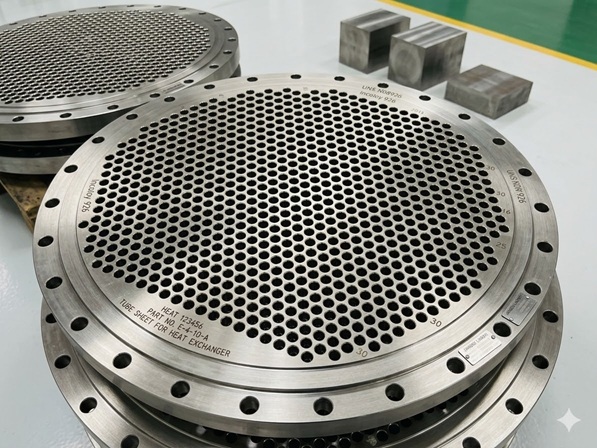

UNS N08926 Forged Discs, Blocks & Plates
Forged discs, blocks, plates, tube sheets, and baffles are used in heat exchangers, pressure vessels, and other process equipment. We also offer final machining as per different clients' needs.
Incoloy 926 Custom Forged Hollow Parts & Housings
Forged hubs, housings, shells, sleeves, bushes, casings, hollow bars, pipe tubes, tubing, components of reactor and pump barrels, hollow forgings, custom forged hollows, and custom hollow forgings to processes, wellhead equipment, pumps, reactors and wellhead equipment.
We also produce a wide range of other nickel alloy forgings, stainless steel and carbon steel forged components to satisfy your entire project requirements in the industry.
Get Your Custom Incoloy 926 Forgings & Custom Forging Quote
Send us your CAD drawings and technical requirements, and we will provide a detailed, best price within 24 hours.
Request a Free Quote NowMaterial Properties & Technical Specifications
Incoloy 926 is a high-quality super austenitic stainless steel (also known as 6Mo or 6-moly alloy in the industry), which has 6% molybdenum and controlled nitrogen content to provide high corrosion resistance and high mechanical strength. Its balanced nickel and chromium composition make sure that this material has excellent performance in highly corrosive industrial environments, and has a good non-oxidising acid resistance towards sulfuric and phosphoric acid.
Its high levels of molybdenum and nitrogen give it excellent resistance to pitting and crevice corrosion, which is highly resistant even to the chloride environment, and the copper addition additionally makes sure that this material has great resistance to reducing acids, such as sulfuric acid. This is why Incoloy 926 is the best material to be used in critical industrial applications where normal stainless steels do not perform.
Chemical Composition of Incoloy 926 (UNS N08926)
| Element | Standard Content Range |
|---|---|
| Nickel (Ni) | 24.0% - 26.0% |
| Chromium (Cr) | 20.0% - 21.0% |
| Molybdenum (Mo) | 6.0% - 7.0% |
| Iron (Fe) | Balance |
| Carbon (C) | Max 0.02% |
| Manganese (Mn) | Max 1.0% |
| Silicon (Si) | Max 0.5% |
| Copper (Cu) | 0.5% - 1.5% |
| Nitrogen (N) | 0.15% - 0.25% |
| Phosphorus (P) | Max 0.03% |
| Sulfur (S) | Max 0.01% |
Mechanical Properties (Standard Delivery Condition)
| Mechanical Property | Minimum Guaranteed Value |
|---|---|
| Tensile Strength (Rm) | 600 MPa |
| Yield Strength (Rp0.2) | 300 MPa |
| Elongation (A5) | 40% |
| Hardness (Brinell) | Customizable per project requirements |
Incoloy 926 vs. Comparable Alloys — Why Choose UNS N08926?
When selecting materials for corrosion-critical industrial applications, Incoloy 926 (UNS N08926) is always the best choice material comparing to other grade material. The table below compares key properties against 316L stainless steel and 904L to help engineers make the right material selection decision.
| Property | Incoloy 926 (UNS N08926) | 904L (UNS N08904) | 316L (UNS S31603) |
|---|---|---|---|
| Molybdenum Content | 6.0–7.0% | 4.0–5.0% | 2.0–3.0% |
| Nickel Content | 24.0–26.0% | 23.0–28.0% | 10.0–14.0% |
| Nitrogen Addition | 0.15–0.25% (controlled) | None | None/Low |
| PREN (Pitting Resistance) | >40 | ~34 | ~24 |
| Min. Tensile Strength | 600 MPa | 490 MPa | 485 MPa |
| Sour Service (NACE MR0175) | Excellent | Good | Limited |
| Sulfuric Acid Resistance | Superior | Good | Moderate |
| Nuclear Grade Applications | Yes | Limited | No |
Why Choose Jiangsu Liangyi as Your Incoloy 926 Forging Partner
Complete Traceability & Quality Control
Full MTC 3.1/3.2 certification of all batches, 100% traceability of materials from melting, forging, heat treatment to finished products, and strict NDT inspection by certified operators.
Complete OEM Services
Forging to final machining production, supporting custom size, 30kgs to 30,000kgs per piece, 100% according to your own CAD drawings and specifications.
Experience in the Industry
High-performance alloy forging experiences (25 years), 80,000㎡ modern production facility, 120,000 tons per year capacity, with customers in 50 different countries across the world.
International Standards
The products are certified by ISO 9001:2015, and are 100% produced as per ASTM, API 6A, and AMS, DIN and EN standards and are third-party inspected by BV, SGS, TUV, and Lloyds Register.
Industry Applications & Global Project Case Studies
Our Incoloy 926 forged products have many applications where need very high corrosion, high strength and predictable service life over long periods are required in hostile conditions. Our main areas of application and delivery international project case studies are as follows:
Basic Areas of Industry Applicability
- Components of chemical processing and power generation: boiler, heat exchanger, pressure vessel, and reactor components
- Onshore and offshore sour service oil and gas upstream and midstream equipment
- Valves (ball valve, check valve, gate valve, butterfly valve)
- Components of nuclear power generation company
- Heat power generation system: Gas and steam turbines
- Corrosive fluid handling, Industrial pumps manufacturing
- Marine and offshore engineering, desalination plants, and fertiliser plant
Verified Global Project Case Studies
Case Study 1: High H2S Deep-Water Wellhead Equipment (Gulf of Mexico, USA)
In a project to supply custom Incoloy 926 forged wellhead components to a large offshore oil and gas company in the Gulf of Mexico, we provided casing heads, tubing spools, Christmas tree bodies and adapter flanges. The 6 percent molybdenum alloy provided outstanding pitting, crevice corrosion and sulfide stress cracking resistance in the HTHP sour service operating conditions. Components were all 100% API 6A qualified
Case Study 2: Nuclear Reactor Coolant Pump Components (East Asia)
We have produced super Alloy 926 forged impellers, pump casings, seal chambers and rotor shafts in East Asian third-generation PWR nuclear power plants. Its excellent resistance to corrosion in reactor coolant, high level of mechanical strength over high temperatures and long-time creep characteristics made it the best choice of safety-critical systems. Forgings are produced in high quality to meet the strict nuclear standards.
Case Study 3: Acid Processing Heat Exchanger Parts (Southeast Asia)
For a large fertilizer plant in Southeast Asia, we supplied UNS N08926 forged tube sheets, baffles, channel flanges, reactor nozzles, and pressure vessel shells. The alloy’s copper addition and high chromium/nickel content provided superior resistance to sulfuric and phosphoric acid, even at high concentrations. The components have long lifetime by over 300% and reduced maintenance time.
Case Study 4: Industrial Valve & Pump Components (Europe & North America)
Our products include custom Incoloy 926 forged valve balls, bodies, stems, seat rings, and pump impellers to major world OEMs in Germany, the USA and the UK, in LNG, cryogenic and high-pressure pipeline service. The consistent mechanical properties and corrosion resistance of the material can guarantee the stable operation of the material under severe temperature and pressure variations, with all components produced as per API 6D .
See further our references and success cases of our Incoloy 926 global project references and case studies in different industries.
Quality Control & Testing Standards
We have fully highly advanced inspection facilities and ISO-9001 quality control procedures so that all Incoloy 926 forging parts are produced as per your clients technical manual or international production standards. Following are all the tests that we will perform:
- Chemical analysis lab (actual testing on the composition of steel heats)
- Tensile, impact, creep, and hardness testing lab of mechanical property
- ISO 17025 certified metallurgical laboratory on structural analysis and grain size testing
- Non-destructive testing (NDT), including UT, MT, PT, and RT, performed by certified operators
- Full batch testing and dimensional inspection
Our mill test certificates (MTC) 3.1/3.2 are available to any batch of forgings and full traceability of the raw material to the final product.
International Standards
All our Alloy 926 forged components meet the international production standards in following:
- ASTM, AMS, API 6A, DIN, EN (EN 10272), JIS industry standards
- ASTM E10-12, ASTM A370-12, ASTM E23-07a testing standards
- AMS 2315G, ASTM E45-05, ASTM E112-10 metallurgical standards
Marking & Full Material Traceability
We ensure 100% complete material traceability from raw material melting to the final forged component of any UNS N08926 forging part that we make, including the raw material melt and the finished part. Every completed part is permanently and distinctly stamped with the following words:
- Part number, drawing number of purchaser
- Purchaser's purchase order number
- Full batch traceability unique identification number
- heat number of complete material traceability
- The marking of our company and the material grade in our company logo
All marks are made by white paints which are durable to make them readable in the service life of the component.
Frequently Asked Questions
Incoloy 926 (or Alloy 926, UNS N08926) is a super-austenitic stainless steel that is 6 percent molybdenum and is added with nitrogen, and provides the best corrosion resistance, strength, and performance in severe corrosive service environments, such as sour oil and gas services, chemical processing, and nuclear power applications. It has better performance in chloride-containing and acidic conditions as compared to the normal 316L stainless steel.
All our Incoloy 926 forged bars are manufactured with minimum 3:1 forging ratio, which make sure that all our raw materials have high integrity, uniform grain structure and best mechanical properties. We are able to do forging ratios up to 6:1 where necessary in the nuclear and critical sour service industry.
Yes, we offer full production services of raw material forging, heat treatment and final machining, based on your CAD-drawings and technical requirements. Our machine shop consists of CNC lathes, machining centres, and machining mills to produce finished parts as per clients' drawings.
The normal manufacturing lead time of Incoloy 926 forgings is 20-35 days, depending on different clients' drawings, size and quantity. In the case of urgent order needs, we will be able to offer fast production time as short as 10-15 days, depending on material availability.
Yes, we can also supply third-party inspection services by third parties like BV, SGS, TUV and Lloyds Register as per different client needs and ask them to release EN 10204 3.2 certificate to clients.
We offer full mill test certificates (MTC) 3.1/3.2 for all UNS N08926 forgings, including chemical analysis of composition, mechanical property test, non-destructive testing report, heat treatment record and traceability record.
Incoloy 926 (UNS N08926) contains 6% molybdenum versus 4.5% in 904L, plus controlled nitrogen additions (0.15-0.25%). This gives Alloy 926 a PREN value >40 (vs ~34 for 904L), significantly better chloride pitting resistance, superior crevice corrosion resistance, and higher strength at elevated temperatures. Incoloy 926 is the best choice material for sour service oil & gas, nuclear, and highly corrosive chemical environments compared with 904L stainless steel.
Yes. We regularly supply API 6A qualified Incoloy 926 (UNS N08926) forged components for wellhead and Christmas tree applications, including casing heads, tubing spools, flanges, and adapter flanges. All components are produced and tested to full API 6A requirements, with full document including MTC 3.1/3.2, NDT reports, dimensional reports, and heat treatment records.
We export Incoloy 926 (Alloy 926, UNS N08926) forgings to more than 50 countries, including the USA, UK, Germany, Netherlands, France, Norway, Canada, Australia, UAE, Saudi Arabia, Qatar, Singapore, Japan, South Korea, India, and Brazil. Every export package is as per international shipping standards. Furthermore, we offer a full range of shipping services, including sea and air shipment, as well as door-to-door delivery.
Inquire About Our Incoloy 926 Forgings Today
Jiangsu Liangyi Co., Limited is your trusted ISO-certified Chinese manufacturer and supplier of high-quality Incoloy 926 forged parts. We offer custom OEM solutions, competitive pricing, fast lead times, and full technical support for global customers across 50+ countries. Contact us with your drawings and specific requirements for a detailed, fast quotation.
