Introduction to 30CrMoV9 (1.7707) Forging Manufacturer
Jiangsu Liangyi has over 25 years of experience in producing 30CrMoV9 (also known as 30 CrMoV 9, 1.7707) open die forging parts and seamless rolled steel forged rings. Our customers are across heavy industries, we supplied them with high-quality, custom-forged steel parts per EN 10083 and other international standards.
Our factory is located in Jiangyin City, Jiangsu Province, China — one of the leading forging industrial bases in China. It covers an area of 80,000㎡. We have the most advanced forging, heat treatment and testing equipment to make sure that every 30CrMoV9 forged part we produce can meet the highest quality standards. Our annual production capacity reaches 120,000 tons so we can handle both small-batch custom orders and mass production.
30CrMoV9 (1.7707) Forged Steel Product Range
We manufacture a full range of 30CrMoV9 (1.7707) forged steel products in custom sizes and shapes to meet your requirements:

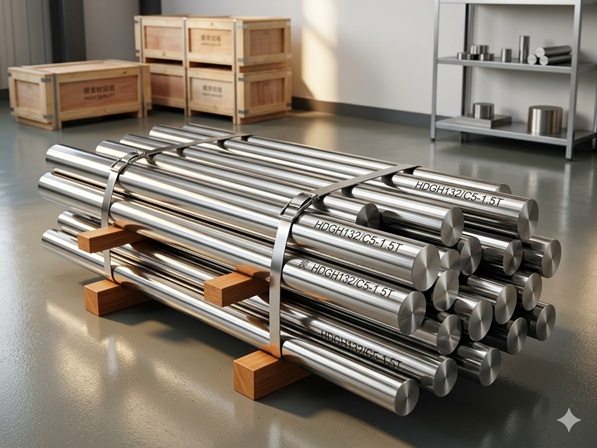

30CrMoV9 Forged Bars & Rods
Round bars, square bars, flat bars, rectangular bars, and solid rods in diameters up to 1,500mm and custom sizes.Different lengths and surface finishes.

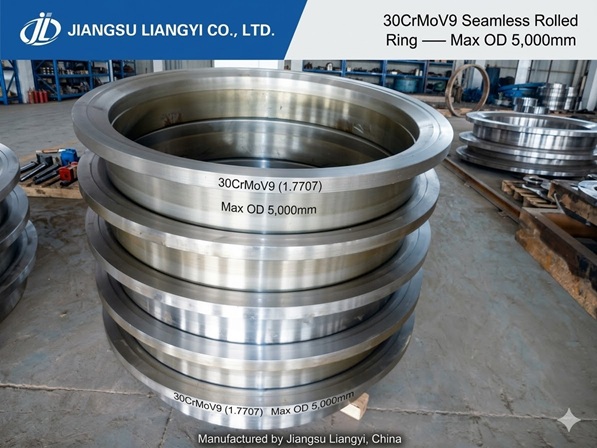

30CrMoV9 Seamless Rolled Rings
Seamless rolled rings, riding rings, gear rings, and bearing races with outer diameters up to 5,000mm for heavy industrial equipment. Great for high-load uses.

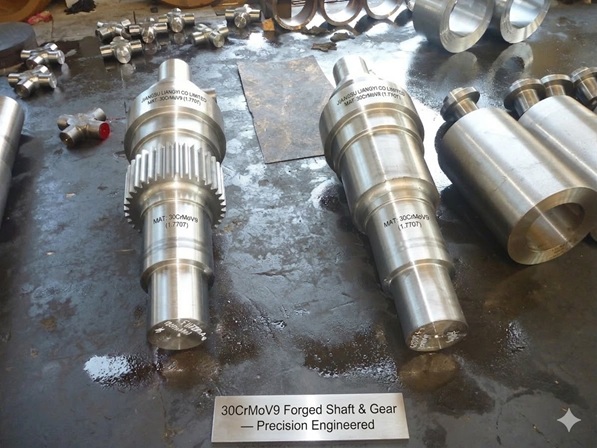

30CrMoV9 Forged Shafts & Gears
Gear shafts, pinion shafts, spindles, gear wheels, pinions, step shafts, and rotary shafts for different power transmission systems. Precision engineered for good performance.

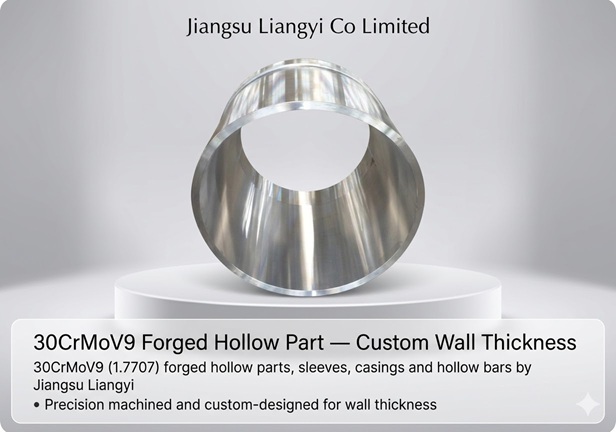

30CrMoV9 Forged Hollow Parts
Hubs, housings, shells, sleeves, bushes, casings, hollow bars, pipes, tubes, and barrel parts in custom wall thicknesses. Ideal for weight-sensitive uses.

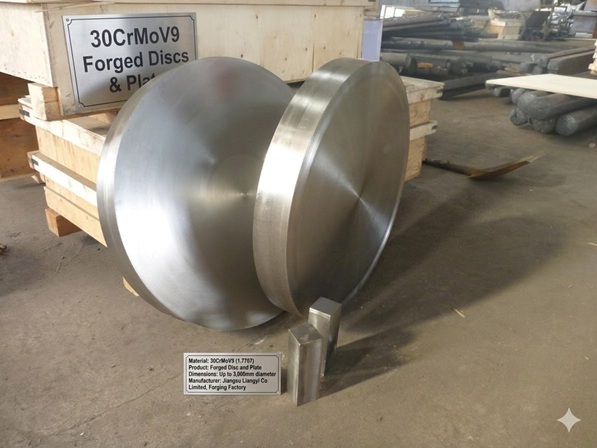

30CrMoV9 Forged Discs & Plates
Solid discs, disks, blocks, plates, and valve bodies in custom thicknesses and diameters up to 3,000mm. Suitable for pressure vessel and structural uses.

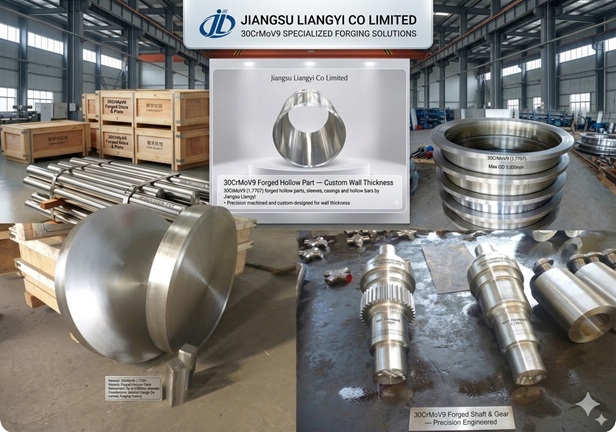

30CrMoV9 Custom Forgings
Special-shaped custom forged parts manufactured according to your drawings and technical manuals. Our engineering team provides full design support.
30CrMoV9 (1.7707) Material Overview
30CrMoV9 (material number 1.7707) is a high-performance nitriding steel with a minimum of 2.3% chromium, 0.15% molybdenum, and 0.1% vanadium as main strengthening elements. This balanced alloy composition makes it has good wear resistance, high fatigue strength, good toughness, and great size stability after heat treatment.
Due to its great properties, 1.7707 steel is widely known as the best material for heavy-duty, high-load parts used in the automotive industry, general mechanical engineering, power generation, mining, and oil & gas industries. The material keeps its mechanical properties even at elevated temperatures which makes it suitable for harsh environments.
Production & Manufacturing for 30CrMoV9 Steel
Our 30CrMoV9 forging parts are made strictly in accordance with EN 10083 standards. The steel making and production process is strict as below:
- Primary Melting: Electric arc furnace (EAF) or blast furnace with oxygen blast converter, and later ladle refining treatment to get great steel cleanliness
- Vacuum Degassing:VOD vacuum degassing treatment to get great steel purity and reduce the content of hydrogen, oxygen, and nitrogen
- Non-Radioactive Guarantee: All production batches are certified non-radioactive with full test
- Quality Grade: Minimum quality class MQ in accordance with ISO 6336-5 or DIN 3990-5 standards for gear uses
- Forging: Open die forging is carried out using a 2,000-6,300-ton hydraulic press and a 0.75-9-ton electro-hydraulic hammer to get the best grain flow
- Heat Treatment: Full in-house heat treatment includes soft annealing, hardening, tempering, and nitriding
- Machining:Precision machining to finished sizes according to customers' drawings using CNC equipment
30CrMoV9 Chemical Composition (1.7707 Steel Grade)
The chemical composition of our 30CrMoV9 (1.7707) forged steel strictly meets EN 10083 standards, with the following elemental ranges (by weight %):
| Element | Symbol | Content Range (Weight %) |
|---|---|---|
| Carbon | C | 0.26 – 0.34 |
| Silicon | Si | Max 0.4 |
| Manganese | Mn | 0.4 – 0.7 |
| Nickel | Ni | Max 0.6 |
| Phosphorus | P | Max 0.035 |
| Sulfur | S | Max 0.035 |
| Chromium | Cr | 2.3 – 2.7 |
| Molybdenum | Mo | 0.15 – 0.25 |
| Vanadium | V | 0.1 – 0.2 |
30CrMoV9 Heat Treatment Methods
We do full in-house heat treatment for 30CrMoV9 (1.7707) forged parts, with precise control to get your required mechanical properties:
- Soft Annealing: Heat to 650–720℃,cool slowly in furnace to get a maximum Brinell hardness of 248 HB to improve the machinability and eliminate the stress
- Hardening: Austenitize at 870–930℃, followed by oil/polymer or water quenching to get full hardness and martensitic structure
- Tempering: Tempering temperature range of 580–700℃, correctly adjusted to get the best balance of strength, toughness, and ductility for special uses
- Nitriding: By Gas/salt bath nitriding at 570–580℃ or powder/plasma nitriding at 580℃ to get great surface hardness (up to 1,000 HV) and good wear resistance with minimal distortion
Mechanical Properties of 30CrMoV9
Our 30CrMoV9 (1.7707) forging raw material can get the following minimum mechanical properties after standard heat treatment (quenching and tempering):
- Tensile Strength (Rm): > 800 MPa (ultimate tensile strength,the material can withstand the maximum stress before fracture)
- Yield Strength (Rp0.2): > 590 MPa (proof strength at 0.2% plastic deformation, the stress at which permanent deformation begins)
- Elongation (A): > 8% (ductility measurement, indicating how much the material can stretch before breaking)
- Impact Resistance (KV): > 20 J (Charpy V-notch impact toughness at room temperature, measuring the material's ability to absorb energy during fracture)
We can get custom mechanical properties with correct heat treatment. Our metallurgical engineers can develop custom heat treatment methods to get properties for your unique operating conditions.
30CrMoV9 vs 42CrMo4 vs 34CrNiMo6 — Material Comparison
What make the difference between 30CrMoV9 (1.7707) and other alloy steel grades? The table below provides a direct comparison to help you choose the right material for your use:
| Property | 30CrMoV9 (1.7707) | 42CrMo4 (1.7225) | 34CrNiMo6 (1.6582) |
|---|---|---|---|
| Steel Type | Nitriding alloy steel | Chromium-molybdenum steel | Nickel-chromium-molybdenum steel |
| Tensile Strength | > 800 MPa | > 900 MPa | > 1000 MPa |
| Yield Strength | > 590 MPa | > 700 MPa | > 800 MPa |
| Surface Hardness (after nitriding) | 700–1000 HV (excellent) | 400–600 HV (moderate) | 500–700 HV (good) |
| Nitriding Suitability | ⭐⭐⭐⭐⭐ Excellent | ⭐⭐⭐ Moderate | ⭐⭐⭐ Moderate |
| Wear Resistance | ⭐⭐⭐⭐⭐ Great | ⭐⭐⭐ Good | ⭐⭐⭐⭐ Very Good |
| Core Toughness | ⭐⭐⭐⭐ Very Good | ⭐⭐⭐⭐ Very Good | ⭐⭐⭐⭐⭐ Excellent |
| Size Stability | ⭐⭐⭐⭐⭐ Great | ⭐⭐⭐ Moderate | ⭐⭐⭐ Moderate |
| Main Standard | EN 10083-3 | EN 10083-3 | EN 10083-3 |
| Main Uses | Gear shafts, nitrided rings, pinion shafts | Gears, crankshafts, axles | High-load shafts, turbine parts |
30CrMoV9 is the best choice for industries which require good surface hardness with minimal distortion after heat treatment—such as precision gear shafts, wind turbine shafts, and mining equipment parts.Contact our engineers to get a suggestion on material choice for your special need.
30CrMoV9 Forged Parts Uses & Cases
Our 30CrMoV9 (1.7707) forging parts are widely used in heavy industries and they are working well in the following main uses:
Sugar & Cement Industry Heavy-Duty Drive Parts
We supply precision 30CrMoV9 forged gear shafts, pinion shafts, and roller shafts for leading global sugar mills and cement plants. Our case-hardened ground pinion shafts for cement mill rotary kilns can work well in torque and abrasive working conditions, while our sugar mill main drive shafts has great wear resistance for 24/7 heavy-load. We also provide custom riding gear rings for granulators, rotary dryers, and coolers, as well as high-strength pull torque rods for cement plant.
Renewable Energy Power Generation Parts
30CrMoV9 forged parts are widely used in global renewable energy systems, including precision gear shafts, ring gears,main shafts for wind turbine gearboxes, and heavy-duty hydro turbine main shafts. The great nitriding steel properties make it has great fatigue resistance, size stability, and long service life under load and different speed conditions which make it the best material for critical power generation parts in both onshore and offshore wind farms.
Forgings For Mining & Heavy Construction Equipment
We manufacture custom 30CrMoV9 forged parts for mining and heavy construction machinery, including eccentric shafts and spindles for gyratory crushers, slewing bearing ball races for mining excavators, conveyor pulley shafts, mine hoist system spindles, and heavy-load crane wheels. Our 1.7707 forged parts have resistance to high impact, severe wear, and continuous heavy loads in hard mining and construction environments.They are full accordance with global quality and safety standards.
Oil & Gas, Offshore & Marine Engineering Parts
We supply below 30CrMoV9 (1.7707) forged parts for oil and gas industries: high-precision gear shafts and pinion shafts for oil drilling tools, mud pump herringbone gear shafts for land and offshore drilling rigs, and anchor winch stub shafts for subsea offshore equipment. We also provide precision helical gears for marine ship systems, we do nitriding treatment on the gears so they have good corrosion resistance and can work in harsh saltwater environments and high-pressure conditions.
General Mechanical Engineering & Transportation Parts
30CrMoV9 forged parts are used in general mechanical engineering and heavy transportation, including high-strength crankshafts for gas compressors, mechanical presses, and industrial pumps, hydraulic honed cylinders, gear couplings, thread tie rods, and rotary dryer trunnion wheels.We also supply forged ring gears, planet gears, and pinion shafts for heavy-duty trucks, seamless rolled bearing rings for concrete mixer semi-trailers, and locomotive transmission shafts, all these parts work well and increase service life in many conditions.
30CrMoV9 Quality Control & Inspection Standards
Our in-house QC department make below inspections on all finished 30CrMoV9 (1.7707) forged parts as per international standards:
- Visual & Size Check: Visual inspection and size check using CMM equipment
- Chemical Composition Analysis: Spectrometric analysis to test exact chemical composition using OES spectrometry
- Mechanical Property Testing: Tensile testing, hardness test, and impact testing using standard testing machines
- Macrostructure & Microstructure Test: Metallographic analysis to test material quality, grain structure, and others
- Residual Stress Measurement: Advanced testing using X-ray diffraction to make sure stress levels are within acceptable
- Ultrasonic Testing (UT): Non-destructive testing to check internal defects and others
- Penetrant Testing (PT): Surface crack detection using liquid penetrant inspection (both fluorescent and visible dye)
For every batch of 30CrMoV9 forged round bars and finished parts, we provide a triplicate inspection certification in accordance with EN 10204 3.1B standards,EN 10204 3.2 certification and third-party inspection is also acceptable upon request.
