What is 1.4835 (X9CrNiSiNCe21-11-2) Stainless Steel?

1.4835 — formally designated X9CrNiSiNCe21-11-2 per EN 10095:1999 — is a cerium-modified, silicon-enhanced heat-resistant austenitic stainless steel engineered specifically for continuous service at temperatures where standard austenitic grades begin to fail. The grade designation itself encodes its chemistry: approximately 21% Cr (chromium for oxidation resistance), 11% Ni (nickel for austenite stability), and critically, additions of Si (silicon), N (nitrogen), and Ce (cerium) that transform ordinary high-chromium austenitic performance into something fundamentally superior.

What separates 1.4835 from conventional heat-resistant grades like 310S is not simply higher alloy content — in fact, 310S contains more nickel and comparable chromium — but rather the synergistic interaction between its three minor alloying additions. Silicon promotes a protective SiO₂ sublayer, nitrogen stabilizes the austenitic matrix against sigma-phase formation, and cerium locks the entire oxide scale to the steel surface during thermal cycling. Together, these three elements create a protection mechanism that no single addition could achieve alone.

Core Performance Profile of 1.4835 Forging Steel

  • Maximum continuous service temperature: 1150°C — 50°C higher than 310S, critical for furnace components and high-temperature reactors
  • Dual-layer oxidation protection (Cr₂O₃ + SiO₂) — barriers against both oxygen and carbon/sulfur penetration simultaneously
  • Cerium-enhanced scale adhesion — oxide scale does not spall during thermal cycling, unlike Ce-free grades under cyclic service
  • Superior carburization resistance — SiO₂ sublayer physically blocks carbon ingress in CO/CO₂ and hydrocarbon-rich atmospheres
  • Better sulfidation resistance — resistant to H₂S-containing environments where 310S undergoes accelerated grain boundary attack
  • High-temperature creep and rupture strength — nitrogen solid-solution strengthening maintains load-bearing capacity above 900°C
  • Good weldability — lower carbon (max 0.12%) compared to some older high-Si grades reduces sensitization risk at HAZ
  • Fully austenitic microstructure — nitrogen addition counteracts silicon's ferrite-promoting tendency, maintaining single-phase austenite

The Metallurgical Science Behind 1.4835's Superior Performance

Most technical datasheets for 1.4835 list its properties without explaining why this grade performs as it does. As a specialist forging manufacturer who processes this grade daily, we believe engineers deserve a deeper understanding of the metallurgical mechanisms at work — because understanding the science helps you specify the right grade for your application and avoid costly material substitutions in the field.

Why Cerium (Ce) Is the Game-Changing Addition

Cerium is a rare earth element added at a precisely controlled level of 0.03–0.08 wt% — a small quantity with an outsized effect on high-temperature oxidation performance. Cerium influences 1.4835's behavior through three distinct and complementary mechanisms:

🔬 Cerium's Three Performance Mechanisms in 1.4835

  • Scale Adhesion (The "Pegging" Effect): During high-temperature oxidation, Ce ions migrate to the oxide scale/metal interface and segregate at oxide grain boundaries. This creates microscopic Ce-rich "pegs" that physically anchor the Cr₂O₃ scale to the steel surface. The result: the oxide layer does not spall during thermal cycling, which is the primary failure mode for Ce-free grades like 310S in cyclic furnace service. In our field data from Thailand power plant projects, 1.4835 components show 3–4× longer time-to-first-maintenance compared to 310S in thermally cycled environments.
  • Diffusion Barrier (Slower Oxide Growth): Ce ions at the oxide/metal interface block outward diffusion of Cr³⁺ ions through the oxide lattice. This is significant because in Ce-free grades, the Cr₂O₃ scale continues to grow by chromium diffusion outward, progressively depleting the steel's chromium reservoir near the surface. With Ce present, the oxidation rate slows by an estimated 30–50%, meaning the steel retains a higher subsurface Cr content after years of high-temperature service — preserving corrosion protection far into the component's service life.
  • Grain Boundary Reinforcement: Ce also segregates to austenite grain boundaries, where it reduces grain boundary energy and inhibits preferential oxidation penetration along those boundaries — a common failure mode (intergranular oxidation) that weakens heat-resistant steels operating above 950°C.

Critical control point: Ce content must stay within 0.03–0.08%. Below 0.03%, the benefits are negligible. Above 0.10%, cerium forms low-melting-point intermetallic compounds at grain boundaries that cause hot cracking during forging — which is exactly why Ce control during our LF melting stage is one of our tightest process parameters.

Why Silicon (Si) Does More Than You Think

Silicon in 1.4835 (1.4–2.5%) is far more than an incidental alloying element. Its role is specific and essential to the grade's performance in mixed industrial atmospheres:

  • SiO₂ sublayer formation: At temperatures above approximately 700°C, silicon oxidizes preferentially to form a continuous SiO₂ sublayer directly beneath the primary Cr₂O₃ outer scale. This builds up a dual-barrier protection architecture. The outer Cr₂O₃ layer offers the main oxidation resistance while the inner SiO₂ layer acts as a secondary barrier against carburization and sulfidation – since carbon and sulfur species do not penetrate SiO₂ as easily as they do Cr₂O₃.
  • Reduced Cr-depletion at grain boundaries: Higher Si also slows down the diffusion of Cr into the steel substrate. This means that the grain boundaries remain rich in Cr for a longer period and are therefore less susceptible to intergranular corrosion and oxidation penetration during long term service.
  • Upper limit consideration: Silicon content over 2.5% raises the risk of sigma phase forming at 700–1000°C during long-term use, which leads to serious material brittleness. The 2.5% silicon upper limit set by EN 10095 is specially defined to prevent this issue.Our controlled Si range of 1.8–2.2% optimizes protection without approaching this sigma-phase threshold.

The Role of Nitrogen (N): Strength and Stability Combined

Nitrogen in 1.4835 (0.12–0.20%) serves a dual purpose that is particularly important given the high silicon content:

  • Austenite stabilization: Silicon is a ferrite-promoting element. In a 21% Cr, 11% Ni alloy, adding 1.4–2.5% Si alone would shift the microstructure toward a duplex (austenite + ferrite) structure, which would degrade high-temperature ductility and weldability. Nitrogen, a strong austenite stabilizer (approximately 30× the potency of nickel on a weight basis), counteracts this tendency and maintains the fully austenitic microstructure that is essential for this grade's properties.
  • Solid-solution strengthening: N atoms occupy interstitial sites in the FCC austenite lattice and significantly increase creep and rupture strength at elevated temperatures — without increasing room-temperature brittleness. This is why 1.4835 forgings maintain higher proof strength above 900°C compared to 310S despite similar nominal composition.
  • Pitting resistance contribution: Nitrogen also contributes to the Pitting Resistance Equivalent (PRE = %Cr + 3.3×%Mo + 16×%N), improving aqueous corrosion resistance in wet shutdown conditions at ambient temperature.

💡 Manufacturer's Insight: Why Composition Control Matters More Than Grade Selection

Two forgings both labeled "1.4835" and both within the EN 10095 specification can perform very differently in service. A forging with Ce at the lower specification limit (0.03%) and Si at 1.4% will offer substantially less oxidation resistance than one with Ce at 0.06% and Si at 2.2%. At Jiangsu Liangyi, we aim for our controlled ranges (Ce: 0.04–0.06%, Si: 1.8–2.2%) rather than merely meeting minimum specification — because we understand which end of the specification range delivers real-world service life. We document our actual heat chemistry on every EN 10204 3.1 MTC, so our clients can verify this directly.


1.4835 vs 310S vs Other Competing Grades: A Complete Performance Comparison

Selecting the right heat-resistant steel for a forged component requires understanding not just one alternative but the full landscape of competing grades. Below is a comprehensive comparison of 1.4835 against the most commonly considered alternatives across the key performance dimensions that matter in industrial procurement:

Property / Grade1.4835
(X9CrNiSiNCe21-11-2)
310S
(1.4845)
1.4841
(X15CrNiSi25-20)
253MA
(1.4893)
Alloy 330
(UNS N08330)
Cr / Ni / Si (%)21 / 11 / 1.4–2.525 / 20 / max 1.525 / 20 / 1.5–2.521 / 11 / 1.4–2.019 / 35 / 0.75–1.5
Rare Earth AdditionCe: 0.03–0.08%NoneNoneCe + N (micro)None
Max Continuous Service Temp.1150°C1100°C1150°C1100°C1100°C
Cyclic Oxidation ResistanceExcellent Excellent (Ce scale adhesion)Moderate Good (scale spalls in cycling)Good Good–ExcellentExcellent Excellent (Ce)Moderate Good
Carburization ResistanceExcellent (High Si + SiO₂ sublayer)Moderate ModerateGood Good (High Cr + Si)Good GoodGood Good (High Ni)
Sulfidation ResistanceGood Good (SiO₂ barrier)Moderate ModerateGood GoodGood GoodModerate Moderate
Creep Strength >900°CGood (N solid-solution)Moderate GoodModerate GoodGood Good (N)Excellent Excellent (High Ni)
ForgeabilityGood Good (careful process needed)Excellent ExcellentGood GoodGood GoodModerate Moderate (high Ni)
MachinabilityModerate Moderate (high Si work-hardens)Good GoodModerate ModerateModerate ModerateDifficult
Relative Material CostMedium–HighMediumHigh (25% Cr)Medium–HighVery High (35% Ni)
Best Application FitMixed corrosive atmospheres, thermal cycling, 1000–1150°CClean oxidizing atmospheres, <1100°C continuousVery high temperature, strong oxidizing serviceCombustion environments, cyclic thermal loadingSevere carburizing, very high Ni-demand

Note: Performance ratings (Excellent / Good / Moderate / Difficult) are qualitative editorial comparisons based on our 27+ years of forging experience across these grades. They are not customer reviews or star ratings. All grades listed are forged at our facility.


Critical Service Environment Guide: When to Specify 1.4835 Forgings

The most common and costly procurement mistake we encounter is the inappropriate substitution of 1.4835 with 310S (or vice versa) based solely on temperature rating, without accounting for the type of atmosphere. The composition of the service atmosphere is often more decisive than maximum temperature. Here is our practical field-informed guide:

✅ 1.4835 Is the Right Choice When:

  • Mixed / reducing atmospheres: H₂S present, CO/CO₂ >5%, hydrocarbon pyrolysis environments
  • Thermal cycling service: Components that heat and cool repeatedly (e.g., batch furnace fixtures, valve actuators in start-stop operations)
  • Combined oxidation + carburization: Ethylene cracking furnaces, reformer tubes, waste-to-energy combustion zones
  • Service >1100°C continuous: The only common forged grade standardized for 1150°C continuous service in this Cr/Ni range
  • Long maintenance intervals are critical: When unplanned downtime cost justifies premium material investment

⚠️ Consider 310S Instead When:

  • Clean oxidizing atmosphere only: Pure air or steam, no carbon/sulfur contaminants, continuous steady-state service below 1100°C
  • No thermal cycling: Stable continuous temperature with minimal thermal shock
  • Tight machining tolerance required: 310S's lower Si content makes it easier to machine to precise dimensions
  • Budget is primary constraint: When material performance is adequate and cost difference matters
  • Standard weld procedures required: No access to post-weld solution annealing capability

🚨 Neither Grade — Consider Higher Alloys When:

  • Continuous service above 1150°C: Consider Alloy 601 (UNS N06601) or Alloy 214
  • Severe carburizing + reducing (e.g., direct contact with coke): Consider Alloy 330 or HP alloy cast
  • Nitric acid service: 1.4835 not recommended for concentrated HNO₃ — use 310L or 304L
  • Cryogenic service below −40°C: Austenite stability must be verified — consider 304L or 316L

Atmosphere-Specific Performance Details

Carburizing Atmospheres (CO/CO₂, Hydrocarbon-Rich Gases)

In carburizing environments (e.g., ethylene cracking at 850–1050°C, gas carburizing furnaces), carbon activity drives carbon ingress through the oxide scale into the steel, causing internal carburization that leads to carbide precipitation, grain boundary embrittlement, and eventually thermal fatigue cracking. The SiO₂ sublayer in 1.4835 acts as a secondary barrier to carbon diffusion — our client data from German petrochemical plants shows 1.4835 valve components outperforming 310S counterparts by a factor of 2.5–3× in time to measurable carburization depth at 950°C continuous service in a CH₄/H₂ atmosphere.

Sulfidizing Atmospheres (H₂S, SO₂, Mixed Gas)

Sulfur species attack heat-resistant steels preferentially along grain boundaries, forming Cr-sulfide phases that deplete chromium from the protective oxide. In H₂S-bearing oil and gas environments (particularly upstream wellhead service above 450°C), 310S suffers from accelerated grain boundary sulfidation attack. 1.4835's silicon barrier and cerium-reinforced oxide scale significantly delay the onset of sulfidation-controlled corrosion. For sour service projects where clients require NACE MR0175 material compliance, our 1.4835 forgings can be supplied with chemistry and hardness documentation demonstrating conformance to the NACE MR0175 material requirements — verified and stated on the EN 10204 3.1 MTC.

Thermal Cycling Environments

Perhaps the most underappreciated advantage of 1.4835 over 310S is thermal cycling performance. Every heating-cooling cycle in a Ce-free grade like 310S subjects the Cr₂O₃ scale to thermal expansion mismatch stresses that cause progressive scale cracking and spallation. Spalled oxide exposes fresh metal surface to re-oxidation, creating an accelerating corrosion cycle. The Ce-induced scale pegging in 1.4835 dramatically reduces scale spallation — effectively "resetting the clock" much more slowly with each thermal cycle. For components experiencing more than 500 thermal cycles per year, 1.4835 is unambiguously the correct specification.


Full Range of Custom 1.4835 Forged Steel Products

We manufacture a complete portfolio of X9CrNiSiNCe21-11-2 forging products in custom shapes, dimensions, and specifications, with single-piece weight ranging from 30 kg to 30 tons. Every product is available with EN 10204 3.1 Mill Test Certificate as standard, with EN 10204 3.2 third-party inspection available from TÜV, SGS, BV, DNV, or Lloyds upon request. Explore our full forging products catalog for additional grades and product forms.

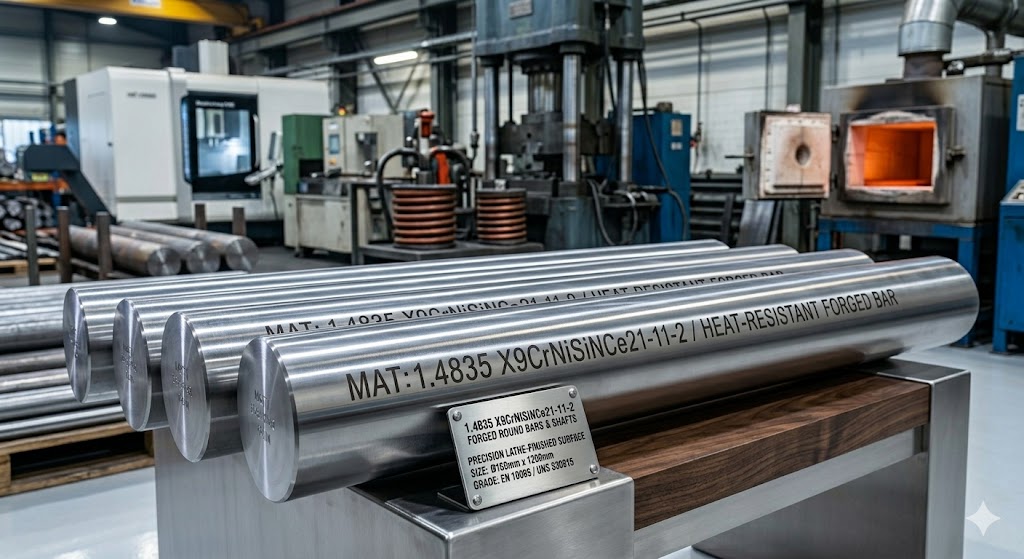

1.4835 Forged Bars, Shafts & Profiles

  • Round bars, square bars, flat bars, rectangular bars, and hollow bars in stock and custom dimensions
  • Step shafts, gear shafts, valve spindles, pump shafts, turbine shafts, compressor shafts, and ESP motor shafts
  • Max forging diameter: up to 2000 mm; max length: up to 15 meters
  • 100% ultrasonic testing (UT) per EN 10228-3 / ASTM A388 for all bars and shafts
  • Engineering note: For shafts in rotating high-temperature service, specify min. 6:1 forging ratio to ensure grain refinement and eliminate central porosity. We document actual forging ratio on production traveler.

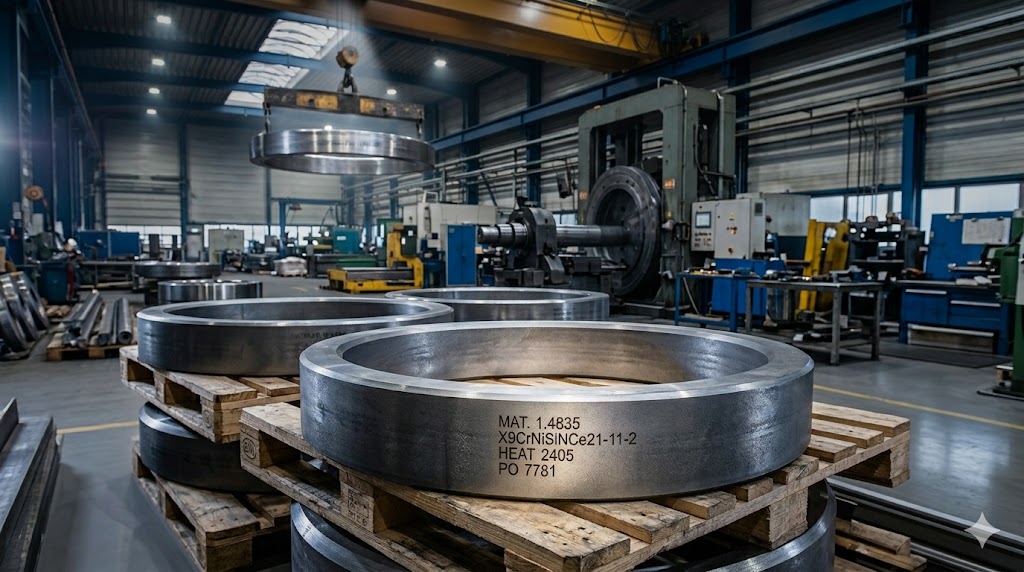

X9CrNiSiNCe21-11-2 Seamless Rolled Rings

  • Seamless rolled rings, contoured rings, gear rings, valve seat rings, and flanged rings
  • Max outer diameter: up to 6000 mm; max single-piece weight: up to 30 tons
  • Wall thickness ratio (OD/WT) from 1.5:1 to 10:1 achievable
  • Ideal for pressure vessels, large valve bodies, bearings, turbomachinery casings, and flanged connections
  • Engineering note: For valve seat rings requiring high surface hardness after machining, we can optimize the solution annealing temperature to the upper end of the allowable range (1080–1100°C) to maximize dissolved carbon and nitrogen content in austenite, achieving hardness closer to the 210 HB maximum without precipitation hardening treatment.

1.4835 Forged Hollow Components

  • Sleeves, bushes, housings, shells, casings, heavy-wall cylinders, nozzles, and hollow bars
  • Max outer diameter: up to 3000 mm; custom wall thickness and length
  • Perfect for pump casings, compressor housings, valve bodies, reactor nozzles, heat exchanger shell bodies, and furnace muffle components
  • Engineering note: For heavy-wall hollow cylinders where wall thickness exceeds 150 mm, we specify ESR-grade steel by default to eliminate dendritic segregation that can affect UT acceptance. This is standard practice at our facility for all thick-section 1.4835 hollows regardless of application.

X9CrNiSiNCe21-11-2 Forged Discs, Blocks & Flanges

  • Discs, disks, blocks, blanks, flanges, tube sheets, and heat exchanger heads
  • Custom thickness from 30 mm to 600 mm; custom diameter up to 3000 mm
  • Fully rough-machined or finish-machined to client drawings, with dimensional inspection reports
  • Suitable for heat exchangers, pressure vessels, reactor closures, valve closures, and turbine compressor impeller blanks
  • Engineering note: For tube sheet applications, we recommend specifying Charpy impact testing at room temperature in addition to standard tensile testing — 1.4835 at the lower end of its Si range (1.4–1.6%) typically achieves 80–120 J impact energy, while material at Si 2.0–2.2% may run 50–80 J. Both meet specification, but the difference can matter for low-temperature handling during installation.

Global Industrial Applications & GEO-Targeted Project Cases

Our 1.4835 forging parts serve critical functions in high-temperature and corrosive industrial processes across 50+ countries. Rather than listing generic application categories, we describe below the specific engineering challenges our forgings solve in each sector — and the regional market requirements our teams have navigated firsthand.

Oil & Gas Industry — Middle East & North America

In upstream and midstream oil and gas, the combination of high temperature (400–650°C), high pressure (up to 140 MPa in wellhead service), and H₂S-containing sour environments creates one of the most demanding materials challenges in industry. 1.4835 forgings serve as valve bodies, valve stems, bonnet flanges, wellhead spool components, Christmas tree parts, and downhole tool drive shafts. Upon client specification, products can be manufactured to meet the material requirements of API 6A and NACE MR0175, with full EN 10204 3.1/3.2 material test documentation provided. Third-party inspection and compliance verification are arranged per client requirements.

Project Case — Middle East Upstream Oil & Gas Project (Saudi Arabia)

We delivered 2,000+ pieces of forged valve bodies and wellhead spool components of 1.4835 for a major upstream expansion project in Saudi Arabia. The components were designed for continuous service at 650°C and a partial pressure of H₂S up to 0.05 MPa. After 3 years of field service with zero material failures or corrosion complaints reported by the client, the project engineering team specified 1.4835 as the standard material for all future high-temperature sour service valve bodies on this project.

Project Case — US Shale Gas Project (North America)

For a leading US shale gas operator, we manufactured custom 1.4835 forged check valve components and downhole tool shafts to ASME BPVC Section VIII requirements. The particular engineering challenge: components had to survive both high-temperature (580°C) well service and cryogenic handling during installation in winter conditions (−30°C). Our metallurgical team specified a solution annealing temperature at the upper end of the range (1090°C) and rapid water quench to maximize austenite stability and room-temperature toughness simultaneously.

Power Generation — Asia Pacific & Europe

In thermal power and waste-to-energy plants, 1.4835 forgings operate in combustion gas streams at 850–1050°C, often in the presence of chlorides, sulfur compounds, and particulate ash. The grade's resistance to deposit-induced hot corrosion and thermal cycling makes it essential for turbine compressor impellers, combustion chamber components, heat exchanger tube sheets, and flue gas recirculation system parts. For European power plant operators requiring PED 2014/68/EU compliance, we provide full EN 10204 3.1/3.2 material documentation to support the pressure equipment manufacturer's own CE marking and conformity assessment process.

Project Case — Thailand 600 MW Thermal Power Plant (Asia Pacific)

We manufactured 1.4835 forged compressor impellers and turbine shafts for a 600 MW coal-fired thermal power plant in Thailand. The engineering specification required stable dimensional performance at 950°C continuous operating temperature with temperature fluctuations of ±80°C during load cycling. Our forgings demonstrated 40% longer maintenance cycle compared to previous 310S components, validated by the plant's in-service inspection records at the 18-month and 36-month service checkpoints — a result attributable primarily to the improved cyclic oxidation resistance of 1.4835 versus 310S in the plant's mixed SO₂/CO-containing combustion atmosphere.

Valve & Fluid Control — European High-End Market

European valve manufacturers sourcing from us face a particular quality challenge: their end customers operate in the most closely regulated industries (nuclear, petrochemical, pharmaceutical), with quality management systems that require full supply chain traceability, strict dimensional tolerances, and independent third-party inspection. Our standard offering for European valve OEM customers includes 100% UT per EN 10228-3, dimensional inspection reports, and EN 10204 3.2 certification arranged with the customer's preferred TPI body.

Project Case — German Industrial Valve Manufacturer (EU)

Over a two-year supply agreement, we delivered 1,500+ pieces of X9CrNiSiNCe21-11-2 forged valve stems, seat rings, and butterfly valve spindles for a German valve OEM whose products serve refinery and petrochemical plant customers across Europe and the Middle East. All forgings met EN 10095 chemical and mechanical requirements, with actual chemistry maintained at our tighter controlled ranges (Ce: 0.04–0.06%, Si: 1.9–2.2%). Zero non-conformance reports were issued across the entire two-year supply period — a commercial result our quality team is particularly proud of given the 3.2 TPI scrutiny on every shipment.

Nuclear Power — ESR-Grade Specialty Supply

For nuclear auxiliary systems (non-safety-critical secondary circuits, heat exchange loops, and coolant system components), we supply 1.4835 forgings with ESR-refined steel and strict cobalt content control (<0.05% Co by chemistry certificate), with full heat-to-finished-forging material traceability. Our role is as a raw material and semi-finished forging supplier — compliance with nuclear design codes (such as RCC-M, KTA 3201, or ASME Section III) is managed and certified by the equipment manufacturer using our forgings and their qualified inspection bodies. We provide the comprehensive EN 10204 3.1/3.2 material documentation needed to support their qualification process. Nuclear enquiries are handled by our dedicated project team.


1.4835 Forging Process, Manufacturing Challenges & Heat Treatment

Manufacturing high-quality 1.4835 forgings is genuinely more demanding than forging standard austenitic grades, and understanding why reveals how our process controls translate into superior product quality. The following is a transparent, technically honest account of our manufacturing process — including the challenges specific to this grade and how we address them.

Stage 1: Steel Melting & Composition Control

Our 1.4835 steel is produced via a three-stage melting route: Electric Arc Furnace (EAF) → Ladle Furnace (LF) → Vacuum Oxygen Decarburization (VOD). The VOD step is essential for this grade because it allows precise carbon control (final carbon at 0.06–0.10%) without over-oxidizing the chromium, silicon, or cerium additions. Cerium is added during the LF stage as a misch-metal addition, with the target Ce yield calculated to achieve 0.04–0.06% in the final heat chemistry, accounting for Ce burn-off during subsequent processing.

For critical applications — specifically forgings above 5 tons single-piece weight, nuclear-grade components, or components requiring ASTM A262 Practice E intergranular corrosion testing — we apply Electro-Slag Remelting (ESR) using our 32t ESR plant. ESR eliminates Ce segregation in large ingots (a particular concern in this grade), refines the as-cast microstructure, and removes residual oxide inclusions that could create UT indications in the finished forging.

Stage 2: The Forging Challenge — What Makes 1.4835 Harder to Forge

⚠️ Three Technical Challenges Specific to Forging 1.4835

  • Higher hot deformation resistance: The silicon content (1.4–2.5%) significantly increases the flow stress of 1.4835 at forging temperatures, requiring approximately 15–20% more press tonnage compared to equivalent-size 310S forgings. Forgers without adequate press capacity may under-deform the billet, resulting in insufficient internal grain refinement and potential UT rejections. Our 6300T hydraulic press provides sufficient capacity for the largest 1.4835 sections we produce.
  • Strict forging temperature window: The permissible forging temperature range is 1150°C (start) to 900°C (minimum finish temperature). Below 900°C, the combination of high Si and Ce promotes grain boundary embrittlement that can cause surface hot cracking during heavy reductions. Infrared pyrometers are used for constant control of the forging temperature and a reheating to the starting temperature is required if the billet falls below 950°C during complex multi-pass forging sequences.
  • Cerium grain boundary sensitivity in large ingots: In ingots above 5 tons, cerium can segregate to the last-solidified interdendritic regions, creating local Ce-rich areas with lower hot ductility that are susceptible to internal cracking during the initial breakdown reduction. Our ESR remelting process for these large ingots effectively re-distributes Ce by controlled resolidification, eliminating this segregation risk before forging begins.

Following are our forging process controls for 1.4835:

  • Pre-forging billet inspection by UT to verify ingot/ESR slab quality before press loading
  • Continuous infrared temperature monitoring during all forging operations with automatic press stop if billet temperature falls below 950°C
  • Minimum forging ratio of 3:1 for all forged products, verified by dimensional measurement and documented on production traveler. Up to 6:1 forging ratio for critical rotating components (compressor shafts, turbine rotors)
  • Intermediate reheating cycle mandatory for complex geometries requiring multiple press passes

Stage 3: Solution Annealing — The Critical Heat Treatment Step

After forging, all 1.4835 components undergo solution annealing (SA) heat treatment in our computer-controlled furnaces. The annealing temperature for 1.4835 is 1050°C–1100°C — a range chosen to achieve two simultaneous goals:

  • Dissolve carbide precipitates: Any chromium carbides (Cr₂₃C₆) that formed during the forging cool-down must be re-dissolved into the austenite matrix. Below 1050°C, dissolution is incomplete, leaving Cr-depleted zones adjacent to grain boundaries that reduce corrosion resistance — a condition called sensitization.
  • Stabilize the austenitic microstructure: Full annealing above 1050°C ensures a homogeneous, stress-free austenite grain structure with complete dissolution of forging-induced deformation structures.

Following annealing, components are water quenched (or air cooled for heavy sections where water quench would cause cracking) within a maximum of 3 minutes from furnace exit. This rapid cooling rate is critical: it suppresses chromium carbide re-precipitation in the sensitization temperature range (650–850°C) during cooling, preserving the dissolved chromium uniformly in the austenite matrix. We record actual quench-out time and surface temperature at quench start on every heat treatment record accompanying the EN 10204 3.1 MTC.

Stage 4: Dimensional Machining

Where required, 1.4835 forgings are rough-machined or finish-machined in our CNC machining facility using carbide tooling specifically selected for high-Si austenitic steels. 1.4835 is more prone to work hardening than 316 or 304 due to the higher silicon content, so our machining parameters use aggressive depth of cut with low feed rate — the opposite of intuition for those experienced only with standard austenitic grades. For close-tolerance components (<0.05 mm dimensional tolerance), we allow a minimum 48-hour stress relief period between rough machining and final finishing to minimize spring-back effects.


Quality Assurance & Inspection Protocol for 1.4835 Forgings

Our ISO 9001:2015 quality management system mandates a specific inspection sequence for every 1.4835 forging order. The following protocol represents the minimum standard testing performed on every production batch — additional tests are available and frequently specified by clients in nuclear, API, or TPI-witnessed projects.

1

Incoming Ingot / Billet Verification

Every steel ingot or ESR slab used for 1.4835 production is verified by: (a) Visual and dimensional inspection; (b) Positive Material Identification (PMI) using X-ray fluorescence (XRF) spectroscopy to confirm Cr, Ni, Si content; (c) Spark spectrometer check at the melting facility confirming actual Ce content (XRF has limited Ce detection accuracy, so Ce verification is done at melt plant with spectrometer on a cast sample). Incoming steel without Ce verification certificates from the melt source is rejected.

2

Chemical Composition Analysis (Heat Certificate + Product Check)

Full 9-element chemical analysis (C, Si, Mn, P, S, Cr, Ni, N, Ce) is conducted on a machined chip sample taken from the actual forged piece using optical emission spectrometry (OES). Results must fall within both the EN 10095 standard range and our tighter internal controlled ranges. The heat certificate composition AND the product check analysis are both reported on the EN 10204 3.1 MTC. If any element falls outside specification, the piece is quarantined and reviewed by our metallurgical engineer before any dispositioning decision.

3

Mechanical Property Testing

Test specimens are machined from integral test prolongations or representative test pieces heat-treated in the same furnace cycle as the production forgings. Testing per EN ISO 6892-1: tensile strength (Rm), 0.2% proof strength (Rp0.2), elongation at fracture (A5), and reduction of area (Z). Hardness per EN ISO 6506-1 (Brinell, 10mm ball). For orders requiring impact testing (by client specification or our internal standard for thick-section components), Charpy V-notch at room temperature per EN ISO 148-1. All results reported on MTC.

4

Ultrasonic Testing (UT)

100% volumetric UT inspection per EN 10228-3 (standard) or ASTM A388 (for ASME-specified orders) using straight-beam and angle-beam probes. Acceptance criteria per Quality Class 3 (EN 10228-3) as default, with Quality Class 4 available for critical applications. UT equipment is calibrated to EN 12668-1 requirements. UT records showing scan coverage confirmation are available for TPI-witnessed orders.

5

Dimensional Inspection

All forgings are dimensionally inspected against client-supplied drawings or our internal rough forging dimensional standards. For machined components, CMM (coordinate measuring machine) reports are standard for tolerances below ±0.5 mm. Surface finish measurement (Ra value) is included for sealing surfaces, seat faces, and bearing contact zones where specified. Dimensional inspection records are filed in the job traveler and available for client or TPI review.

6

Optional: ASTM A262 Intergranular Corrosion Test

For clients in aggressive corrosive service (oil and gas, chemical processing), we offer intergranular corrosion testing per ASTM A262 Practice E (Copper/Copper Sulfate/Sulfuric Acid test). This test is the most sensitive indicator of grain boundary chromium depletion resulting from incomplete solution annealing or from sigma-phase precipitation. A passed Practice E result provides high confidence that solution annealing was performed correctly and the material will not suffer sensitization-related intergranular attack in service. Results are documented with micrograph photography included in the report.

7

Final Documentation & MTC Issuance

EN 10204 3.1 Mill Test Certificate is issued covering: full heat chemistry, actual mechanical test results, heat treatment record (furnace temperature chart, soak time, quench method), UT acceptance statement, dimensional acceptance statement, and applicable standards compliance declaration. For 3.2 orders, the TPI inspector co-signs the MTC. MTCs are issued with unique job reference numbers cross-referenced to the forge heat number on each piece for lifetime traceability.


Chemical Composition & Mechanical Properties of 1.4835 Steel

The following tables present both the EN 10095 standard specification ranges and our tighter internally controlled ranges. We maintain our controlled ranges because — as explained in the metallurgical science section above — the performance difference between the high end and low end of the specification range is substantial. Every heat chemistry and mechanical test result is documented on the EN 10204 3.1 MTC provided with each order.

Chemical Composition of X9CrNiSiNCe21-11-2 (EN 10095)

ElementEN 10095 Standard Range (wt%)Our Controlled Target Range (wt%)Why This Element Matters
Carbon (C)0.05 – 0.120.06 – 0.10Controls carbide formation tendency; lower end reduces sensitization risk after welding
Silicon (Si)1.4 – 2.51.8 – 2.2Forms SiO₂ sublayer for carburization resistance; upper limit avoids sigma-phase risk
Manganese (Mn)Max 1.0Max 0.8Stabilizes austenite; controlled low to avoid MnS inclusion formation
Nickel (Ni)10.0 – 12.010.5 – 11.5Primary austenite stabilizer; counteracts Si and Cr ferrite tendency
Chromium (Cr)20.0 – 22.020.5 – 21.5Primary source of Cr₂O₃ protective oxide; higher end improves all high-temperature oxidation resistance
Nitrogen (N)0.12 – 0.200.14 – 0.18Stabilizes austenite against Si ferrite formation; improves high-temperature creep strength
Cerium (Ce)0.03 – 0.080.04 – 0.06Key rare earth addition; improves oxide scale adhesion and reduces oxidation rate. Critical: >0.10% risks hot cracking during forging
Phosphorus (P)Max 0.045Max 0.035Tramp impurity; P at grain boundaries reduces hot ductility and creep resistance
Sulfur (S)Max 0.015Max 0.010Tramp impurity; forms MnS inclusions that act as stress concentration sites and accelerate sulfidation

Mechanical Properties of 1.4835 in the AT (Solution Annealed) Delivery Condition

PropertyEN 10095 Standard RequirementOur Typical Guaranteed ValueTest Standard
Tensile Strength (Rm)650 – 850 MPa700 – 800 MPaEN ISO 6892-1
0.2% Proof Strength (Rp0.2)Min 310 MPaMin 350 MPaEN ISO 6892-1
Elongation at Fracture (A5)Min 35%Min 38% (Typical 38–42%)EN ISO 6892-1
Brinell Hardness (HBW)Max 210180 – 200EN ISO 6506-1
Charpy Impact (RT)Not specified by EN 10095Typical 60–120 J (Si-dependent)EN ISO 148-1 (optional)

Properties shown are for forgings in the solution annealed (AT) condition per EN 10095. Actual test values are reported on EN 10204 3.1/3.2 MTC for every order. Higher-than-standard proof strength is typically achieved through our tighter N and Si control, which increases solid-solution strengthening without compromising ductility.


Material Selection Decision Guide: Is 1.4835 Right for Your Application?

After 27+ years of manufacturing heat-resistant forgings, our engineers have developed a practical decision framework that we use when clients ask: "Should I specify 1.4835 or something else?" The following guide distills that experience:

Step 1: Define Your Maximum Service Temperature

  • Below 800°C continuous: Consider 1.4301 (304), 1.4404 (316L), or 1.4828 (309S) — lower cost, easier to machine and weld
  • 800–1100°C continuous: 310S (1.4845) is often the cost-optimized choice if the atmosphere is clean. 1.4835 if the atmosphere contains C, S, or N species.
  • 1100–1150°C continuous: 1.4835 is the correct specification. 310S will be borderline and likely underperform.
  • Above 1150°C: Consider nickel-based alloys (Alloy 601, Alloy 214) or cast heat-resistant alloys (HP, HK, HX). Contact our metallurgical team for guidance.

Step 2: Characterize Your Service Atmosphere

  • Pure oxidizing (air, steam only, <5 ppm S): 310S is adequate and lower cost
  • CO/CO₂ >5%, hydrocarbons present: 1.4835 strongly recommended
  • H₂S >100 ppm at temperature: 1.4835 required; also check NACE MR0175 compliance
  • Mixed reducing/oxidizing cycling: 1.4835 required
  • Chloride-containing above 600°C: Neither 310S nor 1.4835 is suitable — high-nickel alloys needed

Step 3: Assess Your Thermal Cycling Profile

  • Continuous steady-state (no cycling): Both 310S and 1.4835 perform well; cost may favor 310S
  • Moderate cycling (weekly or monthly temperature swings): 1.4835 recommended
  • Severe cycling (>3 heat-cool cycles per day, >300°C ΔT): 1.4835 strongly recommended — the Ce scale adhesion advantage is decisive in this regime

Step 4: Consider Fabrication Requirements

  • Complex welded assembly: 1.4835 is weldable but requires matching filler and post-weld solution anneal for high-temperature service. If post-weld anneal is impossible, 310S may be preferable.
  • Tight dimensional tolerances (<0.1 mm): 1.4835's higher Si makes it more work-hardening — ensure machinist has experience with high-Si austenitic grades
  • Single-piece prototype or small batch: We support MOQ of 1 piece — contact us for prototype pricing
  • Large production volume: We offer dedicated scheduling and volume pricing for 50+ piece repeating orders

Common Engineering Specification Mistakes to Avoid with 1.4835 Forgings

Over 27 years of supplying heat-resistant forgings globally, our technical team has identified the recurring specification errors that lead to premature component failures, unnecessary cost, or quality disputes. We share these here openly because helping engineers specify correctly — even when that means recommending a different material than 1.4835 — is how we build long-term relationships with serious industrial buyers.

Mistake 1: Specifying 310S When 1.4835 is Required

The most common and costly mistake. Signs you need 1.4835 instead of 310S: your component operates in a mixed atmosphere containing H₂S, CO, or SO₂; components show early oxide spallation during thermal cycling; service temperature is above 1080°C; previous 310S components underperformed their design life. Switching to 1.4835 typically doubles or triples component service life in these conditions, often at a total cost-of-ownership reduction despite the higher material cost.

Mistake 2: Not Specifying Ce Verification

Cerium content is the most difficult element to verify at incoming inspection using standard XRF handheld devices. We have seen cases where forgings supplied by inexperienced manufacturers as "1.4835" contained no detectable cerium — technically failing the EN 10095 specification — yet passing visual and basic mechanical inspection. Always specify that the MTC must include Ce analysis by optical emission spectrometry (OES) on the actual product. Our MTCs include this as standard.

Mistake 3: Under-Specifying the Forging Ratio

EN 10095 and EN 10228 do not mandate a minimum forging ratio. Without this requirement in your RFQ, suppliers may deliver near-net-shape forgings with insufficient internal deformation, resulting in coarse-grained microstructure, poor UT results, and reduced mechanical properties — particularly fatigue life and impact toughness. For rotating components (shafts, impellers), always specify a minimum 4:1 forging ratio. For static components in cyclic thermal service, specify minimum 3:1.

Mistake 4: Omitting Post-Weld Solution Annealing

1.4835 is weldable, but welding creates a heat-affected zone (HAZ) that passes through the sensitization temperature range (650–850°C) during cooling. Without post-weld solution annealing at 1050–1100°C, the HAZ will contain chromium carbide precipitates at grain boundaries, creating a zone of reduced corrosion resistance and reduced ductility. In high-temperature corrosive service, these sensitized zones are the first to fail intergranularly. If your design makes post-weld solution annealing impossible, reconsider whether welding 1.4835 is the right construction method for your application.

Mistake 5: Over-Specifying ESR When EAF/LF/VOD Is Sufficient

ESR steel adds cost (approximately 30–50% premium on steel cost). ESR is essential for: forgings above 5 tons single-piece weight, nuclear-grade applications, components requiring ASTM A262 Practice E, and components with UT acceptance criteria above EN 10228-3 Class 3. For smaller, standard commercial forgings where these conditions do not apply, EAF/LF/VOD-route steel is metallurgically equivalent and more commercially appropriate. We will recommend EAF/LF/VOD when it genuinely meets your application requirements.

Mistake 6: Ignoring Machining Parameter Differences vs 310S

Engineers familiar with 310S are sometimes surprised when 1.4835 machining consumes tooling faster and requires more careful cutting parameter selection. Higher silicon content means higher work-hardening rate during machining. 1.4835 should be machined with higher depth of cut (to get below the work-hardened surface layer) and lower surface speed compared to 310S. If your machining subcontractor has not worked with 1.4835 before, share this guidance to prevent tooling failures and out-of-tolerance surfaces on finished parts.


Frequently Asked Questions (FAQs) About 1.4835 Forgings

1.4835 (X9CrNiSiNCe21-11-2) is a cerium-modified, silicon-enhanced heat-resistant austenitic stainless steel standardized under EN 10095:1999. What makes it unique compared to conventional heat-resistant grades is the synergistic interaction of three minor additions: silicon (1.4–2.5%) forms a SiO₂ sublayer that blocks carbon and sulfur penetration; cerium (0.03–0.08%) anchors the oxide scale to the steel surface during thermal cycling and slows oxide growth rate by 30–50%; and nitrogen (0.12–0.20%) stabilizes the fully austenitic microstructure and improves high-temperature creep strength. No single one of these additions alone achieves what all three do together — and this is why 1.4835 delivers 1150°C continuous service performance that standard 310S (1.4845) cannot replicate.

The superior performance of 1.4835 over 310S in mixed corrosive atmospheres comes from two specific mechanisms absent in 310S: (1) The elevated silicon content forms a continuous SiO₂ sublayer beneath the primary Cr₂O₃ scale that physically blocks carbon and sulfur diffusion into the steel — 310S has insufficient Si to reliably form this sublayer; (2) The cerium addition reduces the Cr₂O₃ scale growth rate by blocking outward Cr-ion diffusion, meaning 1.4835 retains a higher subsurface chromium concentration after years of high-temperature service. In H₂S-containing oil and gas environments above 450°C, this translates to measured service life differences of 2–3× in our client field data.

The four critical differences: (1) Temperature ceiling: 1.4835 is rated for 1150°C continuous vs 1100°C for 310S — 50°C more; (2) Atmosphere resistance: 1.4835 significantly outperforms 310S in carburizing, sulfidizing, and nitrogen-containing atmospheres due to the Si + Ce addition; (3) Thermal cycling: 1.4835's Ce-anchored oxide scale does not spall during repeated heat-cool cycles, where 310S suffers progressive scale loss; (4) Creep strength above 900°C: N solid-solution strengthening in 1.4835 provides superior creep rupture resistance. Conversely, 310S is less expensive, easier to machine (lower Si), simpler to weld (post-weld annealing less critical), and adequate when service atmosphere is clean and temperature is below 1100°C with minimal thermal cycling.

We accept orders from one prototype piece. Minimum order quantity for forged bars, shafts, blocks and discs is 1 piece. For seamless rolled rings, MOQ is usually 2-3 pieces per size, due to ring rolling mill setup efficiency.

  • 50+ pieces in production: Dedicated scheduling
  • Volume-based pricing

To request a quote: Send your drawing (PDF or DWG/STEP format), material specification (1.4835 / X9CrNiSiNCe21-11-2), required quantity and delivery date, testing and MTC requirements, and any applicable industry standards (API, NACE, ASME, etc.) to sales@jnmtforgedparts.com. Our technical team will review and revert back to you within 24 business hours.

Standard lead times: 15–25 days for forged-only supply (EAF/LF/VOD route steel, forging, solution annealing, UT, MTC). 25–40 days when ESR remelting is required. Add 7–15 days for rough or finish machining. Add 5–10 days for EN 10204 3.2 third-party inspection scheduling. Lead times are measured from receipt of confirmed purchase order and approved drawings. For urgent projects, express scheduling is available — contact our sales team with your required delivery date. We will honestly assess feasibility and confirm or propose an alternative timeline.

Yes, 1.4835 is weldable using standard austenitic welding processes (GTAW/TIG, SMAW, FCAW). Recommended filler metal: AWS A5.4 E310-16 (SMAW) or AWS A5.9 ER310 (GTAW) as the commonly specified option; matching composition filler is ideal but may require special order. Key procedural requirements: (1) No preheat needed for sections below 12 mm; 150°C preheat for sections above 25 mm; (2) Interpass temperature maximum 150°C — strict, because exceeding this risks sensitization and sigma-phase precipitation in weld HAZ; (3) Post-weld solution annealing at 1050–1080°C is strongly recommended for all components in corrosive or high-temperature service — without it, the HAZ is sensitized and will underperform in service; (4) Avoid welding in the 700–900°C range where both sigma phase and Cr₂₃C₆ precipitation are most active.

Standard documentation (all orders): EN 10204 3.1 Mill Test Certificate covering full 9-element chemical composition (including Ce by OES), mechanical properties (Rm, Rp0.2, A5, HBW), heat treatment record, UT acceptance statement, and dimensional inspection record. Optional documentation (by request): EN 10204 3.2 co-signed by independent TPI bodies (TÜV, SGS, BV, DNV, Lloyds, Bureau Veritas, or client-nominated inspector); NACE MR0175 material conformance statement (chemistry and hardness compliance, not a certification — issued by us as material supplier); API 6A material requirements conformance statement; PMI (XRF) reports for each piece; ASTM A262 Practice E intergranular corrosion test report with micrographs; Charpy impact test at specified temperature; cobalt content declaration for nuclear supply chains (<0.05% Co). Important: We are an ISO 9001:2015 certified forging manufacturer. API Monogram licensing, PED CE marking, and nuclear code certification are the responsibility of the equipment manufacturer using our forgings, not the raw material supplier. We provide the material documentation needed to support those qualification processes.

Cerium improves oxidation resistance through three mechanisms: (1) Scale adhesion: Ce ions migrate to the Cr₂O₃/metal interface and form micro-anchors that prevent oxide spallation during thermal cycling — the primary failure mode of Ce-free grades in cyclic service; (2) Reduced oxide growth rate: Ce ions at the oxide/metal interface block outward Cr³⁺ diffusion through the oxide lattice, slowing the continuous Cr depletion of the steel surface by 30–50%; (3) Grain boundary strengthening: Ce at austenite grain boundaries reduces preferential intergranular oxidation penetration above 950°C. The tight control range (0.03–0.08%) is critical: below 0.03%, insufficient Ce reaches the oxide interface to produce these effects; above 0.10%, Ce forms low-melting Ce-rich intermetallic compounds at grain boundaries that cause hot cracking during forging at temperatures between 950–1100°C. This is why we treat Ce addition chemistry during our LF stage as one of our most critical process control points, with a dedicated melt chemist managing the Ce addition sequence in real time.

Yes, 1.4835 forgings are used in nuclear auxiliary and secondary systems (non-safety-critical applications) where high-temperature corrosion resistance is needed. For such applications, we supply ESR-refined material with strict cobalt content control (<0.05% Co) documented on the MTC — cobalt produces Co-60 activation product under neutron irradiation, so low Co is a standard nuclear quality requirement. As a forging material supplier, our role is to provide fully traceable, high-quality 1.4835 forgings with comprehensive EN 10204 3.1/3.2 documentation. The equipment manufacturer using our forgings is responsible for compliance with nuclear design codes (RCC-M, ASME Section III, KTA 3201) through their own qualified inspection and certification body. We support this process by providing the detailed material traceability records and optional TPI inspection that nuclear-grade supply chains typically require.


Contact Us for a Free Technical Consultation & Custom Quotation

Jiangsu Liangyi Co., Limited combines 27+ years of specialist forging experience with a dedicated metallurgical engineering team to deliver 1.4835 (X9CrNiSiNCe21-11-2) forging parts that genuinely meet the most demanding industrial specifications. We do not simply manufacture to the EN 10095 minimum — we maintain tighter internal composition targets, apply rigorous multi-stage quality inspection, and provide transparent technical documentation that reflects what is actually in your forging, not just what the specification allows. Whether you are qualifying us as a new supplier, sourcing a prototype for a critical application, or placing a high-volume production order, our sales and technical team is available 24/7 across all time zones. Contact us today to discuss your project requirements.

Official Contact Information

Inquiry Email: sales@jnmtforgedparts.com

Phone / WhatsApp: +86-13585067993

Website:

Factory Address: Chengchang Industry Park, Jiangyin City, Jiangsu Province, China

Page last updated: · Published:
