1.4410 (X2CrNiMoN25-7-4) Forging Parts | China Manufacturer

By Jiangsu Liangyi Co., Limited — Forging Engineering Team  |  Published: January 15, 2024  |  Updated: May 19, 2026  |  Products comply with: EN 10088 · ASTM A182 · NACE MR 0175 · ASME BPVC · API 6A (material req.) · PED (material req.)

About 1.4410 (X2CrNiMoN25-7-4) Super Duplex Steel Forgings

1.4410 (EN steel number) / X2CrNiMoN25-7-4 (EN material designation) is a nitrogen-strengthened austenitic-ferritic super duplex stainless steel with a precisely controlled dual-phase microstructure: approximately 45–55% ferrite and 45–55% austenite. Its Pitting Resistance Equivalent Number (PREN = %Cr + 3.3×%Mo + 16×%N) reaches ≥ 42 — the internationally recognized threshold for super duplex classification — while its minimum yield strength of 530 MPa is nearly three times that of 316L. Listed under NACE MR 0175 / ISO 15156 for unrestricted use in sour H₂S-containing environments and approved by ASME BPVC for pressure-bearing applications, it remains the material of choice for the world's most demanding corrosive service conditions.

The Origin and Engineering Logic of 1.4410 Super Duplex Steel

Super duplex stainless steel emerged in the early 1980s as offshore oil and gas operations pushed into progressively harsher North Sea environments. 316L and even 2205 duplex (UNS S31803) were failing in chloride-rich seawater injection headers, subsea flowlines, and sour gas wellhead equipment through a combination of pitting, crevice corrosion, and stress corrosion cracking (SCC). The super duplex grade was engineered specifically to address these failures, with the composition standardized as 1.4410 / X2CrNiMoN25-7-4 under EN 10088-3 and adopted across multiple international designation systems. Over 35 years of field deployment have generated comprehensive performance data across the most demanding corrosive environments on earth.

The critical upgrade from 2205 to 1.4410 is the simultaneous increase of three key alloying elements: chromium from ≈ 22% to 25%, molybdenum from ≈ 3% to 3.5–4%, and nitrogen from ≈ 0.14–0.20% to 0.27–0.32%. This "triple increment" pushes PREN from approximately 35 to ≥ 42, while nitrogen acts as both an austenite-stabilizer and a solid-solution strengthener that increases yield strength without reducing toughness. Nitrogen also retards sigma-phase nucleation during cooling — a vital kinetic advantage during heat treatment of large section forgings.

Dual-Phase Microstructure: The Engineering Foundation of 1.4410 Performance

The austenite–ferrite dual-phase structure of 1.4410 delivers combined properties that neither single-phase structure alone can match. The ferritic phase (BCC crystal structure) provides high yield strength, excellent resistance to chloride-induced SCC, and good resistance to hydrogen embrittlement — properties that austenitic steel fundamentally lacks. The austenitic phase (FCC crystal structure) provides ductility, Charpy impact toughness down to –46°C, and superior pitting resistance in the most aggressive media. At the ferrite–austenite phase boundaries, chromium and molybdenum partition preferentially into the ferritic phase, while nitrogen and nickel concentrate in the austenitic phase — creating a two-barrier electrochemical defence at the microstructural scale.

This is quantifiable in standardized corrosion tests: 1.4410 forgings tested in boiling 26% MgCl₂ solution (ASTM G36, the standard SCC screening test) show no cracking after 200 hours, while 316L austenitic steel cracks within 2–8 hours under identical conditions. In the ASTM G48 Method A pitting corrosion test, 1.4410 achieves a Critical Pitting Temperature (CPT) of ≥ 50°C in 6% FeCl₃ solution, versus ≤ 15°C for 316L and ≈ 35°C for 2205. These are not catalogue claims — they are reproducible laboratory results underpinned by the alloy's specific PREN value and microstructural architecture.

Maintaining this balanced dual-phase structure — and preventing harmful intermetallic phases including sigma (σ), chi (χ), and alpha-prime (α') — is the defining technical challenge of 1.4410 forging production. It demands precise control of forging temperature, deformation ratio, inter-pass dwell time, solution annealing temperature and duration, quench rate, and final ferrite content verification. This is exactly where Jiangsu Liangyi's 28 years of dedicated super duplex steel experience creates measurable, auditable advantages over general-purpose forging suppliers.

Jiangsu Liangyi: China's Dedicated Super Duplex Forging Expert Since 1997

Jiangsu Liangyi Co., Limited was established in 1997 in Jiangyin City, Jiangsu Province — the heart of China's heavy forging industrial corridor in the Yangtze River Delta. Over 28 years, we have built a fully vertically integrated manufacturing complex covering 80,000 m² with 40 million USD in fixed assets, producing more than 120,000 tonnes of forgings per year across carbon steel, alloy steel, stainless steel, duplex, super duplex, and nickel alloy grades.

Our super duplex steel division was established specifically for the technically demanding requirements of global oil and gas, chemical processing, and nuclear power clients. Unlike general-purpose forging suppliers who treat 1.4410 as one of hundreds of stainless grades, our engineering team has developed a proprietary super duplex forging process protocol that controls every critical variable: forging start temperature (≤ 1180°C), forging finish temperature (≥ 950°C), inter-pass cooling strategy, total deformation ratio per heat (≥ 3:1), solution annealing temperature (1050–1120°C ± 5°C), soak time per 25mm section thickness (≥ 30 minutes), water quench rate (surface temperature ≤ 400°C within 3 minutes), and final ferrite content confirmation by calibrated Fischer Feritscope® FMP30 measurement at ≥ 5 points per piece. Our production batches consistently deliver ferrite content in the controlled range of 40–60% (typically 45–55%) and PREN values of 42.5–46.2 as verified by OES spectrometer on each heat. Piece weights range from 30 kg to 30,000 kg in a single forging.

Our 1.4410 forgings have been delivered to projects in more than 50 countries. Major export destinations include the United States, United Kingdom, Germany, France, Netherlands, Norway, Saudi Arabia, UAE, Kuwait, Oman, Qatar, Bahrain, Australia, Singapore, Malaysia, Indonesia, and India. Client sectors include major EPC contractors, national and international oil companies (NOCs/IOCs), chemical engineering OEMs, nuclear power plant EPCs, and industrial equipment manufacturers.

Why Choose 1.4410 (X2CrNiMoN25-7-4) Super Duplex Steel Forgings?

Engineers and procurement professionals select 1.4410 super duplex steel forgings when corrosive service conditions exceed the capability of standard austenitic or duplex grades — or when lifecycle cost analysis demands higher-strength, lighter-section designs that reduce total installed weight and maintenance expenditure. The following technical comparison provides the quantitative basis for material selection decisions:

The PREN Formula: How to Quantify Pitting Resistance

The Pitting Resistance Equivalent Number is calculated as: PREN = %Cr + 3.3 × %Mo + 16 × %N (some standards use 30 × %N for duplex grades; the formula above is per EN ISO 17781). For a typical Jiangsu Liangyi production heat of 1.4410 with Cr = 25.2%, Mo = 3.85%, N = 0.295%:

PREN = 25.2 + (3.3 × 3.85) + (16 × 0.295) = 25.2 + 12.705 + 4.72 = 42.63

This exceeds the minimum threshold of 40 required by NORSOK M-630 for super duplex components in offshore applications, and the ≥ 42 threshold specified in most oil and gas project specifications. Crucially, nitrogen's contribution to PREN (16 × %N) is amplified by the tight control range of 0.27–0.32% that Jiangsu Liangyi maintains — every 0.01% increase in nitrogen adds 0.16 PREN points, and our upper target of 0.32% N delivers an additional 0.80 PREN points versus a supplier targeting only 0.27% N.

Why 1.4410 Outperforms 2205 in Critical Applications — and Costs Less Than Nickel Alloys

Engineers often face a three-way material selection dilemma between 2205, 1.4410, and nickel alloys such as Alloy 625 or Hastelloy® C276 (Haynes International) for aggressive corrosive service. The economic and technical case for 1.4410 is compelling: versus 2205, its higher PREN (+7 points), higher yield strength (+80 MPa), and NACE MR 0175 approval without hardness restriction make it the clear choice for sour gas service above 60°C or chloride concentrations above 1,000 ppm Cl⁻. Versus nickel alloys, 1.4410 delivers comparable pitting and SCC resistance at a material cost of only 12–20% of Alloy 625, with significantly better machinability (lower work-hardening rate) and weldability (no need for pre-heat or post-weld heat treatment in most applications). For the broad "moderate to severe" corrosion band that covers the majority of real-world oil & gas, chemical, and marine applications, 1.4410 forged components consistently deliver the best lifecycle value — lower initial cost than nickel alloys, longer service life than 2205.

Key engineering advantages of 1.4410 X2CrNiMoN25-7-4 forgings in practice:

• Wall thickness reduction of 30–40% versus 316L for equivalent pressure ratings, reducing system weight and heat exchanger tube sheet cost in offshore topsides and FPSO applications
• Zero SCC failures in chloride environments up to 250°C service temperature where 316L and even 904L austenitic steels would require insulation or cathodic protection
• NACE MR 0175 compliance without hardness restrictions — unlike carbon steel or low-alloy forgings that must be hardness-limited to ≤ 22 HRC, 1.4410 forgings can be specified at full strength in H₂S partial pressures up to 0.3 MPa (43.5 psi)
• Seawater service without biocide injection — the material's inherent biofouling resistance in brackish and saline water environments reduces operational cost in desalination, offshore, and marine installations
• Fatigue strength advantage — the duplex structure delivers a fatigue limit approximately 60% of ultimate tensile strength versus 45% for austenitic grades, critical for pump impellers, rotating shafts, and dynamic offshore structures
• Thermal stability to –46°C — fully qualified for Arctic offshore, LNG facilities, and cryogenic-adjacent services where standard 2205 begins to show reduced toughness below –40°C in thick sections

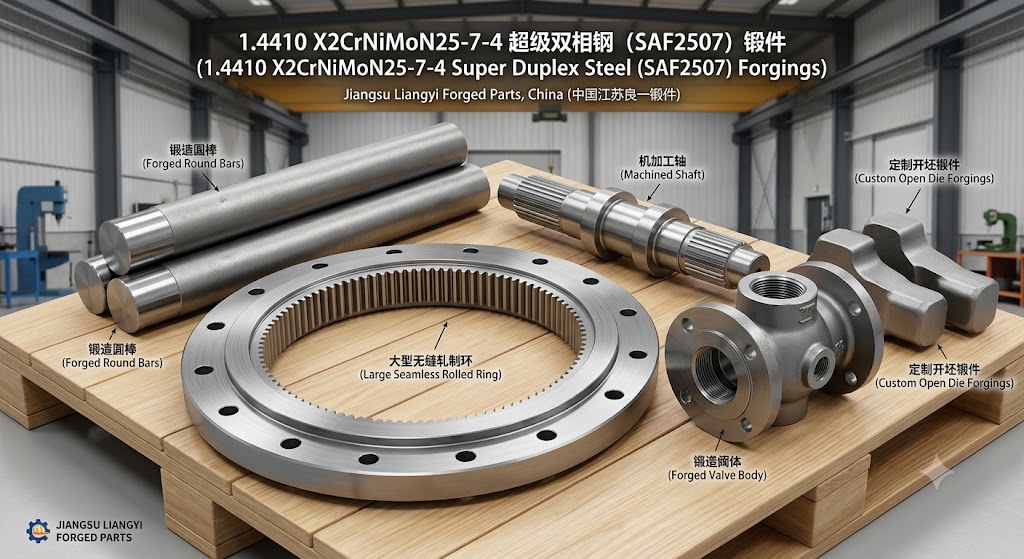

Full Range of 1.4410 (X2CrNiMoN25-7-4) Forging Shapes & Custom Capabilities

Jiangsu Liangyi manufactures a comprehensive range of 1.4410 (X2CrNiMoN25-7-4) super duplex steel forgings in any shape and dimension your project requires. All products are manufactured to EN 10228 (ultrasonic testing), EN 10222-5 (steel forgings for pressure purposes), ASTM A182 (forged flanges and fittings), ASTM A965 (austenitic forgings for high-temperature service), and equivalent international standards. Dimensional tolerances are per DIN 7527 (forgings) or EN ISO 8062 as agreed, with tighter tolerances achievable post-machining. Below is a detailed breakdown of our product range with capability data:

Open Die Forged Bars, Round Bars & Stepped Shafts

We produce 1.4410 (X2CrNiMoN25-7-4) open die forged round bars and flat bars, step shafts, spindles, gear blanks, pump shafts, agitator shafts, valve stems, and splined shaft forgings. Standard dimensional capability: diameter ⌀50 mm – ⌀2,000 mm for round bars; length up to 15,000 mm; single-piece weight 30 kg – 30,000 kg. Minimum forging reduction ratio is 3:1 from ingot or electroslag remelting (ESR) billet, ensuring homogeneous microstructure from surface to core. Every forged bar is subjected to 100% volumetric ultrasonic testing (UT) per EN 10228-3 or ASTM A388, with acceptance class UT Quality Level 3 or better as standard. Bars are supplied in solution-annealed and water-quenched condition, with EN 10204 3.1 or 3.2 Mill Test Certificate.

Typical shaft applications: centrifugal pump main shafts (diameter 80–600 mm, torque rated for API 610 configurations), downhole drilling tool bodies, valve actuation shafts, turbine and compressor shaft blanks, marine propeller shaft forgings to IACS standards.

Seamless Rolled Forged Rings

Our seamless ring rolling capability is one of the largest in China for super duplex steel, supported by a dedicated 5-metre radial-axial ring rolling mill. Dimensional range: outer diameter ⌀200 mm – ⌀6,000 mm; ring height 50 mm – 2,000 mm; wall thickness 30 mm – 1,500 mm; single-piece weight up to 30,000 kg. Profile options include flat rings, L-section rings, T-section rings, and custom contoured cross-sections that eliminate subsequent machining stock and reduce material waste by up to 35% versus flat ring blanks. Common applications: flanges (ASME B16.5 Class 150–2500, ASME B16.47 Series A/B large-diameter flanges), ring-type joint (RTJ) gasket grooves, bearing inner/outer rings, gear ring blanks, reactor shell courses, compressor casing rings, and wellhead Christmas tree body rings.

Seamless ring rolling eliminates the longitudinal weld seam present in rolled-and-welded alternatives — a critical quality advantage for 1.4410 components in cyclic pressure service and sour gas environments. Our ring rolling process maintains fiber flow (grain orientation) circumferentially throughout the ring, delivering fatigue strength and impact toughness that are 15–25% superior to machined-from-bar or welded alternatives in the circumferential loading direction.

Hollow Forgings, Thick-Wall Cylinders & Sleeves

We manufacture 1.4410 hollow forgings including through-bored cylinders, heavy-wall housings, pressure vessel shells, valve body blanks, pump casings, compressor cylinder liners, bushing sleeves, and tubing spools. Dimensional range: outer diameter ⌀100 mm – ⌀3,000 mm; bore diameter ⌀50 mm – ⌀2,500 mm; wall thickness 25 mm – 1,000 mm; length up to 5,000 mm. Hollow forgings are produced by saddle forging on a mandrel or by ring rolling with subsequent axial forging, depending on the length-to-diameter ratio and wall thickness requirements. This process achieves a complete through-forging of the wall section, eliminating the porosity, segregation, and cast structure defects that are common in investment-cast or centrifugal-cast alternatives — critical for components handling toxic or flammable process fluids.

Discs, Plates, Tube Sheets & Baffle Plates

X2CrNiMoN25-7-4 forged discs, circular plates, flange blanks, tube sheets for heat exchangers and condensers, baffle plates, impeller blanks, nozzle blanks, and end caps. Dimensional range: diameter ⌀100 mm – ⌀4,500 mm; thickness 20 mm – 800 mm; single-piece weight up to 25,000 kg. Tube sheets are forged to final near-net dimensions with subsequent drilling per TEMA or HEI heat exchanger standards; our in-house CNC boring mills can drill tube hole patterns to ±0.05 mm positional tolerance on tube sheets up to 2,500 mm diameter. Forged tube sheets for seawater desalination multi-effect distillation (MED) and multi-stage flash (MSF) evaporators in the Middle East account for a significant portion of our annual 1.4410 output.

Custom Complex Forgings from CAD Drawings

Beyond standard geometric shapes, Jiangsu Liangyi's engineering team specializes in complex custom forgings that require multi-direction forging sequences to achieve optimized grain flow in high-stress directions. Submit your CAD drawings (STEP, IGES, DWG, PDF format accepted), and our process engineers will develop a tailored forging plan, preform design, and heat treatment protocol to meet your specification. DFM (Design for Manufacturability) consultation is available free of charge for projects with anticipated annual volume of ≥ 5 tonnes. Typical custom forging lead time from drawing confirmation to delivery: 25–40 working days depending on weight and complexity.

Our Advanced Manufacturing Capability & Process Control for 1.4410 Super Duplex Steel

Forging 1.4410 super duplex steel is fundamentally more demanding than forging standard stainless or duplex grades, for three interconnected technical reasons: (1) the narrow forging temperature window required to avoid sigma-phase embrittlement while maintaining adequate hot workability; (2) the critical importance of solution annealing and quench rate in establishing the correct ferrite-austenite phase balance; and (3) the need for post-forging microstructural verification that goes beyond standard mechanical testing. Jiangsu Liangyi's manufacturing capability has been specifically built to address all three challenges.

Melting & Raw Material Control: The First Critical Step

Super duplex steel forgings begin with ultra-clean raw material. Our steelmaking route for 1.4410 is: EAF (Electric Arc Furnace, 30t) → LF (Ladle Refining Furnace, 30t) → VOD (Vacuum Oxygen Decarburization). The VOD step is essential for 1.4410: it simultaneously reduces carbon to ≤ 0.025% (below the standard maximum of 0.030%), degasses hydrogen to ≤ 2 ppm (preventing white fleck defects in large-section forgings), and allows precise nitrogen adjustment to the target range of 0.27–0.32% without oxidation losses. Nitrogen is added as chromium nitride (CrN) master alloy to ensure homogeneous distribution in the melt. Every heat is fully spectrometrically analyzed before tapping; heats outside our internal chemical control ranges are rejected at melting, not after forging.

The cast ingot or continuously cast bloom is subsequently inspected by macroetch testing (ASTM A604 for macro segregation) and ultrasonic inspection before being released to the forging department. This raw material gate prevents hidden quality problems from propagating through to finished forgings.

The Forging Process: Temperature Control is Everything

The hot workability window for 1.4410 is strictly bounded: forging must be performed between 950°C (minimum, to avoid sigma-phase accumulation during working) and 1180°C (maximum, to prevent excessive grain growth and ferrite phase dissolution). Below 950°C, the precipitation of intermetallic sigma phase begins to accelerate, and any sigma phase that forms during forging is mechanically incorporated into the microstructure where it cannot be fully dissolved by subsequent solution annealing. Above 1200°C, the alloy begins to develop a coarse ferritic structure that is difficult to refine. Our 6,300-tonne hydraulic forging press allows us to complete each forging pass rapidly — minimizing temperature loss during the stroke — while our infrared pyrometer system monitors surface temperature on the anvil in real time. Multi-pass forgings include controlled re-heating cycles at 1100–1150°C between passes, with a minimum re-heat time of 20 minutes per 50 mm section thickness to ensure temperature homogeneity through the section.

For large-section forgings (cross-section > 400 mm), we add an intermediate "breaking-down" forging stage at high temperature to break up the as-cast dendritic structure before finish forging. This produces a refined, uniform grain size (ASTM No. 5–7) throughout the cross-section, which is essential for consistent mechanical properties and ultrasonic testability in thick sections.

Solution Annealing & Quenching: Establishing the Correct Phase Balance

After forging, every 1.4410 component undergoes solution annealing followed by rapid water quenching — the most critical processing step for super duplex steel. Our solution annealing protocol: temperature 1050–1120°C (typically 1080°C for standard forgings), soak time ≥ 30 minutes per 25 mm minimum section thickness, furnace atmosphere controlled to prevent decarburization or oxidation, followed by immediate water quench to achieve a surface cooling rate ≥ 10°C/s. This rapid quench is essential to suppress sigma-phase re-precipitation in the temperature range 600–1000°C during cooling — the dangerous "sigma nose" on the TTT diagram. Air cooling is insufficient for sections above approximately 15 mm and is never used at Jiangsu Liangyi for 1.4410 forgings regardless of section thickness.

Post-annealing ferrite content is measured by calibrated Fischer Feritscope® FMP30 magnetic induction instrument at a minimum of 5 measurement points distributed across the forging surface, with additional cross-section measurements on test coupons from the same heat treatment batch. Accepted range: 40–60% ferrite (equivalent to WRC-1992 Ferrite Number 40–80 FN). Forgings outside this range are re-processed; they are never shipped. Microstructure verification by optical microscopy at 200× and 500× magnification confirms phase balance and absence of intermetallic phases and grain boundary precipitates.

Forging & Testing Equipment

• Forging presses: 2,000t fast forging press (high-speed precision work); 4,000t hydraulic press (medium-large sections); 6,300t heavy-duty hydraulic press (large-section forgings and hollow cylinders); 1t–5t electro-hydraulic forging hammers (small-to-medium components)
• Ring rolling: 1-metre vertical ring rolling mill (rings up to ⌀1,500 mm); 5-metre radial-axial ring rolling mill (rings up to ⌀6,000 mm, our flagship capability for super duplex large flanges)
• Heat treatment: 12 heat treatment furnaces with programmable PLC multi-zone temperature controllers, calibrated multipoint thermocouple arrays with data logging, maximum working temperature 1250°C; 2 dedicated rapid-quench tanks (water, capacity 800m³ total) with circulation pumps ensuring uniform quench across large-section forgings
• Melting and refining: 30t EAF → 30t LF → VOD; medium-frequency induction furnaces for master alloy preparation; continuous OES spectrometer analysis during and after heat
• Machining: CNC horizontal boring mill (boring diameter ⌀50–⌀1,800 mm, table load ≤ 60t); CNC vertical turning lathe (diameter ⌀500–⌀5,000 mm); CNC milling centres; precision grinding; deep-hole drilling to 10,000 mm depth
• NDT laboratory: Equipped with automated phased-array UT (PAUT) system; conventional immersion UT; magnetic particle (MT); penetrant testing (PT, visible and fluorescent); radiographic (RT); hydrostatic pressure testing to 1.5× MAWP
• Metallurgical laboratory: OES spectrometer (chemical analysis); Brinell, Vickers, Rockwell hardness testers; Charpy impact testing machine (–196°C to +300°C); optical microscope and image analysis system; Feritscope® ferrite measurement

Global Industry Applications & GEO-Targeted Project Cases

1.4410 (X2CrNiMoN25-7-4) super duplex steel forgings serve the most corrosion-demanding applications in global heavy industry. Below is a detailed account of Jiangsu Liangyi's delivery experience and technical contributions in each major sector, organized by geography and application type:

Oil & Gas Industry: Onshore and Offshore (Middle East, North America, Southeast Asia, Europe)

Oil and gas — particularly sour service wells and seawater injection systems — represents the largest single application category for 1.4410 forgings globally, and the industry for which the material was originally designed. Jiangsu Liangyi has supplied super duplex steel forgings to oil and gas projects in Saudi Arabia, UAE, Kuwait, Oman, and Qatar, as well as to EPC contractors and equipment manufacturers serving the North Sea (Norway, UK), Gulf of Mexico (USA), and offshore Southeast Asia (Malaysia, Indonesia).

Our 1.4410 oil and gas forgings, manufactured to comply with NACE MR 0175 / ISO 15156-3 material requirements, cover the complete range of wellhead, surface, and subsea equipment: Blowout Preventer (BOP) assemblies — ram bodies (pipe ram, blind ram, shear ram), ram packer housings, end caps, side outlets, and wellhead adapter flanges in 1.4410, with pressure ratings to 15,000 psi (1,034 bar) per API 16A. Christmas tree and wellhead components — tubing head bodies, tubing spools, casing heads, tubing hangers, casing hangers, crossover flanges, and multi-bowl assemblies per API 6A. Subsea structures — subsea tree bodies, subsea valve actuator housings, pipeline end manifold (PLEM) bodies, and pipeline end termination (PLET) structural forgings for deepwater applications to 3,000m water depth. Downhole tools — stabilizer blade bodies, drill collar forgings, crossover subs, and MWD/LWD tool housings for high-chloride horizontal wells. All downhole tool forgings are produced with bore straightness ≤ 0.1 mm/m and concentricity ≤ 0.2 mm TIR for precision fit in bottom-hole assembly configurations.

A specific technical challenge we solve repeatedly for Middle East clients: conventional carbon steel flanges in seawater injection manifolds corrode internally within 18–24 months in high-chloride injected seawater above 60°C, even with chemical inhibitor treatment. Our 1.4410 flanges in identical service show zero measurable corrosion after 5+ years, eliminating replacement cycles and reducing injection system maintenance OPEX by an estimated 40–60% over a 10-year project life.

Chemical, Petrochemical & Seawater Desalination Industry (Germany, USA, Netherlands, Saudi Arabia, UAE)

Chemical and petrochemical processing imposes combined challenges of chloride-containing process streams, elevated temperatures, oxidizing acids, and high operating pressures — an environment where 316L and 904L austenitic steels fall short of service life targets and where nickel alloys are cost-prohibitive for large-section forgings. 1.4410 occupies the optimal cost-performance position for this application space.

Jiangsu Liangyi supplies the following forged components to chemical and petrochemical EPC contractors and equipment manufacturers across Germany, USA, Netherlands, and other European and American chemical processing hubs: Heat exchanger tube sheets and channel flanges to TEMA R, C, and B standards — our largest delivered tube sheet was 2,200 mm diameter × 320 mm thick for a seawater condenser, drilled with 6,400 tube holes at 25 mm pitch to ±0.05 mm tolerance. Reactor vessel nozzles and end flanges for chlorine and chlorinated compound reactors where the combination of chloride SCC risk and elevated temperature precludes all austenitic options. Pump body castings — we produce the forged equivalent: pump casing forgings, impeller forgings, diffuser ring forgings, and bearing housing forgings for centrifugal and axial-flow pumps in chloride-containing process service per API 610 / ISO 13709 requirements. Valve body blanks for large-bore valves (DN200–DN600, ASME Class 600–1500) used in seawater reverse osmosis (SWRO) high-pressure headers.

For desalination: our 1.4410 tube sheets for MSF (Multi-Stage Flash) and MED (Multi-Effect Distillation) evaporators operating on Arabian Gulf seawater at 110–120°C are a primary export product to Saudi Arabia and the UAE. In these conditions — seawater concentration factor up to 3×, temperature cycles, and mechanical tube-rolling stresses — 1.4410 is the only cost-effective forging material that reliably exceeds a 20-year service life. Titanium Grade 2 is an alternative but at approximately 2.5× the material cost and with significantly inferior machinability for tube sheet drilling operations.

Nuclear Power Generation Industry (China, France, UK, South Korea, Pakistan)

Nuclear power represents the most stringent quality and traceability requirements in industrial forgings. For nuclear power plant applications, we manufacture forgings meeting the material requirements of ASME BPVC Section II Part A (SA-182, SA-336) and equivalent EN standards. For nuclear applications, we supply 1.4410 forgings with full material traceability, 100% radiographic testing (RT), and comprehensive documentation packages to support the client's ASME- or EN-based nuclear procurement requirements. Our nuclear-grade forging scope includes: primary and secondary coolant circuit pump casing forgings, reactor coolant pipe elbow forgings, pressurizer nozzle forgings, steam generator channel head forgings, and containment penetration forgings.

The key engineering rationale for 1.4410 in nuclear cooling circuits is its immunity to chloride-induced SCC in demineralized cooling water containing even trace chloride impurity levels that cannot be guaranteed to remain below SCC thresholds over a 60-year plant life. This eliminates the long-term risk-based inspection burden that austenitic stainless steel cooling circuit components impose on plant operators.

Marine, Offshore Wind & Renewable Energy Industry (Norway, Denmark, Australia, UK, Singapore)

Offshore renewable energy installations — particularly fixed-bottom and floating offshore wind turbines — impose a uniquely challenging combination of continuous seawater exposure, fatigue loading from dynamic wind and wave forces, and biofouling attack that demands super duplex or better corrosion resistance in critical structural connections. Jiangsu Liangyi supplies 1.4410 forged components to offshore wind platform fabricators in Scandinavia, the UK, and Australia: monopile-to-transition-piece flange rings (diameter 5,000–6,000 mm, our largest ring rolling project to date), grouted connection hub rings, J-tube entry cone forgings, and boat landing structural fittings. The material's ≥ 530 MPa yield strength enables wall thickness reduction in these large-diameter structural connections versus 2205 — saving tonnes of weight per structure that directly reduces installation vessel crane load.

Marine engineering applications include ship propeller shaft forgings (⌀250–⌀600 mm, 4–12 metres long) to DNV, Lloyd's Register, and Bureau Veritas class requirements; seawater pump impeller forgings and casing forgings for desalination vessels and LNG carriers; offshore platform mooring connector forgings; and tidal current turbine hub and blade root forgings for tidal power generation projects.

Turbomachinery, Flow Measurement & Industrial Equipment (Global)

Our 1.4410 forgings serve a diverse range of rotating and static industrial equipment applications globally: Centrifugal compressor impellers — 5-axis CNC-machined from forged disc blanks, with final surface roughness Ra ≤ 0.8 μm on flow surfaces. Labyrinth shaft seals for gas turbines and industrial steam turbines handling wet steam or hot chloride-containing process gas. Coriolis and ultrasonic flow meter bodies where the combination of corrosion resistance, dimensional stability, and non-magnetic properties (ferrite content < 60% keeps the material effectively non-magnetic for flow meter calibration purposes) are simultaneously required. Cryogenic valve body forgings for LNG and liquefied gas service where the material's impact toughness to –196°C (confirmed by Charpy testing at –196°C: ≥ 27 J minimum) enables use in applications that require Type II qualification per BS EN ISO 15649. High-pressure autoclaves and reactors for specialty chemical synthesis where the combination of high pressure (≥ 200 bar), elevated temperature (≥ 200°C), and chloride-containing solvent media demands material performance above standard duplex capability.

Global Compliance, Standards & Certifications

Every 1.4410 (X2CrNiMoN25-7-4) forging part supplied by Jiangsu Liangyi is manufactured and tested in strict compliance with the applicable international standards for its intended market and application. Our compliance scope covers:

European Union: Pressure Equipment Directive (PED) & EN Standards

• PED 2014/68/EU: Our forgings are manufactured to comply with the material and quality requirements of EN standards referenced under PED 2014/68/EU, including EN 10088-3, EN 10222-5, and EN 10250-4. As a pressure equipment component supplier, the CE marking obligation under PED 2014/68/EU rests with the pressure equipment manufacturer (our client). We provide the material documentation — chemical analysis, mechanical test results, EN 10204 3.1/3.2 MTC, and heat treatment records — required by the equipment manufacturer's Notified Body to demonstrate PED material conformity. We do not affix CE marks to forgings as raw material components.
• EN 10088-3:2014: Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels — the primary EN standard governing 1.4410 (X2CrNiMoN25-7-4) chemical composition and mechanical property requirements.
• EN 10222-5:2017: Steel forgings for pressure purposes — austenitic and duplex stainless steels (covers 1.4410 specifically in Table 1); governs mechanical properties, heat treatment, and testing requirements for forgings used in pressure vessels per EN 13445.
• EN 10250-4:2000: Open steel die forgings for general engineering purposes — stainless steels; governs dimensional tolerances and inspection requirements.
• EN 10204:2004: Metallic products types of inspection documents — we supply Type 3.1 (mill certificate verified by the manufacturer's authorized inspector) or Type 3.2 (mill certificate verified by both manufacturer and an independent third-party inspector such as BV, SGS, or TUV) upon client specification.

North America: ASME, ASTM & NACE Standards

• ASME Boiler and Pressure Vessel Code (BPVC): Our 1.4410 forgings meet the requirements of ASME BPVC Section II Part A, SA-182 Grade F53 for flanges and fittings, and SA-336 for forged alloy steel fittings for high-temperature and high-pressure piping and other applications. Enhanced documentation packages to support nuclear-grade procurement are available upon request.
• ASTM A182 / A182M: Standard Specification for Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service — Grade F53 (1.4410 / X2CrNiMoN25-7-4). All specified chemical, mechanical, hardness, and impact requirements per this standard are met and documented in our EN 10204 3.1/3.2 MTC.
• ASTM A959: Standard Guide for Specifying Harmonized Standard Grade Compositions for Wrought Stainless Steels — identifies the composition range corresponding to 1.4410 (X2CrNiMoN25-7-4).
• NACE MR 0175 / ISO 15156-3:2020: Materials for use in H₂S-containing environments in oil and gas production — Part 3: Cracking-resistant CRAs and other alloys. 1.4410 (X2CrNiMoN25-7-4) is listed in Table A.15 as acceptable for use in H₂S partial pressures up to any level encountered in oilfield service, provided hardness is ≤ 36 HRC (Brinell ≤ 343 HB). All Jiangsu Liangyi 1.4410 forgings are manufactured and tested to maximum hardness ≤ 310 HB (typically 260–290 HB), providing a substantial safety margin below the NACE hardness limit.
• NORSOK M-630:2015: Material Data Sheet for Forged super duplex stainless steel 1.4410 (X2CrNiMoN25-7-4). Governs chemical composition, mechanical properties, ferrite content (40–60%), PREN (≥ 40), and impact testing (≥ 45 J at –46°C) for North Sea offshore applications. Our standard production protocol exceeds NORSOK M-630 requirements as a baseline.

Oil & Gas Industry: API Standards

• API 6A (22nd Edition, 2018): Wellhead and Christmas Tree Equipment — our forged wellhead bodies, flanges, valve component blanks, and hangers are manufactured to the chemical composition and mechanical property requirements specified in API 6A for the relevant material class, supporting our clients' API 6A licensed equipment manufacturing. As a forging blank supplier, we do not hold an API 6A product license; the API 6A license is held by the equipment assembler client. We provide the full material documentation required by API 6A for the forging material stage of manufacture.
• API 16A (4th Edition, 2017): Specification for Drill-Through Equipment (Blowout Preventers) — our BOP ram bodies, housing component blanks, and adapter flange forgings are produced to the chemical composition and mechanical property requirements specified in API 16A for the relevant material class, supporting our clients' API 16A licensed BOP equipment manufacturing. The API 16A equipment license is held by our client (the BOP assembler), not by Jiangsu Liangyi as a forging material supplier. We provide complete material documentation required at the forging material level under API 16A.

Quality Management System

Our ISO 9001:2015 certified Quality Management System covers the complete manufacturing scope from raw material procurement through melting, forging, heat treatment, machining, inspection, and dispatch. Our QMS includes documented product realization processes, traceability control (each forging traceable to its specific heat number, forging batch, heat treatment furnace record, and inspection test report), internal audit schedule, management review, and corrective action procedures. Customer-specific QMS requirements (e.g., API Q1, ASME NQA-1 for nuclear, or client-specific ITP/QAP requirements) can be accommodated and are routinely managed for major oil and gas and nuclear power projects.

For the latest revision of NACE MR 0175 / ISO 15156 standard and its material acceptance criteria for super duplex stainless steel in sour service, visit the NACE International official website.

Physical & Thermal Properties of 1.4410 (X2CrNiMoN25-7-4) Super Duplex Steel

Understanding the physical and thermal properties of 1.4410 is essential for heat exchanger design, thermal expansion calculations in piping systems, and electromagnetic compatibility assessments. These properties derive from the dual-phase microstructure and differ significantly from purely austenitic or purely ferritic grades:

Design note: The higher thermal conductivity of 1.4410 versus 316L (15 vs. 11 W/m·K) translates directly to a smaller required heat transfer area in shell-and-tube heat exchangers — a 15–20% reduction in tube sheet area for equivalent duty, partially offsetting the higher material cost per kilogram when viewed on a whole-system design basis.

Chemical Composition of 1.4410 (X2CrNiMoN25-7-4) Super Duplex Steel: Standard vs. Our Strict Control

The chemical composition of 1.4410 (X2CrNiMoN25-7-4) is tightly specified to ensure the correct phase balance, PREN, and absence of harmful phases after heat treatment. The table below presents the standard EN 10088-3 composition range alongside Jiangsu Liangyi's internal control limits — which are in all cases tighter than the standard — and explains the metallurgical function of each alloying element:

Mechanical Properties of 1.4410 Forgings (Solution Annealed + Water Quenched Delivery Condition)

All mechanical properties are determined on test specimens cut from the forging itself (or a representative test coupon from the same heat treatment batch), tested per ASTM A370 or EN ISO 6892-1 (tensile), EN ISO 148-1 (Charpy), and ASTM E18 / EN ISO 6508 (hardness). The following table presents both the normative standard requirements and our internal minimum guaranteed values — which in every case exceed the standard minimum:

Test specimen location note: For forgings with minimum cross-section ≤ 100 mm, test specimens are taken from ¼T (quarter thickness) position. For forgings with minimum cross-section > 100 mm, specimens are taken from ¼T and ½T positions to verify core properties. For seamless rolled rings, specimens are taken from both the radial and axial directions to confirm isotropy in the ring circumferential properties.

Full-Process Quality Inspection & Testing Procedures

Jiangsu Liangyi's in-house testing laboratory performs a comprehensive multi-stage inspection and testing sequence for every 1.4410 forging, with complete documentation and traceability. Our quality plan for 1.4410 covers 11 distinct inspection hold points:

Hold Point 1: Incoming Raw Material Inspection

Every heat of 1.4410 ingot, billet, or electroslag-remelted (ESR) material is inspected upon arrival by: OES spectrometer chemical analysis — full 10-element analysis (C, Si, Mn, P, S, Cr, Ni, Mo, N, Cu) reported and compared against our internal control limits before any material enters production. Ultrasonic scanning per ASTM A388 or EN 10228-3 for bulk inclusion rating. Macroetch per ASTM A604 for segregation, porosity, and pipe evaluation. Any incoming material with chemical composition, inclusion content, or macro defects outside our acceptance criteria is rejected and returned to supplier — this gate prevents expensive non-conformance from propagating through the forging process.

Hold Point 2–3: Forging Process Monitoring

During forging, infrared pyrometer calibrated to ±15°C monitors surface temperature after each die opening. Forgings that cool below 950°C before the planned number of passes are re-charged to the furnace for re-heating — no exceptions. Forging reduction ratio is documented on the production route card for each piece. Pieces with total reduction below the minimum 3:1 ratio specified in our forging plan are rejected for the relevant product form.

Hold Point 4–5: Heat Treatment Control & Verification

Heat treatment furnaces are equipped with 6-point thermocouple arrays (IEC 60584, Class 1 accuracy), and every heat treatment cycle is automatically recorded to a tamper-evident digital data logger. The solution anneal record — time at temperature, temperature uniformity across the furnace chamber, and quench start time — is retained for 15 years as a traceability document. After quenching, post-anneal ferrite measurement is performed on every forging by Feritscope® at ≥ 5 surface locations (circumferential spacing ≤ 90° for rings, top/bottom/mid for bars), with full mapping report recorded.

Hold Points 6–8: Mechanical & Metallurgical Testing

Test specimens are cut from identified locations (see specimen position note above) and tested by: Tensile testing (Rm, Rp0.2, A%, Z) per EN ISO 6892-1 on a calibrated universal testing machine; Charpy V-notch impact testing at +20°C (standard) and −46°C (NORSOK projects) per EN ISO 148-1 on 3 specimens per test location; Hardness testing (Brinell, 10/3000, ≥ 3 indentations per forging) per EN ISO 6506-1; Microstructure examination at 200× and 500× magnification for phase identification, grain size measurement (ASTM E112), and intermetallic phase assessment (absence of sigma/chi is a pass/fail criterion); PREN calculation from the spectrometer data and documented on the MTC.

Hold Point 9: Nondestructive Testing (NDT)

• Ultrasonic Testing (UT): 100% volumetric UT per EN 10228-3 Quality Level 3 (standard) or Level 4 (enhanced for nuclear/subsea) on all forgings, performed by CSWIP/SNT-TC-1A Level 2 certified UT technicians. Phased array UT (PAUT) available for complex geometry components. Automated immersion UT available for cylindrical bars and rings.
• Magnetic Particle Testing (MT): 100% surface MT per EN ISO 17638 or ASTM E709 on all forgings — applicable because 1.4410 has a weak ferromagnetic response (μ_r 1.5–2.5) sufficient for MT detection of surface and near-surface discontinuities.
• Liquid Penetrant Testing (PT): Available as alternative to MT or as supplementary method for complex machined surfaces; fluorescent PT per EN ISO 3452 or ASTM E165 performed in UV dark room.
• Radiographic Testing (RT): Available upon client request for complex geometry forgings or weld overlay components; gamma or X-ray per EN ISO 17636 or ASTM E1032, with digital radiography (DR) preferred for improved defect detection sensitivity.

Hold Points 10–11: Dimensional Inspection & Final Release

Dimensional inspection: Full dimensional check against client drawing with calibrated vernier calipers (accuracy ±0.02 mm), coordinate measuring machine (CMM, sub-micron accuracy class) for complex geometry, and calibrated laser tracker (accuracy ±0.016 mm within 8 m) for large-diameter rings and flanges. Straightness, roundness, perpendicularity, and flatness are measured and reported for each forging. Hydrostatic pressure test (available for hollow forgings, valve bodies, and pipe fittings) at 1.5× MAWP (maximum allowable working pressure) held for ≥ 5 minutes. Final documentation pack includes EN 10204 3.1 or 3.2 MTC, dimensional inspection report, heat treatment records, NDT reports, and (where applicable) NACE MR 0175 compliance statement, NORSOK M-630 compliance statement, or API/ASME compliance documentation. Third-party inspection by BV, SGS, TUV, Intertek, or any client-nominated inspector is routinely accommodated with advance scheduling.

Frequently Asked Questions (FAQ) | 1.4410 (X2CrNiMoN25-7-4) Forging Parts

What is the difference between 1.4410 and X2CrNiMoN25-7-4, and what does UR 2507 refer to?

1.4410 and X2CrNiMoN25-7-4 are two designations within the same European standard for the identical super duplex stainless steel alloy: 1.4410 is the EN steel number per EN 10027-2, while X2CrNiMoN25-7-4 is the EN material name per EN 10027-1, describing the composition — ≤ 0.02%C, 25%Cr, 7%Ni, 4%Mo, N-alloyed. Both are fully interchangeable and should be treated as synonymous in procurement, engineering drawings, and material certificates. UR 2507 is a producer-specific grade designation (Ugitech/Aubert & Duval) covering the same composition and mechanical property requirements. All three can be cross-referenced in international procurement documents without qualification.

What is sigma phase in 1.4410 super duplex steel, and how does Jiangsu Liangyi prevent it?

Sigma phase (σ) is a hard, brittle intermetallic compound (FeCr) that precipitates in duplex and super duplex steels when they are held in the temperature range 600–1000°C for extended periods — particularly around 700–900°C where precipitation kinetics are fastest. In 1.4410, sigma forms at ferrite–austenite boundaries within minutes at 800–850°C. Even small volume fractions of sigma phase (as low as 1%) dramatically reduce impact toughness (Charpy values can drop from 120 J to below 15 J) and reduce corrosion resistance by depleting Cr from the adjacent matrix.

Sigma phase formation is the primary risk in forging super duplex steel, because: (1) large-section forgings cool slowly through the sigma precipitation zone even with water quenching; (2) insufficient solution annealing temperature leaves undissolved sigma from prior forging; and (3) incorrect re-heating temperature during multi-pass forging enters the sigma-formation zone. Jiangsu Liangyi prevents sigma through: controlling forging finish temperature ≥ 950°C (above the sigma nose), solution annealing at 1050–1120°C (fully dissolving sigma), and water quenching to pass through 600–900°C in under 3 minutes for surface and under 8 minutes for core in standard section sizes. Every batch undergoes post-anneal microstructure examination to confirm absence of sigma — this is a documented hold point in our quality plan, not an optional step.

Why is solution annealing followed by water quenching mandatory for 1.4410 forgings? Can air cooling be used?

Water quenching after solution annealing is mandatory for 1.4410 — air cooling is not acceptable except for sections below approximately 10–12 mm (which have negligible market relevance for forgings). The reason is fundamental thermodynamics: after complete sigma dissolution at 1050–1120°C, the material must pass through the critical temperature range 600–1000°C (where sigma re-nucleation and growth occur) as rapidly as possible. Air cooling of a 50 mm section takes approximately 12–20 minutes to reach 600°C, during which significant sigma precipitation will occur. Water quenching achieves the same temperature drop in under 60 seconds for the same section — a 10–20× faster cooling rate that is kinetically insufficient time for sigma to nucleate and grow. Forgings that have been air-cooled instead of water-quenched will appear to have acceptable visual and dimensional properties but will exhibit catastrophically reduced toughness and may fail NACE hardness limits — this is a hidden defect that surfaces only when the forging is in service or during third-party inspection. At Jiangsu Liangyi, all 1.4410 forgings are water-quenched without exception, and quench records are retained for 15 years as a quality document.

What is the difference between 1.4410 (X2CrNiMoN25-7-4) and 1.4462 (2205) duplex steel for oil and gas forgings?

The key differences, and when each should be selected: 1.4410 (X2CrNiMoN25-7-4) has PREN ≥ 42 versus ≥ 35 for 1.4462 (2205) — a 7-point PREN advantage that translates to significantly better performance in chloride concentrations above ≈ 500 ppm Cl⁻, temperatures above 60°C, and any H₂S-containing sour service. 1.4410 has yield strength 530 MPa versus 450 MPa for 2205, enabling 15% thinner wall designs for equivalent pressure ratings. Under NACE MR 0175, 1.4410 is approved for unrestricted H₂S partial pressures, while 2205 has limitations on hardness and application temperature that restrict its use in high-H₂S environments. For well-produced seawater service below 30°C with <500 ppm Cl⁻, 2205 is often adequate and costs approximately 35% less per kilogram than 1.4410. For Middle East oilfield wellhead equipment, sour gas processing, seawater desalination above 70°C, or any application requiring NACE MR 0175 with full hardness allowance, 1.4410 is the correct selection — and the cost difference over a component's service life is typically recovered within 18–24 months through avoided replacement and maintenance costs.

What industries and applications are 1.4410 (X2CrNiMoN25-7-4) forgings most used in?

1.4410 forgings are most widely used in: (1) Oil and gas — wellhead Christmas trees and BOP equipment, downhole tools, subsea manifolds, sour gas processing, seawater injection systems (NACE MR 0175 compliance); (2) Chemical and petrochemical — heat exchanger tube sheets, reactor nozzles, pump casings and impellers in chloride-containing media; (3) Seawater desalination — MSF and MED evaporator tube sheets, SWRO high-pressure valve bodies; (4) Nuclear power — coolant circuit pump casings, pressure vessel nozzles, containment penetrations; (5) Marine and offshore — propeller shafts, seawater pump components, offshore wind platform structural rings; (6) Pulp and paper — bleaching plant equipment exposed to chlorine dioxide; (7) Pharmaceutical — process equipment requiring both corrosion resistance and low iron contamination in aggressive CIP cleaning solutions; (8) Cryogenic applications — valve bodies and pressure fittings qualified to −46°C or below where the dual-phase structure maintains toughness superior to ferritic grades.

What is the minimum order quantity (MOQ) and standard lead time for 1.4410 forging parts?

MOQ: We accept single-piece orders with minimum individual forging weight of 30 kg. There is no minimum order value or quantity for standard product forms (bars, rings, discs) — we accommodate prototype and development orders at the same quality standard as mass production. For CNC-machined components, minimum 1 piece with complete drawing is accepted.

Lead times (from confirmed order and drawing approval): Small and medium forgings (≤ 2,000 kg per piece) with raw material in stock: 15–25 working days. Medium-large forgings (2,000–10,000 kg): 25–35 working days. Large and complex forgings (> 10,000 kg or complex geometry requiring specialized tooling): 35–50 working days. Expedited service with dedicated production scheduling: 8–12 working days for urgent small/medium forgings. All lead times include forging, heat treatment, NDT, and EN 10204 3.1/3.2 MTC preparation. CNC machining adds 5–15 working days depending on complexity.

Can you supply 1.4410 forgings with CNC machining to final dimensions? What tolerances can you achieve?

Yes — Jiangsu Liangyi provides complete one-stop service from raw material melting through forging, heat treatment, NDT, CNC precision machining, surface finish, and final inspection, eliminating the need for any secondary processing at the buyer's facility. Our standard machining capabilities for 1.4410 include: Turned surfaces: IT6 (tolerance grade per ISO 286-1) for diameters up to 2,000 mm; IT5 available for critical bearing fits up to 500 mm diameter. Bored holes: H7 fit tolerance as standard; H6 available for precision bore applications. Surface finish: Ra ≤ 3.2 µm as-machined (standard); Ra ≤ 1.6 µm (semi-finish ground); Ra ≤ 0.8 µm (fine ground or honed, for valve seats and bearing surfaces). Flatness and perpendicularity: ≤ 0.05 mm per 1,000 mm for large flange faces. Thread forms: API buttress threads, ACME threads, and metric/UNC/UNF threads machined and gauged per relevant API or ASME standards. Submit your CAD drawing (STEP, IGES, PDF) for a detailed machining quotation within 24 hours.

Are your 1.4410 forgings compliant with NACE MR 0175 / ISO 15156 for sour gas service?

Yes, unconditionally. All Jiangsu Liangyi 1.4410 forgings are manufactured and tested in strict compliance with NACE MR 0175 / ISO 15156-3 for sour (H₂S-containing) oil and gas service. The NACE standard accepts 1.4410 (X2CrNiMoN25-7-4) for use in sour environments at any H₂S partial pressure, provided hardness is ≤ 36 HRC (≤ 343 HB Brinell). Our production routinely achieves 260–290 HB (well within the limit), and Brinell hardness is measured and documented on every EN 10204 3.1/3.2 MTC with the exact test load and indentation diameter recorded. We also verify chemical composition to ensure PREN ≥ 42.5 (documented on MTC) and ferrite content 40–60% (documented on MTC) — both are required by NORSOK M-630 for North Sea sour service applications. For projects requiring explicit NACE MR 0175 compliance statements on the MTC, we provide these as standard at no additional charge.

What certifications and inspection documents do you provide with 1.4410 forging deliveries?

Standard documentation package with every 1.4410 forging delivery: (1) EN 10204 Type 3.1 Mill Test Certificate (MTC) — signed by our Quality Manager (equivalent to ASTM A370 certified test report), covering chemical composition (full OES spectrometer analysis), all mechanical test results (tensile, Charpy, hardness), heat treatment records (furnace, temperature, time, quench method), NDT results (UT, MT/PT report numbers), ferrite content measurement (Feritscope® results), PREN calculation, and compliance statements for applicable standards. (2) EN 10204 Type 3.2 MTC — additionally countersigned by an independent third-party inspector (BV, SGS, TUV, Intertek, or client-nominated TPI) upon client request. (3) Dimensional Inspection Report — full dimensional check against drawing with measured values. (4) Compliance Statements — NACE MR 0175 / ISO 15156 compliance statement; NORSOK M-630 compliance statement; PED/CE declaration of conformity (if applicable); API 6A, API 16A, or ASME compliance statement as required by project. (5) NDT Reports — UT report per EN 10228-3 or ASTM A388, MT/PT report, RT report (if applicable). Our documentation is structured to support the requirements of ASME BPVC, API Q1 audit requirements, and ISO 9001:2015 records retention.

Can 1.4410 (X2CrNiMoN25-7-4) super duplex steel forgings be welded? What precautions are needed?

Yes, 1.4410 is weldable — but it requires more care than standard austenitic stainless steel to maintain the correct dual-phase microstructure in the heat-affected zone (HAZ) and weld metal. Key welding guidelines: Pre-heat: Not required and not recommended — preheating slows cooling through the sigma nose and is counterproductive. Interpass temperature: Maximum 150°C — exceeding this risks sigma precipitation in the HAZ of previous passes. Filler metal: Use over-alloyed super duplex filler (e.g., ER2594 for TIG/MIG, E2594 for SMAW) to compensate for nitrogen loss in the weld pool and maintain PREN ≥ 40 in the weld metal. Post-weld heat treatment (PWHT): In most applications, PWHT is NOT required and NOT recommended for 1.4410 — the mandatory treatment if required is solution annealing at 1050–1120°C followed by water quenching, not stress relief annealing. Stress relief in the sigma-formation zone (e.g., 600–700°C) will severely embrittlement the material. Our machined-to-tolerance forgings can be welded by EPC contractors or equipment manufacturers; we recommend AWS D1.6 (structural), ASME Section IX, or EN ISO 15614-1 qualified welding procedures using ER2594 or E2594 consumables.

What is the maximum service temperature for 1.4410 super duplex steel forgings?

The recommended maximum continuous service temperature for 1.4410 in corrosive service is 250°C. Above 250°C, the material begins to undergo sigma-phase precipitation during in-service operation (the rate is slow at 250°C but accelerates significantly above 300°C), progressively reducing toughness and corrosion resistance over time. NACE MR 0175 / ISO 15156-3 restricts 1.4410 to ≤ 232°C (450°F) for sour service applications. For non-corrosive or mildly corrosive high-temperature service (> 300°C), 310S or 321H austenitic stainless steel grades are more appropriate. The minimum service temperature is −46°C as qualified by Charpy testing per NORSOK M-630, making 1.4410 suitable for Arctic offshore installations, LNG-adjacent piping, and other cryogenic-adjacent applications. For truly cryogenic service (< −46°C), austenitic grades or nickel alloys with face-centred cubic crystal structure are required.

How do you handle quality non-conformances? What is your warranty policy?

Jiangsu Liangyi's quality policy is zero-compromise: any forging that fails to meet the specified requirements of the purchase order, applicable standard, or our internal quality plan is automatically placed in non-conforming material hold and subjected to a formal non-conformance report (NCR) process. Disposition options are: (1) repair by authorized procedure with re-inspection; (2) re-processing (re-annealing if the non-conformance is heat-treatment related) with full re-testing; (3) rejection and replacement. We do not ship non-conforming forgings under any commercial pressure. Our product warranty covers material defects (chemical, mechanical, metallurgical) attributable to our manufacturing processes for 12 months from shipment date (or as specified in the purchase contract for project applications). In the event of field failure with suspected manufacturing cause, we dispatch a technical representative to investigate and cooperate fully in root cause analysis. For critical oil and gas or nuclear applications, dedicated hold-and-witness inspection by the client's QA inspector is our standard operating mode — we facilitate unrestricted access to our factory and records at any stage of production.
