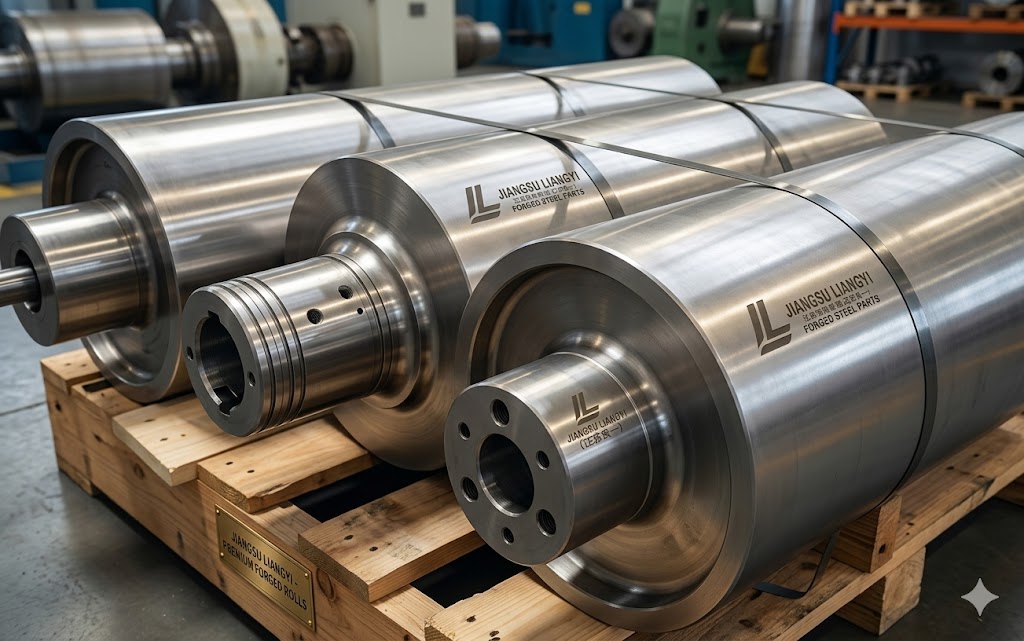

Forged Slab Caster Rolls and CCM Rollers for Continuous Casting Machine – manufactured by Jiangsu Liangyi Co., Limited, China

Quick Summary: Jiangsu Liangyi Co., Limited (LIANGYI FORGING) is an open‑die forging manufacturer based in China, specializing in forged slab caster rolls, CCM rollers, and electromagnetic stirring rolls for continuous casting machines. Our products meet EN, DIN, ASTM, and AISI standards, with diameters ranging from Ø30 mm to Ø2,000 mm, lengths up to 8 meters, and single‑piece weights from 30 kg to 30 tons. All products are supplied with EN 10204 3.1 material test certificates, with 3.2 available upon request. Our annual forging capacity is 120,000 tons. We currently export to more than 50 countries across Europe, North America, Southeast Asia, the Middle East, South America, and Africa.

25+ Years of Forging Experience

120K Tons Annual Capacity

50+ Countries Served

Ø2 m Max Roll Diameter

8 m Max Roll Length

30 t Max Single-Piece Weight

What Are Slab Caster Rolls & Their Critical Role in Steel Continuous Casting

Slab caster rolls(also known as continuous casting machine rolls, CCM rollers, or continuous caster rolls) are the most important main spare parts in steel continuous casting production lines. They are widely used in the strand guiding section, bending section, straightening section, and leveling section of slab continuous casters. As the main load‑bearing and guiding parts of continuous casting machines, the performance and lifetime of CCM rollers directly affect steel mills’ production efficiency, slab quality, and total operating cost. In real production, cast steel slabs stay at a high temperature of 1,100 °C–1,200 °C, with a casting speed of 0.3–1.2 m/min. The surface temperature of slab caster rolls that touch the hot slab changes quickly between 300 °C and 600 °C with each rotation. This means the rolls must stand extreme repeated thermal stress, thermal shock, high‑temperature oxidation, wear, and corrosion in a wet, water‑spray cooling environment. Common failures of standard CCM rollers include thermal fatigue cracking, surface wear, thermal deformation, and corrosion. These are the main problems our high‑performance forged slab caster rolls are designed to solve. As an experienced China manufacturer of forged continuous casting machine rolls with over 25 years of open die forging experience, Jiangsu Liangyi produces a full range of slab caster rolls and CCM rollers, including electromagnetic stirring rolls, strand guiding rolls, segment rolls, guide rolls, hold-down rolls, turntable rolls, hot leveler rolls, tension levelling rolls, deflector rolls and bender rollers for global slab casting plants and continuous casting lines.

Premium Material Grades for Forged CCM Rollers & Application Scenarios

We choose high-quality forged steel materials for slab caster rolls based on customers’ different working conditions, temperature levels, load demands, and corrosion resistance needs, strictly following EN, DIN, ASTM, AISI and other international standards. All materials meet EN 10204 3.1 / 3.2 mill test certificates (MTC), and they are traceable from smelting to finished parts. Following are our main material grades and their suitable applications.

Forged 1.4980 (X6NiCrTiMoVB25-15-2): Precipitation hardening superalloy, specially used for forged electromagnetic stirring rolls for continuous casting machines, with excellent high-temperature strength, creep resistance and non-magnetic properties, suitable for long-term service in high-temperature and alternating magnetic field environments
Forged 1.2779 (X6NiCrTi26-15): Iron-nickel-chromium precipitation hardening alloy, used for metallurgical in-roll electromagnetic stirrer rolls for continuous casting machines, with good thermal stability and corrosion resistance, matching the high precision requirements of electromagnetic stirring equipment
A286 (A-286) Forging Material: Iron-based superalloy, used for high-performance slab continuous casting rolls and caster rollers, with excellent high-temperature tensile strength and fatigue resistance, suitable for medium and high temperature working sections of continuous casting machines
AISI 4140 Forged Steel: High-quality medium carbon alloy steel, used for conventional continuous caster rolls, with good hardenability, strength and toughness, cost-effective for low and medium temperature sections of small and medium-sized continuous casting lines
42CrMo4 Forging Steel: High-strength alloy structural steel, the most widely used material for high-performance CCM rollers, with excellent comprehensive mechanical properties, fatigue resistance and impact resistance, suitable for most conventional working conditions of slab continuous casting lines
1.8070 (21CrMoV5-11) Forged Steel: Heat-resistant alloy steel with vanadium strengthening, used for heavy-duty strand guiding rolls and slab caster rolls, with excellent high-temperature creep resistance and thermal stability, suitable for high-temperature heavy-load sections of large-scale continuous casting machines

We also support custom material development according to the special working conditions of customers, covering carbon steel, alloy steel, stainless steel, nickel-based superalloy and other forging material grades to meet the different needs of different continuous casting processes.

Manufacturing Capability & Core Advantages of Our China-Made Slab Caster Rolls

As a professional open die forging manufacturer in China with more than 25 years of experience, we provide a full range of service from steel smelting, forging, heat treatment to final CNC machining. We have an annual production capacity of 120,000 tons of forgings and have supplied more than 50 countries and regions around the world. Following are our main manufacturing capacity and advantages:

Custom Production Capacity

Maximum forging diameter of our forged steel slab caster rolls: up to 2 meters (Ø2,000 mm)
Maximum production length of electromagnetic stirring rolls for continuous casting machines: up to 8 meters
Single-piece weight capacity: from 30 kg to 30 tons, covering small and medium-sized replacement parts to large-scale supporting rolls for complete continuous casting lines
Full customization support: we can produce forged, heat-treated and final machined slab caster rolls strictly according to customer's drawings, technical requirements and working conditions

Core Competitive Advantages of Our Forged CCM Rollers

Full-Process Independent Production: We have a 30t EAF electric arc furnace, LF ladle refining furnace, VOD vacuum degassing furnace, 6,300-ton hydraulic forging press, CNC machining centers, and complete heat treatment furnaces. We keep full control over every production step, guaranteeing stable quality and short lead times — the main advantage of our manufacturing base in China.
Premium Smelting Process: We use the VIM+ESR double melting process on superalloy and high-end alloy steel rolls to get rid of impurities and harmful elements in the steel, so that all parts have high material cleanliness, consistency, thermal fatigue resistance and lifespan.
Customized Heat Treatment Process: We have a professional heat treatment engineering team that can develop customized heat treatment processes such as quenching and tempering, solution and aging, based on different materials and working conditions. This makes sure the rolls get the improved balance of strength, hardness, toughness and thermal stability.
Strict Full-Process Quality Control: We have a complete set of testing equipment including chemical composition analysis, mechanical property testing, metallographic testing, non-destructive testing (UT/MT/PT), to make sure that every roll meets the standard requirements before delivery
Cost-Effective Global Supply: As a direct manufacturer from China, we eliminate intermediate links, provide high-quality forged slab caster rolls with more competitive prices than European and American brands, and support small batch trial orders and large batch long-term supply

Strict International Inspection Standards & Full-Process Quality Control

All our forged slab caster rolls and CCM rollers meet international standards, and they are provided with complete inspection records and traceability documents. Our main execution standards include:

EN 10083-1: Quenched and tempered steels — Technical delivery conditions for special steels
EN 10002-1: Metallic materials — Tensile testing — Part 1: Method of test at ambient temperature
EN 10002-5: Metallic materials — Tensile testing — Part 5: Method of testing at elevated temperature
EN 10045-1: Charpy impact test on metallic materials — Test method
ISO 6506-1: Metallic materials — Brinell hardness test — Part 1: Test method
ASTM A388 / SA-577: Ultrasonic inspection standard for steel forgings

Every finished forged steel slab caster roll must pass 8 mandatory inspections by our independent QC department before delivery, to make sure all products meet the needed specifications before delivery to customers:

External appearance and surface quality examination
Dimensional tolerance and marking verification
Chemical composition full element analysis
Room temperature and high temperature mechanical property testing
Macrostructure and metallographic microstructure examination
Residual stress measurement and control
100% ultrasonic testing (UT) for internal defects
Periscopic testing for inner hole surface quality

Chemical Composition & Mechanical Properties of Core Material 1.8070 (21CrMoV5-11)

1.8070 (21CrMoV5-11) is the most widely used heat-resistant alloy steel for heavy-duty slab caster rolls.It has excellent high-temperature creep resistance and thermal fatigue resistance, suitable for high-temperature heavy-load sections of large-scale continuous casting machines. Its specific parameters are as follows:

Chemical Composition of 21CrMoV5-11 (1.8070) Forged Steel
CHEMICAL COMPOSITION
Element	Symbol	Weight %
Carbon	C	0.17–0.25
Silicon	Si	0.30–0.60
Manganese	Mn	0.30–0.60
Chromium	Cr	1.20–1.50
Nickel	Ni	≤ 0.60
Molybdenum	Mo	1.00–1.20
Phosphorus	P	≤ 0.035
Sulphur	S	≤ 0.035
Vanadium	V	0.25–0.35

Mechanical Properties of 21CrMoV5-11 (Quenched & Tempered)
MECHANICAL PROPERTIES (QUENCHED AND TEMPERED CONDITION)
Mechanical Property	Standard Value	Test Standard
At +20 °C Ambient Temperature
Yield Strength (Rp0.2)	≥ 540 N/mm²	EN 10002-1
Tensile Strength	690–830 N/mm²	EN 10002-1
Elongation	≥ 18 %	EN 10002-1
Cross Section Reduction	≥ 25 %	EN 10002-1
Brinell Hardness	230–280 HB	ISO 6506-1
Impact Strength (KV Method)	≥ 54 J	EN 10045-1
At 400 °C Elevated Temperature
Yield Strength (Rp0.2)	≥ 400 N/mm²	EN 10002-5
Tensile Strength	≥ 590 N/mm²	EN 10002-5

Zone-by-Zone Slab Caster Roll Classification: The 5-Zone Stress Fingerprint of a Continuous Casting Machine

Most suppliers list roll types in alphabetical order. We arrange ours by working zone and stress profile — because choosing the wrong roll for the wrong zone is the most common reason steel mills experience early CCM roll failure. A slab continuous caster does not have a single operating environment; it has five separate mechanical and thermal zones in sequence, each requiring a different engineering solution.

⚙️ Engineer Insight — The Thermal Cycle Calculation

Consider a typical slab CCM operating at 0.8 m/min casting speed with a Ø300 mm strand guiding roll (circumference = 0.942 m). The roll surface cools under water spray, then contacts the slab again. That is ~1,222 thermal cycles per day. Over a 90-day service period, the roll endures approximately 110,000 thermal cycles, each one imposing a 300–600 °C surface temperature swing in under 35 seconds. No cast roll microstructure, with its inherent porosity and inclusion networks, can survive this. This is the metallurgical reason why forged rolls outlast cast rolls by 2–3× — not marketing, physics.

Slab CCM Zone-by-Zone Roll Type Classification, Working Conditions & Material Recommendations
CCM Zone	Position (from mold exit)	Slab Surface Temp.	Roll Type	Primary Stress Mode	Dominant Failure Risk	Recommended Material	Stress Level
Zone 1 — Mold Exit / Foot Roll Zone	0–1.5 m	1,050–1,200 °C	Foot Rolls, Mold Exit Rolls	Extreme thermal shock + ferrostatic pressure from liquid core	Rapid thermal fatigue cracking, surface oxidation spalling	1.4980 (X6NiCrTiMoVB25-15-2), A286	CRITICAL
Zone 2 — EMS / Electromagnetic Stirring Zone	1.5–4 m	900–1,100 °C	In-Roll EMS Rolls, Electromagnetic Stirring Rolls	High temp + alternating magnetic field + slab ferrostatic load	Magnetic permeability creep, dimensional distortion	1.4980, 1.2779 (X6NiCrTi26-15)	CRITICAL
Zone 3 — Strand Guiding / Bending Zone	4–12 m	700–1,000 °C	Strand Guiding Rolls, Bender Rolls, Segment Rolls	Cyclic thermal fatigue + bending loads + abrasive wear from scale	Thermal fatigue network cracking, progressive surface spalling	21CrMoV5-11 (1.8070), 42CrMo4	HIGH
Zone 4 — Straightening Zone	12–20 m	500–800 °C	Straightening Rolls, Hold-Down Rolls, Guide Rolls	High cyclic bending stress + contact fatigue from straightening force	Rolling contact fatigue, sub-surface crack initiation	42CrMo4, 21CrMoV5-11	HIGH
Zone 5 — Horizontal / Discharge Zone	>20 m	200–500 °C	Hot Leveler Rolls, Tension Levelling Rolls, Turntable Rolls, Deflector Rolls	Lower temp but high cyclic load + abrasive scale wear	Surface wear, hardness loss at elevated temp	AISI 4140, 42CrMo4	MEDIUM

Understanding this zone-by-zone stress map is why more than 90% of our orders are not off-the-shelf products — they are engineered to the exact zone, temperature profile, casting speed and slab grade of the customer's CCM. We ask before we quote, because a Zone 5 roll specification used in Zone 1 will fail within weeks.

Why Slab Caster Rolls Fail: Metallurgical Root Cause Analysis of the 4 Primary Failure Modes

Roll failure in continuous casting machines is never random. Every failure mode has a specific metallurgical root cause that points directly to a material or process solution. After more than 25 years of field service data from more than 50 countries, we have documented the following four primary failure mechanisms — and what stops each one:

① Thermal Fatigue Cracking (Most Common)

Trigger: Cyclic ΔT > 250 °C per rotation

Root Cause: Each roll rotation causes a surface temperature swing of 300–600 °C in less than 35 seconds. The hot surface expands but is held back by the cooler inner core, creating compression when touching the slab and tension when cooling.After 10,000–50,000 cycles, small cracks start to form at surface inclusions or casting flaws — the main reason cast rolls fail sooner. These cracks spread and form a typical pattern known as craze cracking or thermal fatigue marking.

Why Cast Rolls Fail First: Casting porosity and shrinkage cavities act as stress concentration points — crack initiation sites that reduce fatigue life by 60–70% compared to fully-dense forged microstructure.

✅ Solution: Forged microstructure (no porosity) + high ΔT thermal fatigue steel (21CrMoV5-11) + optimized quench-and-temper to control residual stress before service.

② Abrasive & Adhesive Wear

Trigger: Scale abrasion + insufficient surface hardness

Root Cause: The iron oxide scale (FeO / Fe₃O₄ / Fe₂O₃) on the slab surface has a Vickers hardness of 500–700 HV, much harder than the roll surface at high temperatures. When roll surface hardness falls below approximately 280 HB under operating conditions, micro-cutting and ploughing wear speed up sharply. Adhesive wear — where metal bonds to metal at rough surface points — also happens in poorly cooled local areas with no oxide scale.

Critical factor: Hot hardness retention at 400–600 °C is what separates long-life rolls from short-life rolls — room temperature hardness data alone is misleading.

✅ Solution: Material selection for high hot hardness (21CrMoV5-11 retains ≥ 280 HB at 400 °C) + surface roughness control Ra ≤ 1.6 µm + optimized cooling uniformity.

③ High-Temperature Creep & Dimensional Distortion

Trigger: Sustained load at T > 0.4 × Tm (homologous temperature)

Root Cause: For steel rolls operating above approximately 450 °C (0.4 times their melting point in Kelvin), dislocation‑driven creep begins under constant load. Over time, the roll barrel stretches, its profile distorts, and bearing journal alignment is lost. For EMS rolls, thermal creep also causes dimensional changes that shift the magnetic gap, ruining stirring efficiency even with no visible cracking.

Why standard 42CrMo4 is sometimes wrong for Zone 1–2: Its creep resistance drops significantly above 400 °C. The vanadium carbide precipitates in 21CrMoV5-11 pin dislocations at grain boundaries, suppressing creep up to 550 °C.

✅ Solution: Vanadium-strengthened steel (21CrMoV5-11) or superalloy (1.4980 / A286) for high-temperature zones + correct tempering temperature to ensure precipitate stability in service.

④ Corrosion-Fatigue in Water-Cooling Zones

Trigger: Electrochemical attack + cyclic stress in cooling water environment

Root Cause: Secondary cooling water often contains chlorides, dissolved oxygen, and scale particles, forming a highly corrosive electrochemical environment on the roll surface and within existing micro-cracks. Corrosion-fatigue is far more damaging than corrosion or fatigue alone, as the electrochemical reaction speeds up crack growth by 3–8 times compared to an inert environment. Rolls with internal water-cooling bores are especially prone to damage at rough bore surfaces and weld joints of embedded cooling tubes.

Most overlooked failure mode — often misdiagnosed as simple fatigue because corrosion evidence washes away during roll removal.

✅ Solution: Corrosion-resistant alloy steel (stainless grades for severe environments) + bore surface finish Ra ≤ 0.8 µm for internal cooling channels + controlled pH and inhibitor dosing in cooling water circuit.

Forged vs Cast vs Overlay-Welded CCM Rolls: A 12-Month True Cost of Ownership Analysis

The purchase price of a CCM roll is not the right metric to focus on. What truly affects a steel mill’s profitability is the total cost per day of production day — which includes not only the roll price, but also the expense of each shutdown for roll replacement, lost production during changeover, labor, crane usage, and inspection.

Our field data from steel mills across Southeast Asia and the Middle East consistently shows the following for a typical mid‑size slab caster strand guiding roll (Ø240 mm × 1,800 mm, 42CrMo4 / 21CrMoV5‑11 forged):

12-Month True Cost of Ownership: Forged vs Cast vs Overlay-Welded CCM Rolls (per roll position, representative slab caster, Zone 3–4)
Cost Item	Cast Roll (Standard Grade)	Forged Roll – LIANGYI (Our Product)	Overlay-Welded Roll (Refurbished)
Typical service life (months)	2.5–3.5 months	7–10 months	2–3 months
Rolls needed per 12 months	4–5 sets	1.5–2 sets	5–6 sets
Estimated unit price (USD, indicative)	~$2,600–$3,200	~$4,800–$6,000	~$1,800–$2,400
Annual roll purchase cost	~$12,000–$16,000	~$7,200–$12,000	~$9,000–$14,400
Shutdown events per year (roll change)	4–5 per position	1.5–2 per position	5–6 per position
Estimated shutdown cost per event (USD)	~$3,500–$6,000	~$3,500–$6,000	~$3,500–$6,000
Annual shutdown cost per roll position	~$14,000–$30,000	~$5,250–$12,000	~$17,500–$36,000
Total estimated annual cost per roll position	~$26,000–$46,000	~$12,450–$24,000	~$26,500–$50,400
Typical surface crack risk after 60 days	High (thermal fatigue)	Very Low	High (heat-affected zone)
MTC / Quality Certificate	Basic (if available)	EN10204 3.1 Standard / 3.2 Optional	Limited (depends on base material origin)
Custom drawing compliance	Limited	✓ Full custom (90%+ of orders)	Partial (base size fixed)

💰 The Real Payback Calculation

For a large-scale slab CCM with 200 roll positions in Zones 3–4, switching from cast rolls to our forged rolls conservatively saves $13,550–$22,000 per roll position per year. Across a 200-position machine, that equates to $2.7 million – $4.4 million in annual total cost savings — from a procurement price premium of only $2,200–$2,800 per roll. The price premium pays back in under 47 days of service for the average Zone 3 application. This is why global OEMs and leading integrated steel groups have switched to forged rolls — not because of claims, because of arithmetic.

Slab Caster Roll Material Selection Matrix: Temperature Zone × Working Condition × Alloy Grade

A common mistake in steel mill procurement is using low-cost, low-temperature materials in high-temperature zones, or over-specifying costly superalloys for applications that don’t need them.This matrix is based on our engineering team’s more than 25 years of field data and updated according to real operating performance — not just theoretical datasheet values.

Material Grade Selection Matrix for Forged Slab Caster Rolls
Working Temperature	Typical CCM Zone	Recommended Material(s)	Key Engineering Reason	Expected Service Life vs. Standard Cast	Special Consideration
>900 °C (Extreme zone)	Zone 1: Mold exit foot rolls; EMS rolls (Zone 2 high-temp)	1.4980 (X6NiCrTiMoVB25-15-2) A286	Precipitation hardening superalloys retain >80% of room-temp yield strength above 700 °C via γ' (Ni₃Ti) precipitate strengthening. Standard alloy steels lose 40–60% of strength at these temperatures, making them unsuitable.	3–4× longer than cast standard grade	VIM+ESR double smelting mandatory to achieve required purity and precipitate homogeneity
700–900 °C (EMS-specific zone)	Zone 2: Electromagnetic stirring rolls	1.4980 1.2779 (X6NiCrTi26-15)	In addition to high-temperature strength, EMS rolls MUST have relative magnetic permeability μᵣ ≤ 1.02 (effectively non-magnetic). Austenitic Fe-Ni-Cr alloys meet this requirement uniquely; ferritic or martensitic steels are disqualified regardless of mechanical performance.	2–3× longer than standard austenitic grade	Magnetic permeability testing (μᵣ) is mandatory at final inspection — we test every EMS roll before delivery
400–700 °C (Heavy-duty high-temp)	Zone 3 (upper): Strand guiding rolls, segment rolls, heavy bender rolls	21CrMoV5-11 (1.8070) A286	Vanadium carbide (VC) precipitates in 21CrMoV5-11 provide exceptional creep resistance up to 550 °C by pinning dislocation movement at grain boundaries. This steel was specifically developed for high-temperature rotor applications and performs equally well in CCM environments.	2.5–3.5× longer than cast standard grade	Heat treatment must target 230–280 HB final hardness — softer = faster thermal fatigue, harder = brittleness risk under bending loads
200–400 °C (Standard high-performance)	Zone 3–4 (lower): Most straightening rolls, bender rolls, hold-down rolls	42CrMo4 AISI 4140	At these temperatures, 42CrMo4's great combined mechanical properties (high strength + toughness + hardenability) are fully effective. Mo and Cr carbides provide adequate tempering resistance. This is the most cost-effective choice for this temperature range — using superalloy here would be over-engineering without service life benefit.	2–2.5× longer than cast standard grade	Final hardness 250–300 HB for balance of wear resistance and contact fatigue resistance; avoid hardness >320 HB which increases brittleness under shock loading
<200 °C (Horizontal / discharge zone)	Zone 5: Hot leveler rolls, turntable rolls, deflector rolls, tension levelling rolls	42CrMo4 AISI 4140 Custom carbon steel	Primary failure mode shifts from thermal fatigue to abrasive wear and rolling contact fatigue. Higher surface hardness (280–350 HB) can be specified without brittleness risk at these lower temperatures. Cost optimization is appropriate here — diverting budget to higher-risk Zone 1–3 is the better strategy.	2–3× longer than cast standard grade	Surface finish is important for leveler roll contact quality; Ra ≤ 1.6 µm with profile tolerance ≤ 0.02 mm/m straightness

Forged Slab Caster Roll Complete Technical Specifications & Manufacturing Tolerances

The following table represents our standard manufacturing capability envelope. Custom specifications beyond these ranges are evaluated case by case — contact our technical team with your drawing and working conditions for feasibility assessment:

FORGED SLAB CASTER ROLL — FULL TECHNICAL SPECIFICATION TABLE
Parameter	Standard Range	Remarks / Tolerances
DIMENSIONAL PARAMETERS
Outer Diameter (OD)	Ø80 mm – Ø2,000 mm	Tolerance per drawing; typical ±0.05 mm for precision sections
Overall Length	500 mm – 8,000 mm	Straightness ≤ 0.03 mm/m (full length); ≤ 0.5 mm total for rolls >3 m
Single-Piece Weight	30 kg – 30,000 kg	Heavier pieces available on request (confirm with order)
Journal / Neck Diameter	Per customer drawing	Tolerance h6 / h7 / k6 as required; concentricity to barrel ≤ 0.015 mm TIR
Internal Cooling Bore Diameter	Ø20 mm – Ø150 mm	Surface finish Ra ≤ 0.8 µm; concentricity ≤ 0.02 mm; available in straight-through and spiral configurations
Barrel Profile	Flat, convex crown, concave, tapered, custom	Profile deviation ≤ 0.02 mm across barrel length
SURFACE & HARDNESS PARAMETERS
Barrel Surface Finish	Ra 0.4 µm – Ra 3.2 µm	Standard deliverable Ra 1.6 µm; Ra 0.8 µm for precision leveler rolls
Journal Surface Finish	Ra 0.4 µm – Ra 1.6 µm	Bearing fit surfaces ground to Ra ≤ 0.8 µm as standard
Brinell Hardness (Barrel)	180–350 HB (as specified)	Standard 230–280 HB for 21CrMoV5-11; 250–300 HB for 42CrMo4; uniformity across all cross-sections ≤ ±15 HB
Magnetic Permeability (EMS Rolls)	μᵣ ≤ 1.02	Tested and certified for every EMS roll; 1.4980 and 1.2779 grades
MATERIAL & PROCESS PARAMETERS
Available Material Grades	42CrMo4, 21CrMoV5-11, 1.4980, 1.2779, A286, AISI 4140, and custom grades	Custom grade development available; all grades traceable from heat number
Smelting Process	EAF + LF + VOD (standard); VIM + ESR (superalloys and premium grades)	VIM+ESR double smelting for 1.4980, 1.2779, A286; reduces non-metallic inclusions to <1.5 µm average diameter
Forging Ratio (minimum)	≥ 3:1 (typical 4–6:1)	Sufficient forging reduction to close all porosity and align grain flow; documented in production record
Heat Treatment	Q+T (quench and temper); Solution + Aging for superalloys	Furnace-recorded, time-temperature charts provided in MTC; residual stress controlled by staged cooling
NDE & INSPECTION PARAMETERS
Ultrasonic Testing (UT)	100% volumetric UT per ASTM A388 / EN 10307	Zero reportable indications; calibration records included in MTC
Magnetic Particle Testing (MT)	Per EN ISO 10228-1 / ASTM E709	Applied to all ferritic/martensitic grades after final machining
Liquid Penetrant Testing (PT)	Per EN ISO 3452 / ASTM E165	Applied to non-magnetic austenitic grades (EMS rolls)
Residual Stress Check	Deflection method / X-ray diffraction (on request)	Controlled to <150 MPa surface residual stress for high-performance rolls
Mill Test Certificate	EN10204 3.1 (standard); EN10204 3.2 (optional)	3.2 certificate includes third-party inspection witness; we support TÜV, Bureau Veritas, SGS, CCIC, and customer-designated inspectors
LOGISTICS PARAMETERS
Standard Lead Time (conventional spec)	25–35 working days	After drawing confirmation and deposit receipt; express production available on request
Lead Time (superalloy / EMS rolls)	45–70 working days	VIM+ESR melting + aging heat treatment extends cycle; confirm with order
Packaging	Rust-preventive coated, anti-corrosion wrapped, wooden crate or steel frame	Journal ends protected with custom machined end caps; roll barrel wrapped in VCI film; fumigated wooden crates for sea freight
Shipping Method	Sea (FCL/LCL), Air (urgent small parts), Land border	Nearest port: Shanghai / Ningbo; Incoterms: FOB, CIF, DDP negotiable

Advanced Options: Surface Engineering & Internal Cooling Bore Design for Slab Caster Rolls

Beyond base material and forging, two engineering options significantly extend the service life of slab caster rolls in extreme applications: surface engineering treatments applied after machining, and internal cooling bore geometry for thermally-loaded rolls. These are not standard offerings from most roll suppliers — we offer them because our customers in Zone 1–2 applications demanded it.

① Thermal Spray Coating (HVOF / APS)

Barrel surfaces are coated with High‑Velocity Oxygen Fuel (HVOF) or Air Plasma Spray (APS) using tungsten carbide or Cr₃C₂‑NiCr materials.Coating thickness: 0.15–0.35 mm.Surface hardness after coating: 900–1,200 HV₃₀₀, which is 3–4 times that of the base material.

Best for: Hot leveler rolls and Zone 5 discharge rolls where abrasive scale wear is the dominant failure mode. Not recommended for Zone 1–2 high thermal shock environments (coating delamination risk).

Wear Life: +80–150%

② Precision Induction Surface Hardening

Induction hardening of barrel surface to 55–62 HRC (550–740 HV) to a case depth of 3–8 mm, leaving a tough forged core. Achieved through controlled induction heating + water quench cycle along the roll length.

Best for: Straightening rolls and hold-down rolls in Zone 4 where rolling contact fatigue initiates at the surface. Produces a favorable compressive residual stress layer that retards fatigue crack initiation.

Contact Fatigue Life: +60–120%

③ Hardfacing / Overlay Welding (as manufacturing option)

Co-based (Stellite) or Ni-based overlay welding applied to rolls operating in highly abrasive environments (e.g., scale-contaminated Zone 3 positions). We apply hardfacing as a primary manufacturing option on new forgings — NOT as a repair on worn rolls.

Distinction: New forged + hardfaced roll is fundamentally different from a repaired overlay-welded roll. The forged base ensures integrity; the hardfacing provides a renewable wear surface.

Overlay Hardness: 38–58 HRC

④ Straight-Through Internal Cooling Bore

A single precision-bored axial cooling water channel through the roll center, typically Ø30–100 mm. Water enters one journal and exits the other. Most common for Zone 1–2 foot rolls and EMS rolls.

Technical requirements: Deep-hole boring to L/D ≥ 25 with straightness ≤ 0.1 mm/m; bore surface Ra ≤ 0.8 µm to prevent corrosion-fatigue initiation; sealed bearing arrangement at journals.

Surface Temp Reduction: 80–150 °C

⑤ Spiral / Helical Internal Cooling Channel

A helical water passage machined inside the roll body (or inserted as a spiral insert tube), providing significantly higher heat extraction than a straight bore due to turbulent flow and extended flow path length.

Best for: Segment rolls and bender rolls in Zone 3 where consistent temperature gradient control across the barrel length is important for consistent slab solidification.

Turbulent Flow: Nusselt ×2–3 vs. straight bore

⑥ Anti-Corrosion Journal Treatment

Electroless nickel plating (ENP) or chromate conversion coating applied to bearing seat surfaces and internal bore surfaces exposed to cooling water. Prevents galvanic corrosion between roll steel and bearing housing material in humid environments.

Specification: ENP thickness 25–50 µm, Vickers hardness 500–600 HV after heat treatment. Applied under strict EN 2NF 045 process control.

Corrosion Resistance: ×8–12 vs. bare steel

How to Order Slab Caster Rolls: The 7 Technical Questions Every Steel Mill Should Answer Before Sending an Inquiry

After handling thousands of CCM roll inquiries from steel mills across 50+ countries, we have learned that the quality of the information a customer provides at the inquiry stage directly determines how precisely we can engineer and price the right solution. Incomplete inquiries lead to misspecified products. Here is exactly what our engineering team needs — and why each piece of information matters:

Which zone and position in your CCM? (Roll type + drawing preferred)

The most important information we need is as follows. A strand guiding roll used in Zone 2 and a hot leveler roll used in Zone 5 are totally different in engineering design even though they look similar on paper. Please provide the name of the roll part, the CCM manufacturer such as SMS, Danieli, Concast, CCTEC and others, the segment number or working zone, and if available, your customer drawing that shows the profile, tolerances and material standard. If you have the OEM part number, it will help us check and match the parts accurately.

⚡ Without this: we quote a generic product that may not match your CCM's specific geometry

What steel grade(s) does your CCM cast, and at what casting speed?

Carbon steel CCM rolls work in a different thermal environment than stainless steel or high-alloy CCM rolls. Stainless steel casting runs at a higher temperature for a longer time, and the scale has different chemical properties. Casting speed measured in meters per minute decides how often thermal cycles happen on the roll surface. We use this to figure out the total fatigue life. Higher speed means more cycles each day, so the material needs to perform better.

⚡ Without this: we cannot calculate the correct thermal cycle dose for material selection

What is the current roll service life and failure mode?

Tell us what parts you are currently using (cast or forged, and the material if you know it), and how those parts fail (cracking, wear, bending, corrosion, or dimensional distortion). Identifying the failure type is the most direct way to find the right solution. If you have a photo of a failed roll, please send it — surface crack patterns, wear patterns, and signs of corrosion all show specific metallurgical root causes.

⚡ Without this: we are solving an unknown problem; with it, we immediately identify the material and process upgrade needed

What material specification do you require, and which inspection standard?

Specify the material grade (your OEM specification or EN/DIN/ASTM equivalent), needed hardness range, and inspection certificate type (EN10204 3.1 standard, or 3.2 with third-party witness). If your company or end customer needs a specific third-party inspection body (TÜV, Bureau Veritas, SGS, CCIC, etc.), confirm this at inquiry stage so we can schedule accordingly and build the cost into the quotation.

⚡ Without this: we default to EN10204 3.1 with our standard material grade — which may not be your OEM specification

What is the required delivery timeline?

Our standard lead time is 25–35 working days from drawing confirmation and deposit for standard materials.Superalloy EMS rolls (1.4980, VIM+ESR) need 45–70 days because of the melting and aging process.If you have a planned maintenance shutdown date, let us know — we will tell you if it can be delivered on our normal schedule or needs priority production.Urgent orders for unplanned shutdowns are handled individually. For the fastest response, please call us directly instead of sending an email.

⚡ Without this: we cannot prioritize your order correctly in our production schedule

What is the quantity — and do you need a trial order option?

We support trial orders of 1–2 pieces for new customers who want to test our quality before signing a full-volume contract. Trial orders are priced at standard unit rates with no discounts, but they let your engineering team run our rolls next to your current supplier’s rolls and compare service life directly. We have secured long-term contracts with steel mills in North America and Europe through this trial order process.

⚡ We recommend: 2-piece trial for Zones 1–3 (higher risk); 4-piece trial if you want statistically meaningful service life comparison data

What are your port of destination, trade terms, and payment preferences?

We ship from Shanghai or Ningbo Port, the closest ports to our Jiangyin factory. We can provide FOB, CIF, or DDP quotations based on your destination country and logistics needs.For regular customers, we offer different payment terms: 30% deposit with the balance paid against a copy of the bill of lading.For first-time orders, our standard terms are 50% advance payment and 50% before shipment.We also accept Letter of Credit (L/C) for large orders.

⚡ Providing this upfront gives you a complete landed-cost quotation, not just ex-works price

Jiangsu Liangyi vs European CCM Roll Brands: An Honest Engineering & Commercial Comparison

We won’t claim that all Chinese forging makers are the same as well-known European suppliers, or that price is the only thing that matters. Steel mills deserve an honest comparison. Based on feedback from customers who switched from European OEM rolls to us, and from those who first tried lower-quality Chinese products before choosing us, here is what we see as the real trade-off:

Honest Comparison: Jiangsu Liangyi Forged CCM Rolls vs European OEM Roll Suppliers vs Low-Tier Chinese Suppliers
Comparison Dimension	European OEM Brands (SMS, Danieli, INTECO supply chain)	Jiangsu Liangyi (LIANGYI FORGING)	Low-Tier Chinese Suppliers (No-brand, cast or basic forged)
Material Quality & Traceability	✓ Premium; full traceability standard	✓ Premium; VIM+ESR available; EN10204 3.1/3.2 standard	✗ Variable; often no meaningful MTC
Smelting Capability (Superalloy)	✓ Full VIM+ESR capability	✓ Full VIM+ESR capability (in-house)	✗ EAF only; no superalloy capability
Forging Press Capacity	✓ 8,000–15,000 T presses	✓ 6,300 T hydraulic press (covers all CCM roll sizes to Ø2,000 mm)	✗ Typically ≤ 2,000 T; limited size range
EN/DIN/ASTM Standard Compliance	✓ Full compliance	✓ Full compliance (EN, DIN, ASTM, AISI, ISO)	△ Claimed but rarely verified independently
Third-Party Inspection Support	✓ Supported	✓ TÜV, BV, SGS, CCIC, customer-designated	✗ Often refused or unavailable
Custom Drawing Compliance (90%+)	△ Limited; often standard-size only	✓ 90%+ of orders are fully custom per drawing	△ Basic customization; profile accuracy unreliable
Internal Cooling Bore Machining	✓ Available	✓ Straight-through and spiral; L/D ≥ 25, Ra ≤ 0.8 µm	✗ Rarely available; quality inconsistent
Typical Price vs European OEM (same spec)	Baseline 100%	35–55% of European OEM price (same material spec, same inspection)	20–35% — but significantly lower specification
Standard Lead Time	△ 12–26 weeks typical (European production capacity constraint)	✓ 5–7 weeks (conventional grades); 9–14 weeks (superalloy)	△ 4–8 weeks but quality consistency risk
Minimum Order Quantity	△ Usually 10+ pieces; large MOQ requirement	✓ 1–2 pieces (trial order supported); no artificial MOQ	✓ Flexible — but quality risk increases with lower volume
Technical Support & Failure Analysis	✓ Strong engineering team	✓ 25+ years field experience; failure root-cause analysis on request	✗ None; transaction-based relationship only
Service Life vs Cast Roll (Zone 3–4)	✓ 2.5–3.5× cast roll lifespan	✓ 2–3.5× cast roll lifespan (verified in-service, multiple projects)	✗ 1–1.5× cast roll lifespan (marginal improvement)

🎯 Our Honest Assessment

European OEM rolls are excellent products — their only drawbacks are long lead times and high prices, not their quality. We offer matching quality at 35–55% of the price, with faster delivery and real custom engineering ability. We do not compete with low-level suppliers only on price. If your only requirement is low cost and you do not need technical verification, we will not be the right supplier for you, and we will be honest about that. Our long-term customers include European OEM equipment manufacturers that source from us in China, because we meet the same technical standards as their European forges, at much lower cost and with much shorter lead times.

Global Application Cases of Our Forged Slab Caster Rolls

Our forged slab caster rolls and CCM rollers have been widely used in more than 50 countries and regions around the world, serving large integrated steel mills, metallurgical equipment manufacturers and continuous casting line upgrade projects, with proven long-term stable performance in harsh working conditions.

Case 1: Large Integrated Steel Mill Slab Casting Line — Southeast Asia

We supplied more than 800 sets of forged slab caster rolls in batches to a top‑3 integrated steel group in Southeast Asia for their 3 new large‑scale slab continuous casting production lines. The customer’s main problem was that their original cast rolls only lasted 3 months, suffered frequent thermal fatigue cracking, and caused high maintenance costs during shutdowns.
We used 42CrMo4 and 21CrMoV5‑11 forged steel materials, optimized the forging ratio and heat treatment process, and strictly controlled residual stress in the rolls. The finished parts we delivered achieved a service life of over 7 months — 130% longer than the original parts — and reduced the customer’s production costs by 42%. We have been their long‑term preferred supplier.

800+ Roll Sets Supplied Service Life +130% Production Cost −42% Material: 42CrMo4 / 21CrMoV5-11

Case 2: European Metallurgical Equipment OEM Supporting Project — Germany

We custom-produced a full set of in-roll electromagnetic stirring (EMS) rolls for a world-renowned continuous casting machine equipment manufacturer in Germany. These parts were needed to meet DIN EN standards, with very high demands for material purity, dimensional accuracy and non-magnetic properties.
We used 1.4980 superalloy material with the VIM+ESR double melting process, finished production with CNC machining, and provided EN 10204 3.1 inspection certificates with complete test data. The parts have been successfully fitted to 12 new continuous casting production lines for the customer across Europe, South America and the Middle East, and we have become their designated China forging supplier.

Material: 1.4980 Superalloy VIM+ESR Double Smelting 12 CCM Lines Supplied EN10204 3.1 Certified

Case 3: Special Steel Continuous Casting Line Upgrade — Middle East

We provided a full set of customized slab caster roll solutions for a large special steel production base in the Middle East, including strand guiding rolls, bender rolls, straightening rolls and hot leveler rolls. The customer mainly produces stainless steel and alloy steel, and has high requirements for the thermal corrosion resistance and wear resistance of the rolls.
We chose A286 and high-alloy heat-resistant steel materials, developed a special surface treatment process, and finished production and delivery within 45 days. After the upgrade, the customer's continuous casting line productivity increased by 28%, slab rejection rate dropped by 65%, and the roll replacement cycle was extended from 4 months to 9 months.

Material: A286 Superalloy Production Efficiency +28% Rejection Rate −65% Roll Life: 4 → 9 Months

Case 4: Replacement Parts Long-Term Supply — North America

We have built long-term, stable supply cooperation with a large steel group in North America, providing custom forged slab caster rolls and CCM rollers for their many existing continuous casting lines. The customer has strict requirements for product consistency, delivery time, and third-party inspection.We set up a dedicated production line for the customer and carried out a strict quality control system. For standard sizes, we can offer fast delivery within 30 days. All products are inspected by the third-party authority chosen by the customer, and we have kept aconsistently high pass rate maintained over 6 straight years of cooperation. We have become the core overseas supplier of continuous casting machine spare parts for this customer.

30-Day Standard Delivery Consistent High Pass Rate × 6 Years Dedicated Production Line Third-Party Inspected

Frequently Asked Questions (FAQ) About Slab Caster Rolls

What is the main function of slab caster rolls in continuous casting?

Slab caster rolls mainly support, guide and transport high-temperature cast slabs inside the continuous casting machine. They also bend and straighten the slab and control how it solidifies. These parts are core to keeping the casting line running steadily and guaranteeing good slab quality.

What is the difference between forged and cast CCM rollers?

Compared with cast CCM rollers, forged slab caster rolls have a denser internal matrix, no casting defects like porosity or shrinkage cavities, higher strength, toughness, fatigue resistance and thermal stability. They also have a longer lifetime — usually 2 to 3 times that of cast rollers — and better safety and reliability under heavy-load, high-temperature working conditions.

What is the maximum size of slab caster rolls you can manufacture?

We can manufacture forged slab caster rolls with a maximum diameter of up to 2 meters (Ø2,000 mm), a maximum length of up to 8 meters, and a single-piece weight range from 30 kg to 30 tons, which can meet the needs of most small, medium and large-scale continuous casting lines.

What inspection certificates do you provide for continuous casting rolls?

We provide an EN 10204 3.1 mill test certificate for all products as standard. It includes complete data such as full chemical composition, mechanical properties, heat treatment process, and non-destructive testing results. We can also supply an EN 10204 3.2 third-party witnessed inspection certificate based on customer requirements.

Can you produce custom slab caster rolls according to our drawings?

Yes, more than 90% of our products are custom produced according to customer drawings and technical requirements. Our professional technical team will fully review the drawings and offer optimization suggestions on material selection and processing based on actual working conditions, to make sure the parts meet your application needs.

How to extend the service life of slab caster rolls?

The main ways to extend the lifetime of slab caster rolls include: choosing the right material grade based on working conditions; using high-quality forging and proper heat treatment to improve material performance; controlling surface machining accuracy and roughness; carrying out regular non-destructive testing; and optimizing the cooling system to reduce thermal shock on the rolls.

What standards do your CCM rollers comply with?

Our CCM rollers are manufactured and inspected based on international standards such as EN, DIN, ASTM, AISI, ISO, and they also can meet customer's industry-specific and enterprise standards upon request.

Do you supply slab caster rolls to overseas steel mills?

Yes. As a professional China slab caster rolls manufacturer, we have been exporting our products to more than 50 countries and regions around the world, including Europe, North America, Southeast Asia, the Middle East, South America, Africa, etc., serving hundreds of overseas steel mills and metallurgical equipment manufacturers.

Inquiry & Contact Us

Jiangsu Liangyi Co., Limited is a professional China manufacturer of open die forgings and seamless rolled rings, with over 25 years of experience in producing high-quality slab caster rolls, CCM rollers and continuous casting machine spare parts. We are glad to provide the most competitive price and great quality forged products for all clients around the world. Welcome to send your custom drawing, material requirement, quantity and working conditions to get a detailed quotation!

Inquiry Email: sales@jnmtforgedparts.com

Phone / WhatsApp: +86-13585067993

Website: www.jnmtforgedparts.com

Address: Chengchang Industry Park, Jiangyin City, Jiangsu Province, China

Sitemap: https://www.jnmtforgedparts.com/sitemap.xml
