Nimonic Alloy 901 (Incoloy 901, UNS N09901) Forged Parts

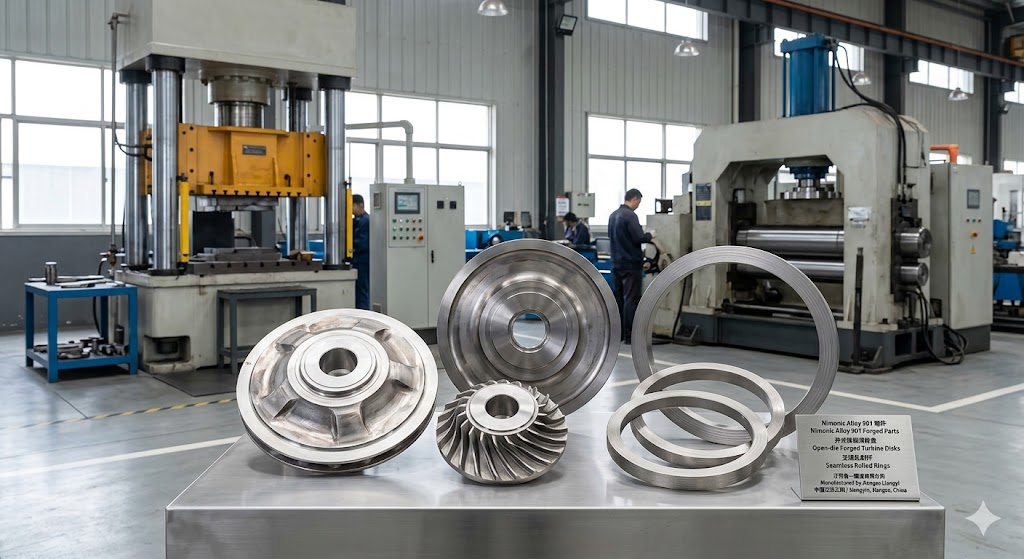

Available Forging Shapes for Nimonic Alloy 901

As a specialist Incoloy 901 forging manufacturer in China, we produce all standard and custom open-die forged shapes in UNS N09901. Every geometry listed below is available in fully heat-treated condition with EN 10204 3.1/3.2 MTC documentation:

• Forged Bars & Rods: Round, square, flat, and hexagonal bars up to 2,000 mm diameter; rod lengths to 15 m
• Seamless Rolled Rings: Rectangular-section and contoured-profile rings from 200 mm to 6,000 mm outside diameter; single ring weight to 30 tons
• Hollow & Tubular Forms: Hubs, housings, shells, sleeves, bushing cases, and thick-wall hollow bars up to 3,000 mm OD
• Discs, Disks & Blocks: Turbine disks, compressor disks, and heavy plates up to 3,000 mm diameter
• Pipe & Pressure-Vessel Forms: Forged pipes, tube shells, pressure-vessel cylinders, and casing barrels
• Custom Near-Net-Shape Forgings: Complex geometries produced directly from customer drawings; no minimum order quantity

Industrial Applications of Nimonic Alloy 901 Forged Parts

Nimonic Alloy 901 is an age-hardenable Ni-Fe superalloy engineered for applications where continuous mechanical load at elevated temperature would degrade conventional steels or stainless steels within an unacceptable service life. Its precipitation-strengthened microstructure — γ' particles of Ni₃(Ti,Al) distributed uniformly within an austenitic matrix — sustains tensile and creep loads up to 600 °C (1110 °F) without significant relaxation. The alloy's iron content (balance element) keeps raw-material costs lower than fully nickel-based grades, while its molybdenum addition reinforces the matrix through solid-solution strengthening. These combined characteristics make it a practical and cost-effective choice for the following industries:

Real-World Application Case Studies

Complete Material Data for Nimonic Alloy 901 (UNS N09901)

NIMONIC Alloy 901 is a precipitation-hardenable nickel-iron-chromium superalloy strengthened by γ' (Ni₃(Ti,Al)) precipitates formed during the aging heat treatment cycle. Molybdenum provides additional solid-solution strengthening of the austenitic matrix. The alloy's relatively high iron content (balance element) reduces material cost compared with fully nickel-based superalloys, while still delivering the high-temperature strength and creep resistance required for rotating power-generation components.

Applicable Standards & Specifications

Forgings produced by Jiangsu Liangyi conform to the following standards. Customers are welcome to specify additional requirements at order placement:

* "Conforms to" means our forgings are produced and tested to meet the technical requirements of these standards. It does not imply that Jiangsu Liangyi holds any certification issued by SAE, ASTM, or other standard bodies beyond our ISO 9001:2015 Quality Management System certificate. Customers requiring additional quality-system certifications (e.g., AS9100, ASME N-Stamp) should contact us to discuss project-specific qualification options.

Chemical Composition (wt%) — Per AMS 5660/5661

Mechanical Properties at Room Temperature — Minimum Values per AMS 5660

Physical & Thermal Properties of Nimonic Alloy 901

The following physical and thermal data are essential for component designers calculating thermal stress, deflection, and heat transfer in high-temperature assemblies. These values represent the fully heat-treated (solution + stabilized + aged) condition:

High-Temperature Stress-Rupture Properties

At 1200 °F (649 °C), a standard cylindrical smooth-and-notched combination specimen maintained under an initial axial stress of 80.0 ksi (552 MPa) shall not rupture in less than 23 hours. Elongation of the smooth-bar section after rupture shall be not less than 5% measured over a 4D gauge length. This requirement is specified in AMS 5660 and verified on coupon specimens cut from the same heat and condition as the production forging.

Mechanical Properties at Elevated Temperatures (Typical Values, Aged Condition)

Engineers designing rotating disks and casings must account for the progressive strength reduction that occurs as service temperature increases. The table below provides representative (not minimum) tensile data for fully aged Alloy 901 to support preliminary design calculations. Final design values should be validated against actual test certificates from the production heat:

* Typical values from multiple production heats. These are not guaranteed minimums. AMS 5660 specifies room-temperature minimums only. Obtain actual test certificates from your supplier for design-basis data.

Key Material Advantages of Alloy 901

• Excellent high-temperature strength sustained to 600 °C (1110 °F) — suitable for LP turbine disk and steam turbine rotor applications
• Superior creep and stress-rupture resistance due to stable γ' (Ni₃(Ti,Al)) precipitation
• Good oxidation resistance in air up to approximately 870 °C (1600 °F) — protective Cr₂O₃ scale forms readily
• Excellent forgeability: forging windows of 950–1150 °C are achievable without significant cracking risk on large billets
• Good machinability after solution treatment (before aging); cutting tool life is acceptable with carbide inserts and proper coolant
• Weldable with correct procedure (see Welding section below)
• Stable microstructure during long-term service — γ' coarsening rate is low at temperatures below 600 °C
• Non-magnetic after heat treatment — important for certain nuclear and MRI-adjacent applications

Nimonic Alloy 901 vs. Competing Superalloys — How to Choose

Selecting the right superalloy for a turbine or high-temperature structural component involves balancing temperature capability, mechanical performance, forgeability, and material cost. The table below compares Alloy 901 (UNS N09901) with three commonly specified alternatives to help engineering teams make the right decisions:

Alloy 901 Forging Process Window — Technical Parameters

Achieving the correct microstructure in a Nimonic Alloy 901 forging requires precise control of temperature, strain rate, and reduction throughout the forging sequence. The following process window data reflects our standard practice at Jiangsu Liangyi and is consistent with published aerospace material processing guidelines for UNS N09901:

Heating Before Forging

Press and Hammer Parameters

Alloy 901 Heat Treatment — Full Specification & Metallurgical Rationale

The mechanical properties that make Nimonic Alloy 901 suitable for elevated-temperature service are not inherent to the as-forged billet — they are created by a three-stage heat treatment sequence. Each stage aims for a specific microstructure result. Understanding these stages helps engineers choose the right delivery condition and avoid ordering forgings that cannot meet your drawing requirements.

Available Delivery Conditions

Welding Nimonic Alloy 901 — Procedures, Filler Metals & Post-Weld Requirements

Alloy 901 is weldable, but its high Ti content (2.35–3.10 wt%) and the associated γ' precipitation response during thermal cycling create a risk of strain-age cracking (SAC) if welding and post-weld procedures are not correctly specified. The following guidelines reflect industry best practice for joining UNS N09901:

Pre-Weld Preparation

• Material Condition Before Welding: Weld Alloy 901 in the solution-annealed condition (Stage 1 only, no aging). Welding fully-aged material significantly increases SAC risk because the high γ' fraction cannot relax weld-induced residual stresses plastically during PWHT ramp-up.
• Joint Cleanliness: Remove all surface oxides, lubricants, and moisture within 50 mm of the joint. Use acetone or isopropyl alcohol wipe; do not use chlorinated solvents.
• Preheat: For sections above 25 mm thickness, preheat to 150–200 °C (300–390 °F) before arc ignition to reduce thermal gradient and hydrogen absorption.

Recommended Welding Processes & Filler Metals

Post-Weld Heat Treatment (PWHT)

PWHT is mandatory for Alloy 901 weldments that will operate above 300 °C or that require the full aged-condition mechanical properties at the joint:

• PWHT Cycle: Heat at a controlled rate ≤ 100 °C/h to 760–790 °C; hold 4–8 hours; cool at ≤ 100 °C/h to below 300 °C; then air cool to room temperature
• Rationale: The slow ramp allows creep relaxation of weld residual stresses before γ' precipitation begins in the HAZ, reducing the driving force for SAC. Faster ramp rates (> 200 °C/h) are the most frequent cause of PWHT cracking in this alloy.
• Alternative — Full Re-Solution + STA: For highest joint integrity, re-solution anneal the entire weldment (Stage 1) before performing the full three-stage STA cycle. This fully homogenizes the weld microstructure but needs a clean furnace atmosphere to prevent re-oxidation.

Corrosion & Oxidation Performance of Nimonic Alloy 901

The 11–14 wt% chromium content in Alloy 901 provides the protective Cr₂O₃ (chromia) surface scale that is the primary barrier against both high-temperature oxidation and aqueous corrosion. The following data summarizes the alloy's performance across the main corrosion mechanisms encountered in its service environments:

High-Temperature Oxidation Resistance

• Air Oxidation to 870 °C (1600 °F): The Cr₂O₃ scale is adherent and slow-growing at temperatures up to approximately 870 °C, making the alloy suitable for brief non-load-bearing exposures above its creep-limited service temperature. Under continuous mechanical load, 600 °C is the practical ceiling.
• Hot Corrosion (Type I, 850–950 °C): Alloy 901 is moderately susceptible to Type I hot corrosion (sulfate-deposit-induced) compared with higher-chromium grades such as Waspaloy or IN-738. Parts exposed to combustion products containing sulfur (e.g., low-quality turbine fuels) may require protective coatings for long-term durability.
• Hot Corrosion (Type II, 650–750 °C): At the lower temperature range associated with LP turbine environments, Alloy 901 shows better resistance than IN-738 because the sulfate dew point is less favorable for attack at these temperatures.
• Scaling Rate: At 760 °C in air, Alloy 901 exhibits a parabolic oxidation rate constant (kₚ) of approximately 1.5 × 10⁻¹² g²/(cm⁴·s) — consistent with Cr₂O₃-forming behavior and acceptable for most turbine heat-shield applications.

Aqueous Corrosion Resistance

• Pitting and Crevice Corrosion: With a PREN (Pitting Resistance Equivalent Number) of approximately 15–17 (based on 12.5% Cr + 3.3 × 6% Mo ÷ estimated adjustment for Ni matrix), Alloy 901 offers moderate pitting resistance — better than 316L stainless steel in mildly chloride-bearing environments, but inferior to super-duplex grades in aggressive marine service.
• Stress Corrosion Cracking (SCC): The nickel-rich austenitic matrix provides high resistance to chloride-induced SCC, so that Alloy 901 is the best choice material for valve bodies and pump parts in geothermal or hydrocarbon-processing service where 300-series stainless steels might crack.
• Hydrogen Embrittlement: Like all nickel superalloys, Alloy 901 has low susceptibility to hydrogen embrittlement at room temperature. Care should be taken during pickling and electroplating operations to minimize hydrogen absorption.
• Steam Oxidation: Alloy 901 performs reliably in high-pressure steam environments (typical of steam turbine service). The alloy does not suffer the accelerated steam oxidation observed in martensitic chromium steels, and protective chromia scales remain stable in steam at pressures up to 30 MPa.

What Affects the Price of Nimonic Alloy 901 Forged Parts?

Buyers often ask why two similar-looking Alloy 901 forgings can have very different prices. Knowing what affects the cost helps procurement teams create clearer RFQs and get comparable quotes from different suppliers.

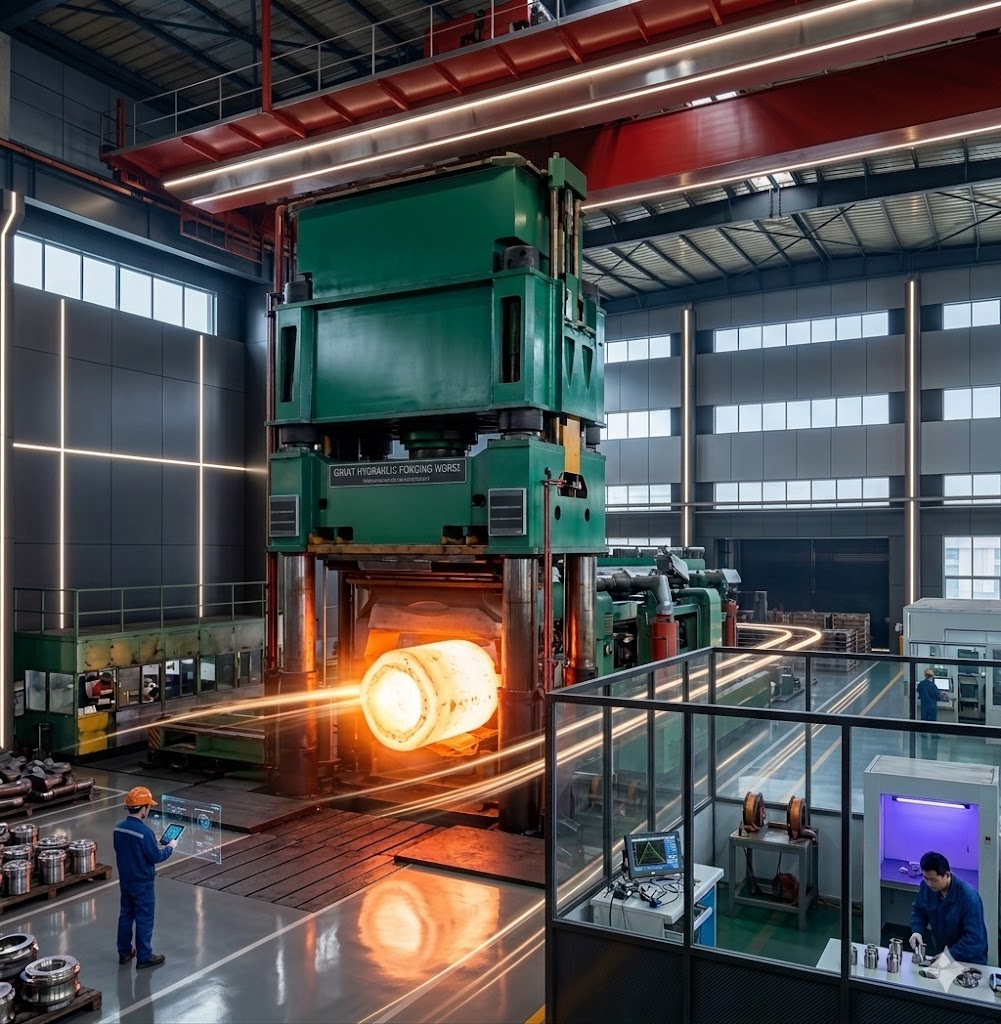

Manufacturing Process & Quality Standards at Jiangsu Liangyi

Every Nimonic Alloy 901 forging produced at our Jiangyin facility moves through a documented, ISO 9001:2015-controlled manufacturing chain. Each stage has defined hold points, inspection criteria, and non-conformance procedures. The result is a finished part accompanied by complete, traceable documentation from raw material to final shipment:

Complete Manufacturing Chain

Custom Nimonic Alloy 901 Forging Solutions

As a specialist UNS N09901 forging manufacturer in China, we understand that turbine and nuclear part requirements rarely fit a standard catalogue size. Our engineering team is structured to take a customer drawing from DXF or PDF to finished, tested forging with minimal administrative friction:

Our Custom Capabilities

• Single-piece weight from 30 kg to 30,000 kg within a single production run
• Rings up to 6,000 mm outside diameter; bars up to 2,000 mm diameter; shafts up to 15 m length
• Intricate custom cross-section profiles for contoured rings (T-section, L-section, step-bored)
• Custom heat treatment cycles to customer-specified parameters (non-standard aging temperatures, multiple aging steps)
• Precision CNC machining to tolerances of ±0.1 mm on critical seating surfaces
• Surface treatments: shot peening, hardfacing (PTA or HVOF), nickel plating, and specialized coatings
• Third-party inspection services at any inspection hold point (SGS, BV, TUV, or customer-nominated body)
• Accelerated lead time for urgently needed replacement or prototype parts

How to Place a Custom Order

1. Send your drawing (DXF, DWG, PDF, or STEP), material specification (AMS 5660 or other), quantity, required delivery condition, NDT level, and delivery date to sales@jnmtforgedparts.com
2. Our engineering team reviews feasibility and issues a detailed quotation within 24–48 hours, including DFM (design for manufacturability) comments where applicable
3. Upon order confirmation, a production schedule is issued with hold points and expected milestone dates
4. All parts undergo the full inspection sequence before shipment; no part ships without passing all specified tests
5. We arrange export packaging and logistics; EN 10204 MTC, packing list, COA, and inspection reports travel with the shipment

Why Choose Jiangsu Liangyi as Your Nimonic 901 Forging Partner?

With over 25 years of experience manufacturing high-temperature alloy forgings, Jiangsu Liangyi has supplied customers in more than 50 countries across the power generation, aerospace, nuclear, and oil & gas industries. Here is what distinguishes our operation from generic forging suppliers:

• 25+ Years of Superalloy Forging Experience: Founded 1997, with deep institutional knowledge of UNS N09901, UNS N07718, UNS N07001, and other high-temperature nickel superalloy grades that generic carbon-steel shops lack
• ISO 9001:2015 Certified Quality System: Covers design review, material control, process control, NDT, final inspection, and customer complaint handling
• In-House Equipment Range: 2,000–6,300 ton presses + 1–5 m ring rolling mills + heat treatment furnaces operated per AMS 2750 pyrometry requirements + CMM inspection + full NDT lab — no subcontracting of important operations
• Complete Vertical Integration: From billet melting through final machining and documentation under one roof deletes supply-chain traceability gaps
• Competitive China Pricing with International Quality: Factory-direct sales from Jiangyin with ISO-certified quality — no trading company markup
• Weight Range 30 kg – 30,000 kg: Prototype quantities welcome; no minimum order quantity
• Global Export Experience: 50+ export-destination countries; experienced in ISPM-15 export packing, L/C payments, and international logistics from Jiangyin port
• Comprehensive NDT Suite: UT, MT, PT, and radiography in-house; third-party agency coordination for witnessed inspections
• Full Documentation: EN 10204 3.1 standard; 3.2 (inspector-signed) available; custom documentation packages for nuclear and aerospace applications
• Engineering Support: Our metallurgical engineers will review your drawing, flag potential manufacturing risks, and recommend optimizations before production begins

Nimonic Alloy 901 Terminology & Definitions

The following terms appear on engineering drawings, material certifications, and purchase orders for UNS N09901 parts. Understanding the distinctions helps avoid specification errors:

Nimonic Alloy 901

Trade name coined by Special Metals Corporation (now PCC) for the precipitation-hardenable Ni-Fe-Cr superalloy conforming to UNS N09901. "Nimonic" historically designated wrought, work-hardened or age-hardened nickel alloys developed in the UK.

Incoloy 901

Alternative trade name (also PCC/Special Metals) for the identical UNS N09901 composition. "Incoloy" was the brand family name for iron-nickel alloys, contrasted with "Inconel" for higher-nickel grades. Functionally identical to Nimonic 901.

UNS N09901

Unified Numbering System designation (SAE/ASTM). The authoritative trade-neutral identifier. "N" prefix = nickel and nickel alloys; "09901" = the specific alloy registration number. Use this number on international procurement documents to avoid ambiguity.

AMS 5660 / AMS 5661

SAE Aerospace Material Specifications governing Alloy 901. AMS 5660 covers bars, forgings, flash-welded rings in the STA (solution + stabilize + age) condition. AMS 5661 covers bars and billet in the SA (solution annealed) condition for subsequent processing.

γ' (Gamma Prime)

The intermetallic precipitate Ni₃(Ti,Al) responsible for Alloy 901's elevated-temperature strength. Coherent with the γ austenite matrix, it blocks dislocation motion via Orowan bypassing. Formed during the aging (Stage 3) heat treatment.

Open-Die Forging

Forging process using flat or simple-shaped dies; the workpiece is repositioned between press strokes to achieve the required geometry. Enables very large part sizes (up to 30,000 kg) and custom geometries not achievable in closed-die tooling.

Seamless Rolled Ring

A ring produced by piercing a forged disc and rolling the resulting torus between inner mandrel and outer roller, reducing wall thickness and increasing diameter. Delivers superior hoop-direction grain flow and deletes the weld seam present in fabricated rings.

EN 10204 3.1 / 3.2 MTC

EN 10204 defines inspection document types. Type 3.1 = issued by the manufacturer's quality department. Type 3.2 = counter-signed by an independent third-party inspector (e.g., TUV, SGS). Nuclear and critical aerospace applications commonly require Type 3.2.

Frequently Asked Questions About Nimonic Alloy 901 Forgings
