Custom Inconel X750 Forged Parts — UNS N07750 Manufacturer
ISO 9001:2015 Certified | Established in 1997, 29+ Years of Nickel Alloy Forging Experience | Custom Forgings | Full Material Traceability | EN 10204 3.1 MTR | 24h Quote Response
Inconel X750 (UNS N07750, Alloy X750) is a premium precipitation-hardened nickel-chromium alloy that is mainly used in extreme high-temperature, corrosion, and oxidation resistance. As a leading China-based forged parts manufacturer headquartered in Jiangyin, Jiangsu, we can produce super alloy UNS N07750 forged parts, custom forgings, seamless rolled rings, forged discs, and round bars for global clients in the power generation, oil & gas, nuclear energy, and aerospace .
What is Inconel X750 (UNS N07750 / Alloy X750)?
Since Inconel X750 material has strong high-temperature strength, creep resistance, and fatigue stability up to 704°C (1300°F), it is the best choice of nickel-based alloys for critical components in extreme working environments. It can withstand high corrosion and oxidation resistance in harsh industrial conditions, including acidic, high-pressure, and marine environments.
Our UNS N07750 forgings are manufactured by strict advanced melting, open die forging, and proper heat treatment processes, fully in accordance with international standards including ASTM B637, AMS 5667, AMS 5668, and EN 2.4669. This ensures that these material products have consistent, reliable performance even in many critical working conditions.
Custom Inconel X750 Forged Products & Shapes

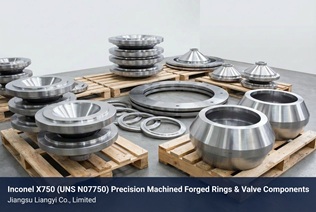

We can manufacture custom Alloy X750 forgings 100% as per our clients' drawings and specifications, with a weight range from 30KGS to 30000KGS, seamless rolled rings up to 5000mm in diameter, and bars up to 12000mm in length. Our main product range includes:

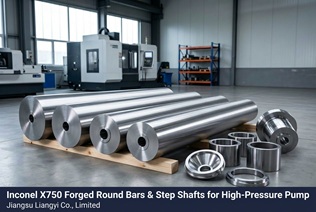

- Round bars, square bars, flat bars, and hollow bars

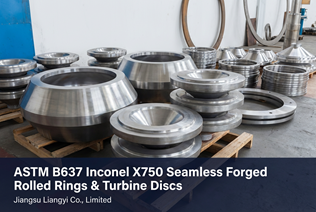

- Seamless rolled rings, labyrinth rings, seal rings, and flange forgings
- Forged discs, blocks, plates, hubs, sleeves, and bushings
- Forged pipes, casings, shells, and custom shape components
- Open die and closed die forgings manufactured to customer drawings and specifications
All products are supplied with complete EN 10204 3.1 Material Test Reports (MTR) as standard, and 3.2 certificate by third party like TUV, DNV, BV and so on .
Our Manufacturing Capabilities
Certifications & Production Standards
ISO 9001:2015 Certified, with full material traceability for every production batch
Fully in accordance with ASTM B637, AMS 5667, AMS 5668, EN 2.4669, and API 6A standards
Complete in-house NDT, chemical composition analysis, mechanical, and metallographic testing
EN 10204 3.1 / 3.2 Material Test Reports (MTR) provided with every shipment
Manufacturing & Heat Treatment Process for UNS N07750 Forgings Forgings
Our strict manufacturing process ensures that all our finished Alloy X750 products products have consistent material properties, structural integrity, and performance:
- Advanced Melting: Vacuum Induction Melting (VIM) + Electroslag Remelting (ESR), with 30t EAF, LF, VOD smelting support for ultra-clean material and uniform chemical composition
- Precision Forging: Forging ratio ≥4:1 using 2000T-6300T hydraulic presses and 1T-9T electro-hydraulic hammers to help all forged material have fine grain flow and great mechanical strength
- Controlled Heat Treatment: Solution heat treatment at 982°C (1800°F), followed by stabilization and double precipitation hardening to achieve high-temperature strength and creep resistance
- Strict grain flow and hardness control throughout the full production process
- Comprehensive in-house inspection: chemical composition analysis, mechanical property testing, metallographic testing, and full NDT inspection (UT, MT, PT, RT) available as required
These strict production processes ensure that our UNS N07750 forgings meet all required tensile, hardness, and microstructure requirements for all our overseas clients.
Common Technical Challenges & Our Solutions for UNS N07750 Forgings Production Forgings Production
As a high-alloy precipitation-hardened nickel superalloy, Inconel X750 has extremely strict requirements for forging process control. Below are the 6 most common technical challenges in mass production, to guarantee that all our forged material can be 100% according to ASTM B637, AMS 5667 standards and have great mechanical property.
1. Narrow Hot Forging Temperature & High Crack Risk
Main Problem Point: High content of Al/Ti/Nb strengthening elements make this material have 3x higher flow stress than other standard stainless steel, with a forging temperature of only 950℃-1150℃. Overheating causes grain coarsening, while underheating leads to surface cracks, the main reason of scrapping.
- Step-type uniform heating: 600-800℃ preheating, 1100-1140℃ optimal initial forging temperature, ±5℃ precision temperature control
- 15%-25% single reduction, final forging temperature strictly controlled ≥950℃ to avoid low plasticity zone
- Special high-temperature glass lubricant to reduce friction and heat loss during forging
2. Poor Grain Uniformity & Mixed Grain Defects
Main problem Point: Grain size directly determines fatigue life and creep resistance, aerospace/nuclear applications require ≥ ASTM 4 grade with no mixed grain. Defects are mainly caused by 2%-10% critical deformation, overheating, and unreasonable final forging process.
- More time of forging: ≥30% large reduction for blanking to break coarse as-cast grains
- Finish forging strictly avoids critical deformation, single reduction ≥12% for full dynamic recrystallization
- Solution temperature suitable forging structure to inhibit secondary grain coarsening
3. Mechanical Properties Difference After Heat Treatment
Main problem Point: The main strengthening mechanism of this precipitation-hardened alloy is γ' phase precipitation. Minor parameter fluctuations will directly affect γ' phase morphology, leading to large deviations in strength, plasticity and creep performance, failing mass production requirements.
- Normal heat treatment way: solution treatment + stabilization + double aging fixed process
- ±5℃ furnace temperature uniformity control, fixed charging quantity and placement rules for each batch
- Same-batch furnace test pieces, performance qualification before subsequent processing
4. Surface & Internal Defects & Low NDT Pass Rate
Main problem Point: Aerospace/nuclear applications require 100% UT/MT/PT pass. Original forged blank defects, scale pressing, forging folds, and stress cracks will cause NDT inspections to fail, which is the main reason why finished products don't pass all Non-Destructive Testing.
- 100% UT/MT inspection before forging, 2-5mm surface peeling to eliminate subcutaneous defects
- Improve forging metal flow to avoid folding, timely scale cleaning during forging
- Immediate slow cooling + stress relief annealing after forging to avoid delayed cracks
6. Special Requirements for Nuclear & Aerospace Grade Forgings
Main problem Point: Nuclear grade forgings need to be able to resist stress corrosion cracking very well, while aerospace grade parts need to be able to resist creep and fatigue at high temperatures for a long time. Normal Production processes cannot meet these strict requirements .
- Nuclear grade: Strict harmful element control in melting raw material, low solution + long aging process to ensure that the forged material has grain boundary carbide morphology
- Aerospace grade: Large deformation forging + precise heat treatment to obtain fine grain size
- Full Prodution control in accordance with RCC-M, ASME, AMS aerospace and nuclear standards
Inconel X750 Chemical Composition (UNS N07750)
| Element | Min (%) | Max (%) | Element | Min (%) | Max (%) |
|---|---|---|---|---|---|
| Carbon (C) | — | 0.08 | Sulfur (S) | — | 0.010 |
| Manganese (Mn) | — | 0.35 | Chromium (Cr) | 14.00 | 17.00 |
| Silicon (Si) | — | 0.35 | Nickel (Ni) | 70.00 | Balance |
| Phosphorus (P) | — | 0.015 | Columbium (Cb) | 0.70 | 1.20 |
| Titanium (Ti) | 2.25 | 2.75 | Aluminum (Al) | 0.40 | 1.00 |
| Iron (Fe) | 5.00 | 9.00 | Cobalt (Co) | — | 1.00 |
| Tantalum (Ta) | — | 0.05 | Copper (Cu) | — | 0.50 |
Inconel X750 Forged Parts Mechanical Properties
Tensile Properties (Metric Units)
| Orientation | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Reduction of Area (%) |
|---|---|---|---|---|
| Longitudinal | 1172 | 793 | 18 | 18 |
| Transverse | 1138 | 758 | 15 | 15 |
Tensile Properties (Imperial Units)
| Orientation | Tensile Strength (ksi) | Yield Strength (ksi) | Elongation (%) | Reduction of Area (%) |
|---|---|---|---|---|
| Longitudinal | 170 | 115 | 15 | 15 |
| Transverse | 160 | 105 | 12 | 12 |
Hardness & Grain Flow Standards
- Hardness Range: 302–401 HB (tested per ASTM E10 standards)
- Uniform grain flow for maximum fatigue resistance
- Fully as per ASTM E8, E8M, E10, and E354 testing requirements
Inconel X750 Forgings Applications & Industry Use Cases
Our UNS N07750 forged parts have been used in many high-demand industries across North America, Europe, the Middle East, Asia, and global markets, with a following delivery reference in critical applications.
Inconel X750 Forged Parts for Gas Turbines (Europe & North America)
Inconel X750 is a standard material for gas turbine components in power generation across Europe and North America. Our super alloy Alloy X750 forgings include forged discs, seal rings, and turbine components have exceptional creep strength, oxidation resistance, and structural stability at continuous operating temperatures of 650–700°C. These Alloy X750 forgings ensure long-term stable operation of 150MW–300MW industrial gas turbines.
Get Gas Turbine Forgings QuoteInconel X750 Forged Parts for Nuclear Power (Global Projects)
Inconel X750 forgings are widely used in nuclear power plants due to their high strength, stress corrosion cracking resistance, and long-term structural stability under thermal cycling and radiation. Our Alloy X750 forged parts, including impellers, seal components, and fasteners, meet strict nuclear power quality standards and finally perform well in long-term operating conditions and making our factory a trusted supplier in nuclear power plants across Asia, Europe, and North America.
Get Nuclear Power Forgings QuoteInconel X750 Forged Parts for Oil & Gas (Middle East & North America)
One oil and gas company uses our UNS N07750 forged parts in HPHT (High-Pressure High-Temperature) onshore and offshore wells. Our Alloy X750 forgings include valve bodies, stems, seat rings, and wellhead components can withstand corrosion from H₂S, CO₂, and chloride environments, and our finished products have a long lifetime in the toughest upstream and downstream oilfield conditions
Get Oil & Gas Forgings QuoteNickel Alloy X-750 Forged Parts for Pumps, Compressors & Valves (Worldwide)
Nickel Alloy X-750 forgings are widely used in chemical pumps, compressors, and valves for refineries, chemical processing plants, and power plants worldwide. Our UNS N07750 forged components include casings, impellers, shafts, and wear rings can resist erosion and corrosion in critical working environments. These delivery forgings extend the service life of pumps, valves, etc., while improving operational efficiency and reducing maintenance costs for our clients.
Get Pump & Valve Forgings QuoteWhy Choose Us as Your Inconel X750 Forged Parts Supplier?
- Professional China-based nickel alloy forging manufacturer with direct factory pricing, established in 1997
- Specialized in custom nickel alloy forged parts with 29+ years of industry expertise, 80,000㎡ modern production facility
- Full in-house production: from advanced steel melting, precision forging to heat treatment, machining, and final inspection, with 120,000 ton annual production capacity
- Complete in-house chemical analysis, mechanical testing, and NDT inspection capabilities, with full third-party inspection support
- Full material certification and EN 10204 3.1/3.2 test reports (MTR) provided with every shipment
- Reliable worldwide shipping and delivery to North America, Europe, the Middle East, Asia, and over 50 countries globally
- Many delivery experience in power generation, nuclear energy, oil & gas, aerospace, marine, and mining
- Professional technical team provides professional technical advice for our clients
Get Your Free UNS N07750 forged components Full Technical Specification
Fill in the form below to get the complete UNS N07750 technical specification document technical specification document, including detailed chemical composition, mechanical properties at room and high temperature, forging process way, heat treatment parameters, international production standards, NDT inspection requirements, and industry application solutions.
