FV520B Forged Steel Products | Professional China Manufacturer & Global Supplier
Jiangsu Liangyi is one of the best FV520B forged steel manufacturers in China, our main products in FV520B are open die forgings and seamless rolled rings. We make high-quality FV520B products for steam and gas turbines, pumps, valve use and more. All our FV520B forged products are manufactured as per AMS 5773E standards, they have good corrosion resistance and can work stably in critical industries worldwide.
Supplied to 50+ countries | Last updated:
⚙️ FV520B Main Technical Parameters
📋 Standard: AMS 5773E | Tensile Strength: 925–1090 MPa | Min. Yield Strength: 800 MPa
🛡️ Corrosion Resistance: ≈ 304 SS (Superior to 17-4PH) | Brinell Hardness: 274–341 HBW | Elongation: ≥15%
🔥 Heat Treatment: Solution 1050°C + Double Precipitation 750°C / 550°C | Industries: Power Generation · Oil & Gas · Aerospace · Marine
FV520B Forged Steel Product Range | Custom Forging Parts For Global Industrial Clients
We supply FV520B forged steel products in many different shapes according to clients' drawing and technical manuals,including:
- Bar Stock: Round, square, flat, rectangular bars, solid rods and hollow bars

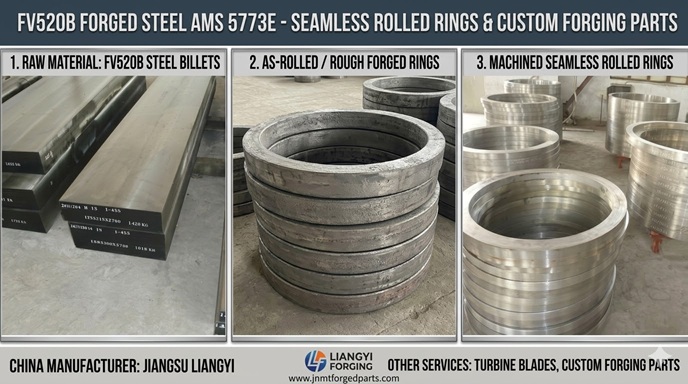

- Seamless Rolled Rings: Guide rings, seal rings, labyrinth rings, casing rings (mainly for power generation)
- Hollow Shapes: Hubs, housing shells, sleeves, bushes, bushing cases (custom FV520B open die forgings)
- Flat & Solid Parts: Discs, blocks, plates, tube sheets, nozzles, channel flanges
- Hollow Cylinders: Pipes, tubes, tubings, piping shells, pressure casings and housings
- Turbine Components: Turbine blades, impellers, blisks, turbine disks, studs, fasteners and bolts
- Pump Components: Pump bodies, impellers, wear rings, pump shafts
- Valve Components: Valve bodies, bonnets, closures, valve stems, seat rings
- Boiler & Pressure Vessel Parts: Tube sheets, nozzles, flanges for heat exchangers, reactors and heaters
👉 Related: Seamless Rolled Rings | Turbine Blades | All Forging Materials
FV520B Forged Steel: Material Properties & AMS 5773E Standard
FV520B is a martensitic precipitation hardening stainless steel, hardened by low-temperature heat treatment. It works well in hard environments with strict control on chemical composition and heat treatment way according to AMS 5773E standards.
Main Advantages Of FV520B Forged Steel
- Good corrosion resistance (comparable to 304 SS) — Best for oil & gas industries
- Better intergranular and pitting corrosion resistance vs. 17-4PH — Best for marine and aerospace industries
- Good weldability with matching consumables — Easy to process for custom forgings
- Work well in marine atmospheres with minimal rusting — Suitable for offshore industries
- High mechanical strength for high-pressure and high-temperature conditions — Suitable for power generation
FV520B Chemical Composition per AMS 5773E (Max / Range %)
| Element | Content (%) | Element | Content (%) |
|---|---|---|---|
| Carbon (C) | 0.07 max | Molybdenum (Mo) | 1.20–2.00 |
| Chromium (Cr) | 13.20–14.70 | Phosphorus (P) | 0.035 max |
| Manganese (Mn) | 1.00 max | Niobium (Nb) | 0.20–0.70 |
| Nickel (Ni) | 5.00–6.00 | Sulfur (S) | 0.025 max |
| Silicon (Si) | 0.70 max | Copper (Cu) | 1.20–2.00 |
FV520B Mechanical Properties per AMS 5773E
| Property | Value |
|---|---|
| Ultimate Tensile Strength (Rm) | 925–1090 MPa |
| Conventional Yield Strength (Rp0.2) | Minimum 800 MPa |
| Elongation (A) | Minimum 15% |
| Brinell Hardness (HBW) | 274–341 |
| Charpy Impact Value (Room Temp.) | Minimum 55 J |
FV520B vs. 17-4PH – Performance Comparison
| Property | FV520B | 17-4PH |
|---|---|---|
| Corrosion Resistance | ≈ 304 SS (Superior) | Moderate |
| Pitting Resistance | Excellent | Good |
| Tensile Strength | 925–1090 MPa | 1000–1100 MPa |
| Yield Strength (min) | 800 MPa | 790 MPa |
| Marine Applications | ✅ Highly Recommended | ⚠️ Limited |
| Weldability | Excellent | Good |
| AMS Standard | AMS 5773E | AMS 5643 |
FV520B Forged Steel Heat Treatment Way | AMS 5773E
To get good mechanical strength and corrosion resistance, all FV520B turbine blades and forged parts need to follow the 3-stage heat treatment cycle as per AMS 5773E:
Heat to 1050°C
Air cool to room temperature
Heat to 750°C
Hold 2 hours → Air cool
Heat to 550°C
Hold 2 hours → Air cool
FV520B Melting Process | AMS 5773E Standard
All FV520B forged steel is produced using advanced melting processes to ensure high purity, low inclusion content and consistent alloy composition per AMS 5773E:
- Primary Melting: Basic Electric Arc Furnace (EAF) – 60 t capacity, 40 MVA power
- Secondary Refining: Ladle Furnace (LF) + Tank Degassing (VD/VOD type) for precise chemistry control
- Remelting: Electro-Slag Remelting (ESR, max 32 t) or Vacuum Arc Remelting (VAR) for good purity
- Casting: Bottom pouring ingot casting for segregation control
FV520B Forging Parts Industries used | Global Delivery
FV520B forged steel is widely used in many industries where corrosion resistance, high strength and fatigue performance are critical:
- Power Generation: Steam and gas turbines (blades, impellers, discs, blisks), guide rings, seal rings, rotor end rings
- Fluid Handling: Industrial pumps (bodies, impellers, shafts, wear rings), valves (bodies, bonnets, stems, seat rings)
- Gas Compressor: Compressor turbine blades, flat and rectangular forged bars
- Boilers & Pressure Vessels: Heat exchangers, reactors, heaters (tube sheets, nozzles, flanges, piping)
- Aerospace & Defence: Aerospace equipment, missile parts, high-strength fasteners
- Oil & Gas Industry: Downhole and surface equipment, high-pressure parts, subsea fasteners
- Marine & Offshore: Shipbuilding parts, offshore platform equipment, propeller shafts
FV520B Forging Successful Cases | Global Orders
As a professional FV520B manufacturer in China, Jiangsu Liangyi has a good record of global project delivered:
- Power Generation – Europe: FV520B turbine blades & seamless rolled rings for 600MW steam turbines. 3 years of stable work — zero wear, deformation or corrosion.
- Oil & Gas – Middle East: FV520B pump parts and valve parts for a Middle East offshore oilfield company. Zero failure rate in 2 years of continuous seawater / crude oil exposure.
- Marine – Japan: FV520B seamless rolled rings and high-strength fasteners for offshore drilling platforms. Minimal rusting after 4 years of marine service.
- Aerospace – Southeast Asia: FV520B fasteners and small turbine parts for an aerospace MRO company. Met AS9100 / AMS 5773E quality requirements.
Quality Certifications & Standards
All FV520B forged steel products are manufactured under strict certified quality systems.
Certified
Accordance
Certified
/ 3.2 MTR
Veritas
FV520B Forging Production Capabilities | China Industrial Manufacturing Base
Jiangsu Liangyi has the most advanced forging and machining equipment, so mass production and fully custom of FV520B forged parts is possible.
Melting Equipment
- 60 t Electric Arc Furnace (EAF) with 40 MVA power
- 2 × Ladle Furnace (LF) for secondary refining
- 2 × Tank Degassing Equipment (VD – VOD type)
- Bottom pouring pits for ingot casting
- ESR Melting Furnace (max 32 t) — Good purity per AMS 5773E
Forging & Heat Treatment Equipment
- Open die hydraulic presses: 3200 t / 4200 t / 6000 t
- Hydraulic manipulators with maximum lifting capacity of 60 t
- Industrial heating furnaces for forging (max capacity 150 t)
- Hydrogen Bake-Out Furnaces (max length 14 m)
- Semi-automatic heat treatment system for FV520B turbine blades
- Heat treatment furnaces (max length 18 m)
- Quenching tanks (max capacity 16 m)
