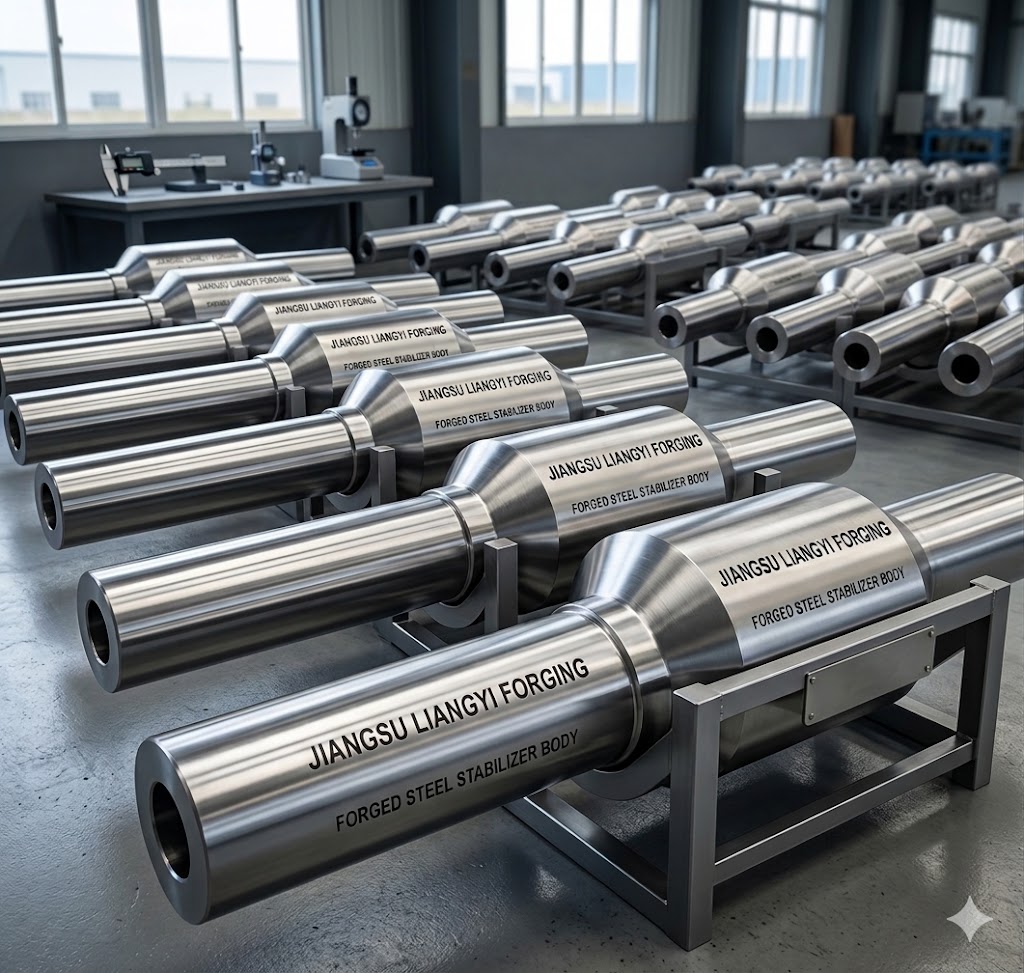

Forging Steel Stabilizer Manufactured to API 6A/7K Standards — Straight Blade, Spiral & Non-Magnetic Forged Stabilizer Body for Oil & Gas Drilling | LIANGYI FORGING China Manufacturer

25+Years of Forging Experience

50+Countries Supplied

6–36″Custom OD Range

30TMax Forging Weight

≥3:1Minimum Forging Ratio

20–30Day Standard Lead Time

Overview of Our Forging Steel Stabilizer Solutions

As a professional ISO 9001:2015 certified open die forging manufacturer with 25+ years of industry experience, Jiangsu Liangyi is China's leading supplier of high-performance forging steel stabilizer products. Our complete range includes Forged Steel Integral Straight Blade Stabilizer Bodies, Forging Steel Integral Sleeve Spiral Stabilizers, Forging Steel Spherical Stabilizers, Forging Steel Stabilizer Bodies, and Forging Steel Non-Magnetic Integral Blade Stabilizers, all custom manufactured according to international standards and client drawings.

Our forging steel stabilizers are purpose-built for critical downhole applications, including oil & gas drilling, geothermal well drilling, directional drilling, and underground engineering projects across 50+ countries all over the world. We provide end-to-end production from steel melting, open-die forging, heat treatment, precision machining to complete non-destructive testing, ensuring every stabilizer meets the most stringent operational requirements in harsh downhole environments.

ISO 9001:2015 API 6A Standard API 7K Standard NACE MR0175 Materials DNV-GL TPI Available Bureau Veritas TPI Available Lloyd's Register TPI Available TÜV TPI Available EN 10204 3.1/3.2 MTC EN/DIN Compliant

Explore our full range: Forged Products Catalog

What Does a Stabilizer Do? The Engineering Mechanics Behind Every Forging Steel Stabilizer

Most product pages describe what a stabilizer is. This section explains why the physics of stabilizer placement determines well trajectory — because understanding this is the foundation of correct stabilizer selection.

The Stabilizer's Role in the Bottom Hole Assembly (BHA)

A forging steel stabilizer is not merely a centralizing tool. It is the primary mechanical lever that controls the direction of force exerted on the drill bit. In a rotating drill string subject to gravity, formation reaction force, and WOB (weight on bit), the stabilizer acts as a mechanical constraint that defines how the BHA deflects between support points.

The drill string between two stabilizers works like a beam when it is pushed down and sideways at the same time. The position, OD clearance, and spacing of stabilizers in the BHA have three main effects:

Pendulum Effect: When the near-bit stabilizer is moved away from the bit, gravity pulls on the unsupported section of the drill collar, which pushes the bit toward the low side of the wellbore, causing the angle to drop.
Fulcrum Effect: A near-bit stabilizer (≤5ft from bit) works like a pivot. WOB forces the drill collar above the stabilizer to push laterally against the wellbore wall, redirecting the bit toward the high side — building angle. This is the basis of a building assembly.
Packed Assembly: Full-gauge stabilizers that are close together keep the BHA from moving sideways, keeping the wellbore inclination (holding angle) steady.

Typical BHA Configuration: Stabilizer Positioning Schematic (Directional Drilling)

DRILL COLLAR

Upper DC string

→

HWDP

Heavy-weight DP

→

UPPER STAB

String stabilizer
(60–90ft from bit)

→

DRILL COLLAR

Mid DC section

→

MWD/LWD

Survey & logging

→

PDM / RSS

Mud motor or RSS

→

NEAR-BIT STAB

Near-bit stabilizer
(≤5ft from bit)

→

BIT

PDC / Roller cone

Upper stabilizer — controls pendulum / fulcrum balance

Near-bit stabilizer — primary trajectory control

MWD/LWD — requires non-magnetic stabilizer nearby

Stabilizer OD Clearance: The 1/16″ Rule That Changes Everything

A critical and often overlooked detail: the difference between a full-gauge stabilizer (OD = nominal hole size − 1/16″ max) and an under-gauge stabilizer (OD = hole size − 3/8″ or more) dramatically changes the BHA behavior. Full-gauge near-bit stabilizers create the strong fulcrum effect needed to build angle in a motor assembly. Under-gauge stabilizers allow more bit wander and are used deliberately when the driller wants a pendulum tendency without changing the BHA configuration. This is why our engineers ask for your actual bit OD, not just the nominal hole size, during the quotation stage.

⚠ Engineering Note: A stabilizer OD mismatch of even 1/8″ versus the planned wellbore diameter can shift a BHA from a building tendency to a holding tendency in a 30° wellbore. Always confirm actual caliper-measured wellbore data before specifying stabilizer OD with your forging supplier.

Complete Range of Forging Steel Stabilizer Types & Technical Advantages

We provide a complete lineup of forging steel stabilizers to match every drilling scenario, with improved designs for specific performance requirements:

Integral Straight Blade Forging Steel Stabilizer

Our integral straight blade stabilizers are the industry standard for vertical and conventional directional drilling, which have a one-piece forged design with complete-length straight blades for maximum wellbore stability. The 360° complete-contact blade design has better centralization, it can reduce drill string vibration, and minimize wellbore deviation, making it ideal for onshore conventional oilfield drilling in the Middle East and Africa.

Integral Sleeve Spiral Forging Steel Stabilizer

Our spiral blade forging steel stabilizers are made for horizontal and extended-reach drilling (ERD). They have a continuous helical blade design that cuts down on torque and drag, makes it easier to move cuttings, and lowers the chance of differential sticking. This design is the best for drilling for shale gas in North America and for deepwater projects in Southeast Asia, where smooth rotation of the drill string and long reach are very important.

Forging Steel Spherical Stabilizer

Our spherical stabilizers work well for high-deviation and horizontal drilling in hard rock formations. They have a rounded spherical body that makes steering easier and lessens wear in abrasive formations. The better profile reduces stress on the wellbore wall, which makes it perfect for geothermal drilling in Europe and hard rock mining in Australia.

Non-Magnetic Forging Steel Integral Blade Stabilizer

Manufactured from premium non-magnetic alloy steel, our non-magnetic stabilizers are essential for directional drilling with MWD/LWD tools. They reduce magnetic interference, ensuring accurate wellbore positioning and survey data, with 100% according to API and international non-magnetic standards.

Complete Technical Specifications: Forging Steel Stabilizer Size & Thread Reference

The table below provides our standard production size range cross-referenced with common API drill collar OD, typical thread connections, blade count, and blade length — data that most suppliers do not publish, but that engineers need to confirm BHA compatibility before ordering.

Stabilizer OD (in)	Matching Hole Size	Drill Collar OD	Standard API Thread	Blade Count	Standard Blade Length	Typical Weight (kg)
6″	6-1/8″ – 6-3/4″	4-3/4″	NC31 (2-7/8 IF)	3	12″ – 18″	45–80
6-3/4″	6-7/8″ – 7-1/2″	5-1/2″	NC38 (3-1/2 IF)	3	14″ – 20″	80–130
7-5/8″	7-7/8″ – 8-1/2″	6-1/4″	NC44 (4 IF)	3	16″ – 22″	120–190
8-1/4″	8-3/8″ – 9″	6-3/4″	NC46 (4-1/2 IF)	3 / 4	18″ – 24″	180–270
8-1/2″	8-5/8″ – 9-1/2″	7″	NC50 (4-1/2 IF)	3 / 4	18″ – 24″	200–300
9-1/2″	9-5/8″ – 10-5/8″	8″	NC56 (5-1/2 IF)	3 / 4	20″ – 28″	300–460
11-3/4″	12″ – 12-1/4″	9-1/2″	NC61 / 6-5/8 REG	4 / 6	24″ – 36″	600–950
14-3/4″	15″ – 16″	11″	NC70 / 7-5/8 REG	4 / 6	30″ – 42″	1,100–1,800
17-1/2″	18″ – 20″	14″	NC77 / 7-5/8 REG	4 / 6	36″ – 48″	2,000–3,200
22″ – 36″	24″ – 38″	Custom	Custom per drawing	4 / 6 / 8	Custom	4,000–15,000

Custom sizes on request: All dimensions above are standard references. We produce according to any customer drawing or specification. For non-standard threads (IF, PAC, HT, XT, proprietary premium connections), provide your thread spec sheet and we will confirm manufacturability within 24 hours.

Material Grades & Mechanical Properties: Complete Selection Guide

Material Performance Comparison Table

The following table compares the guaranteed minimum mechanical properties of our main forging steel stabilizer material grades after complete quench & temper heat treatment. These figures are not marketing claims — they are the contractual minimum values we certify in every EN 10204 3.1/3.2 mill test certificate:

Property	AISI 4145H MOD	AISI 4330V MOD	AISI 4140 / 4142	Non-Magnetic Alloy
Min. Yield Strength	120 ksi (827 MPa)	140 ksi (965 MPa)	95 ksi (655 MPa)	100 ksi (690 MPa)
Min. Tensile Strength	140 ksi (965 MPa)	160 ksi (1103 MPa)	115 ksi (793 MPa)	130 ksi (896 MPa)
Charpy Impact (−20°C)	≥50 ft·lb (68 J)	≥65 ft·lb (88 J)	≥40 ft·lb (54 J)	≥45 ft·lb (61 J)
Hardness (HRC)	28–34 HRC	30–36 HRC	22–32 HRC	24–30 HRC
Max Operating Temp.	175°C (347°F)	220°C (428°F)	150°C (302°F)	180°C (356°F)
NACE MR0175 Compliant	✔ Standard	✔ Standard	✔ Per hardness	Per grade
Magnetic Permeability	Ferromagnetic	Ferromagnetic	Ferromagnetic	≤1.01 μr
Primary Application	Conv. oil & gas	HPHT / ERD	Standard wells	MWD/LWD
Relative Cost	Medium	Medium-High	Standard	High

How to Choose: AISI 4145H MOD vs 4330V MOD vs Non-Magnetic

The most common question from procurement engineers is: "Which material do I actually need?" Here is our decision logic, developed from 25+ years of real project experience:

Choose AISI 4145H MOD if: Your well depth is under 6,000m, bottom-hole temperature under 175°C, no significant H2S, and you are drilling conventional vertical or low-deviation directional wells. This is the correct choice for 70%+ of onshore Middle East, Africa, and Central Asia projects.
Choose AISI 4330V MOD if: You are drilling HPHT wells (BHT >175°C, BHP >10,000 psi), extended-reach laterals over 2,000m, or wells with high cyclic fatigue loading (shale gas horizontals, deep offshore). The vanadium addition has a 15–20% higher fatigue endurance limit versus 4145H MOD at elevated temperatures.
Choose Non-Magnetic if: A magnetic survey tool (MWD) is located within the non-magnetic drill collar (NMDC) spacing requirement specified by your directional drilling contractor. The NMDC length requirement typically ranges from 10ft to 60ft which depends on wellbore inclination, latitude, and survey tool type — the non-magnetic stabilizer must sit within this zone.
Choose AISI 4140 if: Your project is a low-cost vertical well in a non-H2S formation with shallow depth, and standard mechanical properties are sufficient. Cost-optimized without performance trade-offs for suitable applications.

Custom material formulation: We provide sour service materials that meet NACE MR0175 standards for all grades. We use extra hardness restriction controls (HRC ≤22 for susceptible zones per NACE MR0175/ISO 15156) when H2S partial pressures are above 0.05 psia. We can also provide compliance documentation as part of the MTC package.

Check our premium material grades: Forging Materials Guide

Forged vs Cast vs Welded Stabilizer: A Structural Comparison No One Else Shows You

The drilling industry uses three fundamentally different manufacturing methods for stabilizer bodies. The differences are not cosmetic — they determine how the component behaves under the combined cyclic fatigue, impact loading, and corrosion exposure of a real downhole environment. Here is an honest, engineering-based comparison:

Performance Criterion	Open-Die FORGED (Jiangsu Liangyi)	CAST (Investment / Sand)	WELDED (Sleeve + body)
Internal Grain Structure	Continuous, aligned with geometry; forging ratio ≥3:1 eliminates porosity	Dendritic (tree-like) solidification; inherent micro-porosity and segregation	Base material forged or rolled; weld HAZ has altered microstructure
Fatigue Strength	▲ 30–50% higher than cast equivalents at same nominal hardness	Lower — micro-porosity acts as fatigue crack initiation sites	Weld zone is weakest link; fatigue cracks initiate at weld toe under cyclic loading
Impact Resistance (Charpy)	Consistently ≥50 ft·lb at −20°C across full cross-section	Variable; 20–40 ft·lb typical; prone to brittle fracture in HPHT	Good in base metal; poor at weld joint (typically 30–45% reduction)
NACE MR0175 / H2S Service	✔ Fully compliant with hardness control across full section	✗ Difficult — segregation creates local hard spots above HRC 22	△ Partial — base metal OK; weld HAZ hardness control is challenging
UT Inspection Pass Rate	>99% first-pass UT acceptance rate in our production data	Typically 85–92%; internal shrinkage requires frequent re-inspection	95–98%; weld root inspection required separately per AWS D1.1
Dimensional Consistency	Excellent — CNC machined from forged blank to tight tolerances	Good after machining; casting allowance requires heavier stock removal	Good; sleeve OD runout can be issue if weld distortion not corrected
API 7K / NACE Compliance	✔ Native compliance — forging process inherently meets requirements	✗ Not recommended for HPHT or sour service per API 7K Annex F	△ Conditional — depends on weld procedure qualification (WPS/PQR)
Cost Relative to Forged	Benchmark (100%)	60–75% of forged cost	80–90% of forged cost
Recommended For	All well types, especially HPHT, sour service, ERD, offshore deepwater	Low-pressure, shallow vertical wells; non-critical applications only	Standard weight applications; not recommended for >150°C or H2S wells

The cost difference between a cast and a forged stabilizer is real — but the performance gap is larger. In our customer data from Saudi Arabia HPHT projects, forged stabilizers running in 4145H MOD showed a mean time between failure (MTBF) of 550+ hours versus 280–320 hours for cast alternatives in identical well conditions. The cost of a single fishing job or remediation trip eliminates the savings of 20+ sets of cheaper components.

Blade Hardfacing & Surface Treatment Selection Guide

The blade surface of a forging steel stabilizer is the highest-wear interface in the BHA. Selecting the wrong hardfacing for your formation type is a common cause of premature blade wear, stabilizer gauge loss, and wellbore instability. Below is our engineering-based selection guide — the most detailed published by any forging stabilizer manufacturer.

🔩

Stellite 6 (Cobalt-Chrome)

HVOF Thermal Spray or PTA Weld Overlay

Hardness 38–43 HRC
Thickness 1.5–3.0 mm
Max Temp 800°C (1472°F)
Corrosion Resistance Excellent
Formation Compatibility Limestone / Dolomite

✔ Best for: Middle East carbonate formations, HPHT sour service wells, geothermal high-temperature applications. Preferred for NACE-compliant assemblies — no hydrogen embrittlement risk.

⚙️

Tungsten Carbide (WC-Co)

HVOF Thermal Spray (WC-17Co or WC-12Co)

Hardness 68–72 HRC
Thickness 0.3–0.6 mm
Max Temp 500°C (932°F)
Corrosion Resistance Good
Formation Compatibility Sandstone / Hard shale

✔ Best for: Abrasive sandstone formations in North America Permian Basin and Middle East Khuff reservoirs. Highest hardness of all options — but brittle above 500°C; not suitable for geothermal >300°C.

🛡️

Arnco 100XT / 150XT

Open-Arc Weld Overlay

Hardness 55–65 HRC
Thickness 3.0–6.0 mm
Max Temp 600°C (1112°F)
Corrosion Resistance Very Good
Formation Compatibility Mixed / Interbedded

✔ Best for: North Sea and offshore wells with mixed carbonate-clastic interbedded formations. Thick deposit absorbs more wear before gauge loss. Widely approved by major operators (Shell, BP, TotalEnergies).

💎

Polycrystalline Diamond (PCD Insert)

Brazed PCD Inserts on blade face

Hardness >90 HRC equiv.
Insert Size 6–13 mm dia.
Max Temp 350°C (662°F)
Corrosion Resistance Excellent
Formation Compatibility Hard igneous / Quartzite

✔ Best for: Australian hard rock mining stabilizers, geothermal granite formations in Europe, and ultra-hard quartzite zones in Africa. Highest wear resistance available — temperature limited by PCD degradation threshold.

Formation-First Selection Rule: Do not choose a hardfacing based on cost alone. Tungsten carbide (highest hardness) is not always the best choice — in soft clay-shale formations, the extremely hard WC surface can actually score and damage the wellbore casing during reaming, creating washout problems. For soft formations, Arnco 100XT or even bare-blade polished finish is often the correct engineering choice.

Advanced Manufacturing Process for Forged Stabilizer Bodies

Every forging steel stabilizer we produce is manufactured in-house at our 80,000㎡ factory based in Jiangsu, we have complete control over every step of the production process from steel melting to final inspection.

Premium Raw Material Smelting & Vacuum Degassing

Raw material ingots undergo 30T electric arc furnace (EAF) smelting followed by ladle refining (LF) and vacuum degassing (VD/VOD) to get ultra-clean steel with uniform chemical composition. We report all elements exceeding 0.25%, with total residual elements controlled below 1.00% per batch. ESR (Electro-Slag Remelting) can be provided for premium non-magnetic grades which require superior inclusion cleanliness.

Equipment: 30T EAF + LF + VD/VOD + optional ESR

Controlled Open-Die Forging (2000T – 6300T Press)

All forged stabilizer bodies are formed using hydraulic forging presses exclusively — no hammer forging, no rapid forging machines. Press forging delivers controlled, uniform deformation across the entire cross-section, maintaining a minimum forging ratio of 3:1 and achieving grain size rating of ASTM 5 or finer. Steel cleanliness assessed per ASTM E45 Method A or C.

Forging ratio: ≥3:1 | Grain size: ASTM ≥5

Computer-Controlled Quench & Temper Heat Treatment

We can fully quench and temper (Q&T) in our computer-controlled furnaces, which keep the temperature within ±3°C. To get the right hardness band, microstructure, and mechanical properties, the quench severity and tempering temperature are carefully set for each material grade and section size. Repeat heat treatment is done as needed to meet customer specifications.

Temperature control: ±3°C | Uniformity verified by thermocouple survey

Precision CNC Machining & Thread Cutting

We do all kinds of machining to the tolerances shown on customer drawings using our CNC turning and milling centers. API 7-2 standards say how to cut and measure API rotary shouldered thread connections. Using calibrated API ring and plug gauges, we check the thread form, lead, taper, and profile. The surface finish on the blade's outside diameter is controlled to Ra ≤3.2μm unless otherwise stated.

Thread standard: API 7-2 | Surface finish: Ra ≤3.2μm std.

Blade Hardfacing / Surface Treatment

Stellite 6 PTA overlay, HVOF tungsten carbide, Arnco 100XT open-arc, or PCD insert brazing applied as per customer specification and formation requirement. A post-hardfacing dimensional check makes sure that the blade's outer diameter is within ±0.5mm of the specified gauge.

Options: Stellite 6 | WC-Co HVOF | Arnco 100XT/150XT | PCD inserts

Full Non-Destructive Testing (NDT)

100% UT according to the ASTM A587 flat-bottom hole procedure (direct and oblique angles), magnetic particle testing (MT) according to the ASTM E709 standard, and liquid penetrant testing (PT) according to the ASTM E165 standard. According to API 7K and the customer's specified rejection levels, the criteria for acceptance are as follows: Mechanical testing, such as Charpy V-notch at 20°C±3°C, tensile, yield, and hardness at 1″ below the surface.

UT: ASTM A587 | MT: ASTM E709 | PT: ASTM E165

Final Inspection, Marking & MTC Documentation

Final size check, laser marking for full traceability (heat number, order number, material grade, OD, thread connection), and the issuing of an EN 10204 3.1 or 3.2 mill test certificate with all the chemical and mechanical data. DNV-GL, BV, LR, ABS, RINA, and TÜV all offer third-party witness inspection at any or all stages.

MTC: EN 10204 3.1 or 3.2 | Marking: Laser

Quality Control & Testing Procedures

Before shipping, our in-house QC department will do the testing and inspection for every forging steel stabilizer to ensure the parts meet our high standards. Below is our 8-step quality control process:

Raw Material Inspection: Complete chemical composition analysis and material traceability verification upon steel receipt
Forging Process Inspection: Forging ratio, temperature control, and grain structure verification during production
Heat Treatment Verification: Hardness testing and microstructure analysis after heat treatment
Dimensional & Marking Inspection: Complete dimensional check according to customer drawings, with laser marking for complete traceability
Mechanical Property Testing: Charpy V-notch Impact at 20°C±3°C (average of three specimens); tensile and yield strength per ASTM standards; all samples taken at 1″ below surface
Non-Destructive Testing (NDT): UT per ASTM A587 (flat-bottom hole, direct + oblique); MT per ASTM E709; PT per ASTM E165
Macrostructure & Microstructure Examination: Grain size verification and inclusion analysis by metallographic microscopy per ASTM E45
Final Performance Verification: Residual stress measurement and periscopic testing for internal bore inspection

Only stabilizers that pass all 8 inspection steps are released for shipment, ensuring zero defects and 100% compliance with your project requirements.

Our Production Facility: What "80,000㎡" Factory Equipped with

Many Chinese forging suppliers claim large factory areas without explaining what is actually inside. Here is our production facility breakdown, because a procurement engineer needs to know exactly what capability is behind the stabilizers they are buying:

🔥

Melting & Refining Shop

12,000㎡. Equipment: 2× 30T EAF, 2× LF, 1× VD/VOD, 1× ESR unit. Annual steel output capacity: 18,000 tons of alloy and specialty steel.

⚒️

Forging Shop

18,000㎡. Equipment: 1× 6300T hydraulic press, 2× 4000T hydraulic press, 2× 2000T hydraulic press. All press forging — no hammers.

🌡️

Heat Treatment Shop

8,000㎡. Equipment: 6× computer-controlled Q&T furnaces (±3°C uniformity), 2× normalizing furnaces. Capacity: 5,000 tons/year throughput.

🔧

CNC Machining Shop

14,000㎡. Equipment: 28× CNC turning centers (max Ø1,600mm swing), 6× vertical machining centers, 4× dedicated API thread-cutting lathes with automatic gauging.

🔬

NDT & Testing Laboratory

3,200㎡. Equipment: UT (immersion and contact), MT, PT, hardness (Brinell, Rockwell, Vickers), Charpy impact, tensile testing, metallographic microscopy. All calibrated to ASTM/ISO.

📦

Surface Treatment & Packing

5,000㎡. Hardfacing booths (PTA, HVOF, open-arc), rust-preventive coating line, ISPM 15 fumigation-compliant wooden case production. Export packaging for sea and air freight.

Industry Standards & Third-Party Certification

Our forging steel stabilizers are manufactured and inspected according to the latest international industry standards, including:

API Standards: API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D
ISO Standards: ISO 9001:2015 (Quality Management System — certified)
ASTM Standards: ASTM A587, ASTM E45, ASTM A388, ASTM E709, ASTM E165
Regional Standards: EN, DIN, JIS, ASME for dimensional and material standards; NACE MR0175/ISO 15156 compliant material options for sour service; PED conformity assessment support can be provided for European customers

We support complete third-party inspection and EN 10204 3.2 mill test certification from DNV-GL, Bureau Veritas, Lloyd's Register, ABS, RINA, and TÜV.

Custom Ordering Process & Lead Time Matrix

Here is the exact process from first contact to delivery — and the honest lead time data, including what drives variations:

7-Step Custom Order Process

Technical Inquiry (Day 0)

Submit your drilling program, wellbore size, BHA configuration, quantity, target formation, and material/certification requirements. The more information you give us, the more accurate our DFM feedback and quote will be.

Engineering Review & DFM Feedback (Day 1–2)

Our engineering team checks to see if the design can be made, makes sure that the materials are available from our own steel stock, and points out any drawing problems. For standard items, we respond within 24 hours. For non-standard geometries, we respond within 48 hours.

Drawing Confirmation & Quotation (Day 2–5)

We send out a certified engineering drawing (GA + detail) and a detailed cost quote. The quote includes the material grade, forging ratio, heat treatment spec, NDT scope, surface treatment, MTC grade, and options for third-party inspection.

PO Confirmation & Material Lock (Day 5–8)

After we get the purchase order and approve the drawing, we send a preview of the material heat certificate, confirm the forging press allocation, and lock in the production slot in the schedule. A deposit of 30% to 50% is normal for custom forgings.

Production with Witness Points (Day 8–25)

According to the agreed-upon inspection and test plan (ITP), production starts. At agreed-upon hold points, customers or third-party inspectors are welcome to watch the forging, heat treatment, NDT, and final inspection.

MTC & Documentation Release (Day 25–28)

Complete documentation package issued: EN 10204 3.1/3.2 MTC, full inspection records, dimensional report, NDT reports, and packing list. Third-party release note issued where applicable.

Export Packing & Delivery (Day 28–35)

ISPM 15 compliant wooden case packing with rust-preventive coating and VCI (Vapor Corrosion Inhibitor) wrap. Shipping documents (including CO, B/L, insurance) are prepared for your appointed freight forwarder or our forwarder when we follow DDP/DAP delivery to your warehouse.

Quantity vs Lead Time Matrix

Quantity (sets) Standard Lead Time Expedited (Rush) Option

1–5 sets (sample / prototype) 15–20 days 10–12 days (surcharge applies)

6–20 sets (small batch) 20–28 days 15–18 days (surcharge applies)

21–100 sets (project batch) 28–40 days 20–28 days (partial delivery)

100+ sets (annual contract) Rolling schedule Monthly staggered delivery

With DNV-GL / BV witness +3–5 days Inspector schedule dependent

Lead times are calculated from drawing approval and deposit receipt, not from initial inquiry. Non-magnetic and ESR-remelted grades may require +5–7 days for specialty material procurement if not in stock.

Packaging & Export Standards

All forging steel stabilizers are exported according to the following standard packaging, unless the customer specifies otherwise:

Individual protection: Thread protectors installed on both pin and box connections; VCI poly bag wrap for bore and blade surfaces; rust-preventive oil coating on all bare metal surfaces (DIN 51502 KFKG compliant)
Crating: ISPM 15 certified fumigated wooden case or steel frame pallet; blocking and bracing to prevent movement during sea freight
Marking: External crate marking per IATA / IMDG requirements; each piece individually laser-marked with heat no., order no., material grade, OD, and thread type
Shipping documents: Commercial invoice, packing list, certificate of origin (CO), bill of lading (B/L), MTC, and third-party certificates as specified

Regional Compliant Forging Steel Stabilizer Solutions by Market

We have developed tailored solutions for the unique requirements of global core markets, 100% according to local regulatory standards:

North America: API 6A/7K Compliant Stabilizers for USA Shale Gas & Horizontal Drilling

For the US and Canadian shale gas market, our USA shale gas drilling stabilizer supplier solutions follow API 6A and API 7K latest standards, with specialized designs for horizontal and extended-reach drilling. Our spiral blade stabilizers are produced to reduce torque and drag in long lateral wellbores, with AISI 4330V MOD material for superior fatigue resistance in cyclic loading conditions. We support complete third-party inspection by ABS and Lloyd's Register, with fast lead times for urgent North American project requirements.

Middle East: High-Temperature & Sour Service Stabilizers for Saudi Arabia Oilfield

Our Saudi Arabia oilfield stabilizer manufacturer solutions are used in both onshore and offshore oilfields in Saudi Arabia, the UAE, Kuwait, and Iraq to withstand very high temperatures, pressures, and H2S-containing sour service wells. We provide NACE MR0175-compliant materials with coatings and hardfacing options to improve wear resistance and extend service life in abrasive sandstone formations. All products are made according to API 7K standards, and DNV-GL can inspect them as a third party. They have been used in projects all over the Middle East.

Europe: EN/DIN Compliant Stabilizers for Germany Geothermal Drilling

For European geothermal and oil & gas projects in Germany, Italy, Norway, and Iceland, our Germany geothermal stabilizer EN/DIN compliant solutions are made according to EN and DIN standards; PED/CE conformity assessment support can be provided upon request. Our spherical stabilizers are made for geothermal wells that are very hot, up to 350 degrees Celsius. They are made with heat-resistant alloy materials that have been optimized and a grain structure that is better for long-term thermal stability. We support full TÜV third-party inspection and EN 10204 3.2 certification for all projects in Europe.

Southeast Asia: Corrosion-Resistant Offshore Stabilizers for Malaysia Deepwater Drilling

For offshore deepwater drilling projects in Malaysia, Indonesia, Vietnam, and Thailand, our Malaysia offshore stabilizer DNV-GL inspectable solutions are made for corrosive marine environments and high-pressure deepwater wellbores. Our non-magnetic stabilizers have no magnetic interference for MWD/LWD operations, with enhanced corrosion-resistant materials to withstand seawater and downhole corrosive fluids. All products manufactured according to API 6A standards, with DNV-GL third-party inspection available, and commonly used in Southeast Asia's major offshore oil & gas blocks.

Australia: Hard Rock & Coal Seam Gas Stabilizers for Australia CSG Drilling

For Australian hard rock mining, coal seam gas (CSG), and mineral exploration drilling projects, our Australia CSG drilling stabilizer hard rock solutions are made for extreme abrasive formations. We use high-toughness alloy steel that is more resistant to wear, and we make custom blade designs to cut down on vibration and make steering easier when drilling hard rock. All products follow Australian standards, with complete third-party inspection support, and have been deployed in mining and CSG projects across Queensland and Western Australia.

Global Project Application Cases

Note: The following case data is based on customer feedback and internal project records. Performance results reflect specific project conditions and may vary. Contact us for project references.

Our forging steel stabilizers have been used in critical drilling projects across more than 50 countries. Below is our application cases:

Case 1 — Middle East Onshore HPHT Sour Service Oilfield (Saudi Arabia)

Client Main Problem: HPHT wells have a lot of H2S, after only 300 hours of drilling, the stabilizers broke, that cause the costs increased and downtime.

Our Solution: make custom AISI 4145H MOD forging steel stabilizers that meet the NACE MR0175 standard and have Stellite 6 hardfacing on the blade surfaces.The parts are made with a 4:1 forging ratio and are fully inspected by UT/MT and certified by DNV-GL.

Project Result:The project led to a 45% longer life cycle (550+ hours of continuous drilling without failure), a 60% drop in the number of times the drill tripped, and a 28% drop in the total cost of drilling. We were chosen to be the project's approved vendor for stabilizers.

Case 2 — North American Shale Gas Horizontal Drilling (Permian Basin, Texas, USA)

Client Main Problem: Drilling 3,000m horizontal lateral wellbores that have high torque and drag with standard stabilizers which limit lateral reach and increase drilling cycle time.

Our Solution: We made custom integral sleeve spiral forging steel stabilizers in AISI 4330V MOD with a better helical blade design. Completely meets API 7K standards and passes 100% of UT tests according to ASTM A587.

Project Result: 32% reduction in drill string torque, 22% extension in lateral reach, 25% reduction in drilling cycle time. We provided Over 1,800 sets products to this client and North Dakota projects.

Case 3 — European Geothermal Well Drilling (Germany)

Client Main Problem: Geothermal wells at 350°C are having problems with stabilizer thermal fatigue and cracking when using standard products. This causes the wellbore instability and project delays.

Our Solution: make custom spherical forging steel stabilizers out of heat-resistant alloy steel and use the best Q&T method to make them tough at high temperatures. made with an EN 10204 3.2 mill test certificate and an inspection that can be seen by TÜV.

Project Result: no thermal cracking or failure in 12 completed wells, a 30% decrease in the time it took to complete the wells, and better wellbore stability throughout.

Case 4 — Southeast Asia Offshore Deepwater Drilling (Malaysia)

Client Main Problem: 1,500m deepwater offshore wells which requiring accurate MWD/LWD survey data experiencing magnetic interference from standard stabilizers, which caused wellbore positioning errors.

Our Solution: Custom non-magnetic forging steel integral blade stabilizers made from high-quality non-magnetic alloy steel that has strict control over how easily it can be magnetized (≤1.01 μr). DNV-GL offshore witness inspection can be provided upon request from customers.

Project Result: no magnetic interference and 100% accurate wellbore survey data for all MWD/LWD operations. We provided more than 600 sets to offshore projects in Malaysia and Indonesia.

Full Traceability & Mill Test Certification

Every forging steel stabilizer body is delivered with a complete mill test certificate (MTC), with 100% traceability from raw material ingot to finished product. The certificate includes:

Heat No. (for ESR/VAR metal — original heat No. and remelting heat No.)
Blank No., Order No., Drawing No., and specification No.
Steel grade, steel melting and pouring practice
Complete chemical composition analysis
Hydrogen content for blanks Ø>500mm manufactured without degassing (per customer requirements)
Mechanical and hardness test findings with clear sampling location indication
Macrostructure, ultrasonic, residual stress, and periscopic test findings
Shear fracture data, ingot weight, blank weight, heat treatment conditions, repeated HT and straightening details

All stabilizers can be provided with EN 10204 3.1 or 3.2 certification upon request, with complete third-party witness inspection support.

Frequently Asked Questions (FAQ)

What is a forging steel stabilizer used for in drilling operations?

A forging steel stabilizer is a critical downhole BHA component used to centralize the drill bit and drill string, control wellbore trajectory, prevent deviation, reduce vibration and torque, and protect downhole tools from wear during oil & gas, geothermal, or mineral exploration drilling. Its position and OD relative to hole size directly controls the building, holding, or dropping tendency of the BHA.

What is the best material for forging steel stabilizers?

For regular oil and gas drilling (BHT <175°C, no significant H2S), AISI 4145H MOD is the industry standard. AISI 4330V MOD is better for HPHT wells and extended-reach horizontals because it can handle higher temperatures without breaking. Non-magnetic alloy steel (μr ≤1.01) is mandatory for MWD/LWD directional drilling applications within the non-magnetic drill collar spacing requirement.

What is the difference between a forged and cast stabilizer?

Forged stabilizers have continuous grain flow aligned with the part geometry, which has 30–50% higher fatigue strength and impact resistance versus cast alternatives at equivalent nominal hardness. Forging eliminates the micro-porosity and dendritic segregation inherent in casting, which make forged stabilizers the mandatory choice for HPHT wells and NACE MR0175 sour service applications per API 7K Annex F guidelines.

What thread connections are available on your forging steel stabilizers?

We provide all standard API rotary shouldered connections: NC26, NC31, NC38, NC44, NC46, NC50, NC56, NC61, NC70, NC77, 4-1/2 IF, 5 IF, 5-1/2 IF, 6-5/8 REG, and custom proprietary threads per customer drawing. All threads are cut and gauged per API 7-2 with calibrated ring and plug gauges.

What size range of forging steel stabilizers can you produce?

We produce custom forging steel stabilizers from 6″ to 36″ outer diameter, with maximum single-piece weight up to 30 tons, 100% according to API standards and custom drawings. Standard blade counts range from 3 to 8 depending on OD and application.

What standards do your forging steel stabilizers comply with?

100% according to API 6A, API 7K, API 10D, ASTM A587, ASTM E45, ASTM E709, ASTM E165, ISO 9001:2015, EN, DIN, and ASME standards. NACE MR0175/ISO 15156 compliant material options for sour service. EN/DIN compliant designs for European market.

Can you provide third-party certified forging steel stabilizers?

Complete third-party inspection and EN 10204 3.2 certification from DNV-GL, Bureau Veritas, Lloyd's Register, ABS, RINA, and TÜV can be provided. We can arrange witness inspection at any stage, including forging, heat treatment, NDT, and final inspection per agreed ITP (Inspection & Test Plan).

What is the lead time for custom forging steel stabilizers?

Standard lead time is 20–30 days from drawing approval and deposit receipt for quantities of 1–20 sets. It usually takes 28 to 40 days to finish larger project with the quantity of 21 to 100 sets. Expedited lead times are available with a production surcharge. Non-magnetic or ESR-grade materials may add 5–7 days if not in stock.

How does stabilizer placement in the BHA affect well trajectory?

Stabilizer position controls trajectory through two fundamental mechanisms: the fulcrum effect (near-bit stabilizer ≤5ft from bit acts as a pivot to build angle) and the pendulum effect (moving the near-bit stabilizer further from the bit allows gravity to create angle drop). A packed assembly with multiple close-spaced stabilizers holds angle. The OD clearance versus hole size — even a 1/16″ difference — significantly changes the magnitude of the side force on the bit.

Contact Us for Custom Forging Steel Stabilizer Solutions

Jiangsu Liangyi Co., Limited is a professional manufacturer of open die forgings, ISO 9001:2015 certified. We have over 25 years of experience producing high-quality forging steel products for clients in 50+ countries all over the world. Whether you need standard API stabilizers or completely custom designed forging steel stabilizers for specialized drilling applications, we can provide you with competitive pricing and superior quality solutions according to your specific requirements.

Send us your custom drawing, material requirements, quantity, and project details today for a free, no-obligation detailed quotation!

Inquiry Email: sales@jnmtforgedparts.com
Phone / WhatsApp: +86-13585067993
Official Website: https://www.jnmtforgedparts.com
Factory Address: Chengchang Industry Park, Jiangyin City, Jiangsu Province, China

✉ Send Inquiry — Free Quotation Within 24 Hours
