Forging pump fluid ends (also referred to as forged pump fluid ends) are the main high-pressure hydraulic parts of reciprocating positive displacement pumps, including frac pumps, mud pumps, cementing pumps, and triplex/quintuplex pumps used in oil & gas drilling, hydraulic fracturing, well cementing, and geothermal drilling operations.The fluid end, as the most crucial wearing part of the entire pump system, operates in harsh high-pressure, high-temperature, and abrasive working environments. The quality of the fluid end directly determines the pump's working efficiency, service life and shutdown maintenance costs.
Jiangsu Liangyi Co., Ltd. is headquartered in Jiangyin City, Jiangsu Province, China. It is a professional manufacturer of forging pump liquid ends certified by ISO 9001:2015. We have more than 25 years of experience and we mainly produce high-quality forged steel pump liquid ends for customers in more than 50 countries around the world. We strictly meet international standards such as ASTM, AISI, API, EN, and JIS, providing a one-stop solution from steelmaking, open die forging, heat treatment to precision CNC machining.
| Specification | Details | Typical Use |
|---|---|---|
| Pressure capability | 5000 to 10000+ PSI, custom solutions up to 15000 PSI | Hydraulic fracturing, drilling mud circulation, well cementing |
| Product types | Frac pump fluid ends, mud pump fluid end modules, triplex and quintuplex blocks, cementing pump fluid ends | Oil & gas, geothermal, industrial high-pressure pumping |
| Main materials | AISI 4130, 4135, 4340, 4330V MOD, 15-5 PH, 17-4PH, A182-F6NM, A182-F51 | High strength, corrosion resistance, anti-cavitation, H2S service |
| Manufacturing route | Steel melting, LF refining, VOD / vacuum degassing, open die forging, heat treatment, CNC machining | Improved grain flow, toughness, size stability |
| Inspection | UT, MT, PT, tensile, impact, metallography, PMI, CMM size checks | Traceable quality document and OEM interchangeability |
Buyers, maintenance teams and procurement managers rarely look for a forged pump fluid end as a generic product. In real projects, they are usually trying to solve a costly field problem: premature cracking, unstable service life, difficult OEM replacement, incomplete inspection files or long lead times during a shutdown. This page is therefore structured around the actual buying concerns behind searches such as OEM-compatible replacement pump fluid ends, high pressure forged frac pump fluid ends, H2S resistant pump fluid ends and finish machined mud pump fluid end modules.
The best solution depends on pressure level, corrosion risk, media condition, and whether you need a new production part or an OEM-compatible replacement fluid end. The choice table below helps connect common technical buying scenarios with more suitable material and product choices.
| Working condition | Recommended material / product direction | Why buyers choose it |
|---|---|---|
| 10000 PSI hydraulic fracturing service | 4330V MOD forged frac pump fluid ends | High fatigue resistance, strong toughness, and better cyclic pressure performance |
| Abrasive drilling mud circulation with heavy solids | 4130 / 4135 / 4340 forged mud pump fluid end modules | Balanced strength, wear resistance, and cost efficiency for heavy-duty drilling service |
| H2S, sour service, or corrosive oilfield conditions | 15-5 PH, 17-4PH, or other corrosion-resistant forged pump fluid ends | Improved corrosion resistance and more suitable performance in aggressive media |
| Offshore water injection or marine exposure | A182-F6NM or stainless forged fluid end solutions | Better anti-cavitation and marine corrosion performance for offshore duty |
| Geothermal drilling or acidic well conditions | Duplex stainless forged pump fluid ends such as A182-F51 | Supports projects requiring both pressure strength and corrosion resistance |
| Urgent replacement based on OEM drawing or worn sample | OEM-compatible rough machined or finish machined replacement pump fluid ends | Faster field replacement, lower fit-up risk, and smoother installation planning |
The forging pump liquid end (also known as the forging pump liquid end) is the core high-pressure hydraulic component of reciprocating positive displacement pumps, mainly applied in fields such as oil and gas drilling, hydraulic fracturing, cementing, and geothermal drilling, including fracturing pumps, mud pumps, cementing pumps, three/five pumps, etc. The fluid end, as the most crucial wearing component of the entire pump system, operates in harsh high-pressure, high-temperature, and abrasive working environments.The quality of the fluid end directly determines the working efficiency, service life and shutdown maintenance cost of the pump.
As a professional forging pump liquid end manufacturer certified by ISO 9001:2015, Jiangsu Liangyi Co., Ltd. is headquartered in Jiangyin City, Jiangsu Province, China. With over 25 years of experience, it produces high-quality forged steel pump liquid ends for customers in more than 50 countries around the world. We strictly meet the international standards such as ASTM, AISI, API, EN, and JIS, providing a one-stop solution covering the entire cycle from steelmaking, open die forging, heat treatment to precision CNC machining.
We produce a full range of forged pump fluid ends, including all onshore and offshore drilling and production uses, and provide customized solutions for non-standard requirements. Our main products include the following but not limited:
Our flagship forged steel frac pump fluid ends are engineered specifically for extreme high-pressure hydraulic fracturing operations, the most demanding application for pump fluid ends. These fluid ends are designed for continuous circulation working pressures ranging from 5,000 to 10,000 + PSI and are widely used in shale gas, tight oil and unconventional oil and gas extraction projects in North America, China and South America.
We supply heavy-duty forging steel mud pump fluid end modules for onshore and offshore drilling mud circulation systems.These fluid ends have been optimized to have high wear resistance in high-sand mud environments and are fully in accordance with all mainstream drilling mud pump brands. They are widely used in oilfield drilling projects in the Middle East, Asia-Pacific and Africa.
We custom-machine our forging quintuplex and triplex pump fluid end blocks to fit multi-plunger high-pressure pumps. We also make sure that the sizes are within tolerance so that they can be used with OEM parts. We provide both rough machined and final precision machined blocks according to client drawings, widely used in fracturing and cementing operations worldwide.
We produce high-performance forged steel cementing pump liquid ends, suitable for cementing operations in shallow wells, deep wells and ultra-deep wells. These liquid ends have good impact resistance and pressure stability, meeting the strict requirements of initial cementing, extrusion cementing and bridge plug cementing in global oil and gas fields.
We offer fully customized forged hydraulic fracturing high-pressure pump fluid ends for special working conditions, including high-sulfur (H2S) corrosive environments, ultra-high pressure operations and marine uses at sea.Our engineering team will work with customers to optimize the material choice and the structural design to max the service life and the cost-effectiveness.
All our forging pump fluid ends are manufactured in our Jiangyin, Jiangsu factory with full in-house production capabilities, from steel melting to final CNC machining. Our advanced production process makes sure that every fluid end we make is of the highest quality and consistency:
All the steel used for forging the liquid end of the pump is melted in a 30-ton ultra-high power electric arc furnace (EAF) and then refined by advanced ladle metallurgy (LF). We adopt vacuum degassing and vacuum oxygen decarburization (VOD) processes to ensure the best cleanliness of steel and extremely low sulfur and phosphorus content. ESR treatment is suitable for customers who require the highest material purity and microstructure uniformity, which is crucial for extending the service life of the fluid end in high-pressure cycle operations.

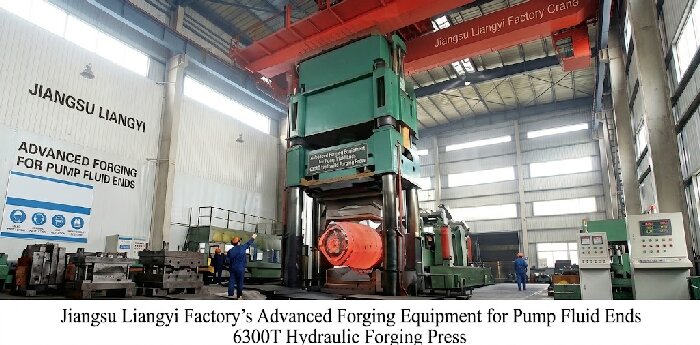

Our forging workshop is equipped with 2000T to 6300T hydraulic forging presses and 1T to 9T electro-hydraulic forging hammers, enabling us to produce pump fluid ends with continuous grain flow and refined grain size. Our forging process optimizes the material's internal microstructure, eliminating porosity and segregation, resulting in:
Superior mechanical properties vs cast parts, with higher tensile and yield strength to withstand extreme pressure loads
30-50% longer service life than cast fluid ends in cyclic high-pressure fracturing operations
Uniform fine grain structure for consistent mechanical properties and improved crack resistance
Removes internal flaws to make sure there are no problems in tough working conditions with high pressure and high temperatures.
We have more than 10 heat treatment furnaces that can do precise quenching and tempering, normalizing, and solution treatment to get the exact mechanical properties needed for each grade of material and use. We offer both rough and final precision machined forging pump fluid ends. Our CNC machining equipment can make sure the sizes are within tolerance, according to the client's drawings.
We can produce custom forged pump fluid ends that are fully compatible with all the world's leading pump brands and have 100% dimensional interchangeability with OEM parts. The pump brands we are compatible with include NATIONAL, GD, EMSCO, OILWELL, ideeco, DRILLMEC, WEATHERFORD, BOMCO, TSC, EWCO, AMERICAN BLOCK, EWECO, HONGHUA, LS NOV WIRTH, RONGSHENG, etc.
Whether you need replacement fluid ends for existing pumps or custom-designed fluid ends for new pump models, our experienced engineering team can provide a fully tailored solution.
Compatibility claims only matter if a replacement part can be installed smoothly in the field. For this reason, many buyers search for OEM-compatible pump fluid ends, replacement mud pump fluid end modules, or finish machined forged fluid ends rather than a broad product term. We support drawing-based manufacturing, reverse evaluation from samples, and machining routes that prioritize size control on sealing areas, valve pockets, plunger geometry and other critical features.

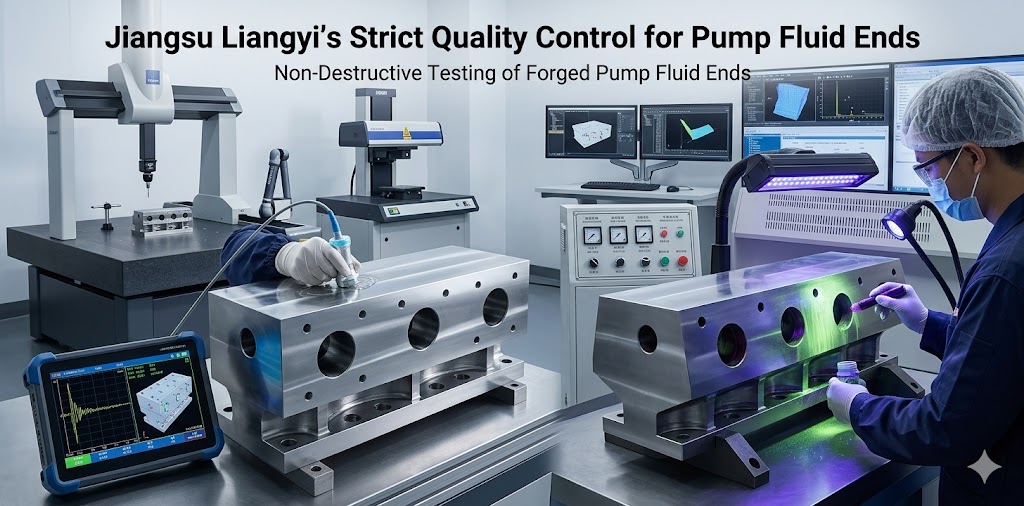

To ensure all finished forged pumps' fluid ends are free from defects such as interlayer, crack, impurity, looseness, and overburning, we implement a strict full-process quality control system for every product, from incoming material inspection to final delivery testing.
All our forging pumps' fluid ends undergo the following testing processes:
For each batch of forged steel pumps, we provide complete official inspection reports at the liquid end, including: chemical composition report, mechanical property report, UT test report, heat treatment report, and size inspection reports. We also provide EN10204 3.1/3.2 MTC certificates as required.
All products comply with the ISO 9001:2015 quality management system and can produce forged pump liquid ends that meet the API 6A standard for customers with oilfield wellhead equipment requirements.
For technical procurement, document is usually as important as the components themselves. A reliable supplier of fluid end forging pumps should be capable of supporting internal QA audits, third-party inspections, and project traceability requirements before shipment. Therefore, we take document preparation as the core part of the quotation rather than an afterthought.
| Document / report | Main purpose | Value for the buyer |
|---|---|---|
| EN10204 3.1 / 3.2 MTC | Material chemistry and mechanical property traceability | Supports approval, incoming inspection and client document requirements |
| UT, MT, and PT reports | Verification of internal and surface integrity | Helps reduce hidden defect risk before installation |
| PMI report | Positive material identification for grade confirmation | Useful for replacement projects and mixed inventory control |
| Heat treatment report | Confirms process route and achieved condition | Supports confidence in hardness, toughness and service performance |
| Size inspection report | Critical size and tolerance verification | Reduces installation issues for OEM-compatible replacement pump fluid ends |
Our forged pump fluid ends are widely used in key oil and gas as well as industrial drilling projects in over 50 countries, and we tailor solutions for the specific working conditions of each regional market. Our typical geolocation cases include:
Provide AISI 4330V MOD forged fracturing pump liquid end for three-pump and five-pump fracturing pumps. These pumps are used in big shale gas extraction projects in the USA Permian Basin and Canadian Alberta Oil Sands. Our fluid ends are designed to handle high-pressure cyclic operations at 10,000 psi with longer time. They are very resistant to fatigue and last a long time, which lowers our clients' equipment maintenance costs by more than 30% and their non-productive time (NPT) by a lot.
Our forged steel mud pump fluid end modules and cementing pump fluid ends were adopted for national oilfield projects of Saudi Aramco and ADNOC in the UAE. Manufactured from anti-sulfur material grades compatible with H2S environments, our products are fully compatible with EMSCO, BOMCO and OILWELL brand pumps, passed strict API standard inspections, and work stably in high-temperature, high-sand and corrosive harsh drilling environments.
We provided 15-5 PH and A182-F6NM stainless steel forging pump fluid ends for offshore oil & gas operators in the Norwegian North Sea. Our products feature excellent marine corrosion resistance and anti-cavitation performance, fully compliant with NORSOK standards, and are used in offshore mud pumps and water injection pumps, withstanding the harsh marine environment and strict safety requirements of offshore operations.
We provided forged cementing pump fluid ends to the 5000m+ ultra-deep well cementing projects in Australia, and we also provided forging pump fluid ends to the coal seam gas extraction projects in Indonesia and Malaysia. Our products passed full NDT inspection, they had reliable pressure stability and wear resistance, meeting the different requirements of traditional and untraditional oil & gas projects in the region.

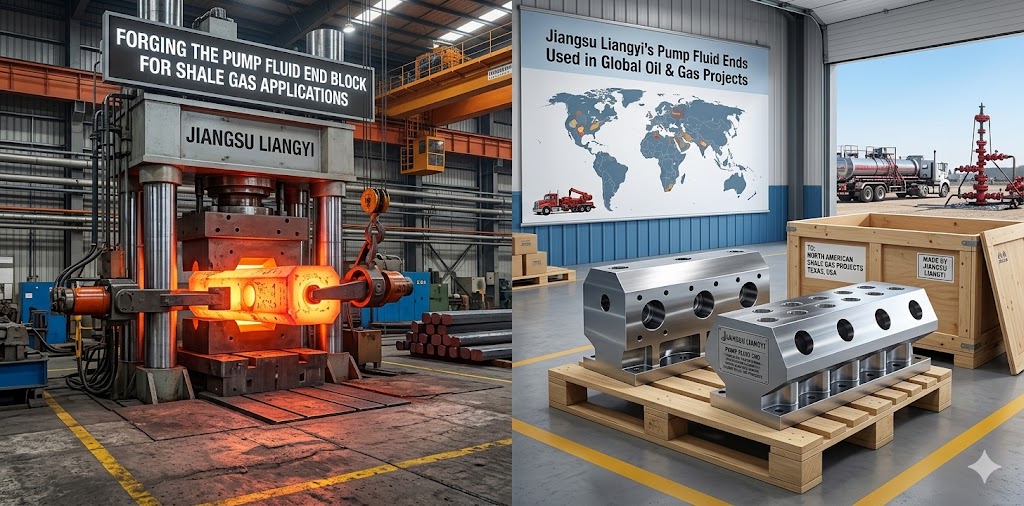

We supplied high-pressure forged frac pump fluid ends to the oil & gas projects in Argentina's Vaca Muerta shale play, and we also provided corrosion-resistant pump fluid ends to the pre-salt offshore oilfield operations in Brazil. Our solutions helped the local operators reduce the equipment costs and keep the good quality and performance.
The liquid ends of the AISI 4130 and 4330V MOD forging pumps produced by the company are widely used in domestic oil and gas fields such as Xinjiang, Sichuan and Shaanxi, as well as coalbed methane extraction projects in Shanxi. Our products are custom and suitable to make the pumps of ideeco, WEATHERFORD, BOMCO and HONGHUA brands, they have reliable performance for fracturing, drilling and cementing operations across the country.
We provide full custom manufacturing of forging pump fluid ends, including the entire production process from material selection, forged forming, heat treatment, rough machining to final precision machining, strictly in accordance with clients' drawings and technical manuals. Our custom capabilities include:
As a manufacturer with over 25 years of forging experience In China, we offer forging parts with competitive prices, good lead times and good quality to our clients.
When the purchase trigger is downtime, on-site failure or planned replacement, the delivery time becomes crucial. In these cases, buyers will not only compare prices; They compare the speed at which suppliers confirm material availability, processing routes, inspection scopes and shipping readiness.
Send the pump brand, part drawing, material preference, target pressure, annual consumption and required inspection documents. This helps shorten quotation time and lets the engineering team recommend a more suitable forged fluid end route for fracturing, mud pump, cementing or offshore replacement projects.
Brand, drawing, material grade, pressure level, and required documents
For most buyers, the real comparison is not forged versus cast as a theory; it is whether the part can survive cyclic pressure, resist crack initiation and help the pumps stay longer. In high-pressure fracturing, abrasive drilling and critical replacement projects, forged pump fluid ends are usually the best because the forging route improves grain flow, reduces internal discontinuities, and supports stronger fatigue performance under severe duty.
| Comparison point | Forged pump fluid ends | Main cast alternatives |
|---|---|---|
| Internal soundness | Forging helps reduce porosity, segregation and structural inconsistency | Higher risk of internal casting defects if process control is weak |
| Fatigue life in cyclic high pressure | Usually better suited for repeated pressure pulses in frac and mud pump service | May show shorter life when cyclic stress is severe |
| Downtime and maintenance impact | Supports longer replacement intervals and lower non-productive time when properly chosen | Lower initial price can be offset by more frequent replacement or shutdown risk |
| Machining and OEM replacement confidence | Stable forged structure benefits precision machining and size consistency | Other defect screening may be needed before finishing |
| Total lifecycle value | Often stronger overall value for buyers focused on uptime, service life and reliability | Can appear cheaper initially but less attractive when field life is shorter |
This summary table supplements the detailed regional use section below. It transforms common on-site scenarios into purchasing logic, helping engineers and purchasing teams quickly match project conditions and provide more suitable fluid end solutions for forging pumps.
| Buyer case | Main concern | Suggested forged solution |
|---|---|---|
| Shale gas fracturing contractor | High cyclic pressure, fatigue life, and replacement frequency | 4330V MOD forged frac pump fluid ends for heavy-duty high-pressure service |
| Drilling contractor replacing mud pump modules | Abrasive mud, tolerance stability, and OEM fit-up accuracy | 4130 / 4340 forged mud pump fluid end modules with finish machining and inspection reports |
| Offshore or marine operator | Corrosion, anti-cavitation performance, and documentation control | F6NM or stainless forged fluid end solutions with traceable inspection package |
| Sour service oilfield project | Material selection for corrosive media and H2S-related risk | Corrosion-resistant forged pump fluid ends using suitable PH stainless options |
| Urgent shutdown replacement project | Fast confirmation, machining readiness, and shipment timing | OEM-compatible replacement pump fluid ends with expedited production review |
In actual purchasing conversations, buyers usually hope to confirm five aspects from inquiry to order: working pressure range, material applicability, OEM interchangeability, inspection documents and actual delivery time. Pages that clearly answer these questions tend to perform better in technical long-tail searches and convert more easily because they reduce the decision-making friction between engineers and the purchasing team.
The best material as per industry-standard for high-pressure frac pump fluid ends is AISI 4330V MOD modified alloy steel, which has a good balance of high strength, excellent fatigue resistance and impact toughness.It is ideal for cyclic high-pressure hydraulic fracturing operations. For high-sulfur (H2S) corrosive environments, 15-5 PH or 17-4PH precipitation hardening stainless steel is the preferred choice.
Our forged steel pump fluid ends are made to handle working pressures between 5000 PSI and 10000 PSI. For ultra-high pressure uses up to 15000 PSI, we can make custom solutions that meet all international pressure vessel standards.
Yes,we can make forging pump fluid ends that fully meet API 6A (Specification for Wellhead and Christmas Tree Equipment) standards for use in oilfields. We can also provide full documents and certification upon request. The way we make things also follows the ISO 9001:2015 quality management system.
Yes,we can make custom forging pump fluid ends that work with all the major global pump brands, such as NATIONAL, EMSCO, BOMCO, OILWELL, WEATHERFORD, LS NOV, and others. Our products are 100% interchangeable with OEM parts in terms of size, and we machine them exactly to match the original pump specifications.
The lead time for custom forging pump fluid ends differs based on material grade, machining complexity and the order quantity. Normally , the lead time for rough machined products is 3-4 weeks, and the lead time for final machined finished products is 4-6 weeks. We can also accept rush orders with shorter time to meet clients' needs.
Yes, we provide all the EN10204 3.1 rolling mill test certificates for the liquid end of the forging pump as the standard. We can also provide the 3.2 type inspection certificate issued by an independent third party upon request. All certificates include complete chemical composition, mechanical properties, heat treatment and non-destructive testing results.
The liquid end of forging pumps is usually more suitable for vigorous circulation use because the forging process can improve grain flow, reduce internal discontinuity, and has better fatigue performance than typical casting substitutes. For buyers who are concerned about uptime and life cycle costs, forging solutions are usually a safer choice for high-pressure pumping tasks.
Yes.We support OEM-compatible replacement projects based on customer drawings, size requirements, and in some cases, sample-based evaluations. According to the customer's installation and processing plan, we can provide rough-machined forgings or finely machined pump liquid ends.
The main documents are EN10204 3.1 or 3.2 certificates, PMI reports, UT reports, MT/PT reports, heat treatment records, and size inspection reports. The buyer's needs and the project specifications will determine the final package.
Pressure levels, medium conditions, corrosion exposure, service life and other factors should all influence the selection of materials. For high-pressure fracturing operations, 4330V MOD is the most common choice. For H2S or offshore conditions, PH stainless or other corrosion-resistant options are better. Abrasive drilling uses grades like 4130, 4135, or 4340 to find the right balance between strength, wear resistance and cost.
For faster quotation, send your pump brand, drawing or sample information, working pressure, material preference, required inspection scope, and target quantity. This allows the engineering team to recommend a more suitable route for forged frac pump fluid ends, mud pump fluid end modules, cementing pump fluid ends, or other OEM-compatible replacement parts.
Helpful quotation details: pump model, drawing number, material grade, pressure rating, machining stage, required certificates, and delivery deadline.
