Quick Answer: What are forged steel pipes and when should you use them?
Forged steel pipes are heavy-duty tubular forgings manufactured by compressing a steel ingot or billet under high pressure and then machining it into a pipe or tube form. Compared with standard hot-rolled seamless pipe, forged pipe is selected when the application requires thicker walls, higher structural integrity, refined grain flow, stronger impact resistance and longer service life.
Why buyers choose forged pipe
Higher mechanical strength, better internal soundness, customizable heavy wall sections and full traceability for critical projects.
What Jiangsu Liangyi supplies
Custom forged steel pipes, forged tubes, seamless forged pipes and alloy forged piping in carbon steel, stainless steel, nickel alloy, copper alloy and titanium alloy.
What documents are available
EN10204 3.1 / 3.2 MTC, chemical and mechanical test reports, heat treatment records, dimensional reports and 100% NDT documentation.
Specification Snapshot for Engineers and Buyers
Size Range
OD 50mm to 2000mm, wall thickness 10mm to 500mm and length up to 12000mm.
Materials
Carbon steel, alloy steel, stainless steel, duplex, super duplex, nickel alloy, copper alloy and titanium alloy.
Compliance
ASTM, ASME, DIN, EN, JIS, API and NACE MR0175 / ISO 15156 with EN10204 3.1 / 3.2 certification options.
Buyer & Engineer Checklist Before Ordering Forged Steel Pipes
- Confirm service conditions: pressure, temperature, corrosion media, cyclic loading and safety class.
- Confirm dimensional logic: OD, ID, wall thickness, length, machining allowance and tolerance.
- Confirm material route: carbon steel, alloy steel, stainless steel, duplex, nickel alloy, copper alloy or titanium alloy.
- Confirm compliance: ASTM, ASME, DIN, EN, JIS, API, NACE MR0175 / ISO 15156 and certificate level.
- Confirm inspection scope: UT, MT, PT, impact testing, PMI, third-party inspection and EN10204 3.1 / 3.2 documents.

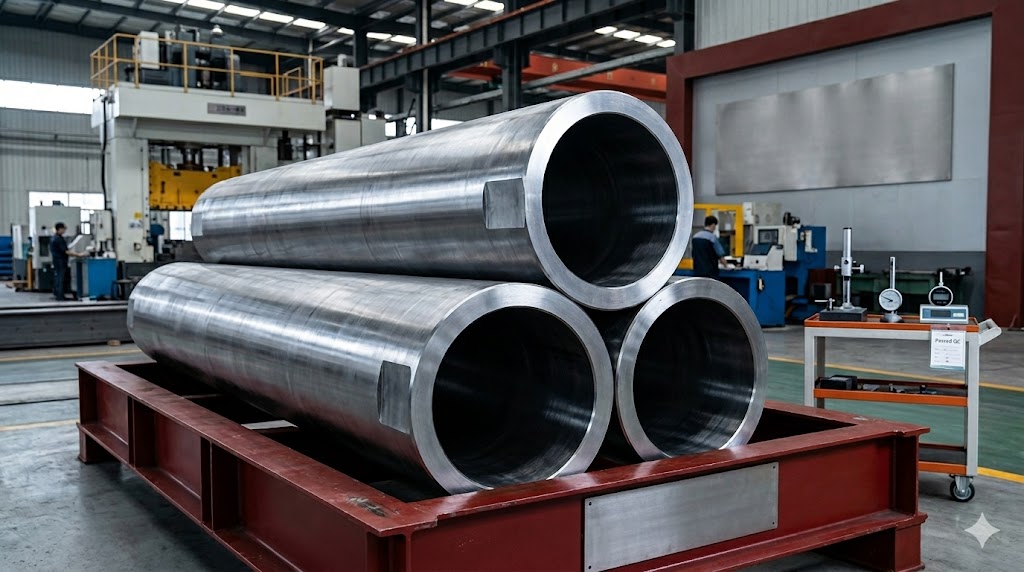

About Our Forged Steel Pipes & Tubes
Established in 1997, Jiangsu Liangyi Co., Limited is a professional China-based manufacturer and global supplier of high-performance forged steel pipes, forged steel tubes, seamless forged pipes, heavy wall forged pipes, forged pipings and forged tubings. With an 80,000㎡ modern factory, 40 million USD fixed assets and 120,000 tons annual production capacity, we deliver custom forged pipe solutions for the extreme industrial conditions around the world.
Our forged steel pipes meet international standards including ASTM, ASME, DIN, EN, JIS and API 6A, covering a full range of carbon steel, alloy steel, stainless steel, nickel alloy, copper alloy and titanium alloy materials. Every product is fully controlled in the whole process from steel melting to final machining, with complete mill test certificates (MTC 3.1/3.2).So that they are the best choice materials for our clients in North America, Europe, the Middle East, Southeast Asia, Australia and East Asia.
Manufacturing scale
80,000㎡ factory, 40 million USD fixed assets and 120,000 tons annual production capacity for forged products.
Application focus
Critical piping and tubular forgings for oil & gas, petrochemical, thermal power, nuclear, hydraulic, marine and mining service.
Traceability
Each order can be supplied with heat treatment records, NDT reports, dimensional inspection and material certificates for project approval.
Advanced Manufacturing & Quality Control System for Forged Pipes
Premium Melting Technology
To make sure all of our forged steel pipes have great internal quality and material consistency , we adopt industry-leading dual melting processes, customized for different material grades
- EAF + LF + VD Melting: For carbon steel, low alloy steel forged pipes, ensuring chemical composition control and low gas content
- VIM + ESR Melting: For high-performance stainless steel, nickel alloy and super alloy forged tubes, eliminating inclusions and defects to meet extreme working condition requirements
Full-Process Standardized Production Flow
Our manufacturing route is fully controlled to make sure all parts have stable dimensions and repeatable quality:
- Raw material inspection
- EAF + LF + VD or VIM + ESR melting
- Ingot forging and cogging

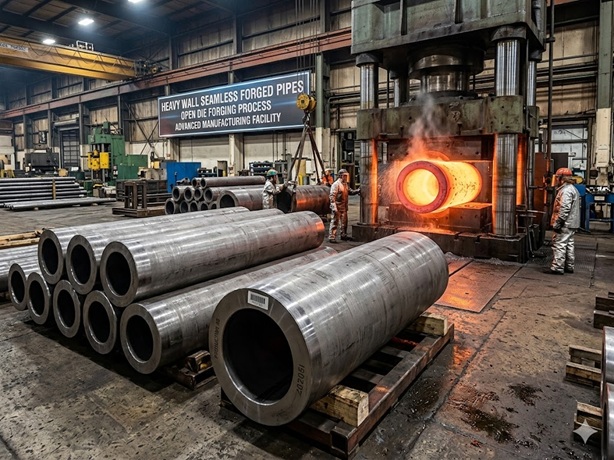

- Open die forging forming
- Normalizing & tempering or solution treatment
- Rough machining

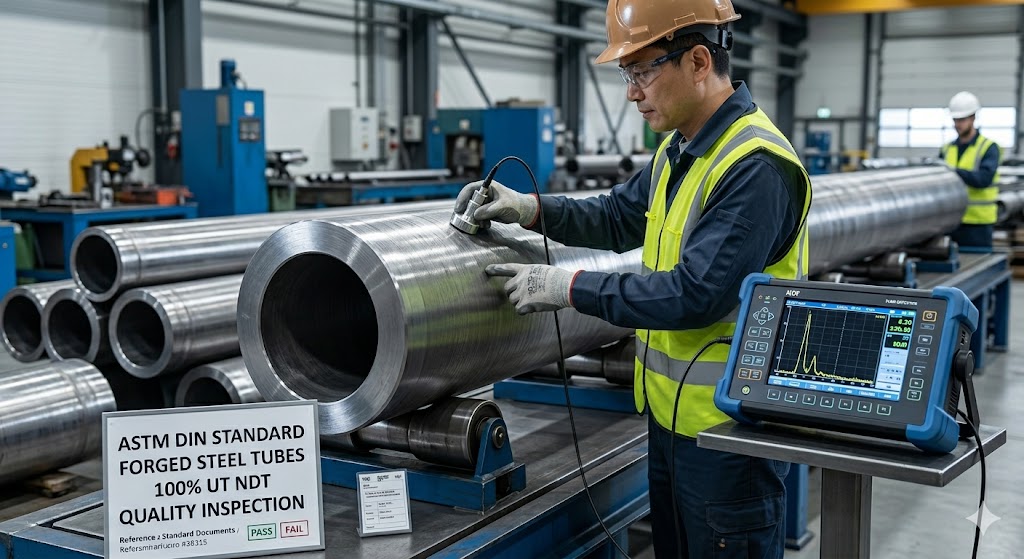

- 100% UT nondestructive testing
- Quenching & tempering or ageing treatment
- Precision finish machining
- Final dimensional inspection
- NDT retesting
- Packaging and delivery
Rigorous Quality Testing & Full Documentation
We have a in-house testing laboratory equipped with advanced nondestructive testing, chemical composition analysis, mechanical property testing and metallographical testing equipment. We provide a full set of official testing reports for every piece of forged tubes and pipes . These reports include:
- Chemical Composition Analysis Report
- Mechanical Properties Test Report (Tensile Strength, Yield Strength, Elongation, Hardness, Impact Toughness)
- Heat Treatment Process Report
- Dimensional Inspection Report
- Nondestructive Testing (NDT) Report, including UT (Ultrasonic Testing), MT (Magnetic Particle Testing), PT (Penetrant Testing)
Core Advantages of Our Forged Steel Pipes vs Standard Seamless Pipes
Unlike conventional hot-rolled seamless pipes, our forged steel pipes are manufactured through open die forging process, so that they are the best choice material for critical heavy-duty applications. Following are the main differences and advantages:
| Performance Index | Our Forged Steel Pipes | Standard Hot-Rolled Seamless Pipes |
|---|---|---|
| Grain Structure | Refined, uniform and directional grain flow aligned to the pipe shape, eliminating internal defects | Non-directional grain structure, with potential for uneven grain size and segregation |
| Mechanical Strength | 20-30% higher tensile strength, impact resistance and fatigue strength, with excellent low-temperature toughness | Standard strength performance, limited load-bearing capacity for extreme conditions |
| Internal Integrity | 100% free of porosity, shrinkage, cavities and inclusions, with dense internal structure | Potential for minor internal defects from the rolling process |
| Wall Thickness Range | Ultra-heavy wall thickness available, with customizable wall-to-diameter ratio for high-pressure applications | Limited wall thickness range, not suitable for ultra-heavy wall requirements |
| Service Life | 3-5 times longer service life in harsh working conditions, reducing maintenance and replacement costs | Standard service life, with higher risk of failure in corrosive or high-pressure environments |
| Customization Flexibility | Fully customizable dimensions, shapes and material grades according to client drawings, no MOQ limitation for custom orders | Fixed standard sizes, limited customization options |
When to Choose Forged Pipe Instead of Standard Seamless Pipe
Choose forged pipe when wall thickness is extreme
If the design requires ultra-heavy wall sections, high pressure retention or a high wall-to-diameter ratio, forged pipe is usually a better choice.
Choose forged pipe when failure cost is high
For shutdown-sensitive projects such as oil & gas, boilers, reactors, offshore systems and mining hydraulics, better internal soundness helps reduce risk.
Choose forged pipe when machining is critical
Forged pipe is a better choice material when the part will be further machined into sleeves, cylinder barrels, heavy wall connectors or custom transition components.
Choose seamless pipe when standard service is enough
For less severe duty with standard dimensions and lower customization needs, standard seamless pipe can still be an economical option.
Global Industrial Applications & GEO-Targeted Project Cases
Our forged steel pipes and tubes are used in extreme industrial conditions across more than 50 countries . Following are our verified project cases :
Oil & Gas Upstream & Midstream Industry
As a main supplier for the global oil and gas industry, our high-pressure forged steel pipes are the best choice material for wellhead equipment, Christmas trees, high-pressure gathering pipelines, casing hangers, tubing heads and offshore platform piping systems. We have supplied ASTM A694 F42-F70, API 6A 4130/4140 grade forged pipes to more than 15 large-scale oil and gas projects in Saudi Arabia, the United Arab Emirates, Kuwait, Iraq and Oman, as well as offshore oilfield projects in the Gulf of Mexico and the North Sea. The seamless weld-free structure can bear extreme downhole pressure up to 15000PSI and corrosive H2S/CO2 media, manufactured to API 6A and NACE MR0175 dimensional and material specifications.
Petrochemical & Chemical Processing Industry
For high-temperature, high-pressure and strong corrosion working conditions in the petrochemical and chemical industries, our corrosion-resistant forged pipes are used in refineries, fertilizer production plants, chemical reactor transmission lines, acid-base medium conveying systems and high-pressure heat exchanger tubes. Our DIN EN standard stainless steel, Hastelloy, Monel and Inconel alloy forged tubes have been used for chemical plants in Germany, France, Italy, the Netherlands and Belgium, as well as petrochemical projects in Southeast Asia. The products resist various corrosive chemicals and their volatile fumes, eliminating the risk of leakage and making sure the chemical production is safe and continuous.
Power Generation (Thermal & Nuclear) Industry
Our forged steel pipes are used for thermal power plants, nuclear power plants and renewable energy projects worldwide. We supply high-temperature alloy steel forged pipes for boiler main steam pipes, high-temperature high-pressure feed water pipes, steam turbine bypass systems and nuclear island cooling system piping. Our ASTM A182 F11, F22, F91, F92 grade forged pipes have been used for more than 20 thermal power plants in China, Vietnam, Thailand, Indonesia and Pakistan, while our stainless steel and nickel alloy forged tubes are used in nuclear power projects in Europe and East Asia. The products have excellent high-temperature creep resistance and long-term stability, meeting the strict 30+ year service life requirements for power station equipment.
Hydraulic & Heavy Machinery Industry
For heavy load and high-pressure requirements of construction machinery, metallurgical equipment and hydraulic systems, our heavy wall forged steel pipes are the best choice material for high-pressure hydraulic cylinder barrels, hydraulic props, lifting equipment oil cylinders, mining machinery hydraulic systems and marine hydraulic equipment. Our AISI 4140, 4340, 42CrMo4 grade forged pipes are used for world-renowned heavy machinery manufacturers in the United States, Germany, Japan and South Korea. The forging process refines the steel grain flow, greatly improves fatigue strength and impact resistance, withstands continuous high-pressure hydraulic loads up to 700Bar, and avoids deformation and leakage risks.
Mining & Mineral Processing Industry
Our high-toughness forged steel pipes are used in mining machinery, mineral processing equipment and slurry conveying systems in the global mining industry. We make forged pipes that are resistant to wear and impact for mining mill equipment, hydraulic support systems, slurry pipelines, and mineral processing plant equipment. Our forged pipes have been used for large-scale mining projects in Australia, Brazil, Chile, Peru and South Africa. They can work well in harsh working conditions such as high impact, abrasive wear and heavy load, ensuring the long-term stable operation in mining sites with minimal maintenance.
Marine & Offshore Engineering Industry
Our marine-grade forged steel pipes are used for the shipbuilding and offshore engineering industries, including marine propulsion system sleeves, offshore platform leg pipes, subsea transmission pipelines, marine hydraulic system piping and shipboard piping systems. Made of marine-grade carbon steel, copper-nickel alloy, duplex steel and super austenitic stainless steel, our forged pipes have excellent seawater corrosion resistance, low-temperature impact resistance and fatigue strength. We have supplied marine forged pipes to shipbuilding companies in South Korea, Japan, Singapore, Norway and Denmark. All products can be supplied with third-party NDT inspection reports and are suitable for classification society review upon request.
Pulp, Paper & Pharmaceutical Industry
In the pulp, paper and pharmaceutical industries, our high-cleanliness forged steel pipes are used for pulp conveying systems, pharmaceutical aseptic production lines, API processing pipelines, sterile water systems and water treatment systems. Our 316L, 904L, 254SMO duplex steel forged tubes are used for pharmaceutical companies and paper mills in the United States, Canada, the UK and Switzerland. The precision-machined inner wall, free of porosity and welds, has excellent corrosion resistance and mirror finish, avoiding medium retention and bacterial growth, fully meeting GMP specifications for pharmaceuticals and strict corrosion resistance requirements for the paper industry.
Full Range of Material Grades for Forged Steel Pipes & Tubes
We can produce custom forged pipes, tubes, pipings and tubings in a full range of material grades, and they all meet ASTM, ASME, DIN, EN, JIS and API international standards:
Alloy & Carbon Steel Forged Pipes
A182-F5, A182-F11, A182-F12, A182-F21, A182-F22, ASTM A182-F22V, A182-F91, A182-F92
ASTM A694-F42, A694-F46, A694-F48, A694-F50, A694-F60, A694-F70
ASME SA516 Grade 60/70, SA-350 LF2/LF3/LF5/LF6, A36, ASTM A105, ASME SA266 Grade 2/4
ST37.2, C22.8, S235JR, S275JR, S355JR, AISI 1045, AISI 4140, AISI 4130, AISI 4340
42CrMo4, 25CrMo4, 12CrMo9-10, 18CrMoS4, 18CrNiMo7-6, 17CrNiMo6, 16MnCr5, St52-3, S355J2G3, 50CrMo4
Stainless Steel Forged Tubes
A182-F304/F304L, F316/F316L, F310, F317/F317L, F321, F347/F348, F6a/F6b
AISI 309, 310S, 316Lmod, Nitronic 30/40/50/60, Xm-11/Xm-10, UNS S21800, Alloy 20, 904L
PH Stainless Steel: PH13-8Mo, 17-4PH, 15-5PH, 17-7PH, PH15-7Mo
Duplex & Super Duplex Steel: 254Smo, Al-6Xn, 654SMO, A182-F44/F45/F51/F53/F55/F60/F61/F62
UNS N08028, UNS N08367
Nickel Alloy & Super Alloy Forged Pipes
Pure Nickel: Nickel 200, Nickel 201
Monel Alloy: Monel 400, Monel R-405, Monel K-500
Hastelloy Alloy: Hastelloy C-22, C-4, C-276, C-2000, B-2, B, X
Inconel Alloy: Inconel 600, 601, 617, 625, 686, 690, 693, 718, 725, X-750
Incoloy Alloy: Incoloy 800, 800H, 800HT, 825, 925, 926, 901
Nimonic Alloy: Nimonic 75, 80A, 90, 105, 901
Special Alloy Forged Tubes
Brass, Naval Brass & Copper Nickel Alloy: UNS C36500, C44300, C44400, C46400, C46500, C61300, C61400, C63000, C70600, C71500 (ASME SB171 Compliant)
Titanium Alloy: ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16
Tool & Die Steel: AISI A2/D2/O1/S7/H13/H11/H12/P20/NAK80/S136, SKD11/SKD61/SKT4, DIN 1.2344/1.2379/1.2738/1.2311
All brand names and trade names referenced above (including Monel, Hastelloy, Inconel, Incoloy, Nimonic, 254SMO) are registered trademarks of their respective owners. Jiangsu Liangyi is an independent manufacturer and supplies equivalent material grades per UNS, ASTM, EN and DIN designations. We are not an authorized distributor of any of the above trademark holders.
Custom Forged Pipes Capability & International Standards Compliance
Full Customization Capability
We provide fully custom forged steel pipes and tubes according to client drawings and technical requirements. Following are our production scope:
| Specification | Range |
|---|---|
| Outer Diameter | 50mm to 2000mm |
| Wall Thickness | 10mm to 500mm (ultra-heavy wall customizable) |
| Maximum Length | Up to 12000mm |
| Single Piece Weight | 30KGS to 30000KGS (30 Tons) |
| Machining Precision | Rough machining, semi-finish machining or precision finish machining |
| MOQ | No strict MOQ (1 piece for prototype testing accepted) |
| Lead Time | 15-25 days for carbon/alloy steel; 25-40 days for stainless/nickel alloy (expedited available) |
International Standards Compliance
All our forged steel pipes and tubes meet the latest international standards, including but not limited to:
- ASTM / ASME Standards: ASTM A182, ASTM A694, ASME SA-350, ASME SA516
- DIN / EN Standards: EN 10204, EN 10228, DIN 17175, DIN 17200
- JIS Standards: JIS G4051, JIS G4105, JIS G4303
- API Standards: API 6A, API 5L
- NACE MR0175 / ISO 15156 for sour service applications
How to Specify Forged Steel Pipes for RFQ, Quotation and Technical Review
Frequently Asked Questions (FAQ) About Forged Steel Pipes
What is the main difference between forged pipe and seamless pipe?
The main difference lies in the manufacturing process and material performance. Forged pipes are produced through open die forging, which compresses the steel ingot under high pressure to refine the grain distribution, align the grain flow, and delete internal defects. This results in 20-30% higher mechanical strength, better impact resistance and longer lifetime compared to standard hot-rolled seamless pipes.Hot rolling or cold drawing makes seamless pipes. These methods work well for most uses, but they don't work as well as forged pipes in extreme high-pressure, high-temperature, or heavy-load conditions.
What testing do you provide for your forged steel pipes?
We test every forged pipe we send out in a full range of ways which include checking the chemical composition, the mechanical properties (tensile strength, yield strength, elongation, hardness, impact test), the heat treatment, the dimensions, and 100% nondestructive testing (UT ultrasonic testing, MT magnetic particle testing, PT penetrant testing). According to what the client needs, we can also get third-party testing from well-known groups like BV, SGS, and TUV.
Can you produce forged pipes according to our custom drawings?
Yes, we make forged steel pipes and tubes based on clients drawings and technical requirements. Our engineering team will review your drawings and provide professional suggestions on material selection and forging process optimization to make the final product fully meets your application requirements. We can produce custom shapes, dimensions, material grades and fine machining as per your specifications.
What is the lead time for custom forged pipes?
The actual lead time depends on the clients drawings, quantity and machining requirements. For carbon steel and alloy steel forged pipes, the lead time is 15-25 days. For stainless steel, nickel alloy and super alloy forged pipes, the lead time is 25-40 days. We can also speed up production for urgent orders.
Can you provide EN10204 3.1 or 3.2 MTC for your forged pipes?
Yes, we provide EN10204 3.1 factory test certificates as standard for all forged pipes. EN10204 3.2 certificates can be arranged through authorized third-party inspection agencies such as TUV, BV, SGS, or Lloyd's Register at customer request.
What is the MOQ for custom forged pipes?
our MOQ is 1 piece. We fully support both one piece sample orders and large-volume mass production orders.
What is the MOQ for custom forged pipes?
our MOQ is 1 piece. We fully support both one piece sample orders and large-volume mass production orders.
What industries are your forged pipes used in?
Our forged steel pipes and tubes are used in extreme industrial settings in more than 50 countries around the world, which include oil and gas upstream and midstream, petrochemical and chemical processing, power generation (thermal & nuclear), hydraulic and heavy machinery, mining and mineral processing, marine and offshore engineering, pulp, paper and pharmaceutical industries.
Do you export forged pipes to my country?
Yes, we export forged steel pipes and tubes to more than 50 countries around the world, which include North America (USA, Canada), Europe (Germany, France, Italy, UK, Spain, Netherlands, Belgium, Switzerland), Middle East (Saudi Arabia, UAE, Kuwait, Iraq, Oman), Southeast Asia (Vietnam, Thailand, Indonesia, Malaysia, Singapore, Philippines), Australia, New Zealand, Japan and South Korea.
Contact Us for Custom Forged Steel Pipe Solutions
Get Your Custom Forged Pipes Quotation Today
Jiangsu Liangyi supplies custom forged steel pipes and forged tubes for extreme working conditions where strength, thickness, corrosion resistance, traceability and long lifetime matter. We support both one piece sample orders and large-volume mass production orders.
Send your drawing, material grade, dimensions, quantity, testing scope and destination country, and our team will prepare a technical review with quotation and lead-time feedback.
