Overview of Dragline Excavators Rail Segment & Shovel Excavator Circular Rails
Jiangsu Liangyi Co., Limited is a leading professional manufacturer of dragline excavators circular rails and mining electric shovel excavator rail segments from China, with over 25 years of open die forging experience in heavy industrial mining components. Our custom forged dragline excavators rail segments and shovel excavator circular rails are specially suitable for the extreme working conditions of open-pit coal mines, metal mines, large-scale quarrying and heavy construction projects all over the world.
For Australian iron ore mine operators, our dragline excavators rail segments have been commonly used in Western Australia's Pilbara region, with reliable performance under extreme high-temperature and heavy-load conditions. For South American copper mine projects, our custom forged rail components have helped numerous mining operators in Chile and Peru reduce maintenance costs and extend equipment life cycle. As a main component of large mining walking dragline excavators and electric rope shovel excavators, our rail segments and circular rails undertake the complete load of the equipment's rotating and walking system — it has superior wear resistance, high impact toughness, extreme load-bearing capacity and long life cycle — which effectively reduces downtime and maintenance cost for global mining operators. We have provided our high-quality mining excavator rail components to customers in more than 50 countries, which including major mining markets in Australia, North America, South America, Africa and Russia.
What Is a Dragline Excavator Rail Segment? Function, Types & Role in Mining Operations

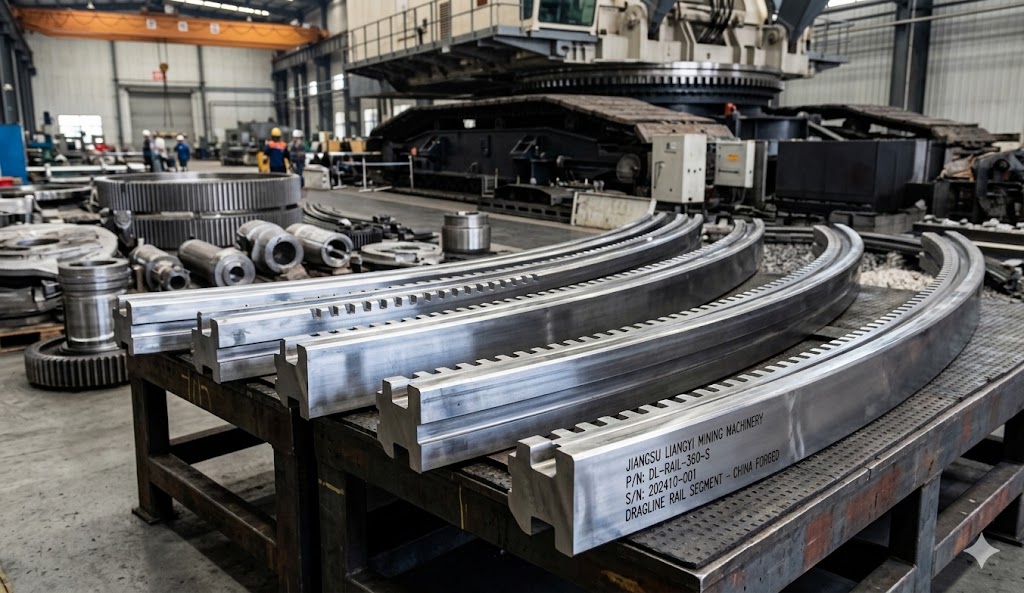

Definition: A dragline excavator rail segment is a curved, arc-shaped forged steel component that, when multiple segments are assembled end-to-end, forms the complete circular rail (travel rail) system of a walking dragline excavator or electric rope shovel excavator. This rail supports the complete rotating superstructure weight — often exceeding 5,000 to 12,000 tonnes — while enabling 360° rotation and controlled walking movement across the mine pit floor.
The Critical Role of Rail Segments in Dragline & Shovel Systems
The circular rail formed by assembled dragline rail segments is the primary load-bearing interface between the machine's rotating upper structure and its fixed lower tub or base frame. The rail segments feel huge dynamic forces with every turn of the machine, every swing of the bucket, and every step the person takes. Main functional requirements include:
- Compressive load bearing: Supports the dead weight of the rotating superstructure plus dynamic bucket payload loads during digging cycles
- Rolling contact fatigue resistance: The rail surface is in constant contact with the bull gear or roller assemblies; surface spalling and subsurface fatigue cracking are the primary failure mechanisms
- Dimensional precision: Rail segment arc geometry must be maintained within tight tolerances so that the assembled rail runs true and smooth — deviations cause uneven roller loading and accelerated wear
- Impact absorption: Abrupt load changes during digging, slewing and dumping cycles generate high-energy impact loads that can crack brittle cast rail segments
- Wear resistance: Contact surfaces must maintain profile shape over tens of thousands of operating hours in abrasive, dusty mine environments
Two Main Product Types: Walking Dragline Rail vs. Shovel Excavator Circular Rail
Although the engineering principles are similar, walking dragline rail segments and electric shovel circular rails differ in main dimensional and functional characteristics:
| Feature | Walking Dragline Rail Segment | Shovel Excavator Circular Rail |
|---|---|---|
| Equipment Type | Walking dragline excavators (e.g., Marion 8050, Bucyrus-Erie 1570W) | Electric rope shovels (e.g., P&H 4100XPC, Bucyrus 495HF) |
| Primary Function | Supports walking mechanism pads and rotating superstructure during walking cycles | Supports full 360° rotation of the upper body (house) on a stationary base |
| Load Character | Alternating compressive and bending loads during walking steps | Predominantly compressive rolling contact load during continuous rotation |
| Arc Segment Length | Typically shorter segments, more joints in assembled rail | Larger arc segments possible due to continuous rolling contact design |
| Key Material Property | High impact toughness + fatigue resistance | High wear resistance + surface hardness + compressive strength |
| Typical Material Grade | 42CrMo4, 4340, 34CrNiMo6 | 42CrMo4, H13, D2 (for extreme abrasion) |
Forged vs. Cast Dragline Rail Segments: Why Forging Is the Industry Standard for Heavy Mining
Mining equipment procurement teams always face a choice between cast dragline rail segments and forged dragline rail segments. While cast rail segments have a lower initial purchase cost, they carry significant performance and lifecycle cost disadvantages that make them unsuitable for large-scale, high-intensity mining operations. The comparison below is based on our 25+ years of manufacturing experience and field feedback from global mining customers:
Industry practice: For medium-to-large walking dragline and electric shovel applications, forged rail segments are the established industry standard over cast alternatives. Mining operators who have switched from cast to forged rail segments commonly report significant improvements in life cycle — based on feedback from our customer base over 25+ years of supply.
| Performance Factor | Cast Rail Segment | Forged Rail Segment (Our Product) |
|---|---|---|
| Internal Structure | Porosity, shrinkage cavities, coarse dendritic grain — inherent to casting process | Compact, refined, directionally-aligned grain structure — produced by controlled forging deformation |
| Tensile Strength (typical) | 550–700 MPa (cast alloy steel) | 900–1,100 MPa (42CrMo4 Q+T forged) |
| Impact Toughness (KV₂ at 20°C) | Often < 27 J; prone to brittle fracture under shock load | ≥ 50 J; absorbs dynamic mining loads without cracking |
| Fatigue Life | Lower fatigue limit; cracks propagate rapidly from casting defects | Superior fatigue life; grain flow oriented along stress path |
| Failure Mode | Sudden brittle fracture — unplanned downtime, safety risk | Gradual surface wear — predictable, planned replacement |
| Dimensional Accuracy | Larger tolerances; requires extensive post-machining to meet assembly spec | Near-net-shape forging; CNC finished to ±0.05 mm |
| NDT Reliability | Internal casting defects can mask UT signals; inspection less reliable | Clean forged structure; UT (EN 10228-3) highly reliable for defect detection |
| Typical Service Life | Shorter; typically requires replacement within 1–2 years in heavy mining | 2–3× longer; many customers report 3–5 years in comparable conditions |
| Initial Unit Cost | Lower | Higher |
| Total Lifecycle Cost | Higher (more frequent replacement, downtime cost, safety events) | Lower — forged rail segments are the economically superior choice at scale |
| OEM Specification | Not specified by major OEMs for heavy applications | Specified by P&H, Bucyrus, Marion engineering standards |
Complete-Cycle Custom Manufacturing Capability For Mining Excavator Rail Components
We provide one-stop end-to-end manufacturing production for dragline excavators rail segments and shovel excavator circular rails, which including steel melting, open die forging, heat treatment, precision CNC machining and final inspection — all completed in-house to make sure complete quality control and traceability. Our factory has 80,000 square meters and has 40 million dollars' worth of original fixed assets. It can make 120,000 tons of products a year, thanks to a team of 150 engineers and technicians who have been in the business for more than 20 years Learn more about our advanced manufacturing equipment.
Advanced Forging & Machining Equipment
Our factory has world-class production facilities for heavy-duty mining forging manufacturing. These facilities include 2000T fast hydraulic forging press, 4000T / 6300T hydraulic forging presses, 1T–9T electro-hydraulic forging hammers, 5M seamless rolling machine, 10+ professional heat treatment furnaces, and high-precision CNC machining centers. This allows us to produce custom dragline excavators rail segments and circular rails with:
- Single-piece weight range from 30 kg to 30,000 kg
- Maximum outer diameter up to 6 meters for seamless circular rails
- Minimum 3:1 forging ratio, ensuring compact and uniform internal grain structure
- CNC machining tolerance control up to ±0.05 mm, completely meeting your assembly requirements
Custom Heat Treatment Process
For each dragline excavator rail segment and shovel excavator circular rail, we use a different quenching and tempering (Q+T) heat treatment process based on the material grade, section thickness, and desired mechanical properties. The Q+T process makes a tempered martensite microstructure that strikes the right balance between hardness, toughness, and wear resistance which makes rail parts can handle heavy loads, impacts, and abrasive wear in harsh mining environments for a long time without breaking.
Different kinds of Material Grades For Harsh Mining Working Conditions
We can manufacture dragline excavators rail segments and shovel excavator circular rails in different kinds of material grades, by following international standards which including ASTM, AISI, DIN, EN, API and JIS. Below is our material options:
- High-strength Alloy Steel (most common for dragline rails): 42CrMo4 (DIN 1.7225), 4140, 4340, 34CrNiMo6 (DIN 1.6582), ASTM A182 F11 / F22 / F91
- Carbon Steel (lighter duty applications): 1045, 1050, S355J2, ASTM A105
- Wear-resistant Tool & Die Steel (extreme abrasion): H13 (AISI), D2 (AISI), SKD11, SKD61
- Stainless & Duplex Steel (corrosive environments): 304, 316L, 2205, 2507
- Custom material grades available per your specific project requirements and equipment OEM specification
All materials are provided with complete mill test certificates (MTC) per EN 10204 3.1 / 3.2, making sure full traceability from raw steel melting heat to final finished forged mining components. For more details, visit our materials page.
Typical Mechanical Properties of Forged Rail Segments by Material Grade
The table below shows the typical guaranteed minimum mechanical properties we can reach for our most commonly specified material grades in dragline excavators rail segments and shovel excavator circular rails, after our standard quenching and tempering (Q+T) heat treatment. All values represent minimum guaranteed properties as per EN 10204 3.1 test certificates; actual results may exceed these minimums.
| Material Grade | Tensile Strength Rm (MPa) | Yield Strength Rp0.2 (MPa) | Elongation A5 (%) | Impact KV₂ at 20°C (J) | Hardness (HBW) | Typical Application |
|---|---|---|---|---|---|---|
| 42CrMo4 (Q+T) DIN 1.7225 / AISI 4140 | ≥ 900 | ≥ 750 | ≥ 13 | ≥ 50 | 260–310 | Standard alloy steel for most dragline rail segments; best balance of strength, toughness and cost |
| 4340 (Q+T) AISI 4340 | ≥ 980 | ≥ 830 | ≥ 11 | ≥ 45 | 280–320 | Higher tensile strength than 4140; preferred for higher-load shovel excavator circular rails |
| 34CrNiMo6 (Q+T) DIN 1.6582 | ≥ 1,000 | ≥ 850 | ≥ 10 | ≥ 50 at 20°C ≥ 35 at −40°C | 290–330 | Best choice for sub-zero environments (Russia, Canada); superior low-temperature toughness |
| 4340 High-Strength (Q+T) | ≥ 1,100 | ≥ 950 | ≥ 9 | ≥ 35 | 310–360 | Ultra-high-strength version for maximum load-bearing capacity; used in largest dragline models |
| H13 Tool Steel (Q+T) AISI H13 / DIN 1.2344 | ≥ 1,200 | ≥ 1,000 | ≥ 7 | ≥ 20 | 44–52 HRC | Extreme surface hardness for maximum wear resistance in highly abrasive ore conditions (hard rock iron ore, copper ore) |
| D2 Tool Steel (Hardened) AISI D2 / DIN 1.2379 | ≥ 1,500 | ≥ 1,200 | ≥ 2 | ≥ 10 | 58–62 HRC | Maximum abrasion resistance for extreme wear conditions; note: lower toughness, suitable only for compressive-load applications |
Material selection guidance: For most open-pit coal and metal mining dragline uses, 42CrMo4 (Q+T) at 260–310 HBW is the best choice because it is strong, tough, resistant to wear, and cheap. If you mine harder rocks like iron ore or copper ore that wear down quickly, we suggest upgrading to 4340 (Q+T) at 280–320 HBW or H13. For work in very cold places (below −20°C), 34CrNiMo6 with low-temperature impact testing is required. Please contact our engineering team about what materials would be best for your site.
Technical Specifications of Forged Dragline Excavator Rail Segments
The table below summarizes main manufacturing and performance parameters for our dragline excavators rail segments and shovel excavator circular rails. All parameters are produced according to your specific equipment model and project requirements:
| Parameter | Specification / Range | Remarks |
|---|---|---|
| Single-Piece Weight | 30 kg – 30,000 kg | Heavier pieces available on inquiry |
| Maximum Outer Diameter | Up to 6,000 mm (6 m) | Seamless rolled circular rails |
| Minimum Forging Ratio | ≥ 3:1 | makes sure uniform grain structure and mechanical properties |
| CNC Machining Tolerance | ±0.05 mm | Precision machined per customer assembly drawing |
| Primary Material Grades | 42CrMo4, 4140, 4340, 34CrNiMo6, H13, D2 | Other grades per ASTM / DIN / EN / JIS available |
| Heat Treatment | Quenching + Tempering (Q+T) | Customized per material grade and hardness requirement |
| Surface Hardness (42CrMo4 Q+T) | 260–310 HBW | Adjustable per project specification |
| Surface Hardness (H13 Hardened) | 44–52 HRC | For extreme abrasion applications |
| NDT Standards | UT: EN 10228-3 / ASTM A388; MT: EN 10228-1 | 100% inspection; PT available on request |
| Quality Certification | ISO 9001:2015 | Factory quality management system |
| Material Test Certificate | EN 10204 3.1 (standard); 3.2 on request | SGS, BV, TÜV, Intertek inspection accepted |
| Standard Lead Time | 25–35 calendar days | From confirmed order and approved drawings |
| Expedited Lead Time | 15–20 calendar days | For most standard material grades |
| Warranty Period | Minimum 24 months from acceptance | Full coverage for manufacturing defects |
| Export Markets | 50+ countries | Australia, USA, Canada, Chile, Peru, South Africa, Russia, and more |
Equipment Brand Compatibility: Forged Rail Segments for P&H, Bucyrus-Erie, Marion & More
We produce custom forged dragline excavators rail segments and shovel excavator circular rails compatible with all major walking dragline and electric rope shovel brands all over the world. All rail components are produced according to the OEM dimensional drawings, material specifications, and tolerance requirements provided by the customer or sourced from the original equipment documentation:
P&H Mining Equipment (Komatsu Mining)
P&H electric rope shovels are the most popular large mining shovels in the world. We make P&H dragline rail segments that work with all P&H models.
Compatible models: P&H 4100XPC · P&H 4100C · P&H 2800XPC · P&H 2300XPC · P&H 1900AL
Main requirements: high surface hardness (typically 280–320 HBW), tight arc dimensional tolerances, complete UT/MT NDT documentation
Bucyrus-Erie (Caterpillar Mining)
Bucyrus-Erie (now Caterpillar) electric rope shovels and walking draglines need heavy-duty forged rail segments that have been tested in the field and work well in very harsh mining conditions.
Compatible models: Bucyrus 495HF · Bucyrus 395B · Bucyrus 295B · Bucyrus-Erie 1570W (walking dragline) · BE 2570W
Main requirements: EN 10204 3.1 certification, impact toughness ≥ 50 J at 20°C, 42CrMo4 or 4340 Q+T
Marion Power Shovel
Marion Power Shovel machines, especially the famous Marion 8050 and large walking draglines, are still used at major mining operations around the world and need new rail segments every so often.
Compatible models: Marion 8050 · Marion 6360 · Marion 7820 (dragline) · Marion 5900 (dragline)
Main requirements: OEM drawing compliance, full heat number traceability, often 4340 or 34CrNiMo6 material
Liebherr Mining
Liebherr's growing fleet of large electric rope shovels needs circular rail parts that are precisely forged to meet strict European engineering standards.
Compatible models: Liebherr R 9800 · R 9400 · R 9350 · R 9250
Main requirements: DIN / EN material compliance, EN 10204 3.2 (third-party inspector witness), dimensional CMM inspection reports
ESCO Corporation (Weir Group)
ESCO makes ground-engaging tools and wear parts for shovels and dragline equipment. We sell forged rail segments that work with ESCO machines and are made to last.
Applications: All major dragline models equipped with ESCO lip and adapter systems
Main requirements: Extremely high wear resistance, H13 or D2 tool steel available for maximum abrasion service
Other OEM & Custom Applications
In addition to the big brands listed above, we also make rail segments for older machines, rebuilt equipment, and custom-designed mining systems where OEM parts are no longer available or cost-effective.
We can make accurate replacement rail segments from worn samples, 2D measurements, or partial drawings because we can reverse-engineer them. This is a critical production for keeping legacy equipment operational.
How to order compatible rail segments: Please tell us the brand and model number of your equipment, as well as either (a) the original OEM part number, (b) a 2D or 3D engineering drawing, or (c) a worn sample to measure its dimensions. Within 24 hours, our engineering team will verify the material specification and whether the dimensions are feasible.
Trademark Disclaimer: P&H, Komatsu Mining, Bucyrus-Erie, Caterpillar, Marion Power Shovel, Liebherr, and ESCO are registered trademarks of their respective owners. Jiangsu Liangyi Co., Limited is an independent manufacturer and is not affiliated with, authorized by, or endorsed by any of the above companies. Product names and model numbers are referenced solely to identify equipment for which compatible replacement components are manufactured, strictly according to customer-supplied drawings and specifications.
Dragline Rail Segment Failure Mode Analysis: Causes, Consequences & Forging Solutions
To choose the right material, heat treatment, and manufacturing process, you need to know why dragline excavator rail segments fail too soon. Our engineering team has figured out the most common ways that rail segments fail and the exact forging process controls that stop each one, based on feedback from mining customers around the world over the past 25 years:
① Surface Spalling & Flaking
Description: Layers of material come off the rail contact surface, leaving pits and bumps on the surface that speed up more damage and cause the system to vibrate.
Root cause: Inadequate surface hardness (insufficient Q+T), poor near-surface microstructure due to inadequate forging reduction, or incorrect tempering temperature leaving retained austenite.
Mining impact: Progressive deterioration of the rail surface leads to uneven roller loading, increased vibration and eventually complete rail segment failure.
Our solution: A forging ratio of at least 3:1 makes sure that the grain structure near the surface is fully refined. Controlled Q+T reaches a hardness of 260–320 HBW (depending on the grade) across the entire cross-section. This was confirmed by Brinell hardness mapping at different depths.
② Subsurface Fatigue Cracking
Description: Cracks start below the contact surface (usually 1–5 mm deep) and grow under cyclic rolling contact stress. This can lead to large sections of the rail surface breaking off in a catastrophic way.
Root cause: internal inclusions or microporosity that act as stress concentration points (common in cast rail segments), an insufficient forging ratio, or residual tensile stresses from improper heat treatment cooling.
Mining impact: A sudden loss of a large area of surface can cause major damage to equipment and stop production right away.
Our solution:100% ultrasonic examination (UT) per EN 10228-3 / ASTM A388 detects any subsurface indications ≥ 2 mm in equivalent diameter. Controlled open die forging eliminates microporosity. Post-forging normalizing followed by Q+T eliminates residual stress.
③ Brittle Fracture at Bolt Holes & Joints
Description: Cracks start at bolt holes, keyways, or segment joint faces and spread across the segment cross-section, causing the entire structure to break.
Root cause: stress concentration at geometric discontinuities combined with low material toughness (especially in cast rail segments). This leads to uneven clamping forces and improper thread form.
Mining impact: Complete segment fracture requires immediate replacement and can damage adjacent components which results in extended downtime.
Our solution: CNC precision machining of all bolt holes and joint faces to within ±0.05 mm guarantees accurate assembly and even clamping loads. Material impact toughness KV₂ ≥ 50 J (20°C) requirement prevents brittle fracture. Magnetic particle inspection (MT) of all machined surfaces shows that there are no cracks on the surface.
④ Accelerated Abrasive Wear
Description: The rail contact surface wears faster than expected, causing the rail profile to deviate from original geometry and leading to increasing contact stress, vibration and eventually loss of function.
Root cause: Insufficient surface hardness for the abrasiveness of the ore being mined; material grade too soft for the application (common when standard carbon steel is used instead of alloy steel); inadequate hardness depth (hardness drops rapidly below surface).
Mining impact: The rail profile loses its shape too soon, which means it needs to be replaced sooner and costs more to maintain.
Our solution: We chose the right material grade for your site's ore abrasion index.For high-abrasion sites, we recommend upgrading from 42CrMo4 (260–310 HBW) to 4340 (280–320 HBW), H13 (44–52 HRC) or D2 (58–62 HRC). Complete-section Q+T which can make sure hardness is maintained to depth, not just at the surface.
⑤ Low-Temperature Brittle Fracture (Cold Climate Mines)
Description: Rail segments fracture suddenly at low ambient temperatures during startup or cold shock loading, even at stress levels well below the room-temperature tensile strength.
Root cause: Material ductile-to-brittle transition temperature (DBTT) higher than operating temperature; common in standard 42CrMo4 grades not specified for low-temperature service; or carbon steel grades used in sub-zero climates.
Mining impact: Most dangerous failure mode that occurs suddenly during cold-weather operations and poses serious safety and production risks.
Our solution: For operations below −20°C (Russia, Canada, northern China), we specify 34CrNiMo6 (Q+T) with mandatory impact testing at −40°C or −60°C per EN 10045 / ASTM A370.Test certificates show that KV₂ is at least 35 J at the lowest temperature, which means there is no risk of cold fracture.
⑥ Fretting Fatigue at Segment Interfaces
Description: Micro-slip motion between adjacent rail segment joint faces under cyclic loading causes fretting damage — a combination of surface wear and fatigue crack initiation — at segment-to-segment contact interfaces.
Root cause: Insufficient joint face flatness causing uneven contact; inadequate bolt pretension; or joint face surface roughness incompatible with the fretting motion amplitude.
Mining impact: Progressive damage at joints reduces rail integrity, which eventually caused segment separation or cracking at joint locations.
Our solution: CNC precision machining of all joint faces with specified surface roughness (Ra ≤ 3.2 μm) and flatness (≤ 0.05 mm per 100 mm). Complete dimensional inspection report provided for all joint faces. Material hardness at joint faces are all confirmed by Vickers hardness testing.
Quality Control & International Certification Standards
We have a complete-process quality control system for every dragline excavators rail segment and shovel excavator circular rail. We can control the quality from raw material incoming inspection to final product delivery. Our factory is ISO 9001:2015 certified manufacturer. We provide the following documentation with all supplied products:
- Chemical composition and mechanical property test report per EN 10204 3.1 (manufacturer-issued inspection document; EN 10204 3.2 with third-party witness available upon request), from qualified testing laboratories
- 100% Non-destructive Testing (NDT) reports: ultrasonic examination (UT) per EN 10228-3 / ASTM A388, magnetic particle inspection (MT) per EN 10228-1, and penetrant test (PT) on request
- ISO 9001:2015 quality management system has the whole manufacturing process
- CMM dimensional inspection report for all critical dimensions
- Brinell hardness testing report at multiple surface locations
- Complete heat number traceability from raw steel heat to finished product for every rail segment
- Third-party inspection (SGS, Bureau Veritas, TÜV Rheinland, Intertek, Lloyd's Register) welcomed and completely supported at all production stages
Permanent Product Marking & Complete Traceability System
To make sure complete traceability throughout the product's life cycle, the following information is clearly and permanently stamped or integrally formed on each dragline excavators rail segment during the manufacturing process. It is strictly forbidden to use a temporary marker pen to mark:
- Official manufacturer logo of Jiangsu Liangyi
- Production batch number
- Unique product identification number
- Material grade and heat number (standard; additional fields available per your requirements)
Regional Mining Requirements: Dragline Rail Segments for Global Mining Markets
Different mining regions impose unique technical, regulatory and logistical requirements on forged dragline excavators rail segments. We have been in the global supply business for more than 25 years, so we know a lot about what each major mining market needs. Here are the most important things we need to do for our four main export markets:
🇦🇺 Australia — Pilbara Iron Ore & Bowen Basin Coal
Main mining regions: Pilbara (iron ore — Western Australia's largest iron ore mining district), Bowen Basin (coal — Queensland), Hunter Valley (coal — New South Wales)
Primary equipment: P&H 4100XPC, Bucyrus 495HF electric rope shovels; Bucyrus-Erie 1570W walking draglines
Special technical requirements:
- High-temperature performance: Pilbara ambient temperatures regularly reach 45–50°C; our heat treatment process ensures no hardness loss or tempering effects at operating temperatures up to 150°C surface contact temperature
- High-abrasion iron ore: Pilbara iron ore (hematite, magnetite) is highly abrasive; we recommend 4340 Q+T at 300–320 HBW or H13 for maximum rail surface life
Third-party inspection: SGS and Bureau Veritas inspection at our factory is commonly required by Australian mining procurement teams and is completely supported.
Logistics: Sea freight to Port Hedland or Port Dampier (Pilbara) or Port of Brisbane (Queensland coal). Standard transit time 18–25 days from our factory.
🌎 South America — Atacama Copper & Andean Mining
Main mining regions: Atacama Desert (copper—Chile's largest open-pit copper mining area), the Peruvian Highlands (copper, gold—Andean high-altitude mines), and Brazilian iron ore (Minas Gerais state).
Special technical requirements:
- High altitude operations: Many copper mines in the Andes are at an altitude of 3,500 to 5,000 meters. The lower air density makes equipment cooling more difficult, so rail segments must be able to handle high operating temperatures without compromising material performance.
- Saline-alkaline environments: Atacama Desert soils contain high concentrations of soluble salts that accelerate corrosion; all machined surfaces receive rust-proof protective coating prior to shipment
- Dual certification: Many South American projects require dual ASTM + EN certification compliance, which we provide as standard
- Spanish-language documentation: We can provide technical data sheets and packing lists in both English and Spanish upon request
Logistics: Sea freight to Port of Antofagasta (Chile), Port of Callao (Peru), or Port of Santos (Brazil). Standard transit time 28–35 days.
🌍 Africa — South African Gold, Platinum & Open-Pit Mining
Main mining regions: Witwatersrand Basin / Northern Cape (gold, platinum, manganese — Anglo American Platinum, Sibanye-Stillwater, Kumba Iron Ore), Ghana & Tanzania (gold — Kinross, AngloGold, Barrick), Nigeria (emerging sector)
Special technical requirements:
- SANS compliance: South African operations often require SANS (South African National Standards) according to EN or ASTM standards; we are familiar with SANS requirements and can provide compatible documentation
- Hard rock abrasion: South African gold, platinum and iron ore ores are extremely hard and abrasive; H13 or D2 tool steel rail segments are often recommended for maximum wear life
- Tropical climate (Central/West Africa): Ghana and Tanzania operations face high humidity and tropical corrosion; enhanced rust-prevention packaging and surface protection are applied as standard for African shipments
- Local inspection: SGS and Intertek have strong presence in South Africa and Ghana; third-party inspection at our China factory is completely supported before shipment
Logistics: Sea freight to Port of Durban (South Africa), Port of Tema (Ghana), or Port of Dar es Salaam (Tanzania). Standard transit time 22–30 days.
🇷🇺 Russia & CIS — Siberian Coal & Arctic Mining
Main mining regions: Kuzbass Basin (coal — SUEK, Evraz, Mechel), Norilsk (nickel, copper, platinum — Nornickel), Yakutia (diamonds — ALROSA), Kazakhstan (copper, coal — Kazakhmys, Kaz Minerals)
Special technical requirements:
- Extreme cold: Siberian and arctic mining sites experience temperatures from −40°C to −55°C in winter; low-temperature impact toughness is the #1 material selection criterion — standard 42CrMo4 is not suitable; 34CrNiMo6 (Q+T) with KV₂ ≥ 35 J at −40°C is the minimum specification
- GOST / Russian standards: Russian-market projects often require material equivalents under GOST standards (e.g., 38KhN3MFA equivalent to 34CrNiMo6); we can provide cross-reference documentation and GOST-compatible chemical composition testing
- Hardness designation: Russian specifications often use HRC or HB with GOST-referenced values; we provide hardness test certificates in both Brinell (HBW) and GOST units as required
- Winter shipping: Cargo protection for extreme cold transit conditions; sealed waterproof and moisture-proof packaging as standard for all Russian/CIS shipments
Logistics: Sea freight to Vladivostok or St. Petersburg, or land transport via Trans-Siberian Railway for inland mines. Transit time varies by destination: 15–45 days.
Professional Packaging & Global Logistics Solutions
We are an experienced mining forging supplier, we can ship our products to more than 50 countries. We pack all of our contracted goods in professional industrial protective packaging to keep the dragline excavators rail segments and shovel excavator circular rails safe while they are being loaded, shipped, unloaded, and handled on site. Below are our packaging ways:
- Waterproof and rust-proof wrapping (VCI film + desiccant) for all machined surfaces
- Reinforced wooden cases or heavy-duty pallets suitable for sea freight, air freight and land transportation
- Custom packaging for oversized and heavy-weight rail segments, including steel cradles for large circular rail segments
- Enhanced cold-climate packaging for Russia / CIS shipments (sealed moisture-proof containers)
- Tropical anti-humidity packaging for African and Southeast Asian destinations
- Complete shipping documentation: commercial invoice, packing list, bill of lading, certificate of origin, EN 10204 3.1 MTC, NDT reports, and dimensional inspection reports
We maintain long-term cooperation with major international freight forwarders and shipping lines, we can provide door-to-door delivery to all major mining ports and project sites all over the world. We can cover any damage to goods in transit to the designated delivery point since our cargo insurance policy provides complete replacement value coverage for all shipments.
Industry-Leading Warranty & After-Sales Support
The warranty period for all delivered dragline excavators rail segments and shovel excavator circular rails is a minimum of 24 (twenty-four) months from the date of satisfactory goods acceptance — i.e., from the date of signing the "Conformity Report for Technical and Technological Characteristics of Delivered Goods" without objections by the Ordering Party's Acceptance Control Commission.
We provide complete technical support and after-sales service for any quality problems caused by manufacturing defects during the warranty period. Our professional engineering team, which has more than 20 years of experience making forged mining parts, is available 24/7 to answer technical questions and offer solutions.
Global Mining Project References
With over 25 years of experience in manufacturing heavy-duty forged mining components, we have provided dragline excavators rail segments and shovel excavator circular rails to large-scale mining projects across all major mining regions. Below are the main references:
- Open-pit iron ore mine projects in Western Australia — Pilbara region (P&H 4100XPC and Bucyrus 495HF electric rope shovels)
- Copper mine projects in South America — Chile's Atacama Desert open-pit copper operations and Peru's Andean highland copper mines
- Coal mine projects in North America — USA (Appalachian and Powder River Basin) and Canada (Alberta oil sands and British Columbia coal)
- Gold and platinum mine projects in Africa — South Africa (Witwatersrand Basin), Ghana (Obuasi and Ahafo), Tanzania (North Mara, Bulyanhulu)
- Coal and nickel mine projects in Russia — Kuzbass Basin (Siberian coal) and Norilsk (nickel/copper/platinum)
- Large-scale quarrying and infrastructure projects in Southeast Asia and the Middle East
Please contact us to request a detailed project reference list and customized forging solutions for your specific mining project requirements.
Frequently Asked Questions (FAQ) About Dragline Excavators Rail Segments
What is a dragline excavator rail segment and what does it do?
A dragline excavator rail segment is a curved, arc-shaped forged steel component that forms part of the circular rail system of a walking dragline excavator or electric rope shovel. Multiple rail segments are assembled end-to-end to form the complete circular rail, which supports the complete rotating superstructure weight (often 5,000–12,000 tonnes) while enabling 360° rotation and walking movement. Rail segments are among the highest-stress, highest-wear components in any mining excavator system.
Why should I choose forged rail segments instead of cast rail segments?
Forged dragline rail segments are superior to cast ones in virtually every critical performance category. Forging eliminates the internal porosity and shrinkage cavities inherent in castings, producing a compact, refined grain structure that delivers 30–50% higher tensile strength (900–1,100 MPa vs. 550–700 MPa for typical cast grades), significantly better impact toughness (KV₂ ≥ 50 J vs. often <27 J for cast), and 2–3× longer life cycle. Cast rail segments are prone to sudden brittle fracture under shock loading — a critical safety and production risk. Forged rail segments fail gradually through surface wear, enabling planned maintenance. For any large-scale mining operation where unplanned downtime costs $100,000+ per hour, forged rail segments represent the lowest total lifecycle cost.
What is the best material for dragline excavator rail segments?
Material selection depends on your specific working conditions. For most heavy-load mining applications, 42CrMo4 (Q+T) at 260–310 HBW is the most commonly specified, providing the best balance of tensile strength (≥ 900 MPa), toughness (KV₂ ≥ 50 J at 20°C) and cost. For higher-load shovel excavators, 4340 (Q+T) at 280–320 HBW provides higher tensile strength (≥ 980 MPa). For extreme abrasion in hard rock iron ore or copper ore, H13 tool steel (44–52 HRC) maximizes surface wear life. For sub-zero arctic mining (below −20°C), 34CrNiMo6 (Q+T) with low-temperature impact testing at −40°C is essential. Please consult our engineering team for a site-specific recommendation.
Which dragline excavator brands are your rail segments compatible with?
We manufacture custom forged rail segments compatible with all major brands, including P&H Mining (Komatsu Mining) models such as the P&H 4100XPC, 2800XPC, and 2300XPC; Bucyrus-Erie (Caterpillar) including the 495HF, 395B, and 295B; Marion Power Shovel including the Marion 8050, 6360 and 7820 dragline; Liebherr Mining R 9800, R 9400 series; and legacy machines where OEM parts are no longer available. Provide us with your equipment model and OEM part number or drawing, and we will confirm compatibility within 24 hours.
Can you manufacture dragline excavator rail segments per our custom drawing?
Yes, 100% custom manufacturing is our core advantage. We produce dragline excavators rail segments and shovel excavator circular rails strictly according to your 2D/3D drawings, material specifications and technical requirements. Our engineering team provides professional improvement suggestions — including forging process design to improve grain flow direction along critical stress paths — if needed. We also provide reverse engineering from worn samples or partial drawings for legacy equipment replacement.
What testing and certification do you provide for shovel excavator circular rails?
Complete-process testing for every shovel excavator circular rail includes: raw material chemical composition analysis (documented in EN 10204 3.1 material test certificate); mechanical property testing (tensile Rm, yield Rp0.2, elongation A5, impact KV₂); ultrasonic examination (UT) per EN 10228-3 / ASTM A388; magnetic particle inspection (MT) per EN 10228-1; CMM dimensional inspection; and Brinell hardness testing. All test reports ship with the product. We can also provide third-party inspection (SGS, Bureau Veritas, TÜV, Intertek).
What is your lead time for custom dragline excavator rail segments?
Our standard lead time for custom dragline excavator rail segments is 25–35 calendar days from confirmed order and approved drawings, depending on material grade, dimensional complexity and order quantity. For urgent replacement orders — where mine downtime is critical — we provide expedited production in 15–20 calendar days for most standard material grades. Contact us immediately if you have an urgent replacement requirement.
What are the special requirements for dragline rail segments in Australian Pilbara iron ore mining?
Australian Pilbara iron ore operations impose demanding requirements: heat resistance (ambient up to 50°C), extreme ore abrasiveness (hematite/magnetite), and comprehensive QA documentation compatible with major Australian mining procurement standards. We recommend 4340 Q+T at 300–320 HBW or H13 for Pilbara rail segments. Complete EN 10204 3.1 material test certificates, UT + MT NDT reports, and CMM dimensional inspection are standard. SGS and Bureau Veritas inspection at our factory is routinely supported for Australian clients. Logistics to Port Hedland or Port Dampier typically takes 18–25 days sea freight.
Do you support third-party inspection for dragline excavator rail segments?
Yes. We accommodate inspectors from SGS, Bureau Veritas, TÜV Rheinland, Intertek, Lloyd's Register and other agencies at all production stages — raw material incoming inspection, in-process forging and heat treatment, final dimensional and NDT inspection, and pre-shipment inspection. Inspection witness arrangements are confirmed within 24 hours of request. Inspection reports are fully integrated into the delivery documentation package.
Contact Us For Custom Dragline Excavator Rail Solutions
We are ready to provide the most competitive pricing and superior quality forged steel dragline excavators rail segments and shovel excavator circular rails for global mining clients. Send us your custom drawing, material requirements, equipment model and order quantity for a detailed technical proposal and quotation within 24 hours.
Inquiry Email: sales@jnmtforgedparts.com
Phone / WhatsApp: +86-13585067993
Website: https://www.jnmtforgedparts.com
Address: Chengchang Industry Park, Jiangyin City, Jiangsu Province, China
