AISI 4150 Steel — Basic Information
- UNS / AISI / SAE
- G41500 / AISI 4150 / SAE 4150
- EN / DIN Equivalent
- 50CrMo4 / 1.7228
- Tensile Strength (Q+T)
- 1,100 – 1,300 MPa
- Yield Strength (Q+T)
- ≥ 900 MPa (Rp0.2)
- Hardness (Q+T)
- HB 331 – 380
- Carbon Content
- 0.48 – 0.53 %
- Cr – Mo Content
- Cr 0.80–1.10% / Mo 0.15–0.25%
- Max Single Forging Weight
- 30,000 KGS
- Max Rolled Ring OD
- 5,000 mm
- Bar Diameter Range
- Ø 80 – 1,200 mm
- Certification
- ISO 9001:2015 · EN 10204 3.1/3.2
- Lead Time
- 15 – 35 Working Days
About Jiangsu Liangyi — Your Trusted AISI 4150 Forging Manufacturer
Jiangsu Liangyi Co.,Limited established in 1997, is an ISO 9001:2015 certified manufacturer in China. We supply AISI 4150, SAE 4150, UNS G41500 open die forging parts and seamless rolled steel forged rings.
With an 80,000-square-meter production facility, a yearly production capacity of 120,000 tons, and cutting-edge forging equipment, we can provide high-quality custom 4150 alloy steel forgings to customers in North America, Europe, Australia, the Middle East, Southeast Asia, and other parts of the world.
From 30KGS small precision parts to 30,000KGS heavy forged parts, we provide full-process production from steel melting, forging, heat treatment to precision machining, 100% according to clients' drawings and custom technical requirements.
An Overview of AISI 4150 (SAE 4150, UNS G41500) Alloy Steel Material
AISI 4150 (also known as SAE 4150 or UNS G41500) is a medium-carbon, high-strength chromium-molybdenum (Cr-Mo) alloy steel. It is one of the most common grades in our series of alloy steel materials. It is made with carbon, chromium, and molybdenum as the main strengthening elements, along with controlled amounts of manganese, silicon, and trace elements to improve overall mechanical production.
This alloy steel is known around the world for its great tensile and yield strength, it can harden through and through, its great resistance to wear and impact, its good machinability, and its ability to be formed after standard Q+T heat treatment. It is the best choice for industrial parts that need to last a long time in bad working conditions and can handle heavy loads, high torque, and wear.
AISI 4150 Forged Product Shapes
We manufacture custom AISI 4150 forged parts in different shapes, sizes and specifications, according to ASTM, EN, DIN and other international standards, to meet industrial needs. Our production capabilities cover below:

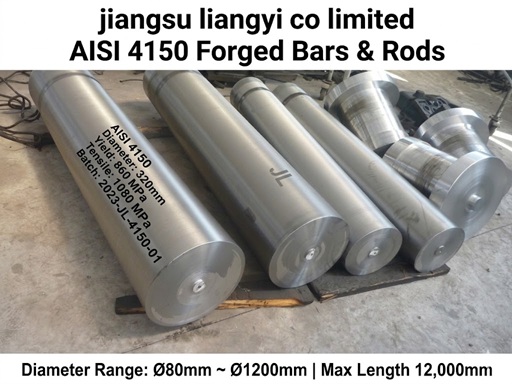

AISI 4150 Forged Bars & Rods
We provide AISI 4150 forged round bars, square bars, flat bars, rectangular bars, and custom rods, with different sizes for different structural and parts uses.All bars are forged with controlled reduction ratio to make sure uniform internal structure and mechanical properties.

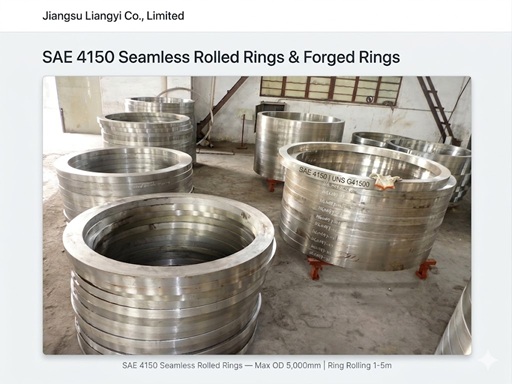

SAE 4150 Seamless Rolled Rings & Forged Rings
Our SAE 4150 seamless rolled rings, forged rings, riding gear rings, slewing bearing races, flange rings, and custom contoured rings are manufactured with advanced 1-5 meter rolling machines, thus delivering strict size control, good circularity, and uniform grain flow for rotating and load-bearing equipment in different industries. Find out more about our seamless rolled ring capabilities.

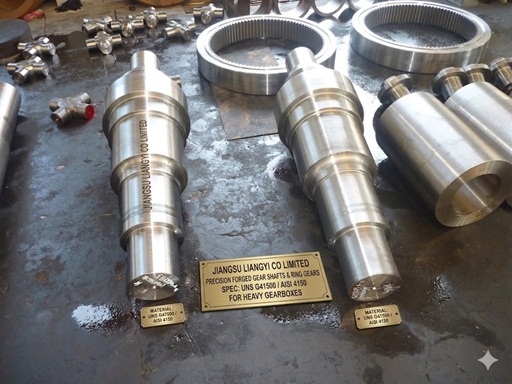

UNS G41500 Forged Shafts, Gears & Power Transmission parts
We produce UNS G41500 forged gear shafts, pinion shafts, main shafts, eccentric shafts, spindles, gear wheels, ring gears, pinions, and other power transmission parts.These parts are forged and heat-treated which follow the needs of heavy-duty gearboxes and transmission systems. Check our full range of forged shafts and forged gears.
AISI 4150 Forged Housings, Sleeves & Hollow parts
Our AISI 4150 forged hubs, housings, shells, sleeves, bushes, casings, hollow bars, barrel parts, and custom hollow parts are for hydraulic systems, mechanical equipment, and heavy industrial uses, with control of wall thickness uniformity and internal quality.
SAE 4150 Forged Discs, Plates, Blocks & Flanges
We provide SAE 4150 forged discs, disks, plates, blocks, flanges, and custom flat forgings, with forging structure and mechanical properties, can be used for high-strength structural parts, high-pressure parts, and different kinds of industrial uses.
Custom AISI 4150 Special-Shaped Forgings
We also make full custom AISI 4150 open die forgings according to customers' drawings and technical manuals. Thus we can make non-standard, special-shaped parts for special industrial uses. Our team can help you choose the right materials and improve the forging process to meet your needs.
AISI 4150 Forgings Industry Uses & Global Engineering Cases Study
AISI 4150 alloy steel forgings are commonly used in heavy industries that need high strength, fatigue resistance, wear resistance, and good performance under high-load, high-impact conditions.Below are some of the cases and industry solutions we provide to clients in over 50 countries:
AISI 4150 Forgings for Sugar Mill Equipment
We manufacture AISI 4150 forged gear shafts, pinion shafts, roller shafts, and flanged couplings for sugar mill systems in Southeast Asia, South America, and Africa.The high wear resistance and tensile strength of 4150 alloy steel can make sure long-term operation of sugar mill rolling and crushing equipment, even under continuous 24/7 whole day working conditions. This helps our clients reduce maintenance downtime and improve the production.
SAE 4150 Forgings for Cement & Building Materials Industry
Our SAE 4150 forged parts are commonly used in cement production lines all over the world, including case-hardened ground pinion shafts for rotary kilns, pull torque rods, riding gear rings for granulators and rotary dryers, and trunnion wheels. These forgings have good impact resistance and fatigue strength to withstand the hard, dusty and high-load environment of cement plants, according to European and international industry standards.
UNS G41500 Forgings for Wind & Hydro Power Energy Industry
We supply UNS G41500 forged gear shafts, ring gears and main shafts for wind turbine gearboxes, as well as hydro turbine shafts for hydropower stations in Europe, North America and Asia. The mechanical properties and fatigue resistance of AISI 4150 steel can ensure a 20+ year service life for main parts in renewable energy equipment, fully meeting the quality requirements of the global power industry.
AISI 4150 Forgings for Mining & Heavy Machinery Industry
Our AISI 4150 forged parts are critical parts for mining equipment, serving large mining projects in Australia, South America, and Africa.Products include eccentric shafts and spindles for gyratory crushers, belt pulley wheels, slewing bearing ball races for mining excavators, and main shafts for mine hoist systems. These heavy forgings can withstand high torque and highly abrasive conditions which can reduce downtime and costs for our clients.
SAE 4150 Forgings for Onshore & Offshore Oil & Gas Industry
We manufacture SAE 4150 forged parts for onshore and offshore oil and gas equipment in the Middle East, North America, and Southeast Asia, including gear shafts and pinion shafts for oil drilling tools, gear shafts for mud pump, box riser, wellhead valve bodies and Christmas tree parts. Our forgings meet the requirements of oil and gas exploration and production equipment, are suitable for subsea and harsh offshore environments, and comply with API 6A and other international standards.
UNS G41500 Forgings for Transportation & Locomotive Industry
Our UNS G41500 forged parts are used in the global transportation industry, including locomotive transmission shafts, traction motor end housings for railway locomotives, ring gears and planet gears for heavy trucks, bearing rings for concrete mixer semi-trailers, and crane wheels for port and lifting equipment.These parts work well under dynamic load and high-speed operating conditions, meeting the needs of the transportation industry.
AISI 4150 Forgings for General Industrial Equipment
We also supply AISI 4150 forged parts for general industrial equipment all over the world, including crankshafts for gas compressors, mechanical presses and pumps, gear wheels and pinion shafts for gearboxes and reducers, hydraulic honed cylinders, gear couplings, shafts for flue gas desulfurization atomizers, and mandrel drum shafts for cold mill decoilers and coilers.
AISI 4150 (UNS G41500) Standard Chemical Composition
The chemical composition of our AISI 4150 forged parts follow ASTM, EN and international standards.We perform chemical analysis on test samples taken during the pouring process for every heat, to ensure the material fully meets the required specifications. The detailed composition range is as follows:
| Chemical Element | Content Range (Weight %) |
|---|---|
| Iron (Fe) | 96.7 - 97.7 |
| Carbon (C) | 0.48 - 0.53 |
| Chromium (Cr) | 0.8 - 1.1 |
| Manganese (Mn) | 0.75 - 1.0 |
| Molybdenum (Mo) | 0.15 - 0.25 |
| Silicon (Si) | 0.15 - 0.35 |
| Sulfur (S) | 0 - 0.040 |
| Phosphorus (P) | 0 - 0.035 |
Mechanical Properties of Heat Treated AISI 4150 Forged Steel
All our AISI 4150 forgings undergo quenching and tempering heat treatment, with precise control of the entire process to make sure stable and great mechanical properties, 100% meeting the requirements of heavy-load industrial uses. The main mechanical properties after standard heat treatment are as follows:
| Mechanical Property | Minimum Index Requirement |
|---|---|
| Yield Strength (Rp0.2) | ≥ 900 MPa |
| Tensile Strength (Rm) | 1100 - 1300 MPa |
| Elongation (A5) | ≥ 10% |
| Reduction of Area (Z) | ≥ 40% |
| Charpy V-Notch Impact Energy (20℃) | ≥ 30 J |
| Brinell Hardness (Section Size ≤ 16mm) | HB 331 - 380 |
AISI 4150 Steel Heat Treatment Parameters & Procedures
AISI 4150 alloy steel supports different heat treatment methods. The selection of heat treatment condition directly determines the final mechanical properties and hardness of the forged parts.All heat treatment at Jiangsu Liangyi is performed in complete automated furnaces with real-time PLC temperature control and complete process record document.The standard heat treatment procedures and parameters are as follows:
7| Heat Treatment Process | Temperature Range | Holding Time | Cooling Method | Resulting Hardness |
|---|---|---|---|---|
| Annealing (Soft Annealing) | 820 – 860 °C | ≥ 2 hrs (section-dependent) | Furnace cool ≤ 20°C/h to 600°C, then air | ≤ HB 229 |
| Normalizing | 860 – 900 °C | 1–2 hrs | Air cooling | HB 217 – 255 |
| Hardening (Austenitizing) | 840 – 870 °C | 30–60 min after through-heating | Oil quench or polymer quench | ≥ HRC 58 (surface) |
| Tempering — High (Q+T) | 550 – 680 °C | ≥ 2 hrs (min 1 hr per 25mm section) | Oil cool or air cool | HB 331 – 380 (Rm 1100–1300 MPa) |
| Tempering — Medium | 400 – 550 °C | ≥ 1.5 hrs | Oil cool or air cool | HB 380 – 440 |
| Stress Relieving | 550 – 650 °C | ≥ 2 hrs | Furnace cool to 300°C, then air | No significant change |
| Case / Surface Hardening | 850 – 870 °C (carburizing) or induction | Process-dependent | Oil quench + low tempering (160–200°C) | Surface ≥ HRC 58; Core HB 300–380 |
Note: Actual heat treatment parameters may be adjusted based on forging section size, required mechanical properties, and customer specifications.All heat treatment processes are recorded with actual measured temperatures, holding times, and cooling rates, provided in the EN 10204 3.1 Mill Test Certificate for every order.
AISI 4150 vs AISI 4140 vs AISI 4340 — Steel Grade Comparison for Forgings
Engineers compare AISI 4150 vs 4140 and AISI 4150 vs 4340 when choosing the correct alloy steel grade for forged industrial parts. The table below provides a direct comparison of the three commonly used Cr-Mo and Ni-Cr-Mo alloy steels for heavy forgings:
| Property / Specification | AISI 4140 (SAE 4140 | AISI 4150 (SAE 4150) ★ | AISI 4340 (SAE 4340) |
|---|---|---|---|
| Carbon Content | 0.38 – 0.43 % | 0.48 – 0.53 % | 0.38 – 0.43 % |
| Alloy System | Cr-Mo | Cr-Mo | Ni-Cr-Mo |
| Chromium (Cr) | 0.80 – 1.10 % | 0.80 – 1.10 % | 0.70 – 0.90 % |
| Molybdenum (Mo) | 0.15 – 0.25 % | 0.15 – 0.25 % | 0.20 – 0.30 % |
| Nickel (Ni) | None | None | 1.65 – 2.00 % |
| EN / DIN Equivalent | 42CrMo4 / 1.7225 | 50CrMo4 / 1.7228 | 36CrNiMo4 / 1.6511 |
| Tensile Strength (Q+T) | 950 – 1,100 MPa | 1,100 – 1,300 MPa | 1,250 – 1,470 MPa |
| Yield Strength (Q+T) | ≥ 750 MPa | ≥ 900 MPa | ≥ 1,100 MPa |
| Hardness (Q+T) | HB 293 – 341 | HB 331 – 380 | HB 363 – 444 |
| Hardenability | Good (up to ~75mm dia.) | Good-High (up to ~100mm) | Excellent (up to ~150mm+) |
| Machinability | Good | Moderate | Moderate |
| Toughness / Impact | Good | Good | Excellent |
| Cost Level | Economical | Moderate | Higher (Ni content) |
| Typical Forging uses | General shafts, gears, medium-load parts | Heavy gear shafts, crusher spindles, large rolled rings, high-load transmission parts | High-performance aerospace, ultra-heavy-load, fatigue-critical parts |
| Available at Jiangsu Liangyi? | ✓ Yes | ✓ This Page | ✓ Yes |
When to choose AISI 4150 over AISI 4140: Select AISI 4150 when your use requires higher tensile strength (1,100–1,300 MPa), greater hardness (HB 331–380), and it has improved wear resistance compared to 4140. AISI 4150 is a better choice for heavy gear shafts, large crusher parts, and high-load ring gears that 4140 does not provide enough strength.
When to choose AISI 4140 over AISI 4150: Select AISI 4140 when your use requires moderate strength with better machinability, lower cost, or when the design needs medium-duty shafts and structural parts.See all alloy steel grades →
AISI 4150 International Standard Equivalent Grades Cross-Reference
AISI 4150 (SAE 4150, UNS G41500) is the American name for this medium-carbon chromium-molybdenum alloy steel. It is known by different names in different international standard systems. The table below helps global engineers and procurement teams identify the correct equivalent grade for their regional specifications:
| Standard System | Country / Region | Material Designation | Standard Reference |
|---|---|---|---|
| AISI / SAE / UNS | USA (United States) | AISI 4150 / SAE 4150 / UNS G41500] | ASTM A29 / SAE J404 |
| EN / DIN | Europe / Germany | 1.7228 / 50CrMo4 | DIN EN 10083-3 / DIN 17200 |
| JIS | Japan | SCM450 | JIS G4105 |
| BS EN | United Kingdom | 50CrMo4 (1.7228) | BS EN 10083-3 |
| NF EN | France | 50CrMo4 | NF EN 10083-3 |
| GB / YB | China | 50CrMo / 42CrMo (close grade) | GB/T 3077 |
| UNI EN | Italy | 50CrMo4 | UNI EN 10083-3 |
| SS | Sweden | 2234 | SS 14 22 34 |
All international equivalent grades can be produced and forged at Jiangsu Liangyi Co.,Limited.Our engineers will help you to choose the correct material according to your specific use, test standard requirements, and mechanical performance targets. Check our full alloy steel material series →
Why Choose Jiangsu Liangyi for AISI 4150 Forgings?
As a open die forging manufacturer with 27+ years of experience in China,Jiangsu Liangyi Co.,Limited provides enough technical capability, quality assurance and commercial value for global industrial clients sourcing AISI 4150 alloy steel forged parts:
- 27+ Years Forging Experience (Est. 1997): Deep metallurgical and process expertise in AISI 4150 / SAE 4150 / 50CrMo4 chromium-molybdenum alloy steel forgings for heavy industrial uses all over the world.
- Large-Scale Production Capacity: 80,000㎡ production facility with 120,000-ton annual forging capacity.Can produce single forgings up to 30,000 KGS and rolled rings up to 5000mm OD.
- One-Stop Production: We can make everything from smelting raw steel to open die forging to seamless ring rolling to quenching and tempering heat treatment to precision CNC machining.
- Strict Quality System: ISO 9001:2015 certified. Every forging batch supported by EN 10204 3.1 Mill Test Certificate with full chemical, mechanical, NDT (UT/MT), dimensional, and heat treatment records.
- Advanced Forging Equipment: hydraulic forging presses with capacities of 2000T, 3150T, 5000T, and 6300T; seamless ring rolling machines with diameters of 1 to 5 meters;and 100% automated heat treatment furnaces with PLC real-time control.
- The Minimum Order Quantity (MOQ): We accept order qty from 1 piece (samples) to 30KGS (mass production), and accept both sample orders and bulk production orders.
- Delivery to more than 50 Countries: Our logistics network has delivery experience to the US, Canada, the UK, Germany, France, Italy, Australia, Brazil, Saudi Arabia, the UAE, India, Thailand, and other countries.
- Good Prices: Direct manufacturer prices with no extra markup, with 20-40% less cost than Western suppliers for equal or better quality.
- On time Technical Support: English-speaking sales and engineering team can provide technical consultations, material choice guidance and quick quotation within 24 working hours.
Strict Manufacturing Process for AISI 4150 Forgings
Our manufacture of AISI 4150 parts follows international forging standards including EN 10083, ISO 6336-5, and ASTM standards , with a full-process and controlled production system to make sure material uniformity, internal quality, and forging performance.Our main manufacturing process includes:
- Premium Steel Making: We use 30t electric arc furnace (EAF) with oxygen blast converter for steel making, followed by professional ladle refining (LF) treatment to purify the molten steel, to make sure the stability of chemical composition.
- Vacuum Degassing:We will do vacuum degassing treatment on all steels to reduce the gas content, minimize the inclusions and improve the internal quality and fatigue resistance.
- Non-Radioactive Material Guarantee: Our steel materials are tested to make sure they are 100% non-radioactive,meeting international safety and environmental protection standards.
- Precision Open Die Forging: We use advanced open die forging process with 2000T-6300T hydraulic forging presses, with controlled forging reduction ratio (≥3:1) to make sure refined grain structure, uniform mechanical properties, and broken cast structure. The material quality can meet at least MQ according to ISO 6336-5 or DIN 3990-5 standards.
- Heat Treatment: We have standardized quenching and tempering heat treatment in 100% automatic heat treatment furnaces, with real-time control of heating temperature, holding time, cooling rate and cooling medium, to make sure required mechanical properties and microstructure for each part.
- Precision Machining (Can be chosen):We can do precision machining according to your drawings which including CNC turning, milling, grinding, gear hobbing, drilling and other processes.The finished AISI 4150 parts can be used directly to do the assembly.
- Comprehensive Quality Inspection: We do inspection on every batch of forgings before delivery, including chemical composition analysis, mechanical property testing, non-destructive testing, size inspection and metallographic examination, to make sure 100% as per client requirements.
Our entire production process is managed according to ISO 9001:2015 quality management system, make sure consistent and the quality for every batch of AISI 4150 forgings.
Testing Standards & Quality Assurance
We have a full-process quality control system for all AISI 4150, SAE 4150, and UNS G41500 forgings, with strict testing according to international standards. Our testing and inspection standards include: EN ISO 9001, EN 10002-1, ASTM E8M, ASTM E8, EN 10045, EN 10021, EN ISO 6506-1, ASTM E112, DIN 50602, DIN 50601, ASTM E45, SEP 1923, EN 10204 and ASTM A370.
For every order, we provide a full set of mill test certificate (MTC 3.1/3.2 available) with clearly marked heat data, forging serial number, order number and material name.The report includes the following content:
- Heat number and full heat analysis report, including all trace elements and detailed melting process records
- Ingot weight and L/D ratio record for each forging
- Actual forging reduction ratio data (Amax/Afinal at the maximum body diameter)
- Top and bottom ingot discard percentage records
- Complete heat treatment record, including actual measured temperature, holding time, cooling method, cooling rate and all reheat treatment details
- Stress measurement results (if need according to client requirements)
- Full ultrasonic examination (UT) test report, including probe type, size, frequency, sensitivity and inspection area sketch
- Magnetic particle inspection (MT) test results, with full inspection records
- Hardness test report with hardness datas across the surface and clearly marked test locations
- Metallographic test report with corresponding photo-micrographs and grain size analysis
- Full size inspection report according to clients' drawings
Frequently Asked Questions (FAQs) About AISI 4150 Forgings
The lead time is 15-20 working days for standard AISI 4150 forged bars and rings. If custom machined forgings are complex, the lead time will be 25-35 working days depending on the order quantity and heat treatment requirements. We can also accept urgent orders.
We do not have MOQ limitation for AISI 4150 forged parts.We can accept the MOQ 1 piece for sample orders like small precision parts, we can also accept orders for mass production which starting from 30KGS.We accept both sample development and bulk production.
We are an ISO 9001:2015 certified factory, and we can provide EN 10204 3.1 Mill Test Certificate (MTC) for every part, including chemical composition analysis, mechanical properties test report, heat treatment record, non-destructive testing (UT/MT) report and size inspection report.We can also provide inspection certifications from third-parties upon request.
The maximum weight we can produce per single piece is up to 30,000KGS.The maximum outer diameter is 5000mm for seamless rolled rings. The diameter range for forged bars is 80mm to 1200mm, its maximum length can up to 12000mm.So we can produce AISI 4150 forgings according to your drawings.
Yes, we provide one-stop production, from raw steel melting, open die forging, heat treatment to CNC machining (turning, milling, grinding, gear hobbing, drilling, etc.).We can make finished AISI 4150 parts according to your drawings which are ready for direct assembly,saving your production time and cost.
AISI 4150 has many international grades, including: European Standard EN 1.7228 (50CrMo4), German Standard DIN 50CrMo4, Japanese Standard JIS SCM450, British Standard BS 50CrMo4, French Standard NF 50CrMo4, and Chinese Standard GB 50CrMo.All grade forgings can be produced per your requirements.
AISI 4150 (also known as SAE 4150, UNS G41500, or EN 50CrMo4) is a medium-carbon chromium-molybdenum (Cr-Mo) alloy steel containing 0.48–0.53% carbon, 0.80–1.10% chromium, and 0.15–0.25% molybdenum.After quenching and tempering heat treatment, AISI 4150 steel will have a tensile strength of 1100–1300 MPa, its yield strength ≥900 MPa, and Brinell hardness HB 331–380. These properties make it can be used for high-load, high-torque, wear-resistant forged parts such as gear shafts, rings, spindles, and crusher parts requiring long life cycle under bad operating conditions.
AISI 4150 and AISI 4140 are both chromium-molybdenum alloy steels, but 4150 has a higher carbon content (0.48–0.53% vs. 0.38–0.43% for 4140), and it will cause 4150 has higher tensile strength, hardness, and wear resistance after heat treatment.AISI 4150 is better for heavier-duty uses that need maximum strength and hardness, such as large gear shafts, crusher spindles, and heavy transmission parts.AISI 4140 is better for slight machinability and toughness for medium-duty uses. We manufacture forged parts in both grades , and we can provide suggestions on the choice for your specific use.]
To get a free quote for custom AISI 4150 forgings, you can email [email protected] or call us on WhatsApp at +86-13585067993.Please give: (1) the type of material needed (AISI 4150, SAE 4150, or something similar), (2) the type of product and how it will be used, (3) the size, drawings or sketches (PDF/DWG/STEP), and (4) the mechanical properties and heat treatment condition.(5) quantity and delivery date.Our technical and sales team will respond within 24 hours with a detailed technical and commercial proposal.
The recommended hot forging temperature range for AISI 4150 alloy steel is 1,100°C – 1,250°C (2,012°F – 2,282°F). The minimum forging finish temperature should be maintained above 850°C (1,562°F) to avoid excessive work hardening and potential cracking. After forging, controlled slow cooling is required to prevent thermal stress. Our forging engineers control heating uniformity and forging temperature at every stage to ensure grain refinement and mechanical properties in the finished forging.
All AISI 4150 forged parts will have comprehensive non-destructive testing (NDT) before delivery.Standard NDT include: (1) Ultrasonic Testing (UT) per EN 10228-3 / ASTM A388 — detecting internal defects including porosity, cracks, segregation and inclusions throughout the full volume;(2) Magnetic Particle Inspection (MT) per EN 10228-1 / ASTM E709 — detecting surface and near-surface linear defects. We can also do other testing which includes: Liquid Penetrant Testing (PT), Hardness Mapping, and Residual Stress Measurement.All NDT results are recorded in the EN 10204 3.1 Mill Test Certificate, including probe specifications, sensitivity settings, and inspection area sketches.
AISI 4150 steel has limited weldability due to its higher carbon content (0.48–0.53%) and Carbon Equivalent (CE) value, which is typically 0.80–0.95.Direct welding without precautions risks heat-affected zone (HAZ) cracking. When welding is required, the following precautions are mandatory: (1) Pre-heat to 250–350°C before welding; (2) Use low-hydrogen electrodes (E9018-D1 or equivalent); (3) Maintain interpass temperature above 200°C; (4) Post-weld heat treatment (PWHT) at 550–620°C stress relief is recommended.For heavy industrial uses, Jiangsu Liangyi recommends using AISI 4140 (42CrMo4) as a better alternative if weldability is a main requirement.
Contact Us for Custom AISI 4150 Forging Solutions
Jiangsu Liangyi Co.,Limited is your best choice China-based partner for high-quality AISI 4150, SAE 4150, and UNS G41500 forged forging parts.The standard forged bars, rings, shafts, and custom forgings are all manufactured according to your drawings and technical requirements, we can provide professional forging with best pricing, high quality , and on-time global delivery.
