39NiCrMo3 (1.6510) Forgings - Basic Information
Overview of 39NiCrMo3 (1.6510) Alloy Steel
39NiCrMo3 (also known as 1.6510 according to European EN standard) is a high-hardenable quenching and tempering alloy structural steel, used in global heavy industry for its mechanical properties. It has high strength, toughness and fatigue resistance even in large-section Parts, making it suitable for heavy-load, high-impact and wear-resistant working conditions.
As a forging manufacturer in China, Jiangsu Liangyi has over 25 years of experience, we produce custom open die forgings and seamless rolled rings in 39NiCrMo3 steel, according to EN 10083-3 standard. We also provide materials from steel melting, forging, heat treatment to precision machining, according to your drawings and technical manuals. See more alloy steel materials we supply here.

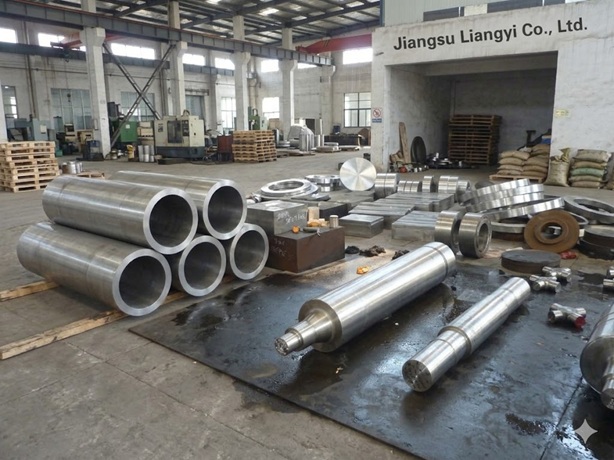

Custom 39NiCrMo3 (1.6510) Forging Product Shapes & Sizes
We produce 39NiCrMo3 (1.6510) forgings in different kinds of shapes and sizes, with single piece weight ranging from 30KGS to 30,000KGS, to meet the different needs of different industries and projects. Our product shapes include but are not limited to:
39NiCrMo3 Forged Bars & Shafts
- 39NiCrMo3 forged round bars, square bars, flat bars and rectangular bars
- 39NiCrMo3 forged gear shafts, pinion shafts, spindles, crankshafts, eccentric shafts, roller shafts
- 39NiCrMo3 step shafts, turbine shafts, transmission shafts and custom engineered shafts
39NiCrMo3 Seamless Rolled Rings & Hollow Parts
- 39NiCrMo3 seamless rolled rings, riding gear rings, gear rims, slewing bearing races
- 39NiCrMo3 forged sleeves, bushes, housings, shells, hollow bars, pipes and barrels
- 39NiCrMo3 contoured rolled rings, valve bodies, flanges and custom hollow forgings
39NiCrMo3 Custom Special-Shaped Forgings
- 39NiCrMo3 forged discs, disks, plates, blocks, wheel hubs and crane wheels
- 39NiCrMo3 forged gear wheels, pinions, tie rods, cylinder blocks and tube sheets
- Custom 39NiCrMo3 forged Parts strictly produced according to your official drawings and specifications
Have a custom drawing for 39NiCrMo3 forgings? Send it to us for a free detailed quote.
Send Drawing NowMain Material Properties & Advantages of 39NiCrMo3 (1.6510) Steel
39NiCrMo3 (1.6510) alloy steel works well in heavy industrial uses and is specified by European and global engineering standards. Its main advantages include:
Hardenability & Toughness
Has uniform hardness and microstructure even in large-section forgings, maintaining high strength and impact toughness across the whole component, no risk of internal performance unevenness.
Heat Treatment Performance
Stable quenching performance, can be easily hardened in oil or synthetic polymer solutions, with extremely low risk of cracking and deformation. Suitable for quenching & tempering, case hardening, nitriding treatment.
Machinability & Formability
Hot and cold deformability, suitable for different kinds of open die forging processes. Machinability for precision, can get good size within tolerance and surface finish.
High Fatigue Resistance & Wear Resistance
Can be case hardened to 53-58 HRC surface hardness, nitrided to improve fatigue limit (surface hardness up to 600 HV1), great for long-term cyclic load working conditions in gearboxes and transmission systems.
Industry Applications & Global Proven Case Studies
Due to its good properties, our 39NiCrMo3 (1.6510) forgings are used in heavy industries around the world, with good performance in Europe, North America, Middle East, Australia and more than 50 countries. Main uses and cases as below:
39NiCrMo3 Forgings for Wind Power & Renewable Energy Industry
39NiCrMo3 is a material for main load-bearing parts in wind turbine gearboxes, due to its high fatigue resistance and toughness, which can withstand long-term cyclic loads in hard onshore and offshore wind farm environments.
This material is also used for hydro turbine shafts, flue gas desulfurization atomizer shafts and other renewable energy equipment parts.
39NiCrMo3 Forgings for Cement & Building Materials Industry
39NiCrMo3 steel can handle the harsh conditions of high torque, heavy loads, and abrasive work that large production lines need.
It is also used for rotary dryer trunnion wheels, granulator gear shafts and other equipment in building materials production.
39NiCrMo3 Forgings for Mining & Heavy Engineering Industry
Equipment working in harsh environments requires the parts have high impact toughness, strength and wear resistance, and 39NiCrMo3 is the good material for these working conditions.
Other common uses include mine hoist system shafts, conveyor pulley shafts, crusher belt pulley wheels and other heavy engineering machinery parts.
39NiCrMo3 Forgings for Oil & Gas Drilling Industry
Oil and gas exploration equipment requires materials with high strength, fatigue resistance and corrosion resistance, to adapt to high-pressure, corrosive working conditions on land and offshore platforms.
It is also used for offshore subsea anchor winch parts, valve bodies and other oil and gas equipment forgings.
Other Industrial Uses
- Sugar Industry: 39NiCrMo3 gear shafts, pinion shafts, roller shafts and couplings for sugar mill equipment
- Metallurgy & Steel Rolling: Cold rolling mill uncoiler core shaft, rolling mill gear shaft, mill gear pinion shafts for rolling mills
- General Machinery: Gearbox gear wheels, gear reducers, gas compressor crankshafts, hydraulic honed cylinders, gear couplings
- Transportation & Marine: Locomotive transmission shafts, truck ring gears, marine propeller shafts, concrete mixer bearing rings
Production Standards & Manufacturing Process of 39NiCrMo3 Forgings
We control the complete production of 39NiCrMo3 (1.6510) forgings, from raw steel melting to final inspection, to make sure every product 100% meets international standards and your technical requirements.
Full-Process Manufacturing Flow
- Raw Steel Melting: We use 30t electric arc furnace (EAF) + ladle refining furnace (LF) + vacuum degassing (VOD) equipment for steel making, to make sure the purity and uniformity of the molten steel, non-radioactive compliance, 100% meeting the chemical composition requirements of EN 10083-3 standard. You can learn more about our smelting and forging equipment here.
- Open Die Forging: We use 2000T-6300T hydraulic forging presses and 1T-5T electro-hydraulic forging hammers for forging, with controlled forging ratio (≥3:1, customizable according to requirements) to refine the internal grain structure, eliminate internal defects, and make sure the internal quality of the forgings.
- Heat Treatment: We have ten heat treatment furnaces, which can process quenching and tempering, stress relieving, case hardening, nitriding and other heat treatment processes according to standard and your technical specifications, to get the best mechanical properties of the material.
- Machining: We provide all of the machining processing, from rough machining to semi-finish machining to finish machining, all follow your drawings. We can meet your size tolerance and surface finish requirements, which will reduce your costs later on.
- Quality Inspection: We have full-process quality inspection, from coming material inspection, production process inspection to finished product inspection, to make sure every product meets the quality requirements.
Standard Heat Treatment Method for 39NiCrMo3 Steel
- Quenching: Heating temperature 830-850 ℃, oil quenching cooling, to have uniform martensite structure
- Tempering: temperature 550-650 ℃, can be adjusted according to the required mechanical properties and hardness, to have the best combination of strength and toughness
- Stress Relieving: Treatment temperature 550-650 ℃, used to eliminate residual stress after forging and machining, reduce the risk of deformation during following processing and usage.
- Surface Hardening: Can get surface hardness of 53-58 HRC, suitable for gear and shaft Parts that require wear resistance
- Nitriding Treatment: Can improve surface hardness and fatigue limit, surface hardness can reach up to 600 HV1
International Standards
Our 39NiCrMo3 (1.6510) forgings are produced in 100% follow the latest international industry standards, including but not limited to:
- EN 10083-3: 2006 (Steels for quenching and tempering - Technical delivery conditions for alloy steels) - main material standard
- EN 10277-5: 2008 (Bright steel products - Technical delivery conditions - Steels for quenching and tempering)
- ISO 6336-5 / DIN 3990-5 (Gear material standard, quality class at least MQ)
- EN 10083-1: 2006 (General technical delivery conditions for steels for quenching and tempering)
- Relevant inspection standards: EN 10228-3, EN 10002-1, EN 10045-1, EN ISO 6506-1, EN 13018
39NiCrMo3 (1.6510) Steel Chemical Composition
We strictly control the chemical composition of each heat of 39NiCrMo3 steel within the limits specified in the EN 10083-3 standard, to make sure the the material's mechanical properties. The standard acceptance criteria for chemical composition are as follows:
| Element | Carbon (C) | Silicon (Si) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Chromium (Cr) | Molybdenum (Mo) | Nickel (Ni) |
|---|---|---|---|---|---|---|---|---|
| Minimum Content (%) | 0.35 | - | 0.50 | - | - | 0.60 | 0.15 | 0.70 |
| Maximum Content (%) | 0.43 | 0.40 | 0.80 | 0.025 | 0.035 | 1.00 | 0.25 | 1.00 |
39NiCrMo3 Forgings Mechanical Properties After Quenching & Tempering
The mechanical properties of 39NiCrMo3 forgings will vary slightly with the section size and heat treatment process. We can adjust the heat treatment according to your requirements, to make sure that the mechanical properties can meet the standard requirements and your usage needs. The standard acceptance criteria for mechanical properties after quenching and tempering are as follows:
| Section Diameter | Yield Strength (Re) Min (MPa) | Tensile Strength (Rm) Min (MPa) | Elongation (A) Min (%) | Reduction of Area (Z) Min (%) | Impact Energy (KV) Min (J) |
|---|---|---|---|---|---|
| ≤40mm | 685 | 880 | 12 | 45 | 40 |
| ≤100mm | 635 | 830 | 12 | 50 | 40 |
| ≤160mm | 540 | 740 | 13 | 50 | 35 |
| ≤250mm | 490 | 700 | 15 | 50 | 35 |
| >500mm | 450 | 670 | 16 | 50 | 30 |
Sampling Requirements: Sampling and sample preparation are follow UNI EN 10083-1:2006 standard. Each mechanical test is performed on 2 samples collected from different positions: 25mm from the surface of the component, and 1/3 of the diameter of the component, to make sure the uniformity of internal properties.
Strict Quality Control & Inspection System
To make sure the quality of every 39NiCrMo3 forging, we have made a complete ISO 9001:2015 certified quality management system, with full-process quality control from raw material to finished product. All our inspection equipment is regularly calibrated to make sure the accuracy of test results.
Mandatory Inspection Items for Each Batch of Products
- For Each Heat Batch: Full chemical composition analysis, to make sure to follow EN 10083-3 standard requirements
- For Each Individual Product:
- Mechanical properties tests: Tensile test (according to EN 10002-1), Charpy impact test (according to EN 10045-1), Hardness test (according to EN ISO 6506-1)
- Size inspection, strictly follow the drawing requirements and tolerance standards
- 100% surface inspection according to EN 13018:2016 standard
- 100% non-destructive testing: Ultrasonic test (UT) follow UNI EN 10228-3:2016 quality class 3, magnetic particle testing (MT), penetrant testing (PT) can be provided according to your requirements
Material Certification
We can provide a full set of EN 10204 3.1 material certificates(3.2 certificate can be provided according to your requirements) for every 39NiCrMo3 forgings, which includes all the necessary information as below:
- Full chemical composition test results of the heat batch
- Complete mechanical properties test results (tensile, impact, hardness)
- Non-destructive testing results and acceptance criteria
- Material grade, applicable production standard, heat treatment process, forging ratio
- Purchase order reference, heat number, batch number, product specification and other information
Why Choose Jiangsu Liangyi as Your 39NiCrMo3 Forging Supplier?
Jiangsu Liangyi is a professional open die forging manufacturer in China which established in 1997. We have over 25 years experience of producing 39NiCrMo3 and other alloy steel forgings. We have provided service to more than 2000 clients from over 50 countries worldwide, and have become a long-term supplier for many top industrial enterprises in Europe, North America, Middle East and other regions. Our advantages include:
- Full Production Chain: We have a complete production line from steel melting, forging, heat treatment to precision machining, we can provide one-stop service, reduce your procurement cost and communication cost, and fully control the product quality and on time delivery.
- Strong Customization Capability: We can produce 39NiCrMo3 forgings with different kinds of shapes, sizes and technical requirements. We can also customized forgings from small 30KGS parts to large 30,000KGS heavy parts by100% according to your drawings and specifications.
- Strict Quality Control System: We have ISO 9001:2015 certified quality management system, full-process quality inspection, advanced inspection equipment, complete traceable quality documents, to make sure every product meets your requirements and international standards.
- Rich Global Export Experience: We have over 20 years of export experience and very familiar with the standard requirements, certification requirements and import regulations of different countries and regions. We can provide professional support for your import customs clearance, and make sure on time delivery.
- Advanced Production Equipment: Our 80,000 ㎡ factory have 6300T hydraulic forging press, 5M seamless rolling machine, complete heat treatment furnaces and advanced inspection equipment, which can meet the production needs of different large and complex forgings. Learn more about our production equipment.
- The Best Price & On Time Delivery: We have a complete raw material supply chain and good production management system, which makes us can give you the best prices, and make sure the on time delivery according to the contract requirements.
- Professional Technical Support: Our team worked in the forging industry for more than 20 years and can give you professional advice on things like choosing the right materials, the forging process, the heat treatment process, and other things to help you get the best product solution at the lowest cost.
Get Your Custom 39NiCrMo3 (1.6510) Forging Solution Today
Welcome to send us your custom drawings, material requirements, quantity and technical specifications, our professional sales and technical team will provide you with a detailed quotation and high-quality customized solution within 24 hours.
Frequently Asked Questions About 39NiCrMo3 Forgings
What is 39NiCrMo3 (1.6510) steel used for?
39NiCrMo3 (1.6510) is a high-hardenability quenched and tempered alloy steel, widely used for heavy-load, high-impact Parts in wind turbine gearboxes, mining crushers, cement rotary kilns, oil & gas drilling equipment, gear reducers, and heavy machinery. It is a good choice for the parts requiring high strength, toughness, wear resistance and fatigue resistance.
What is the EN standard for 39NiCrMo3 steel?
39NiCrMo3 (1.6510) steel is according to EN 10083-3:2006 (Steels for quenching and tempering - Technical delivery conditions for alloy steels), which is the main European standard for this material. It also meets EN 10277-5, ISO 6336-5 and other relevant international standards..
What is the hardness of 39NiCrMo3 after heat treatment?
After standard quenching (830-850℃) and tempering (550-650℃), 39NiCrMo3 has hardness tailored to section size, typically 240-320 HB. For surface hardening, it can reach 53-58 HRC surface hardness; after nitriding treatment, surface hardness can reach up to 600 HV1, with improved wear and fatigue resistance.
What is the grade of 39NiCrMo3 (1.6510)?
39NiCrMo3 (1.6510) is a European standard of alloy steel. Its grades include 40NiCrMo7 (DIN), SNCM439 (JIS), and AISI 4340 (with little differences in chemical composition) which if used heavy industrial in the European market.
Can you provide EN 10204 3.1 or 3.2 certification for 39NiCrMo3 forgings?
We can give you a full EN 10204 3.1 material certification for 39NiCrMo3 forgings. This includes information such as the chemical composition, mechanical properties, heat treatment, and non-corrosive testing results. We can also do a third-party inspection for EN 10204 3.2 if needs.
What's the size and weight of 39NiCrMo3 forgings you can produce?
We can produce custom 39NiCrMo3 forgings with single piece weight ranging from 30KGS to 30,000KGS. We support maximum diameter up to 1200mm for forged bars; we can produce seamless rolled rings up to 5000mm outer diameter . We can accept customized size by your drawings and requirements.
What's the lead time and MOQ for custom 39NiCrMo3 forgings?
We have no minimum order quantity (MOQ)needs, and we can accept all kinds of order quantities. Standard lead time is 15-30 days, depending on the clients drawing , quantity, and heat treatment requirements. We can also accept urgent orders.
What surface treatment options are available for 39NiCrMo3 forgings?
We provide different surface treatment choices for 39NiCrMo3 forgings, including rough machining, semi-finish machining, finish machining, black oxide coating, painting, anti-rust oil coating, galvanizing, phosphating, case hardening, and nitriding. All the treatment can be customized according to your requirements.
What are your packaging ways and shipping methods for export?
All the packages of our 39NiCrMo3 forgings can meet ISPM 15 standards. Our packages have waterproof wrapping, anti-rust treatment, and strong plywood or wooden crates. We also have different shipping ways, like air freight, sea freight, and international express. We can also process door-to-door delivery if customer have this needs. With 20+ years export experience, we are good at the customs clearance in Europe, North America, Australia, Middle East and other regions.
What payment terms do you accept?
We accept many payment terms including T/T (30% deposit, 70% balance before shipment), irrevocable L/C at sight, and other terms for long-term cooperative partners.
