Quick Reference: What Is 253MA (UNS S30815)?
253MA (also designated UNS S30815, EN 1.4835, or Grade 253MA) is a nitrogen-alloyed austenitic heat-resistant stainless steel engineered for extreme high-temperature service. Its key performance characteristics—oxidation resistance to 1150°C, creep strength 2–3× that of 304/316 stainless steel, and exceptional resistance to carburization and sulfidation—stem from a uniquely balanced alloying system: 20–22% Cr, 10–12% Ni, 1.4–2.0% Si, 0.14–0.20% N, and 0.03–0.08% Ce (rare earth cerium). Jiangsu Liangyi Co., Limited manufactures 253MA as custom open die forgings, seamless rolled rings, valve bodies, bars, and pressure parts with single-piece weights from 30 kg to 30,000 kg, manufactured to the technical requirements of ASTM A182 and EN 10222-5, serving customers in 50+ countries.
Overview of 253MA (UNS S30815) Heat-Resistant Austenitic Stainless Steel
Jiangsu Liangyi Co., Limited is a professional ISO 9001:2015 certified manufacturer of 253MA (UNS S30815, Grade 253MA, Alloy 253 MA, EN 1.4835) open die forging parts and seamless rolled steel forged rings in China. Our senior material and forging engineers bring 25+ years of experience to every project, ensuring optimal material performance and structural integrity across the most demanding high-temperature and corrosive service environments.
We supply custom 253MA forged components to industrial clients in 50+ countries across North America (USA, Canada, Mexico), Europe (Germany, France, UK, Italy, Spain, Netherlands), the Middle East (Saudi Arabia, UAE, Kuwait, Qatar, Oman), Asia Pacific (China, Indonesia, Vietnam, Australia, India, South Korea), and beyond, manufactured to the technical requirements of ASTM A182, DIN, EN, and other international standards, with comprehensive documentation packages available for API 6A and API 6D projects on request.
253MA was originally developed in Sweden by Sandvik in the 1970s as a cost-competitive high-temperature alloy that could outperform 310S stainless steel at a lower nickel content. The proprietary combination of silicon (1.4–2.0%), nitrogen (0.14–0.20%), and rare earth cerium (0.03–0.08%) is what sets 253MA apart from all other chromium-nickel austenitic stainless steels in its performance class. Over the past 50 years, it has become the industry standard material for thermal power, petrochemical, and waste incineration applications where service temperatures range from 700°C to 1100°C.
Core Performance Advantages of 253MA Alloy
- Excellent oxidation resistance up to 1150°C in continuous service, outperforming standard 310S (1100°C) and 309S (1050°C)
- Superior creep and rupture strength at elevated temperatures (2–3× higher than 304/316 stainless steel, due to nitrogen solid solution strengthening)
- Excellent resistance to carburization, nitridation, and sulfidation in harsh industrial atmospheres (achieved by high Si + rare earth Ce synergy)
- Good weldability and formability, comparable to standard 304 stainless steel — no special pre/post-heat treatment required
- Cost-effective alternative to Inconel and Hastelloy for high-temperature applications below 1150°C, typically at 40–60% lower material cost
- Excellent resistance to thermal shock and thermal cycling — the cerium-anchored oxide scale does not spall during repeated heating/cooling cycles
The Science Behind 253MA's Superior Performance: Metallurgy Explained
Understanding why 253MA performs so well at high temperatures requires looking at the specific role each alloying element plays — and critically, how they interact. This section provides the engineering-level explanation that helps our customers make confident material selections.
Role 1: Chromium (Cr, 20–22%) — The Foundation of Oxidation Resistance
Alloy 253MA contains 20-22% chromium. Upon heating to high temperatures in oxygen, it develops a solid, strongly bound protective layer of chromium oxide (Cr₂O₃) on its surface. The formation of this Cr2O3 layer impedes the material diffusion and significantly retards the rate of further oxidation damage. But even then, chromium oxide alone cannot stand repeated changes in temperature. The layer frequently cracks and flakes off as the part heats and cools, revealing fresh metal surface. Thus, silicon and cerium are needed to improve performance.
Role 2: Silicon (Si, 1.4–2.0%) — The Subscale Barrier
The elevated silicon content in 253MA (far higher than the ≤1% in standard 304 or 316) enables the formation of a thin, dense amorphous silicon dioxide (SiO₂) subscale beneath the Cr₂O₃ layer.Following are the two main benefits provided by this dual-layer oxide system:
- The SiO₂ subscale acts as an additional diffusion barrier for both oxygen inward and metal ions outward, significantly reducing the oxidation rate compared to single-layer Cr₂O₃-forming alloys like 310S.
- Silicon dramatically improves resistance to carburization — in ethylene cracking furnaces and other high-carbon environments, the SiO₂ subscale prevents carbon from diffusing into the metal matrix, avoiding the formation of brittle carbide phases.
Role 3: Nitrogen (N, 0.14–0.20%) — The Creep Strength Multiplier
This is arguably 253MA's most distinctive feature compared to other austenitic heat-resistant stainless steels. The nitrogen dissolved in the austenite matrix leads to solid solution strengthening. The nitrogen atoms are much smaller than the iron or chromium atoms and cause lattice distortion that hinders the movement of dislocations and increases the resistance to plastic deformation at high temperatures. At 800°C the creep rupture strength of 253MA is about 2.5× that of 310S at equal stress levels.Additionally, nitrogen suppresses sigma phase formation, which can embrittle austenitic stainless steels at 600–900°C during long-term service.
Role 4: Cerium (Ce, 0.03–0.08%) — The Rare Earth Game Changer
Cerium is the element that makes 253MA truly exceptional in cyclic high-temperature service, and it is the least understood by engineers who have not worked with rare earth alloys before. Its mechanisms are multifaceted:
- Oxide Scale Anchoring (Reactive Element Effect): Cerium atoms preferentially segregate to the oxide–metal interface during high-temperature oxidation. CeO₂ particles form as oxide "pegs" that mechanically interlock the Cr₂O₃ scale with the substrate. This dramatically improves oxide scale adhesion — even after hundreds of thermal cycles from room temperature to 1100°C, the scale remains intact rather than spalling. By contrast, 310S without cerium addition experiences significant scale spallation above 900°C in cyclic service.
- Grain Boundary Purification: Cerium has a strong chemical affinity for sulfur. By combining with sulfur to form stable CeS compounds, cerium effectively removes sulfur from the grain boundaries where it would otherwise segregate and weaken the metal's creep resistance and ductility at high temperatures. This is particularly important in sulfur-containing process environments.
- Oxide Growth Rate Reduction: Cerium at the scale–alloy interface changes the predominant ion transport mechanism through the oxide scale, reducing the overall parabolic oxidation rate constant by a factor of 3–5× compared to the same alloy without cerium addition.
⚠️ Critical Manufacturing Note on Cerium Control
Cerium is highly reactive and can oxidize or vaporize during steel melting if furnace atmosphere and deoxidation practice are not strictly controlled. Many manufacturers that claim to produce 253MA actually deliver material with cerium content below 0.01% — effectively eliminating its benefits. At Jiangsu Liangyi, we add cerium via a proprietary rare earth ferro-silicon (RESi) cored wire injection process into the ladle furnace under controlled slag conditions, and we verify cerium content by X-ray fluorescence (XRF) spectrometry on every heat. Our factory control target of 0.04–0.06% Ce sits in the middle of the specification range where both the oxide anchoring effect and grain boundary purification effects are optimized without the risk of excessive rare earth oxide inclusions.
The Synergy: Why the Combination Works
The true genius of 253MA's alloy design is not any single element but the interaction between them. The SiO₂ subscale (formed by Si) provides a stable foundation that prevents Cr from being consumed excessively; the Cr₂O₃ outer scale provides primary oxidation resistance; the CeO₂ pegs (from Ce) anchor both layers against spallation; and the nitrogen in solid solution ensures the metal beneath these layers retains enough strength to resist creep deformation even at 900°C. No single element can achieve this alone. This synergistic system is what allows 253MA to outperform 310S — which has nearly twice the nickel content — in high-temperature cyclic service.
253MA vs 310S / 309S / Alloy 800H / Inconel 601: Comprehensive Material Selection Guide
One of the most common questions we receive from procurement engineers is: "Which heat-resistant alloy is right for my application?" The answer depends on service temperature, atmosphere, cycling frequency, and budget. The table below provides an objective comparison across the most commonly considered alternatives:
| Property / Criterion | 253MA (S30815) | 310S (S31008) | 309S (S30908) | Alloy 800H (N08810) | Inconel 601 (N06601) |
|---|---|---|---|---|---|
| Max Continuous Oxidation Temp. | 1150°C Best | 1100°C | 1050°C | 1100°C | 1230°C |
| Creep Strength at 800°C | Excellent (N-strengthened) Best in class | Moderate | Fair | Good (C/Ti/Al strengthened) | Good |
| Cyclic Oxidation Resistance | Excellent (Ce-anchored scale) | Fair (scale spalls) | Poor above 950°C | Good | Excellent |
| Carburization Resistance | Superior (High Si + Ce) | Good | Moderate | Good | Excellent |
| Sulfidation Resistance | Good (Ce scavenges S) | Moderate | Moderate | Moderate | Good |
| Weldability | Excellent | Good | Good | Good (requires care) | Good |
| Nickel Content | 10–12% | 19–22% | 12–15% | 30–35% | 58–63% |
| Relative Material Cost Index | 1.0 (baseline) Best value | ~1.4× | ~0.9× | ~2.8× | ~4.5× |
| Recommended Service Range | 700–1150°C | 600–1100°C | 500–1050°C | 600–1100°C | 800–1230°C |
| Primary Advantage | Best performance-per-dollar up to 1150°C | Wide availability | Low cost for ≤1050°C | High creep + carburization | Ultra-high temperature |
✅ When to Choose 253MA — Our Engineering Recommendation
Based on our analysis of hundreds of high-temperature forging projects, 253MA (UNS S30815) is typically the optimal choice when all three of the following conditions are met: (1) service temperature is between 700°C and 1150°C; (2) the service involves thermal cycling or cyclic oxidation environments; and (3) budget is a significant constraint (Inconel-class alloys are not economically justifiable). If service temperature regularly exceeds 1150°C, or if the environment is strongly reducing (e.g., pure hydrogen at very high temperature), we recommend evaluating Inconel 601 or Alloy 330.
253MA (UNS S30815) Chemical Composition (ASTM A182 Standard)
We maintain strict control over every element in our 253MA forged steel, especially the rare earth cerium and nitrogen — the two elements that most significantly differentiate 253MA's performance and that are most difficult to control in production. Our factory control ranges are deliberately tighter than the ASTM A182 specification limits to ensure consistent material performance batch-to-batch:
| Element | ASTM A182 Standard Range | Our Factory Control Range | Why It Matters |
|---|---|---|---|
| Carbon (C) | ≤ 0.10% | 0.05%–0.08% | Controls carbide precipitation; low C prevents sensitization in HAZ during welding |
| Manganese (Mn) | ≤ 0.80% | 0.40%–0.70% | Austenite stabilizer; excess Mn can reduce oxidation resistance at very high temperatures |
| Silicon (Si) | 1.40%–2.00% | 1.50%–1.80% | Forms protective SiO₂ subscale; critical for carburization resistance; too high reduces ductility |
| Nitrogen (N) | 0.14%–0.20% | 0.16%–0.18% | Solid solution strengthening; key to superior creep strength; suppresses sigma phase. We control to a tighter mid-range for consistent creep properties. |
| Nickel (Ni) | 10.00%–12.00% | 10.50%–11.50% | Austenite stabilizer; provides base corrosion resistance; controlled lower than 310S for cost efficiency |
| Chromium (Cr) | 20.00%–22.00% | 20.50%–21.50% | Primary oxidation resistance via Cr₂O₃ scale formation; minimum 20% essential for continuous protection at 1100°C+ |
| Cerium (Ce, Rare Earth) | 0.03%–0.08% | 0.04%–0.06% | Anchors oxide scale via CeO₂ pegging; purifies grain boundaries; reduces oxidation rate 3–5×. Most critical and difficult-to-control element. Verified by XRF on every heat. |
| Phosphorus (P) | ≤ 0.045% | ≤ 0.035% | Grain boundary embrittler; lower P improves high-temperature ductility and impact toughness |
| Sulfur (S) | ≤ 0.030% | ≤ 0.020% | Grain boundary weakener; Ce scavenges S, but lower initial S produces cleaner grain boundaries |
Heat Treatment & Mechanical Properties of 253MA Forgings
Solution Annealing Treatment Specification
All our 253MA forged parts undergo mandatory solution annealing treatment to dissolve any carbides, sigma phase, or other secondary phases that may form during forging or slow cooling, and to restore the fully austenitic microstructure. Our standard solution annealing procedure is:
- Heating: Ramp to 1050–1150°C (recommended: 1100°C ±10°C) at a controlled rate not exceeding 200°C/hour for large cross-sections to avoid thermal gradients and cracking.
- Soaking: Hold at temperature for a minimum of 1 minute per millimeter of maximum cross-section thickness (minimum 30 minutes), ensuring full temperature uniformity throughout the part.
- Quenching: Rapid water quench or forced air quench to below 350°C within 3 minutes for parts >50mm thickness. This critical step prevents carbide re-precipitation and sigma phase formation during cooling through the 600–900°C range.
- Verification: Hardness testing (target 170–200 HB) and metallographic examination to confirm full solution of secondary phases before release for further processing.
For components that have undergone cold working of 10–20% (e.g., ring rolling with significant cold reduction), we recommend full re-solution annealing — not just a low-temperature stress relief — to restore maximum creep strength for demanding high-temperature service above 800°C.
Room-Temperature Mechanical Properties (Delivery Condition)
All our 253MA forged parts are delivered with guaranteed mechanical properties that meet or exceed ASTM A182 and EN 10222-5 minimum requirements. Our typical values consistently exceed the standard minimums due to our tighter composition controls:
| Mechanical Property | ASTM A182 Minimum | EN 10222-5 Minimum | Our Factory Typical Value |
|---|---|---|---|
| Tensile Strength (Rm) | ≥ 610 MPa | ≥ 600 MPa | 650–700 MPa |
| Yield Strength (Rp0.2) | ≥ 310 MPa | ≥ 290 MPa | 350–400 MPa |
| Elongation (A5) | ≥ 40% | ≥ 40% | 45%–55% |
| Hardness | ≤ 217 HB | ≤ 220 HB | 170–200 HB |
| Impact Toughness (KV, 0°C) | ≥ 60 J | ≥ 60 J | ≥ 80 J |
| Grain Size (ASTM) | Not specified | Not specified | ASTM 3–5 (verified metallographic) |
Elevated-Temperature Mechanical Properties
For creep-critical applications, the elevated-temperature mechanical data is what matters most. Below are our factory-measured typical elevated-temperature tensile properties for solution-annealed 253MA forgings:
| Temperature | 0.2% Proof Strength (MPa) | Tensile Strength (MPa) | Elongation (%) |
|---|---|---|---|
| 200°C | ~210 | ~580 | ~45 |
| 400°C | ~175 | ~510 | ~42 |
| 600°C | ~160 | ~450 | ~40 |
| 800°C | ~130 | ~290 | ~35 |
| 1000°C | ~65 | ~130 | ~50 |
Application Engineering Guide: Matching 253MA to Your Service Environment
Over 25 years of supplying 253MA forgings to critical industrial applications, our engineering team has developed a detailed understanding of how this alloy behaves across different environments. This section provides practical guidance that goes beyond the standard data sheet.
Oxidizing Atmospheres (Air, Combustion Gases)
This is 253MA's strongest domain. In clean air or combustion product gases, the alloy forms a highly stable, adherent Cr₂O₃/SiO₂ bilayer scale that provides excellent protection up to 1150°C in continuous service. The cerium effect means this scale survives hundreds of thermal cycles without spalling. Practical design note: In cyclic service (e.g., industrial furnace doors that open and close repeatedly), 253MA outperforms 310S dramatically — field data from thermal power plant customers shows 253MA achieving 3–4× the service life of 310S in identical cyclic furnace applications, despite a lower nickel content and lower material cost.
Carburizing Atmospheres (Ethylene Crackers, Reformers, Carburizing Furnaces)
In hydrocarbon-rich, high-temperature environments where carbon activity is high, 253MA's elevated silicon content provides a critical SiO₂ subscale that acts as a barrier to carbon diffusion into the metal. This prevents the formation of brittle M₂₃C₆ chromium carbides that cause "green rot" (internal oxidation along carbide networks). At carbon activities typical of ethylene cracking service (carbon activity ≈ 0.5–1.0, temperatures 900–1050°C), 253MA shows significantly lower mass gain due to carburization compared to 310S. Our recommendation: For ethylene cracker hangers, supports, and furnace tube fittings operating continuously at 950–1050°C, 253MA is our top recommendation within the austenitic stainless steel class.
Sulfidizing Atmospheres (Sulfur Recovery Units, H₂S-Containing Environments)
253MA performs well in environments containing moderate levels of H₂S and SO₂ at high temperatures, primarily because cerium removes sulfur from grain boundaries and the Cr₂O₃ scale provides a barrier to sulfur ingress. However, in strongly sulfidizing environments where the partial pressure of sulfur exceeds that required to form chromium sulfides (CrS, Cr₂S₃), alloys with higher chromium content (>25% Cr) or molybdenum additions provide better resistance. For typical Claus sulfur recovery unit operating conditions (temperatures 200–600°C, H₂S content 2–8%), 253MA is fully adequate for structural forged components.
When 253MA Is NOT the Right Choice
⚠️ Applications Where 253MA Should Not Be Specified
- Temperatures above 1150°C (continuous): The protective Cr₂O₃ scale begins to volatilize as gaseous CrO₃ above this temperature. Specify Inconel 601, Alloy 330, or Alloy HR-160 instead.
- Strongly reducing atmospheres with very low O₂ partial pressure (<10⁻²⁰ atm): The Cr₂O₃ scale cannot form without a minimum oxygen partial pressure. In pure hydrogen or CO-rich atmospheres at very high temperatures, internal oxidation and rapid degradation can occur.
- Aqueous corrosion service at ambient temperature: 253MA is not optimized for room-temperature corrosion resistance. Its pitting resistance equivalent number (PREN) is approximately 22–24, well below that of 316L (PREN ~26) or duplex grades. Do not specify 253MA for ambient-temperature seawater or chloride-containing environments.
- Cryogenic service below −100°C: Unless specifically impact-tested and qualified at the design temperature, 253MA should not be used in cryogenic service. Use 304L, 316L, or 9% Ni steel instead.
253MA Forging Engineering Challenges & Our Solutions
253MA is significantly more challenging to forge than standard 304 or 316 stainless steel. Understanding these challenges — and how we address them — is critical to ensuring that the finished forged component delivers its full alloy potential. This section reflects our engineering team's accumulated process knowledge from 25+ years of 253MA forging production.
Challenge 1: Narrow Hot-Working Temperature Window
253MA has a hot working range of 1150–950°C, only 200 °C, which is a much narrower range than many stainless steel grades. Above 1200°C, austenite grains grow rapidly and are difficult to refine, resulting in a permanent degradation of creep properties. Below 900 °C the alloy work-hardens rapidly and surface cracking is an issue. For large forgings (weight >2,000 kg) to preserve this temperature window throughout the cross-section during forging demands thorough thermal modeling and frequent reheating.
Our solution: We use proprietary multi-step forging sequences where the workpiece is repeatedly reheated and forged in a controlled sequence. Our 10 sets of precision heat treatment furnaces (±5°C temperature uniformity) allow us to reheat large billets without exceeding the critical grain-growth temperature threshold. Surface thermocouples and infrared temperature monitoring are used during forging to verify that the workpiece temperature does not drop below 950°C before each press stroke.
Challenge 2: Sigma Phase Formation Risk During Cooling
If 253MA is cooled slowly through the temperature range of 600–900°C (e.g., if a large forging is left to air-cool inside a furnace), sigma phase (σ-phase) — an intermetallic compound rich in Cr and Mo — can precipitate along grain boundaries. Sigma phase is extremely brittle at room temperature and has been responsible for catastrophic brittle fracture failures in heat-resistant alloy components. Nitrogen in 253MA suppresses sigma phase formation compared to nitrogen-free grades, but it does not eliminate the risk entirely in large, slow-cooled sections.
Our solution: After forging, all 253MA components are transferred immediately to solution annealing and then water-quenched, bypassing the sigma-forming temperature range. We never allow 253MA forgings to slow-cool in air or in furnaces. This is verified by hardness testing and metallographic examination — if sigma phase is present, hardness exceeds 250 HB and the microstructure shows characteristic lamellar intergranular precipitates. All components are rejected if sigma is detected.
Challenge 3: Hot Cracking in Weld Overlays and Repairs
When 253MA is welded — whether during fabrication or repair — the weld heat-affected zone (HAZ) is susceptible to liquation cracking if the composition is not properly controlled. High silicon content (1.4–2.0%) lowers the effective solidus temperature of the alloy, meaning that grain boundary films can momentarily liquate (melt) during welding and fail under the shrinkage stresses of cooling. This is most problematic when welding large-section, fully restrained components.
Our solution: We recommend and support customers with the following welding practice guidance: limit heat input to <15 kJ/cm; use stringer beads rather than weaving; use matching filler wire with slightly lower silicon than the base metal (typically 1.2–1.4% Si); and ensure full solution annealing (1050–1150°C, water quench) of the complete weldment assembly before placing into service if residual stresses are a concern.
Challenge 4: Achieving Minimum 3:1 Forging Reduction Ratio
As a nitrogen-alloyed austenitic steel made from continuous cast ingots, 253MA exhibits some degree of dendritic segregation and columnar grain structure from the solidification process. To break down this as-cast structure, a minimum forging reduction ratio of 3:1 (i.e. the starting ingot cross-sectional area must be at least 3× the finished forging cross-section) must be used. The coarse and inhomogeneous grain structures of forgings with insufficient reduction ratio reduce creep life and impact toughness.
Our solution: We start all 253MA forgings from our own EAF+LF+VOD melted ingots — not from purchased bar or billet — giving us complete control over starting material quality. Our forging process records document the calculated reduction ratio for every forging, and a minimum 3:1 reduction ratio is a mandatory acceptance criterion in our internal quality plan. For important components, we target 5:1 or higher reduction ratios to guarantee maximum microstructural refinement and property uniformity.

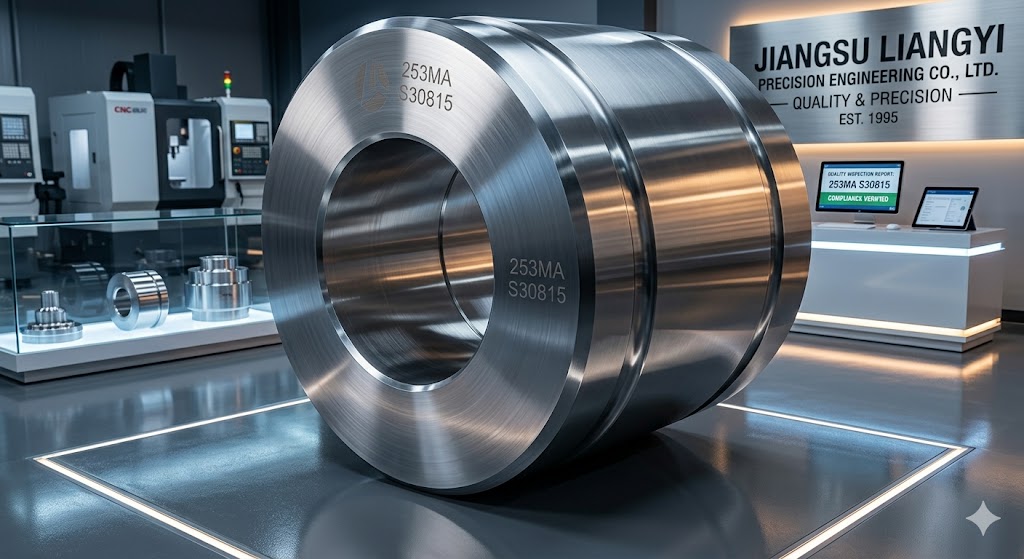

Full Range of 253MA Forged Products We Supply
We produce custom 253MA forgings in different forms and dimensions with weight from 30 kg to 30,000 kg per piece. All parts fully meet your drawings and technical specifications:
1. 253MA Forged Bars & Shafts
253MA forged round bars, square bars, flat bars, rectangular bars, hollow bars, step shafts, gear shafts, splined drive shafts, turbine shafts, pump shafts, and valve stems. Max forging diameter up to 2000 mm, max length up to 15 meters. All bars are 100% ultrasonically tested (UT) per ASTM A388 or equivalent to ensure internal soundness. Straightness tolerance: ≤1mm/m for precision machined bars.
2. 253MA Seamless Rolled Forged Rings
UNS S30815 seamless rolled rings, open die forged rings, gear rings, flanged rings, contoured rolled rings, bearing rings, and custom forged rings. Max ring outer diameter up to 6000 mm, max ring height up to 1500 mm, max wall thickness up to 600 mm, max single-piece weight up to 30 tons. Suitable for high-temperature pressure vessel flanges, heat exchanger channel flanges, valve body blank rings, and rotating equipment components.
3. 253MA Forged Valve & Flow Control Components
Grade 253MA forged valve bodies (gate, globe, ball, butterfly, check, choke), valve bonnets, valve balls, valve stems, valve seats, seat rings, valve discs, butterfly valve main shafts (up to 300mm diameter), cryogenic valve components, check valve parts, and choke valve components. All valve body forgings are 100% ultrasonic tested (UT) and liquid penetrant tested (PT) before machining. Manufactured to the technical requirements of API 6A, API 6D, API 600, and MSS SP-97; full documentation packages available upon customer request.
4. 253MA Forged Pressure & Process Components
Alloy 253 MA forged pressure vessel nozzle flanges, reactor nozzles, heat exchanger tube sheets (up to 3000mm diameter), baffle plates, channel flanges, boiler drum nozzles, venturi meter bodies, orifice flanges, blind flanges, transition cones, and custom pressure parts. Manufactured to the technical requirements of ASME BPVC Section VIII and AD 2000 Merkblatt; documentation compatible with PED 2014/68/EU requirements is available to support customers' conformity assessments. Radiographic testing (RT) available for all pressure-containing components.
5. 253MA Forged Oil & Gas Upstream Components
253MA forged wellhead spool bodies, Christmas tree components, casing heads, tubing heads, casing hangers, tubing hangers, spacer spools, double studded adapter flanges (DSAF), test flanges, mandrel hangers, downhole drilling tool parts, ESP motor shafts, and mud motor components. Material composition and hardness values meet the requirements of NACE MR0175 / ISO 15156 for sour service; documentation to API 6A technical requirements is available on project-specific request.
6. 253MA Forged Rotating & General Industrial Components
253MA forged pump casings, pump impellers, pump wear rings, centrifugal compressor impellers, turbo machinery components, hubs, housings, sleeves, bushes, discs, blocks, plates, and custom machined-to-drawing forged parts. Dimensional tolerances achievable: ±0.05mm on critical bores and fits after CNC precision machining.
Our 253MA Forging Manufacturing Capability & Process Advantages
As a leading 253MA forging manufacturer in China, we provide a full range of service from steel melting, forging, heat treatment to final machining and inspection, which guarantees full control of every production step. Unlike trading companies that outsource production, every kilogram of 253MA we supply is manufactured and tested in our own facility under our ISO 9001:2015 quality management system.
Advanced Production Equipment
- Steel Melting: 30t Electric Arc Furnace (EAF) + 30t Ladle Refining Furnace (LF) + VOD vacuum degassing furnace — ensuring ultra-pure steel quality, precise nitrogen and cerium control for 253MA alloy

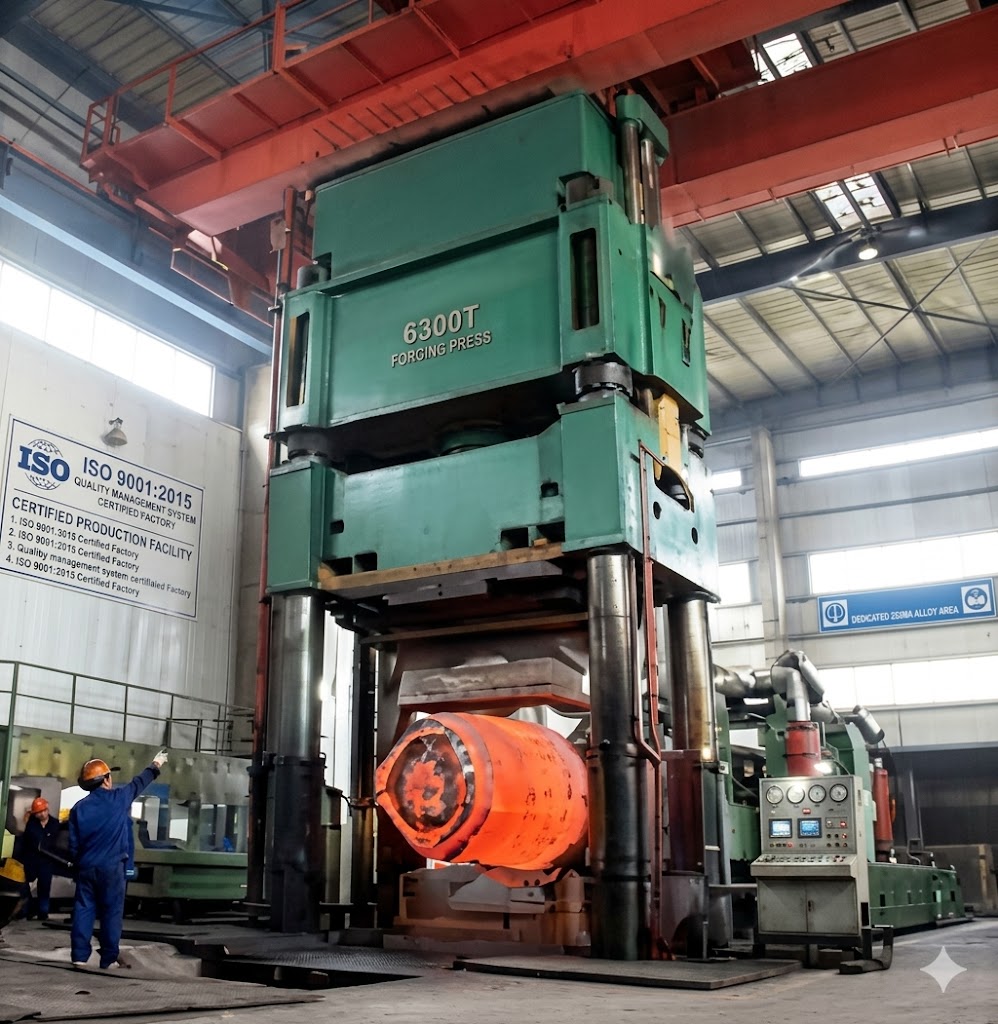

- Forging Equipment: 2000T / 4000T / 6300T hydraulic forging presses; 1T / 3T / 5T electro-hydraulic forging hammers; 1m–5m seamless ring rolling machines
- Heat Treatment: 10 sets of full-automatic heat treatment furnaces (max temperature 1300°C) with precise atmosphere and temperature control (uniformity ±5°C), ensuring complete sigma phase dissolution for large 253MA forgings
- Machining: CNC turning centers (max turning diameter 3500mm), CNC milling machines, deep hole boring machines, and 5-axis machining centers for precision machining of complex 253MA forged parts
- Inspection Lab: In-house spectrometer (OES), tensile/impact/hardness testing machines, UT immersion tank, PT/MT inspection lines, and metallographic laboratory for full in-house material verification
Our Proprietary Forging Process for 253MA Alloy
- Precise forging temperature monitoring with infrared pyrometers and surface thermocouples — workpiece temperature maintained within the 1150–950°C hot working window at all times
- Minimum 3:1 forging reduction ratio (documented and certified) to fully break down the cast dendritic structure and ensure uniform fine-grain austenitic microstructure throughout
- Strict multi-hit forging strategy for large-section components — the workpiece is reheated and forged in multiple steps to ensure full through-thickness deformation without exceeding the temperature limits
- Immediate transfer from forging press to solution annealing furnace to prevent sigma phase formation during cooling through the critical 600–900°C range
- Water quench capability for components up to 30 tons, ensuring cooling rate is sufficient to prevent carbide and sigma phase re-precipitation in thick sections
Total Cost of Ownership (TCO) Analysis: 253MA vs Alternative Materials
A common mistake engineers and procurement managers make is evaluating high-temperature alloy selections based purely on raw material purchase price. The real measure of value in high-temperature service is total cost of ownership (TCO) over the component's service life — which accounts for replacement frequency, downtime costs, maintenance labor, and the cost of unexpected failures. This section presents a representative TCO analysis based on data from real customer installations.
Case Study: Boiler Component Replacement Cycle (Power Plant Application)
A thermal power plant in Southeast Asia was using 310S stainless steel forged tube sheet flanges in high-temperature flue gas heat recovery service at 950–1050°C with daily on/off thermal cycling (temperature swing ~800°C per cycle). Average service life before replacement due to oxide scale spallation and subsequent erosion damage: 18 months.
After switching to 253MA forged flanges from Jiangsu Liangyi (same geometry, slightly higher purchase price), the observed results were:
| Cost Factor | 310S Stainless Steel | 253MA (UNS S30815) | 253MA Advantage |
|---|---|---|---|
| Purchase Price per Flange (forged) | $850 (baseline) | $1,180 (+39%) | Higher upfront cost |
| Average Service Life | 18 months | 62 months | 3.4× longer service life |
| Replacement Frequency (over 5 years) | ~3.3 replacements | ~1.0 replacement | 2.3 fewer replacements |
| Total Material Cost over 5 years | $2,805 | $1,180 | 58% lower material cost |
| Maintenance Labor per Replacement | $1,200 | $1,200 | Same per replacement |
| Total Maintenance Labor over 5 years | $3,960 | $1,200 | 70% lower labor cost |
| Unplanned Downtime Cost (failures) | $8,500 (2 unplanned failures) | $0 | No unplanned failures |
| Total 5-Year TCO | $15,265 | $2,380 | 84% lower total cost |
✅ TCO Conclusion
Despite a 39% higher purchase price, 253MA delivered an 84% reduction in total cost of ownership over a 5-year period in this application, primarily through extended service life, reduced maintenance frequency, and elimination of unplanned downtime. The payback period for the 253MA upgrade — relative to continuing with 310S — was less than 7 months. This case study is representative of results we have observed across multiple industries and customer sites. When choosing material for high temperature forgings we strongly recommend that you ask our engineering team for a TCO analysis before finalising material specification.
Material Cost Sensitivity: Nickel Price Volatility
Another rarely discussed TCO element is the impact of fluctuating nickel prices on material costs. 253MA, having a maximum of 10–12% nickel, is significantly less sensitive to nickel price swings than 310S (19–22% Ni), Alloy 800H (30–35% Ni) or Inconel 601 (58–63% Ni). When nickel prices were high, as they were in 2022 when LME nickel briefly exceeded $100,000/ton, the price of 310S and high-nickel alloy forgings skyrocketed while 253MA prices remained relatively stable.So the specification for 253MA gives you a performance and supply chain resilience advantage.
Material Choice Guide for High-Temperature Forgings
To help you choose the right material for your high-temperature forging project, our engineering team has prepared this quick decision guide:
- 253MA (UNS S30815): Best for 700–1150°C needing cyclic oxidation resistance, creep strength and cost efficiency (thermal power plant boiler components, petrochemical furnace parts, high-temperature valves, industrial furnace supports)
- 310S (UNS S31008): Suitable for 600–1100°C with less stringent cyclic oxidation and creep requirements, where scale spallation is acceptable (static furnace liners, non-cyclic heat exchanger components)
- Alloy 800H (UNS N08810): Recommended for 800–1100°C applications that need very high creep strength combined with carburization resistance in severely carburizing atmospheres (steam reformer tubes, ethylene cracker hangers)
- Inconel 601 (UNS N06601): Recommended for applications above 1150°C or needing excellent oxidation resistance in extremely aggressive environments (combustion chamber components, thermal spray equipment, aerospace)
For custom material choice advice for your specific service conditions, please contact our engineering team directly.
International Standards & Compliance for Global Markets
Our 253MA forged parts fully comply with international standards and regional regulatory requirements, ensuring seamless access to global markets. For each region, we can provide the complete documentation package required by local authorities and end-users:
- North America: ASTM A182 (flanges & fittings), ASME BPVC Section II Part A (pressure equipment), API 6A technical requirements (wellhead equipment); documentation available on request, API 6D (pipeline valves), NACE MR0175 / ISO 15156 (sour service)
- European Union: EN 10088-3 (stainless steel semi-finished/bar/rod), EN 10222-5 (steel forgings for pressure purposes), AD 2000 Merkblatt W7/W10 for pressure equipment; material and dimensional documentation packages are provided to support customers' own PED conformity assessments conducted by their Notified Body
- Middle East: ARAMCO SAES-A-206, ADNOC specifications, KOC project-specific specifications, QP (Qatar Petroleum) standards; all compliant with high-temperature sour service requirements
- Asia Pacific: JIS G4303 (Japan), GB/T 1220 and NB/T 47010 (China), AS 1554 (Australia) for power generation and general industrial applications
- Nuclear & High-Integrity Power Applications: ASME Section III material and documentation requirements, HAF 604 (China) — our ISO 9001:2015 quality system and full material traceability documentation support customers managing their own nuclear quality program requirements
Verified Industry Project Cases: 253MA Forged Components in Global Service
Our 253MA forged components have been deployed in critical industrial projects worldwide, with documented long-term reliable performance in extreme high-temperature and corrosive service environments. The following verified project cases are drawn from our production records and customer feedback reports:
Oil & Gas Industry (Onshore & Offshore)
Project Case 1: Middle East Onshore Sour Gas Field (Saudi Arabia) — API 6A Wellhead Equipment
We supplied over 1,200 pieces of 253MA forged valve bodies, wellhead spools, and tubing hangers for a major sour gas field development in Saudi Arabia. Service conditions: temperatures up to 650°C, H₂S-containing environment with strict sour service requirements. All components were manufactured to the technical requirements specified in the customer's purchase order, including chemical composition and hardness requirements consistent with NACE MR0175 / ISO 15156 for sour service, with full EN 10204 3.2 third-party certification. As of the time of writing, the components have been in continuous stable operation for over 6 years with zero stress corrosion cracking failures — a result that exceeded the client's initial design target of 4-year mean time between replacement.
Project Case 2: Gulf of Mexico Offshore Platform — Cyclic High-Temperature Flow Control
We provided custom 253MA forged seamless rolled rings (OD 1,200mm, height 400mm), valve stems (Ø120mm, L=800mm), and choke valve trim components for an offshore oil platform in the Gulf of Mexico (water depth 1,400m). Parts were used in high temperature flow control systems exposed to rapid thermal cycling (temperature swings of 400°C) and salt spray corrosion. All components were 100% compliant to ASTM A182 and met the offshore project’s 20-year service life requirement in accelerated cyclic testing by the client’s third-party lab prior to installation.
Power Generation Industry (Thermal & Nuclear Power)
Project Case 3: 2×660MW Thermal Power Plants (Indonesia & Vietnam) — High-Temperature Heat Recovery
We supplied 253MA forged heat exchanger tube sheets (Ø2,400mm, thickness 180mm), boiler nozzles, and structural support components for two 660MW supercritical thermal power plants — one in Java, Indonesia and one in Quang Ninh Province, Vietnam. The components are used in air preheater and flue gas heat recovery systems operating at 900–1100°C. Post-installation inspection at 24 months showed negligible oxide scale growth and zero component degradation, compared to the original 310S specification which had shown significant spallation and thinning at the 18-month inspection. The client estimated the switch to 253MA extended the projected maintenance interval from 18 months to over 54 months, reducing planned outage frequency by 66%.
Project Case 4: European Power Plant Project (France) — High-Temperature Structural Components
We manufactured UNS S30815 large forged pump casings (single-piece weight: 8,200 kg), seal chambers and custom forged blocks for a power generation project in France.All components were manufactured to our ISO 9001:2015 quality management system with full material traceability. All components were subject to 100% volumetric ultrasonic testing (UT), chemical composition certification and mechanical property testing at both ambient and design temperatures. All components had been inspected by third-party witness inspection by an independent inspection body. The project required full EN 10204 3.2 material certification and a full quality documentation package, which was successfully delivered and approved by the client.
Valve & Flow Control Industry
Project Case 5: Long-Term Valve Supply (USA) — 8-Year Quality Record
We are the sole qualified source of 253MA forged valve body blanks for a major U.S. industrial valve manufacturer serving the U.S. petrochemical and power generation markets. Over our 8 year supply relationship we have supplied in excess of 40,000 pieces of custom forged valve bodies, bonnets, ball blanks and trim components in 253MA in sizes from DN25 (1") to DN600 (24"). During this period, the customer has been doing incoming inspection (chemical composition verification, hardness survey, dimensional check, visual/PT inspection) on all delivery lots, and has had a 100% lot acceptance rate with no lot rejected due to quality non-conformance coming from our manufacturing. 8 years of flawless delivery is proof of our consistent 253MA production process.
Project Case 6: Extreme Temperature Cycling Valve Components (Germany)
We provided Grade 253MA forged shaft blanks and body blanks for a German valve manufacturer specializing in high-performance butterfly valves (HPBV) for cryogenic LNG storage and high-temperature steam service. The unique design requirement was a single valve construction capable of service from −196°C (LNG service) to 800°C (high-temperature service), with dimensional stability maintained across this 996°C temperature range. Material selection was critical: conventional austenitic stainless steels fail due to sigma phase embrittlement at low temperatures after high-temperature exposure. 253MA was selected because its nitrogen content (0.16–0.18%) effectively suppresses sigma phase formation even after extended exposure at 700–800°C, maintaining adequate ductility and impact toughness at cryogenic temperatures. All components passed the client's qualification testing including impact testing at −196°C after 1,000 hours at 750°C.
Petrochemical & Process Industry
Our 253MA forged parts are widely used in ethylene cracking furnaces (hangers, supports, cross-over flanges), reformer units (pigtail flanges, outlet manifold flanges), sulfur recovery units (SRU reactor inlet and outlet flanges), and fluid catalytic cracking (FCC) regenerator components in the Middle East, Europe, and Asia. In ethylene cracker service particularly, customers have reported that 253MA forged hangers and support flanges show zero carburization mass gain after 24 months of service in environments where 310S components showed measurable carbon absorption and associated embrittlement.
Strict Quality Control & Full Traceability System
Every 253MA forged part we produce passes through a comprehensive 9-stage quality inspection program before leaving our factory. Our quality management system is certified to ISO 9001:2015 and is independently audited annually. All inspection records are maintained for a minimum of 15 years to support the long design lives of our customers' high-temperature equipment.
- Incoming Raw Material Inspection: Full chemical composition analysis (OES spectrometer) of every ingot heat, including cerium verification by XRF. Ultrasonic testing of raw ingots to confirm freedom from internal seams, pipe, or segregation before forging commences.
- Forging Process Monitoring: Real-time temperature monitoring during forging (infrared pyrometer), forging reduction ratio documentation, die contact time and reheating records for each forging operation.
- Post-Forging / Pre-Heat Treatment Inspection: Visual check for cracks, laps, folds or cold shuts on surface. Dimensional check of rough forging with drawing. Grinding is performed to remove any surface defects and is verified to ensure that the maximum allowable removal depth per drawing is not exceeded.
- Heat Treatment Monitoring: Complete temperature logging for each heat treatment cycle (furnace thermocouple + part surface thermocouple for large components). Quench tank monitoring time and temperature records. All heat treatment records are retained indefinitely.
- Post-Heat Treatment Inspection: Hardness survey (min. 5 points per component) to verify the full dissolution of the sigma phase (required HB ≤ 217). Metallographic examination of representative samples of each heat to confirm grain size (target ASTM 3-5), absence of sigma phase and absence of carbide sensitization in weld affected zones.
- Chemical Composition Re-Verification: Full OES spectrometer re-analysis of each production piece or representative sample from each heat batch, with certificate issued. Special XRF verification of cerium content for each heat.
- Mechanical Property Testing: Tensile (Rm, Rp0.2, A5) and impact (KV, 0°C or as specified) testing on specimens machined from representative prolongations of each heat batch, per ASTM A370 or EN 10002-1 as applicable. Results reported on MTC.
- Non-Destructive Testing (NDT): 100% Ultrasonic Testing (UT) per ASTM A388 or EN 10228-3/4; Liquid Penetrant Testing (PT) per ASTM E165 or EN 571-1 on all machined surfaces; Magnetic Particle Testing (MT) on ferritic welds if applicable; Radiographic Testing (RT) per ASTM E1032 for pressure-containing components when specified. All NDT operators are qualified to internationally recognised standards (ASNT or equivalent).
- Final Dimensional and Visual Inspection: Full dimensional verification against customer drawing by our metrology department. 3D coordinate measuring machine (CMM) reports available for complex machined geometries. Surface finish verification (Ra measurement). Final visual inspection under adequate lighting per EN 970 / ASME B16.34 as applicable.
We provide complete EN 10204 3.1 Mill Test Certificate (MTC) as standard for all deliveries, signed by our Quality Control Manager. EN 10204 3.2 certification by accredited third-party inspection agencies (SGS, TUV SUD, Bureau Veritas, Intertek) is available upon request and at additional cost. Third-party witness inspection at our factory can be arranged for any stage of the production process.
Procurement Engineering Guide: How to Order Custom 253MA Forgings
With years of experience working with procurement engineers, materials engineers and project managers, we have compiled this practical guide to help you streamline your 253MA forging procurement process to ensure you get exactly what you need, when you need it and to spec.
Step 1: Prepare a Complete Technical Specification Package
The more complete your initial inquiry, the quicker and more accurate your quote will become. A good inquiry package for custom 253MA forgings would include:
- Dimensional drawing with all important dimensions, tolerances, and surface finish requirements. DWG, DXF, PDF, STEP, or IGES format all accepted. For ring forgings, specify OD, ID, height, and forging allowance if pre-machined profile is needed
- Material specification: Specify "253MA per ASTM A182 Grade F253MA" or "UNS S30815 per EN 10222-5" clearly. If additional composition restrictions are needed beyond standard (e.g., tighter Ce range, specific P max), state them explicitly.
- Delivery condition: Solution annealed + water quenched (standard) or other heat treatment condition if specified by code.
- Required mechanical properties: Normally per ASTM A182 minimum. Specify if elevated-temperature tensile or creep data is needed in addition to room-temperature MTC data.
- NDT requirements: UT class (ASTM A388 Class X, EN 10228-3/4 Quality Class 3/4), PT requirements, RT if applicable. Specify acceptance criteria (SNR or indication size limit).
- Certification level: EN 10204 3.1 (standard) or EN 10204 3.2 (with third-party inspector). Specify which third-party agency if needed by your project (SGS, TUV, BV, Intertek, DNV, etc.).
- Applicable code or project specification : ASME , API , PED , NACE , nuclear code , etc . Add any additional customer-specific requirements or supplementary requirements (SR) to the base standard.
- Quantity and delivery schedule: Total quantity, desired delivery date (or required delivery date) and whether partial deliveries are acceptable for large orders.
Step 2: Understand Our Lead Times
Realistic lead time planning is essential for project scheduling. Our typical lead times for 253MA forgings are:
| Component Category | Weight Range | Typical Lead Time | Notes |
|---|---|---|---|
| Small valve components, bars and standard rings | 30–500 kg | 25–35 days | From confirmed order + drawing approval |
| Medium tube sheets, flanges and pump casings | 500–5,000 kg | 35–50 days | Includes solution anneal + full UT + MTC |
| Large rings, pressure vessel nozzles and large valve bodies | 5,000–15,000 kg | 50–70 days | Third-party witness inspection adds 5–7 days |
| Very large forgings (pump casings, reactor components) | 15,000–30,000 kg | 70–100 days | May require customer drawing approval before forging |
| Mass production (high-volume valve components) | Any size, 100+ pieces | 45–75 days | First article inspection recommended; stocking agreements available |
Step 3: First Article Inspection (FAI) for New Programs
On new customers or new part numbers coming into production for the first time, we highly recommend a First Article Inspection (FAI) process. We will produce a small quantity (typically 1-3 pieces) of the forging before going into full production and both parties verify that the part meets all dimensional, material and NDT requirements. This one investment in FAI eliminates costly rework or rejection of large production batches, and provides a documented baseline for ongoing production control.
Step 4: Establish a Supplier Qualification
Many of our customers — particularly in oil & gas, power generation, and heavy industry — have formal supplier qualification requirements. We support customer qualification audits at our factory and can provide our complete quality documentation package including: ISO 9001:2015 certificate, procedure qualification records (PQRs) for all applicable NDT methods, equipment calibration certificates, NDT operator qualification records, and our complete quality plan for 253MA forging production.
Marking & Packaging Specification for 253MA Forged Parts
Permanent Marking
Each finished 253MA forged part is permanently marked using low-stress dot-peening or vibro-engraving (never high-stress stamping that could create stress concentration points in critical parts) to ensure full traceability throughout the supply chain and the part's service life. Following are standard marking:
- Purchaser's part number and purchase order number
- Individual part identification number (unique serial number for full traceability)
- Heat number and material grade designation (253MA / UNS S30815 / 1.4835)
- Manufacturer's identification mark (Jiangsu Liangyi / JNMT)
- Standard compliance marking (e.g., ASTM A182) where required by code
- Heat treatment condition (SA = solution annealed)
All markings are enclosed within a clearly defined border and, where specified, protected with durable white paint to guarantee long-term legibility in storage and service. For clean-room or sterile applications, electrochemical etching is available as an alternative to mechanical marking.
Packaging & Global Shipping
We provide engineered packaging solutions designed for the weight, geometry, and shipping mode of each component. Following are our standard packaging for 253MA forged parts:
- Rust Protection: All machined surfaces are coated with rust-inhibiting oil (VCI or traditional mineral oil) before packaging. Unmachined forged surfaces receive a protective primer coat for sea shipping.
- Individual Wrapping: Each part is individually wrapped in VCI paper or polyethylene foam to prevent contact damage during transport.
- Wooden Cases/Pallets: ISPM 15 heat-treated and fumigated wooden cases and pallets with fumigation certificate, accepted by all destination countries for sea freight import.
- Weight Capacity: The wooden case is designed to support the weight of the component with a safety factor of ≥3× for sea freight conditions. Forklift access points and center of gravity marking provided for safe handling.
- Documentation Packet: MTC, packing list, commercial invoice, certificate of origin, and NDT reports packed with each shipment in a waterproof sealed envelope inside the case.
We offer global shipping via sea freight (FCL/LCL), air freight, and international express courier, working with major logistics partners (Maersk, COSCO, MSC, DHL, FedEx Freight). Door-to-door delivery to any global destination is available on request, including customs clearance support.
Frequently Asked Questions (FAQ) About 253MA Forgings
253MA alloy (UNS S30815) is used primarily for high-temperature industrial applications where service temperatures are in the 700–1150°C range and where oxidation resistance, creep strength, and resistance to carburization or sulfidation are critical. Key application areas include: thermal and nuclear power plant boiler and heat exchanger components; petrochemical furnace parts (ethylene cracker supports, reformer flanges, SRU components); high-temperature industrial valves and flow control equipment; oil & gas wellhead and Christmas tree equipment in high-temperature sour service; waste incineration plant components; industrial furnace rollers, supports, and fixtures; and cement kiln equipment. Its combination of high performance and relatively low material cost (vs. Inconel or Alloy 800H) makes it the preferred choice across all these industries when temperatures do not exceed 1150°C.
The UNS designation for 253MA alloy is UNS S30815. In Europe, the same alloy is standardized as EN 1.4835 under the European numbering system. Other common trade names and designations for the same alloy include: Grade 253MA, and Alloy 253 MA. When ordering material or reviewing material test certificates, all of these designations refer to the same composition specification: 20–22% Cr, 10–12% Ni, 1.4–2.0% Si, 0.14–0.20% N, 0.03–0.08% Ce.
253MA's maximum recommended service temperatures depend on the type of service: in continuous service in clean air, oxidation resistance is excellent up to 1150°C. In intermittent (cyclic) service, the maximum is 1100°C — even though 253MA's cerium-anchored scale is exceptionally resistant to thermal cycling, reducing the cyclic maximum by 50°C provides an additional safety margin for components experiencing repeated thermal shocks. For long-term creep applications, the maximum temperature for which sufficient creep rupture data exists for design purposes is approximately 900°C for 100,000-hour design lives; above 900°C, creep becomes the life-limiting mechanism and component design must be based on creep rupture data rather than conventional yield/tensile strength.
253MA is an austenitic stainless steel and is essentially non-magnetic in the fully solution-annealed condition. The austenite matrix has a face-centered cubic (FCC) crystal structure which does not support ferromagnetism. However, a small degree of magnetism can appear in localized areas for two reasons: (1) In cold-worked zones (e.g., thread roots, heavily deformed surfaces), the austenite can partially transform to deformation-induced martensite, which is magnetic. (2) In weld heat-affected zones (HAZ), rapid local heating and cooling can also induce some martensite formation. In both cases, the slight magnetism does not affect the alloy's mechanical or corrosion performance. If strict non-magnetism is required by your application (e.g., certain laboratory or medical equipment), contact us to discuss process options for minimizing cold work in critical areas.
Yes, 253MA has excellent weldability, comparable to standard 304 stainless steel. All common fusion welding processes are applicable: SMAW (manual arc welding with coated electrodes), GTAW / TIG welding (preferred for root passes and thin sections), GMAW / MIG welding, and SAW (submerged arc welding for automated high-deposition applications). Recommended practices: (1) Use matching or slightly over-alloyed filler metal — dedicated 253MA filler wire/electrodes are available from major consumable manufacturers; AWS ER309L or ER310 can be used as alternatives when dedicated 253MA filler is not available. (2) Keep interpass temperature below 150°C to minimize sensitization risk. (3) Limit heat input to ≤15 kJ/cm. (4) Post-weld heat treatment (PWHT) is generally not required for 253MA joints in most applications. (5) If full creep strength restoration is needed after welding (e.g., for pressure equipment in sustained high-temperature service), a full solution anneal at 1050–1150°C followed by water quench is recommended for the complete weldment.
Jiangsu Liangyi has no strict minimum order quantity for custom 253MA forgings. We regularly supply both single-piece prototype forgings (e.g., a one-off 8,000 kg reactor nozzle for engineering evaluation) and high-volume production runs of tens of thousands of small valve components per year. However, please keep in mind that for very small quantities of small parts (for example 5 pieces of a 50 kg valve body) the per piece cost will contain the melting and setup overhead costs spread over less pieces. For smaller quantity projects where cost is an issue, we recommend blanket order arrangements, where you commit to a total annual quantity but draw down smaller quantities on a monthly or quarterly basis, allowing us to optimize production scheduling and reduce per-piece cost.
253MA (UNS S30815) outperforms 310S (UNS S31008) across nearly all high-temperature performance metrics despite containing significantly less nickel: maximum oxidation temperature (1150°C vs 1100°C for 310S); cyclic oxidation resistance (dramatically superior — 310S oxide scale spalls during thermal cycling, while 253MA's Ce-anchored scale remains intact); creep strength at 800°C (significantly higher due to nitrogen solid solution strengthening); carburization resistance (superior due to Si + Ce combination); and cost (lower, despite better performance, because 253MA contains only 10–12% Ni vs 19–22% Ni in 310S). The only area where 310S retains an advantage is wider commercial availability in standard mill product forms (sheet, plate, tube) — 253MA, while increasingly available globally, is a more specialized alloy. For forged components specifically, availability from qualified manufacturers like Jiangsu Liangyi is not a limiting factor.
All 253MA forged parts are delivered with EN 10204 3.1 Mill Test Certificate (MTC) as standard — signed by our Quality Control Manager and confirming the material meets all specified requirements. EN 10204 3.2 certification by an accredited independent third-party inspection authority (SGS, TUV SUD, Bureau Veritas, Intertek, DNV, or customer-designated agency) is available on request. Our company holds ISO 9001:2015 quality management system certification, which is independently audited annually. All products are manufactured to the technical requirements of ASTM A182, EN 10222-5, EN 10088-3, and other applicable standards; material composition and hardness values meet the requirements of NACE MR0175 / ISO 15156 for sour service. Comprehensive documentation packages to support API 6A and API 6D project requirements are available upon customer request.
The most important alloying element in 253MA is arguably cerium (Ce, 0.03-0.08%), which is responsible for the outstanding performance of the alloy in cyclic high temperature service. Ce operates via three mechanisms: (1) Oxide scale anchoring: formation of CeO₂ particles at the oxide-metal interface mechanically anchors the protective Cr₂O₃ scale to the substrate. This avoids thermal cycling, the most common failure mechanism of heat resistant alloys in cyclic service, resulting in cracking and spalling of the scale. (2) Decrease in oxidation rate: Ce changes the ion transport mechanism through the oxide scale and reduces the parabolic oxidation rate constant by 3–5× relative to the same alloy without Ce. (3) Grain boundary purification: Ce is a sulfur scavenger at grain boundaries (forming stable CeS). It improves creep ductility and prevents premature intergranular fracture at high temperature. Without cerium, 253MA would be a much less efficient high-temperature alloy, essentially a nitrogen-strengthened variant of 21Cr-10Ni stainless steel that lacks the outstanding cyclic oxidation resistance that makes it the industry standard for thermal cycling applications.
The recommended hot working temperature range for forging 253MA is 1150–950°C. Heating above 1200°C causes rapid austenite grain coarsening — once grains grow excessively, they cannot be fully refined by subsequent forging and the component's creep properties are permanently degraded. Below 900°C, 253MA work-hardens rapidly due to its low stacking fault energy (SFE), leading to excessive forging loads and surface cracking. Large forgings (>500mm section thickness) must be reheated back to 1100–1150°C when the surface temperature drops below 980°C during forging, to ensure through-thickness deformation within the acceptable range. Following forging, the material must be solution annealed at 1050–1150°C and rapidly quenched (water quench preferred for sections >50mm) to dissolve any secondary phases that may have formed and to prevent sigma phase precipitation during cooling.
253MA is not the right material choice for: (1) Service temperatures above 1150°C (continuous): The Cr₂O₃ protective scale volatilizes as CrO₃ gas above this temperature. Use Inconel 601, Alloy 330, or Kanthal alloys instead. (2) Strongly reducing atmospheres with O₂ partial pressure below ~10⁻²⁰ atm: The protective oxide scale cannot form, leading to rapid internal oxidation and carburization. (3) Ambient-temperature aqueous chloride environments: 253MA has only moderate pitting resistance (PREN ≈ 22–24); use 316L, 317L, or duplex 2205 instead for seawater or brine service. (4) Cryogenic service below −100°C unless specifically tested and qualified at the design temperature. (5) Applications requiring very high hardness — as an austenitic alloy, 253MA cannot be hardened by heat treatment; maximum hardness is approximately 217 HB in the annealed condition.
For custom 253MA forgings, the normal lead time is 25–100 days. The real lead time depends on component size, drawings, quantity, and inspection requirements. For small components (30–500 kg), the lead time is 25–35 days after confirmed order and drawing approval. For medium components (500–5,000 kg), the lead time is 35–50 days. For large components (5,000–30,000 kg), the lead time is 50–100 days including forging, heat treatment, machining, and inspection. Third-party witness inspection adds approximately 5–7 days for scheduling and witness attendance. For urgent projects, please contact our sales team — we can often accommodate expedited production for components where our current production schedule permits, or we maintain a limited stock of common 253MA forging blanks that can reduce lead time for standard shapes.
Contact Us for Custom 253MA Forging Quotation
Jiangsu Liangyi is your trusted China-based ISO 9001:2015 certified manufacturer and global supplier of high-quality 253MA (UNS S30815) forged forging parts. With 25+ years of forging experience, advanced production equipment from EAF melting through to precision CNC machining, and a strict full-process quality control system, we are committed to delivering competitive pricing, consistently superior quality, and professional engineering support for every custom forging project.
Whether you need a single custom prototype 253MA forging, a complete project package of certified pressure components, or a continuous supply program for valve or industrial components, our engineering and sales team is ready to assist you. Send us your drawings, technical specifications and project specification and we will respond with a detailed technical proposal and competitive quotation within 24 hours.
Inquiry Email:
Phone / WhatsApp:
Official Website:
Factory Address:
Chengchang Industry Park, Jiangyin City, Jiangsu Province, China 214400
