2.4889 Alloy Metallurgy Deep-Dive — The Science Behind the Performance
Most product pages for 2.4889 (NiCr28FeSiCe) simply list chemical composition ranges and call it a "high-temperature corrosion-resistant alloy." That description is technically accurate but practically useless for an engineer trying to decide whether 2.4889 is the right choice for a specific operating environment. Our metallurgical team has compiled the following analysis based on 27 years of processing this alloy and reviewing over 140 published research papers on NiCrFeSi systems.
Why the Austenitic NiCrFe Matrix Works at High Temperature
The base of 2.4889 is a fully austenitic (FCC) matrix stabilized by its high nickel content (minimum 45% Ni). The FCC crystal structure is inherently more creep-resistant than BCC structures because it has more slip systems that must be activated simultaneously — meaning dislocation movement is more difficult, and the material maintains load-bearing capacity at elevated temperatures where ferritic and martensitic alloys have already undergone phase transformations or stress-relief annealing.
The critical temperature for 2.4889 is its solution annealing temperature of 1150°C. At this temperature, all secondary phases — including sigma phase (σ), Laves phase, and M23C6 carbides — dissolve back into the austenite matrix. Rapid water quenching after solution annealing "freezes" this homogeneous, single-phase microstructure, which is the starting point for optimal corrosion resistance and toughness. This is why we specify 1150°C × 1.5–2 hours, water quench as our standard heat treatment, and why we do not permit air cooling for 2.4889 — the difference in cooling rate is the difference between passing and failing a ASTM A262 Practice E intergranular corrosion test.
The Role of Silicon (2.5–3.0%) — More Than Just a Deoxidizer
Silicon at the 2.5–3.0% level in 2.4889 serves a purpose that goes far beyond its conventional role as a deoxidizer in stainless steels. At these concentrations, Si enriches preferentially at the alloy/oxide scale interface during high-temperature oxidation, forming a thin, continuous SiO₂-rich sublayer beneath the outer Cr₂O₃ scale. This SiO₂ sublayer acts as a diffusion barrier, dramatically reducing the outward flux of Cr and Ni cations through the oxide, which in turn slows the overall oxidation rate. The mechanism is particularly effective in SO₂/SO₃ atmospheres where chromia alone is degraded by volatile CrO₂(OH)₂ species.
This is the primary reason why 2.4889 outperforms nickel alloys with higher Ni but lower Si — such as Inconel 600 (max 0.5% Si) — in waste incineration flue gas environments where sulfur trioxide concentrations can reach 200–500 ppm and chlorine activities are significant.
🔬 Metallurgist's Insight: Why Cerium (Ce) Is the Secret Ingredient
The addition of 0.03–0.09% Cerium is what transforms 2.4889 from a good high-temperature alloy into an exceptional one. Cerium is a reactive element — it has a far higher affinity for oxygen and sulfur than chromium — and it segregates strongly to austenite grain boundaries during solidification and solid-state annealing.
At grain boundaries, Ce fulfills two functions simultaneously. First, it getters sulfur: sulfur, even at sub-ppm levels, dramatically weakens grain boundaries and promotes the formation of low-melting-point NiS and Ni₃S₂ phases during processing and service. Ce combines preferentially with sulfur (forming CeS, which is stable to over 2000°C), removing it from grain boundaries and restoring their high-temperature strength. Second, Ce modifies the oxide scale: by substituting at cation vacancies in Cr₂O₃, Ce dramatically reduces the cation diffusivity through the scale by 1–2 orders of magnitude. The result is a slower-growing, more adherent oxide that does not spall during thermal cycling — a phenomenon well-documented in publications from the Materials Science and Engineering journals from the University of Cambridge group (Stott, Wood, et al.).
From a practical standpoint, our internal thermal cycling tests (100°C → 900°C, 10-minute cycles, 500 cycles; based on internal laboratory testing conducted on 2.4889 specimens produced at our factory) show that 2.4889 samples retain >95% of their original oxide scale adhesion, while identical NiCrFe alloys without Ce addition show >40% scale spallation under the same conditions. This is consistent with mechanisms well-documented in published literature on reactive element effects in high-Cr alloys (e.g., Stott, Wood et al., Materials Science and Engineering). This explains why incineration plant operators report 3x+ service life compared to 310S: it is not just the higher Cr content, it is the Ce-modified oxide that doesn't peel off every time the boiler goes through a startup/shutdown cycle.
Phase Stability and the Sigma Phase Risk
Engineers specifying high-Cr nickel alloys must be aware of sigma phase (σ) precipitation. Sigma phase is an intermetallic compound (approximately (Cr,Fe,Mo)x(Ni,Co)y) that forms in the temperature range of 600–900°C during long-term exposure. It is hard, brittle, and — critically — Cr-depleted relative to the matrix, meaning it reduces corrosion resistance in the surrounding zones. For 2.4889 with 26–29% Cr and 21–25% Fe, the thermodynamic driving force for sigma formation exists, but is significantly retarded by:
- The high Ni content (≥45%) which expands the austenite phase field and raises the sigma nose temperature, slowing its kinetics.
- The low C content (typically 0.05–0.08%) which minimizes M23C6 carbide precipitation along grain boundaries — a known nucleation site for sigma.
- The Ce addition which reduces grain boundary segregation of Cr and Fe, limiting the local composition enrichment that triggers sigma nucleation.
In practice, 2.4889 components operating continuously below 850°C are not at significant sigma risk within a 10-year service life. Components exposed to 850–1000°C for extended periods should be periodically inspected via hardness testing (sigma causes measurable HB increases) and metallographic examination. Our engineering team can advise on inspection intervals based on your specific operating temperature profile and duty cycle.
Alloy Selection Guide — 2.4889 vs 310S vs Inconel 600 vs Alloy 625
Selecting the right alloy for a high-temperature corrosive application is one of the most consequential — and frequently under-analyzed — decisions in equipment specification. Below is an honest, data-driven comparison of 2.4889 (NiCr28FeSiCe) against the three alloys it most frequently competes with in our clients' specification reviews. We have processed all four alloys and have direct comparative performance data from client field feedback.
| Property | 2.4889 (NiCr28FeSiCe) | 310S (1.4845) | Inconel 600 (2.4816) | Alloy 625 (2.4856) |
|---|---|---|---|---|
| Ni Content | ≥ 45% | 19–22% | 72% min | 58% min |
| Cr Content | 26–29% | 24–26% | 14–17% | 20–23% |
| Si Content | 2.5–3.0% | ≤ 1.5% | ≤ 0.5% | ≤ 0.5% |
| Rare Earth Addition | Ce 0.03–0.09% | None | None | None |
| Max Continuous Service Temp. | 1100°C | 1100°C (scale spalls) | 1050°C | 980°C |
| SO₂ / SO₃ Resistance | Excellent | Poor–Fair | Fair | Good |
| HCl / Cl₂ Flue Gas Resistance | Excellent | Poor | Fair | Good |
| Oil Ash / Vanadium Resistance | Excellent | Poor | Fair | Good |
| Thermal Cycling Oxide Adhesion | Very High (Ce effect) | Low (spalls at 800°C+) | Moderate | Good |
| Tensile Strength (RT) | 620–820 MPa | 515–690 MPa | 550–700 MPa | 820–1000 MPa |
| Forgeability (open die) | Excellent | Excellent | Good | Moderate (requires higher force) |
| Weldability | Good | Good | Excellent | Good |
| Relative Material Cost (Forging) | ★★★☆☆ (moderate) | ★★☆☆☆ (low) | ★★★★☆ (high) | ★★★★★ (very high) |
| Typical Service Life vs. 310S | 3x+ | 1x (baseline) | ~2x | ~2–2.5x |
2.4889 — Select When:
- Temperature 750–1100°C
- SO₂/SO₃ / chlorine flue gas
- Waste incineration service
- High-sulfur crude oil refining
- Cost matters vs. Inconel 625
- Thermal cycling environment
310S — Select When:
- Temperature < 750°C, low sulfur
- Oxidizing atmosphere only
- Budget is the primary driver
- Static (no thermal cycling)
- Lower pressure requirements
Alloy 625 — Select When:
- Extreme reducing acids (HCl, H₂SO₄)
- Seawater / crevice corrosion priority
- Highest mechanical strength needed
- Budget is flexible
- Low-temperature corrosion focus
Full Range of Custom 2.4889 (NiCr28FeSiCe) Forged Products
Our in-house equipment capacity enables us to produce the complete spectrum of NiCr28FeSiCe forging steel products in a single integrated facility, eliminating the sub-contracting risk and quality gaps that commonly arise when trading companies outsource to multiple mills. All forgings are produced with a minimum 3:1 forging ratio, ensuring that cast dendrite segregation is fully broken down and a refined, homogeneous wrought microstructure is achieved throughout the entire cross-section — critical for pressure-retaining and safety-critical applications.
2.4889 Forged Bars, Rods & Shafts
We manufacture custom 2.4889 forged steel round bars, square bars, flat bars, rectangular bars, step shafts, gear shafts, turbine shafts, and crankshafts. Maximum forging diameter: 2000mm. Maximum length: 15m. Maximum single-piece weight: 30 tons. We offer three delivery conditions:
- Black Forged (As-Forged + Heat-Treated): For clients who perform their own machining; includes rough scale removal and basic dimensional verification.
- Rough Machined: 3–5mm stock on all surfaces; confirms straightness and identifies any surface-near discontinuities before client's machining.
- Precision Machined to Drawing: Full CNC machining to client-supplied drawings, IT6 tolerance, Ra 3.2 or better surface finish. CMM inspection report provided.

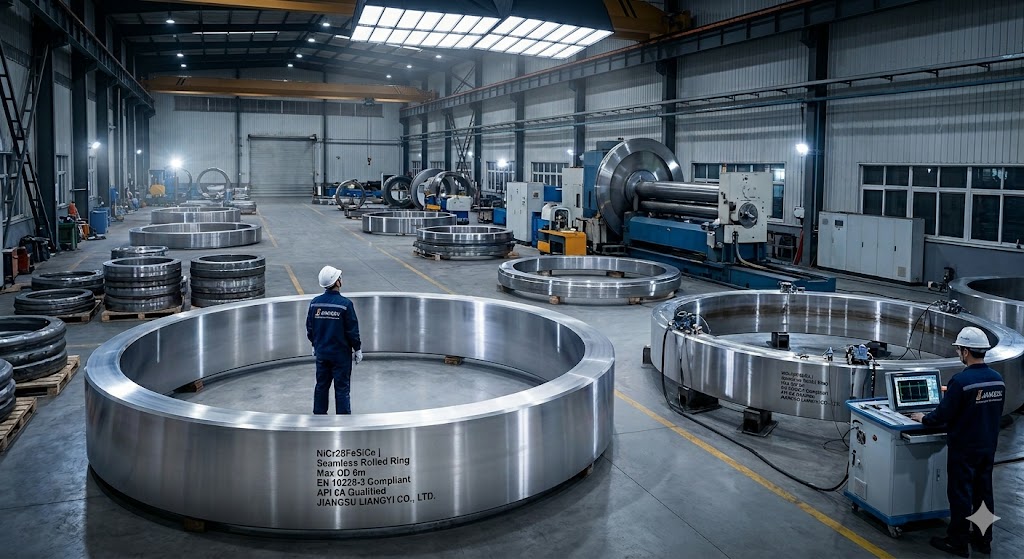

NiCr28FeSiCe Seamless Rolled Forged Rings
Our NiCr28FeSiCe seamless rolled rings are produced on our 1M–5M ring rolling machines after initial open-die pre-forming on the hydraulic press. This two-stage process ensures that the ring has a circumferentially oriented, fully worked grain structure — a critical advantage over machined rings cut from bar stock, where the grain runs axially and the hoop-direction properties are inferior. Available types:
- Flat Rings (Rectangular Cross-Section): Standard form; maximum OD up to 6m, single-piece weight up to 30 tons.
- Contoured Rings: Near-net-shape profiles (flanges, gear rings, bearing rings) with complex cross-sections rolled on profiled mandrels; reduces machining stock by up to 60% versus flat rings.
- Valve Seat Rings & Body Blanks: Tight-tolerance ring blanks for gate valve, ball valve, and butterfly valve bodies; 100% UT per EN 10228-3, Level 3.
2.4889 Hollow Forgings, Sleeves & Thick-Wall Pipes
Custom 2.4889 forged cylinders, hubs, housings, shells, sleeves, bushes, heavy-wall hollow bars, seamless pipes, tubing casings, and pump barrels. Maximum OD: 3000mm. We drill center holes on the hydraulic press using our saddle-support piercing technique, which maintains grain flow continuity around the bore — an important advantage for rotating components such as pump barrels and bearing housings where fatigue performance at the bore surface is critical.
Custom-Machined 2.4889 Forged Components for Extreme Applications
We supply a broad range of close-tolerance machined forgings including tube sheets, baffle plates, flanges, nozzles, transition cones, valve balls, bonnets, stems, closures, disc-check valve discs, pump impellers, wear rings, and custom mechanical components. Surface treatment options include:
- Stellite hardfacing (Stellite 6 / 12 / 21) on valve seating surfaces for combined corrosion and wear resistance.
- Electroless Nickel Plating (ENP), 50–100μm thickness, for dimensional restoration and corrosion isolation.
- Hard Chrome Plating, for reciprocating shaft applications requiring low friction and high surface hardness.
- Passivation per ASTM A967 (citric acid or nitric acid), standard for all precision-machined parts.
Application Engineering — Industry-Specific Technical Requirements
Every industry imposes a unique combination of mechanical, thermal, and chemical stressors on forged components. Here we provide the specific technical context for each of our core markets — not generic marketing language, but the actual engineering parameters our metallurgical team evaluates when reviewing a client's RFQ.
Oil & Gas — Upstream & Downstream
In upstream sour service, the dominant corrosion mechanism is sulfide stress cracking (SSC) and hydrogen-induced cracking (HIC). 2.4889 forgings in this environment must comply with NACE MR0175/ISO 15156 Part 3 for nickel-based alloys in H₂S service. The key qualification requirements include: maximum hardness of 40 HRC (typically 2.4889 is well below this at ≤220 HB / ~22 HRC), acceptable microstructure without sensitized grain boundaries, and solution annealed delivery condition. Our sour service forgings undergo additional sulfide stress cracking (SSC) test per NACE TM0177 Method A upon client request.
In downstream refinery service — particularly fluid catalytic cracking (FCC) units, vacuum distillation overhead systems, and hydrodesulfurization (HDS) units — the combination of 400–650°C operating temperatures, high-velocity corrosive process streams containing H₂S, HCl, NH₄Cl, and ammonium bisulfide creates an environment where 316L and 317L fail within 2–3 years. Our 2.4889 forged valve bodies and heat exchanger tube sheets have demonstrated 6+ year service lives in these applications (reference: Middle East refinery case study, Case 1 below).
High-Temperature Power Generation & Industrial Boilers
In power generation applications, 2.4889 is specified for boiler superheater and reheater components, waste heat recovery unit (WHRU) internals, and combined cycle plant hot section components where flue gas temperatures exceed 750°C. The key selection driver is the simultaneous presence of SO₂ from sulfur-bearing fuels, water vapor (which accelerates Cr₂O₃ volatilization as CrO₂(OH)₂ species), and thermal cycling from load changes and planned outages. 2.4889's Ce-modified oxide is significantly more resistant to steam-enhanced volatilization than plain Cr₂O₃ systems, maintaining protective scale integrity through hundreds of startup/shutdown cycles.
Waste Incineration — The Harshest Corrosion Environment
Municipal solid waste (MSW) and hazardous waste incineration flue gas represents the most chemically aggressive industrial atmosphere encountered in forging applications. Our experience with over 15 incineration plant projects has given us detailed understanding of the corrosion mechanisms involved:
- Alkali chloride-induced hot corrosion: KCl and NaCl vapor (from chlorine in household waste) condenses on heat exchanger tubes in the 400–600°C range and reacts with the protective oxide scale. The resulting molten chloride salt (KCl melting point 770°C, but eutectic mixtures melt as low as 350°C) dissolves Cr₂O₃, leaving behind a porous, non-protective oxide. 2.4889's elevated Si content generates a SiO₂ sublayer that is significantly more resistant to chloride attack than Cr₂O₃ alone.
- Sulfation attack: SO₂/SO₃ in the flue gas reacts with Cr₂O₃ to form volatile CrO₂(SO₄) species, depleting the oxide of chromium. The high Cr content (26–29%) of 2.4889 provides a larger reservoir of Cr to replenish the scale compared to 310S (24–26% Cr).
- Thermal cycling damage: Start/stop cycles cause differential thermal expansion between metal and oxide, which progressively spalls non-adherent scales. The Ce-modified oxide of 2.4889 maintains adhesion through 500+ thermal cycles (our internal test data).
For incineration plant components, we recommend specifying the ESR-grade 2.4889 ingot for critical heat exchanger tube sheets and nozzles — the tighter compositional homogeneity achievable via ESR reduces local composition gradients that can create "weak spots" in the protective oxide. This adds approximately 8–12% to ingot cost but significantly extends service life.
Petrochemical & Chemical Processing
In petrochemical service, 2.4889 is most frequently specified for catalytic reforming reactor internals (cyclones, distributors, catalyst support rings operating at 450–550°C), sulfur recovery unit (SRU) components where H₂S concentrations reach 50–80%, and ethylene cracker transfer line exchanger (TLE) components operating at tube-wall temperatures up to 900°C. The key design consideration in cracker service is the alloy's resistance to carburization — the absorption of carbon from cracked hydrocarbon gases into the metal matrix, which embrittles the alloy and reduces corrosion resistance. 2.4889's high Ni and Cr content provides moderate carburization resistance; clients requiring maximum carburization resistance at temperatures above 950°C should evaluate our HP alloy or HK40 range for that specific application.
Global Proven Project Cases — Real Engineering Problems, Real Results
We do not publish project case studies without client permission. The following four cases represent projects where we have received explicit authorization to share technical details as part of our quality reference documentation. All specifications, quantities, and performance data are documented in our ISO 9001:2015 quality records.
Case 1: High-Sulfur Crude Oil Refinery — Middle East (400,000 BPD)
Engineering Challenge: A Middle East 400,000 bpd high-sulfur crude oil refinery needed valve and heat exchanger components for the atmospheric distillation unit (ADU) and vacuum distillation unit (VDU) overhead systems. The operating environment included process temperatures of 520–640°C, H₂S concentrations of 1–3%, HCl at 50–200 ppm, and ammonium chloride deposition zones in the overhead condensing system.Previous 316L stainless components had failed within 18–24 months due to chloride stress corrosion cracking (CSCC) and pitting. Previous 310S components lasted 3–4 years but showed severe sulfidation attack at the process temperature peaks.
Our Technical Response: Our metallurgical team reviewed the client’s corrosion failure reports and the HYSYS process simulation data and recommended 2.4889 (AOD + VD grade) with the following process controls: (1) AOD smelting to produce Si content of 2.7–2.9% for maximum resistance to flue gas, (2) Forging with minimum forging ratio of 4:1 and 100% UT, (3) Solution anneal at 1160°C to ensure complete dissolution of any M23C6 precipitates, (4) Grain size control to ASTM E112 Grade 4–6. We supplied more than 2,000 custom forged components including gate valve bodies (Class 600-2500), globe valve bonnets, heat exchanger channel flanges, tube sheets and manway cover forgings. Third party inspection on site with client witness was done by SGS.
Result (6+ Years Later): Based on field feedback received from the client, zero corrosion-related equipment failures have occurred in the 2.4889 components over the six-year service period. The client has subsequently specified our 2.4889 forgings for use in their refinery expansion project, for which we are currently engaged in quotation discussions.
Case 2: Fluid Catalytic Cracking (FCC) Unit Regenerator — East Asia Refinery
Engineering Challenge: A major East Asian petrochemical refinery needed custom forged components for the cyclone systems and regenerator internals on the Fluid Catalytic Cracking (FCC) unit. The operating conditions were continuous service at 680–750 °C in a regenerator atmosphere of high velocity catalyst particles (erosive), SO2 at 200–400 ppm from sulfur compounds in the feed, and regeneration gas (CO/CO2/steam mixture) creating alternating oxidizing and reducing zones. 310S cyclone barrels in the past needed replacement at 18-24 months due to combined sulfidation and erosion-accelerated oxidation (EAO).The client had a minimum service life of 5 years and ASME Section VIII Div. 1 material compliance.
Our Technical Response: Our metallurgical team reviewed the client’s operating conditions and determined that EAO was the major failure mechanism, which is a combination of erosion that continuously removes the protective oxide scale and exposes new alloy surface to sulfidation attack.We recommended 2.4889 AOD grade with Si controlled at 2.8–3.0% (maximizing the SiO₂ sublayer barrier against sulfidation) and specified a minimum forging ratio of 4:1 for all cyclone barrel blanks to maximize the near-surface grain refinement that improves erosion resistance. We supplied over 85 tons of custom 2.4889 forged components — cyclone barrel shells, inlet vortex finders, dipleg transition cones, and manway cover flanges — all with rough-machined surfaces to allow client final machining to drawing. Full 100% UT per ASTM A388 and EN 10204 3.1 MTC were provided for every piece. Third-party inspection was coordinated through Bureau Veritas with client quality inspector present during final dimensional check.
Result: Based on client feedback at the 5-year planned turnaround inspection, all 2.4889 cyclone components showed wall thinning of less than 0.8mm — well within the 3mm design allowance. No unplanned shutdowns due to cyclone component failure occurred over the 5-year period, compared to 2–3 emergency replacements per year previously experienced with 310S. The client subsequently extended the design service interval to 6 years for the next operating cycle.
Case 3: 1200 T/Day MSW Incineration Power Plant — Thailand
Engineering Challenge: A 1200-ton-per-day municipal solid waste incineration power plant in the greater Bangkok metropolitan area required heat exchanger components for their three boiler units. The flue gas analysis showed: temperature 820–880°C at the superheater section, HCl 800–1200 ppm, SO₂ 400–600 ppm, alkali chloride (KCl + NaCl) dust loading 2–5 g/Nm³. Previous 310S tube sheets had suffered through-wall perforation within 18 months in the 850°C zone due to combined alkali chloride-induced hot corrosion and sulfation attack. The client specified a minimum design life of 8 years and TISI compliance for the Thai market import permit.
Our Technical Response: We recommended and supplied ESR-grade 2.4889 specifically for the tube sheet forgings at the high-temperature section (zone 1 and 2 of each boiler, 820–880°C), with standard AOD-grade 2.4889 for lower-temperature sections (zone 3, 650–750°C). For the tube sheet forgings, we specified Si at 2.85–3.0% (controlled to the upper specification limit) and Ce at 0.06–0.08% (also upper range), which our metallurgical team's modeling predicted would provide optimal oxide adhesion under their specific alkali chloride attack conditions. We supplied 157 tons of 2.4889 forgings — tube sheets, baffle plates, channel covers, nozzles, and manway covers — across all three boiler units. Full solution heat treatment at 1155°C × 2 hours, water quench, was applied to all pieces. Grain size was verified at ASTM E112 Grade 5–7 on all heats.
Result: At the 4-year inspection mark, all 2.4889 tube sheet forgings in zone 1 (880°C service) showed oxide scale thickness of 0.18–0.22mm — within the designed 0.25mm threshold — and zero chloride perforation. The client has confirmed the plant is tracking to exceed the 8-year design life target. We have since been awarded the supply contract for two additional 800 T/day incineration units at the same industrial estate.
Case 4: Deep-Sea Oil Field Development — Brazil (2,500m Water Depth)
Engineering Challenge: A development project for an offshore oil and gas field in the pre-salt Santos Basin, Brazil (water depth 2,500m, reservoir fluid containing 5–8% CO₂ and 150–300 ppm H₂S) required forged wellhead spool bodies and Christmas tree components rated for 10,000 psi working pressure, manufactured to API 6A dimensional and material requirements. Selection of materials was very challenging due to the presence of high CO₂ partial pressure (risk of sweet corrosion / mesa corrosion), H₂S (risk of SSC under NACE MR0175), extreme hydrostatic pressure and external environment of deep-sea seawater. The client’s corrosion engineering team had already eliminated both 316L (insufficient CO2 resistance) and Duplex 2507 (unacceptable SSC risk at the H2S level and pH 4.2 of the reservoir fluid).
Our Technical Response: 2.4889 was selected based on its combination of: (a) austenitic microstructure with hardness <22 HRC — inherently resistant to sulfide stress cracking per the criteria in NACE MR0175/ISO 15156 Part 3; (b) high Ni content providing good resistance to CO₂-induced sweet corrosion at the reservoir temperatures (80–110°C); (c) adequate mechanical properties for pressure-retaining components. We supplied NiCr28FeSiCe forged wellhead spool bodies, tubing head spools, Christmas tree bodies, double studded adapter flanges, and ultrasonic flow meter bodies, all dimensionally manufactured to the client's drawings in accordance with API 6A dimensional requirements. Forging ratio was 4.5:1 on our 6300T press. Charpy V-notch impact was verified at -46°C: results 180–230J, significantly above the 40J minimum. Full CMM dimensional inspection was performed at our facility, followed by third-party Bureau Veritas on-site witness inspection of all hydrostatic pressure tests. Note: API Monogram is not held by our factory; components were supplied as forging materials to client's API 6A-compliant assembly shop.
Result: Components were assembled and installed successfully and offshore commissioning was finalized in Q4 2022. To date, Q1 2025, there have been no reports of corrosion or mechanical failures of any wellhead components, and all are operating within their design parameters.”The client is ready to continue to source 2.4889 forging materials from our factory for next follow-on wells.
2.4889 Welding & Fabrication Guide for Engineers
One of the most common technical inquiries we receive from procurement and project engineers is: "Can 2.4889 be welded, and what procedure do I need?" The answer is yes — 2.4889 has good weldability — but there are several process-specific considerations that determine whether the weld joint will match the base metal's corrosion resistance. Below is a summary based on our in-house welding procedure qualification experience and client feedback from the field.
Why Welding 2.4889 Requires Care — The Si Factor
The same silicon level (2.5–3.0%) that gives 2.4889 its excellent high-temperature corrosion resistance also makes the weld pool less fluid than standard austenitic stainless. High Si reduces surface tension dramatically, which means the weld pool tends to be "sluggish" and prone to lack-of-fusion defects if travel speed is not carefully controlled. Additionally, high Si alloys are more susceptible to hot cracking (solidification cracking) at the weld centerline when carbon is simultaneously elevated. This is why we control carbon to 0.05–0.08% in our 2.4889 — it provides the thermal stability benefit of carbon without pushing the hot cracking index into the danger zone for high-Si alloys.
Recommended Welding Filler Metals
- TIG / GTAW (Preferred):
- AWS A5.14 ERNiCrFe-7 (Alloy 52) or ERNiCrFe-7A (Alloy 52M). These filler metals contain controlled additions of Nb and lower C to minimize hot cracking sensitivity while maintaining compatibility with the 2.4889 base metal's corrosion performance.
- MIG / GMAW:
- AWS A5.14 ERNiCrFe-7A (Alloy 52M wire), short-arc transfer or pulsed spray. Spray transfer not recommended due to Si-induced pool instability.
- SMAW (Stick Electrode):
- AWS A5.11 ENiCrFe-7. Electrode should be re-dried at 150°C × 2h before use. Deposit maximum 3 passes per layer; inter-pass temperature <150°C.
- Not Recommended:
- Avoid 308L, 309L, or 310 filler metals — the lower Ni and Cr content will create a galvanic discontinuity at the weld interface and reduce corrosion resistance to below the base metal specification.
Preheat & Inter-pass Temperature
- Preheat: Generally not required for base metal thickness ≤25mm and ambient temperature ≥10°C. For heavy sections (>50mm) or ambient below 5°C, preheat to 50–75°C (not higher — excessive preheat slows cooling and increases sensitization risk in the HAZ).
- Inter-pass temperature: Strictly ≤150°C for all thicknesses. Use contact thermometer — not infrared — on the joint area adjacent to the weld, not on the weld bead itself.
Post-Weld Heat Treatment (PWHT)
For non-pressure-retaining fabrications in moderate service environments: PWHT is typically not required. The as-welded condition is acceptable for service below 600°C in moderately corrosive environments.
For pressure-retaining components per ASME Section VIII Div. 1 / PED or API 6A in severe corrosive service: Post-weld solution annealing at 1120–1160°C, followed by rapid water quenching, is strongly recommended. This dissolves any Cr carbides or sigma phase that may have precipitated in the heat-affected zone (HAZ) during welding, restoring the fully annealed microstructure and maximum corrosion resistance. Note: this requires that the entire fabricated assembly can be solution annealed — if dimensions or distortion constraints prevent full furnace anneal, specify our pre-machined, pre-heat-treated forged components and minimize field welding to non-critical attachments.
Common Failure Modes in 2.4889 Forgings & How We Prevent Them
Over 27 years and several hundred 2.4889 forging projects, our metallurgical team has conducted failure analyses on returned or field-failed components — including components not manufactured by us, submitted by clients for failure investigation. The following are the five most common root causes of premature failure in 2.4889 forgings, and the specific process controls we implement to eliminate them.
| Failure Mode | Root Cause (Most Common) | Consequence in Service | Our Prevention Measure |
|---|---|---|---|
| Intergranular corrosion (IGC) at welds / HAZ | Sensitization — Cr carbide (M23C6) precipitation at grain boundaries, creating Cr-depleted zones | Preferential grain boundary attack; catastrophic in acid environments | Control C to 0.05–0.08%; mandatory solution anneal at 1150°C + water quench; ASTM A262 Practice E test on each heat |
| Sigma phase embrittlement | Prolonged exposure at 600–900°C; inadequate solution anneal (too-low temperature or air cool) | Brittle fracture; reduced toughness; increased hardness | Furnace temperature verified ±5°C by calibrated thermocouples; water quench mandatory; Charpy impact test on each production lot at -20°C |
| Forging cracks (hot tears) | Insufficient forging temperature; improper forging ratio; excessive Si without Ce control | Sub-surface cracks that pass visual but fail UT; catastrophic pressure failure | Controlled forging temperature window (1050–1200°C); minimum 3:1 forging ratio; 100% UT on all billets before machining |
| Premature oxide spallation in service | Cerium out of specification (too low); inadequate solution anneal leaving Ce-rich inclusions undissolved | Accelerated oxidation; loss of oxide protection layer; hot corrosion penetration | Ce controlled 0.03–0.09% per heat analysis; ICP-OES verification on every heat; anneal at 1150°C ensures Ce redistribution |
| Dimensional distortion after machining | Residual forging stresses not relieved; machining sequence wrong | Non-conforming final dimensions; assembly fit issues on-site | Rough machining → stress relief → finish machining sequence for complex geometries; CMM verification before final acceptance |
Global Compliance & Regional Market Regulations
As a professional global supplier, we ensure full compliance with international standards and regional market regulations for all our 2.4889 (NiCr28FeSiCe) forged forging parts. Our compliance scope is broader than most Chinese forging manufacturers because we have invested in the regulatory knowledge infrastructure required to serve safety-critical industries in demanding jurisdictions:
🇺🇸 North America
Material manufactured to ASME Section VIII, ASTM A182/A336 requirements. NACE MR0175/ISO 15156 sour service compliance. EN 10204 3.1/3.2 MTC available. Note: ASME U-stamp and ASME Authorized Inspection are not held — we supply forging materials to client's ASME-stamped manufacturer.
🇪🇺 Europe (EEA)
Material manufactured to EN 10228-3, DIN 17460 dimensional and quality requirements. EN 10204 3.2 MTC with notified body (SGS/BV/TUV) available to support client's PED 2014/68/EU compliance process. Note: CE marking is affixed by the equipment manufacturer — we supply compliant forging materials.
🌍 Middle East
Forgings manufactured to dimensional and material requirements referenced in API 6A / API 6D. NACE MR0175/ISO 15156 compliance. Note: API Monogram is not held — we supply forging materials to clients' API-licensed assembly facilities. Third-party inspection (SGS, BV) available.
🌏 Southeast Asia
TISI (Thailand), SNI (Indonesia), SIRIM (Malaysia), ASTM/ASME material compliance for international EPC projects; we assist with regional import documentation and EN 10204 3.2 for local regulatory submissions.
🌎 South America
Material documentation compliant with ANP (Brazil offshore) import requirements, ASTM/ASME material standards. We assist with PETROBRAS qualification documentation and provide EN 10204 3.2 with third-party inspection as required.
🌐 Global Baseline
ISO 9001:2015 certified (SGS). EN 10204 3.1 MTC standard for all products. REACH compliance declaration, RoHS-compatible material data sheets, and conflict minerals (OECD) disclosure available on request.
In-House Production & Quality Control Process — Step by Step
We control the complete production chain for every 2.4889 NiCr28FeSiCe forging part. The following is an accurate description of our actual production flow — not a generic marketing summary — based on the documented procedures in our ISO 9001:2015 Quality Management System.
Premium Alloy Melting & Ingot Casting
We source electrolytic nickel (99.9% Ni), ferrochromium (LC/ULC grade, C <0.05%), ferrosilicon, and pure cerium metal from qualified, traceable suppliers — not scrap-based inputs. Alloy selection is based on our metallurgical team's heat design calculation, not a fixed recipe, because the final composition must account for the specific Ce loss during AOD oxidation phases. We operate three melting routes:
- EAF + LF + VD/VOD: Standard production grade. Carbon controlled by VOD decarburization. Ce added as misch metal in the final ladle at tapping temperature.
- AOD (Argon-Oxygen Decarburization): High-purity grade. AOD provides superior decarburization without excessive oxidation of Si and Ce, allowing both to be held at higher target levels. Preferred for demanding refinery and incineration applications.
- VIM + ESR (Vacuum Induction + Electro-Slag Remelting): Ultra-critical / high-integrity grade. VIM eliminates hydrogen and nitrogen gas porosity; ESR remelting in controlled atmosphere removes non-metallic inclusions and achieves macro-segregation levels below Level 1.0 per ASTM E45. ESR ingots show Ce distribution uniformity ±0.008% across ingot radius — critical for consistent oxide behavior across large-diameter forgings.
Ingot Soaking & Homogenization
Before forging, all 2.4889 ingots are soaked at 1180–1220°C in our walking-beam soaking furnace for a minimum of 1 hour per 100mm of ingot radius — ensuring temperature is uniform within ±15°C throughout the cross-section before the first press stroke. This step is critical for preventing hot tearing in the Ce-modified alloy: if the ingot core is cold, the Ce-rich dendritic network at grain boundaries is not fully dissolved, creating brittle crack initiation sites under forging compression. Our soaking records are part of the production lot package and are provided with the MTC.
Precision Forging on 6300T Hydraulic Press
Our main forging equipment includes our 6300T hydraulic forging press (maximum force), supplemented by 4000T and 2000T presses for smaller sections and secondary operations. Forging of 2.4889 is performed in the temperature window of 1050–1180°C. Above 1180°C, incipient melting at Ce-rich grain boundary films becomes a risk; below 1050°C, the flow stress increases dramatically, and deformation becomes non-uniform across the cross-section, leading to "cold fold" surface defects. We monitor billet surface temperature with optical pyrometers every 3 press strokes. If temperature drops below 1080°C, the billet is returned to the reheating furnace. Minimum forging ratio: 3:1 for all standard products; 4:1 for sour service and high-integrity applications; 5:1 for ESR-grade billets.
Ring Rolling on 5M Radial-Axial Ring Rolling Machine
Seamless rolled rings begin as press-forged disc preforms with a center hole punched on the press. The preform is then transferred to our 5M radial-axial ring rolling machine while still within the forging temperature window. Radial-axial rolling simultaneously reduces wall thickness (radial roll) and ring height (axial rolls), expanding the OD continuously. Our ring rolling software calculates the feed schedule based on target OD, wall thickness, and height to control grain flow orientation. For 2.4889 rings, we reduce rolling speed in the final pass to maintain strain rate below the dynamic recrystallization threshold — this ensures the final grain size meets the ASTM E112 Grade 4–7 requirement without requiring an additional annealing step between rolling and solution heat treatment.
Standardized Solution Heat Treatment
All 2.4889 forging parts are heat treated in one of our 10 computer-controlled batch furnaces. Temperature uniformity in every furnace is surveyed regularly following internationally recognized calibration practice (temperature uniformity survey tolerance ±14°C), with all thermocouples calibrated against traceable NIST/PTB-equivalent standards. The standard 2.4889 treatment is 1150°C ± 10°C, hold 1.5–2 hours depending on section thickness (minimum 1 hour/25mm), rapid water quench. We use a dedicated spray quench system for large forgings to ensure the cooling rate at the thickest section exceeds 55°C/minute through the sigma nose temperature range (900–700°C). Furnace charts with thermocouple identification, calibration certificate reference, actual time-at-temperature record, and quench time are included in every MTC package.
CNC Precision Machining
For components supplied in machined condition, our in-house CNC machining facility operates 12 CNC turning centers (up to Ø3500mm swing), 6 vertical machining centers, 4 horizontal boring mills, and 2 coordinate measuring machines (CMM). 2.4889 is a moderately difficult-to-machine alloy due to its work-hardening tendency and low thermal conductivity. Our machinists — with an average of 16 years of experience on nickel alloys — use carbide tooling with a TiAlN coating, high-pressure coolant (70–100 bar), conservative depth of cut (0.5–1.5mm) and feed rates 30–40% lower than carbon steel. We do not use regrinded tooling for finish passes on 2.4889. Surface finish Ra ≤1.6μm is achievable for most applications; Ra ≤0.8μm on request.
Full-Process Quality Inspection & Testing
Our quality inspection sequence for 2.4889 forgings is:
- Incoming material verification: XRF scan + ICP-OES wet chemistry analysis on every heat, before production commences. Ce content is verified by ICP-OES (XRF is insufficiently sensitive for Ce at 0.03–0.09% levels).
- In-process dimensional and visual checks after forging, after heat treatment, and at rough machining stage.
- Non-Destructive Testing (NDT): 100% UT per ASTM A388 / EN 10228-3; MT or PT on all external surfaces per EN 10228-1/2; RT available for hollow forgings and welds.
- Mechanical property testing: Tensile (EN ISO 6892-1), Charpy V-notch impact (EN ISO 148-1), Vickers/Brinell/Rockwell hardness on each production lot.
- Metallurgical testing: Grain size per ASTM E112 (minimum 3 test locations per forging), macro + micro etch, inclusion rating per ASTM E45.
- Corrosion resistance testing: ASTM A262 Practice E (Strauss test for intergranular corrosion susceptibility) on each heat; salt spray per ASTM B117 and/or sulfidation test on request.
- Dimensional final inspection: CMM inspection report with GD&T evaluation available; hard copy and PDF/DXF format reports.
All inspection documentation is written in English, in SI units, and issued as EN 10204 3.1 MTC as standard. EN 10204 3.2 with third-party witness (SGS, BV, TUV, Intertek) is available upon client request, at additional cost. Test coupons (2–3 sets) are retained at our laboratory for a minimum of 3 months after client's confirmed delivery acceptance.
Chemical Composition of 2.4889 (NiCr28FeSiCe) Forged Steel
We strictly control the chemical composition of every heat of 2.4889 (NiCr28FeSiCe) material, with full ICP-OES wet chemistry analysis provided in the EN 10204 3.1 mill test certificate. The composition ranges below comply with the EN standard. Note that for some critical applications, we apply tighter internal composition targets (shown in parentheses) to optimize specific performance characteristics — for example, Si at the higher end of the range for maximum flue gas resistance, or Ce tightly controlled in the 0.05–0.07% range for optimal oxide adhesion without exceeding the hot cracking threshold:
| Element | EN Standard Range | JL Internal Target (Typical) | Metallurgical Function |
|---|---|---|---|
| Ni (Nickel) | Min 45% | 45–50% | Stabilizes austenitic FCC structure; primary creep resistance element; reduces SSC susceptibility in H₂S service |
| Cr (Chromium) | 26–29% | 27.0–28.5% | Forms protective Cr₂O₃ scale; primary oxidation and sulfidation resistance element; higher Cr = larger reservoir for scale replenishment |
| Fe (Iron) | 21–25% | 21–24% | Reduces raw material cost; improves austenite stability; excessive Fe increases sigma phase formation risk — we target lower Fe range for high-temperature service |
| Si (Silicon) | Max 3.0% (typically 2.5–3.0%) | 2.7–3.0% (incineration service); 2.5–2.8% (general) | Forms SiO₂ sublayer under Cr₂O₃; critical for chlorine and alkali attack resistance; above 3.0% risks hot cracking in welds — tightly controlled |
| Ce (Cerium) | 0.03–0.09% | 0.05–0.07% (standard); 0.06–0.08% (incineration ESR grade) | Modifies oxide adhesion via cation vacancy filling in Cr₂O₃; getters grain boundary sulfur; improves creep rupture life 20–30%; tightly controlled — below 0.03% provides minimal benefit, above 0.09% risks Ce-rich low-melting films at boundaries |
| C (Carbon) | Max 0.10% | 0.04–0.08% | Controlled to minimize M23C6 sensitization risk; our ICP-OES achieves ±0.005% accuracy — we avoid the upper limit region |
| Mn (Manganese) | Max 1.0% | 0.5–0.8% | Deoxidizer; desulfurizer (forms MnS, preventing FeS boundary films); excess Mn can reduce oxidation resistance at very high temperatures |
| P (Phosphorus) | Max 0.020% | < 0.012% | Grain boundary embrittler; reduces high-temperature ductility; our strict P control is especially important for heavy sections where cooling after ESR is slower |
| S (Sulfur) | Max 0.010% | < 0.005% | Catastrophic grain boundary embrittler; forms low-melting NiS and Ni₃S₂ phases; the Ce addition getters S to <0.005% at the grain boundary regardless of bulk S level — but low bulk S provides a safety margin |
| Cu (Copper) | Max 0.30% | < 0.15% | Adverse effect on high-temperature oxidation resistance above 900°C; we prefer AOD-grade raw materials with low Cu scrap contribution |
Mechanical Properties & Heat Treatment Data
All our 2.4889 forging parts are delivered in the solution annealed (AT) condition as standard, with mechanical properties tested per EN ISO 6892-1 at room temperature. The following table compares the EN standard minimum requirements with our typical achieved values – the difference is due to our controlled composition targeting (lower C, lower P/S, optimized Si and Ce) and strict heat treatment control:
| Property | EN Standard Minimum | JL Typical Achieved | Test Standard |
|---|---|---|---|
| Tensile Strength (Rm) | 620–820 MPa | 660–790 MPa | EN ISO 6892-1 |
| 0.2% Proof Strength (Rp0.2) | Min 240 MPa | 260–320 MPa | EN ISO 6892-1 |
| Elongation at Fracture (A) | Min 35% | 42–52% | EN ISO 6892-1 |
| Reduction of Area (Z) | Not specified | 55–70% (typical) | EN ISO 6892-1 |
| Charpy V-Notch Impact (Transverse, -20°C) | Not in EN standard; ASME: 40J min | 150–230J (typical) | EN ISO 148-1 |
| Hardness (HB) | Max 220 HB | 155–185 HB (typical) | EN ISO 6506-1 |
| Grain Size | Not specified in EN | ASTM E112 Grade 4–7 | ASTM E112 |
| Intergranular Corrosion (Strauss Test) | Pass (no cracking after 15h) | Pass on 100% of heats | ASTM A262 Practice E |
High-Temperature Mechanical Properties (Indicative, for Design Reference)
The following elevated-temperature property data for 2.4889 is provided for design reference only. These values are indicative based on published alloy data and our internal testing; actual components should be designed using client-specified design codes (ASME Section VIII, EN 13445, etc.) and their associated allowable stress tables, which may differ from these raw property values:
| Temperature (°C) | Rm (MPa, indicative) | Rp0.2 (MPa, indicative) | A% (indicative) |
|---|---|---|---|
| 20°C (RT) | 660–790 | 260–320 | 42–52% |
| 200°C | 560–680 | 185–240 | 38–50% |
| 400°C | 510–620 | 160–210 | 35–48% |
| 600°C | 470–570 | 145–190 | 33–45% |
| 800°C | 310–400 | 110–155 | 30–42% |
| 1000°C | 160–220 | 80–110 | 40–55% (hot ductility recovery) |
Global Export & Localization Service
With 27 years of direct export experience to 50+ countries, our export team has encountered and resolved almost every logistical and regulatory challenge that affects specialty alloy forging shipments. We do not use freight forwarders for standard shipments — we have direct contracts with major shipping lines and customs brokerage firms in our major markets:
- Flexible Delivery Terms: FOB Shanghai, CIF any port, CFR, DAP, DDP. We handle EX-WORKS to DDP depending on client preference and destination customs complexity.
- Dangerous Goods Compliance: None of our alloy forgings are classified as dangerous goods, but we ensure IATA/IMDG documentation is correctly completed for all shipments including wood packaging (ISPM 15 heat treatment certificates for all wooden crates and pallets).
- Import Duty & Tariff Guidance: We assist clients in correctly classifying 2.4889 forgings under the appropriate HS code (typically 7326.19 or 7326.90 depending on finished vs. semi-finished condition) to avoid customs hold-up at destination. Misclassification is a common cause of import delays for specialty alloy forgings.
- Multiple Payment Methods: T/T bank transfer (preferred), L/C at sight (full UCP 600 compliant), Western Union for smaller orders, and PayPal for samples/small quantities.
- 24/7 Multi-Language Technical Support: English and Chinese technical support permanently staffed. Spanish, French, Arabic, and Portuguese available through our network of technical representatives upon request with 24h notice.
- Agent Network: We have active distribution partners and technical representatives in Germany (EU), the UAE (Middle East), Singapore (Southeast Asia) and Brazil (South America) and are able to provide in-country technical support and expedited shipping for urgent replacement components.
- Custom Protective Packaging: All forgings are individually wrapped in VCI (vapor corrosion inhibitor) film, individually numbered and packed in custom designed wooden cases or crates with shock absorbing blocking.We provide packing list with individual piece weights and dimensions for every shipment.
Frequently Asked Questions — 2.4889 (NiCr28FeSiCe) Forgings
These questions are compiled from actual technical inquiries received from engineers, procurement managers, and project managers over the past five years. We answer them with full technical transparency:
2.4889 excels in environments combining high temperature (above 750°C) with one or more of: sulfur dioxide/trioxide attack, alkali chloride-induced hot corrosion, high-sulfur crude oil ash, or cyclic thermal loading. It is the material of choice for waste incineration heat exchangers, refinery overhead systems, high-temperature petrochemical reactor internals, and similar extreme-duty applications.
It is not the optimal choice when: (a) The primary corrosion mechanism is low-temperature (<200°C) chloride stress corrosion cracking — use duplex or 6-Mo stainless; (b) The environment is strongly reducing acids (HCl, H₂SO₄ at low pH) — use high-Mo nickel alloys such as Alloy C-276 or Alloy 625; (c) Maximum mechanical strength at temperature is the primary driver — use Alloy 617 or Waspaloy; (d) The operating temperature is below 500°C with no sulfur/chlorine attack — use 316L and save the budget. Our metallurgical team can review your service conditions and give an honest recommendation even if it means 2.4889 is not the answer.
The performance gap depends heavily on the specific environment. In pure oxidizing air at temperatures below 900°C, 310S and 2.4889 perform similarly — both form a protective Cr₂O₃ scale, and the cost difference may not be justified. The gap widens significantly in three situations:
- Thermal cycling in oxidizing atmosphere above 800°C: 310S scale spalls on cooling (Cr₂O₃ has a higher thermal expansion coefficient than the alloy substrate, creating compressive spallation stress). 2.4889's Ce-modified oxide adheres through hundreds of cycles. In a boiler startup/shutdown regime, a 310S tube sheet may lose its protective oxide entirely within 50–100 cycles; 2.4889 retains >95% oxide adhesion after 500 cycles.
- SO₂/SO₃ >100 ppm at temperature >700°C: Sulfation converts protective Cr₂O₃ to porous, non-protective CrSO₄. 2.4889's SiO₂ sublayer acts as a sulfur diffusion barrier. Field feedback from our Thailand incineration project (Case 3 above) indicates 2.4889 oxide scale growth at <0.06mm/year vs. previously measured 310S penetration rates of >0.4mm/year reported by the client in the same flue gas environment.
- HCl >200 ppm at temperature >600°C: 310S is effectively not usable — chloride-induced hot corrosion causes rapid, catastrophic attack. 2.4889's service life in the same environment is typically 5–8x longer.
Cerium is the single most impactful minor addition in 2.4889's composition, despite being measured in hundredths of a percent. Its effects are well-characterized in the scientific literature and confirmed by our internal testing:
1. Oxide scale adhesion: Ce ions (Ce³⁺ and Ce⁴⁺) substitute at cation vacancies in the Cr₂O₃ lattice. Since cation vacancy diffusion is the rate-limiting mechanism for Cr₂O₃ growth, Ce substitution reduces the oxide growth rate by up to 10x. More importantly, Ce reduces the growth stresses that accumulate in the oxide (caused by the volume mismatch between newly formed oxide and consumed metal), reducing the driving force for scale spallation on cooling.
2. Grain boundary sulfur gettering: Ce has a Ce/S binding energy of approximately -180 kJ/mol, compared to -42 kJ/mol for Mn/S. Even at 0.05% Ce, the equilibrium sulfur activity at grain boundaries is reduced by roughly three orders of magnitude compared to a Ce-free alloy. This is why 2.4889 can maintain grain boundary integrity in environments where trace sulfur attack would catastrophically embrittle 310S.
3. Creep life improvement: By keeping grain boundaries clean of both sulfur and solute segregation, Ce maintains the grain boundary cohesive strength at high temperatures. Based on our internal laboratory stress rupture testing (900°C, 100MPa), 2.4889 samples with Ce at 0.06% achieved rupture lives approximately 25–35% longer than 2.4889 samples produced at Ce 0.02% (out-of-spec low). These results are consistent with published reactive element effect research.
The narrow specification range (0.03–0.09%) is critical: below 0.03%, the Ce effect is minimal; above 0.09%, Ce forms low-melting Ce-Ni eutectic films at grain boundaries (Ce-Ni eutectic melting point ~750°C), which causes hot cracking during forging and potentially in service at temperatures above 750°C. This is why we use ICP-OES (not XRF, which is inaccurate at these Ce levels) to verify Ce content on every heat.
Our factory holds ISO 9001:2015 certification (issued by SGS). Our 2.4889 (NiCr28FeSiCe) forgings are manufactured to the dimensional and material requirements of international standards including EN, DIN, ASTM, ASME Section VIII, NACE MR0175/ISO 15156, TISI (Thailand), and ANP (Brazil). We can supply EN 10204 3.1 or 3.2 MTC to support clients' compliance processes for API, PED, and other regulatory frameworks.
Important note on certifications we do not hold: We do not hold the API Monogram, ASME U-stamp, PED notified body certification, or nuclear quality assurance certifications (e.g., HAF003). Our role is as a forging material supplier — the equipment manufacturer in your supply chain holds the product certification. We support their compliance process with full material documentation (EN 10204 3.2, third-party inspection, test reports).
For custom specifications from EPC contractors or end-users, our metallurgical team reviews the document requirements before accepting the order to confirm we can comply. We do not accept orders we cannot deliver against specification.
Current in-house equipment capabilities for 2.4889 forgings:
- Forged solid bars/shafts: Maximum Ø2000mm, maximum length 15m, maximum single-piece weight 30 tons.
- Seamless rolled rings: Maximum outer diameter 6m, maximum ring height 1.5m, maximum wall thickness ratio (OD/WT) 3:1 minimum, maximum single-piece weight 30 tons.
- Hollow forgings / pipe shells: Maximum OD 3000mm, maximum length 5m, maximum single-piece weight 25 tons.
- Forged discs/plates: Maximum Ø3000mm, maximum thickness 600mm, maximum single-piece weight 30 tons.
- Minimum production quantity: Single piece — we do not have minimum order quantity requirements. However, for heat-efficiency reasons, a batch of at least 300kg of same-grade material reduces per-unit cost significantly.
For pieces requiring weight or dimensions beyond these ranges, we can evaluate sub-contracting the forging to a larger-press facility under our material and quality control supervision — contact us for a case-by-case assessment.
Yes, 2.4889 has good weldability with proper technique. Key recommendations:
- Preferred filler metals: AWS A5.14 ERNiCrFe-7 (Alloy 52) for TIG/GTAW, ENiCrFe-7 for SMAW. These provide the best compositional compatibility and hot cracking resistance.
- Preheat: Not required for base metal ≤25mm at ambient ≥10°C. 50–75°C preheat for heavier sections.
- Inter-pass temperature: Strictly ≤150°C — do not exceed this. High inter-pass temperatures increase sensitization risk in the HAZ and promote Si-related hot cracking.
- Post-weld heat treatment: For pressure-retaining components in severe service, post-weld solution annealing at 1120–1160°C + water quench is strongly recommended to restore full corrosion resistance. For non-critical attachments, as-welded condition is acceptable below 600°C.
- Avoid: 308L, 309L, 310 filler metals — compositional mismatch will create galvanic corrosion at the weld interface in service.
We can provide a sample WPS (Welding Procedure Specification) based on our in-house procedure qualification for client review upon request.
Standard documentation package for every 2.4889 forging order:
- EN 10204 3.1 Mill Test Certificate (MTC): Chemical analysis (ICP-OES, including Ce), mechanical test results, NDT results, heat treatment records, dimensional inspection records. Signed by our quality director. Issued per heat (same alloy melt heat) and per piece for large single-piece forgings.
- EN 10204 3.2 MTC: Available on request, co-signed by third-party inspector (SGS, BV, TUV, Intertek, or client-nominated inspector). Additional cost; lead time may increase 5–10 days for inspector scheduling.
- NDT Reports: UT report per ASTM A388 / EN 10228-3, MT/PT report per EN 10228-1/2, RT report if applicable. Signed by Level 2 or Level 3 certified NDT personnel (ASNT TC-1A or EN ISO 9712).
- CMM Dimensional Report: Available on request for precision-machined components. GD&T evaluation per client drawing callouts; PDF + native CAD format if required.
- Heat treatment furnace charts: Time-temperature records with thermocouple identification and calibration certificate reference numbers.
- REACH compliance declaration, RoHS data sheet, material safety data sheet (MSDS/SDS): Available upon request.
We don’t have a minimum order quantity – we often supply single prototype units for customer testing and qualification. Lead times depend on complexity:
- Standard forged bars / flat rings (simple geometry): 25–45 days from drawing confirmation and initial payment receipt. Includes melting, forging, heat treatment, UT, and MTC issuance.
- Precision-machined components (complex geometry): 45–75 days, depending on machining complexity and whether CMM inspection is required.
- ESR-grade (ultra-critical / high-integrity) forgings: 60–90 days, due to the additional VIM + ESR melting cycle and extended inspection / documentation requirements.
- Large single-piece forgings (>10 tons): 45–90 days depending on press scheduling and heat treatment cycle time for thick sections.
- Rush production: Possible in some cases — contact us with your requirement and we will advise feasibility. Rush orders typically carry a 10–20% schedule premium.
We strongly recommend sharing your full drawing package and quantity early in the project procurement phase to allow us to provide a firm lead time and price. Waiting until 30 days before the client's required delivery date for a complex nickel alloy forging is the single most common cause of project delays we observe in the field.
Contact Us for Custom 2.4889 (NiCr28FeSiCe) Forging Solutions
Jiangsu Liangyi Co., Limited is your technically capable, ISO 9001:2015 certified China manufacturer and global supplier of 2.4889 (NiCr28FeSiCe) forged forging parts. When you send us an RFQ, it is reviewed by our metallurgical engineering team — not re-routed to a sales agent. We provide technically grounded responses, honest assessment of feasibility, and a commitment to the delivery schedule we quote.
To receive a detailed quotation within 24 business hours, please include: drawing or dimensional sketch (PDF, DXF, or STEP), material specification (EN, ASTM, or your internal spec), required delivery condition, quantity, and required inspection and documentation level. We will respond with price, lead time, and any technical clarification questions before issuing a formal quotation.
Get In Touch — Technical Inquiry & Free Quote
Inquiry / Technical Email: sales@jnmtforgedparts.com
Phone & WhatsApp (24/7): +86-13585067993
Official Website: https://www.jnmtforgedparts.com
Factory Address: Chengchang Industry Park, Jiangyin City, Jiangsu Province, China 214400
Business Hours: Mon–Fri 08:00–18:00 CST | Sat 08:00–12:00 CST | Emergency technical support available 24/7 via WhatsApp
