How does 1.4939 compare to 1.4923 and 1.4922?

1.4939 (X12CrNiMo12) differs from 1.4923 (X22CrMoV12-1) and 1.4922 (X20CrMoV12-1) primarily in nickel and carbon content. 1.4939 contains 2–3% Ni versus only 0.3–0.8% in the other two, giving it superior toughness and impact resistance. 1.4939 is rated for continuous service up to 600°C, while 1.4923 and 1.4922 are typically limited to 560–565°C.

What is the high-temperature strength of 1.4939 at 400°C, 500°C, and 600°C?

1.4939 X12CrNiMo12 high-temperature tensile strength (quenched and tempered condition): At 400°C: Rm ≈ 790 MPa, Re ≈ 620 MPa; At 500°C: Rm ≈ 700 MPa, Re ≈ 560 MPa; At 600°C: Rm ≈ 580 MPa, Re ≈ 450 MPa. Creep rupture strength (100,000-hour design basis): 350 MPa at 450°C, 250 MPa at 500°C, 150 MPa at 550°C.

Can 1.4939 X12CrNiMo12 be welded, and what are the welding requirements?

1.4939 X12CrNiMo12 can be welded using GTAW (TIG), SMAW (MMA), or SAW processes. Mandatory preheat of 200–300°C is required to prevent hydrogen-induced cold cracking. Maximum interpass temperature is 300°C. Post-weld heat treatment (PWHT) consists of tempering at 650–700°C for a minimum of 1 hour per 25 mm of thickness, followed by slow furnace cooling. Recommended filler metals include AWS ER410NiMo or matching 12%Cr-Ni-Mo composition fillers.

What delivery conditions and tolerances are available for 1.4939 forging parts?

1.4939 forgings are supplied in the following delivery conditions: +A (Softening Annealed), +N (Normalized), +QT (Quenched and Tempered), or +QT+SR (Quenched, Tempered and Stress Relieved). Dimensional tolerances for forged bars follow EN 10243-1: ±3 mm for diameters up to 250 mm, ±5 mm for 250–500 mm, ±8 mm for 500–1000 mm, and ±12 mm for over 1000 mm. Tighter tolerances per customer drawings are available on request.

What NDT inspection methods are applied to 1.4939 forging parts?

All 1.4939 parts undergo: 100% visual inspection; full-volume UT per SEP 1923 (level D3/D2, class 2b); optional MT per ASTM E165 and PT per ASTM E1417. Supplied with EN 10204 3.1/3.2 Mill Test Certificates. Third-party inspection by SGS or BV available.

What is the maximum size of 1.4939 forging parts from Jiangsu Liangyi?

Forged bars: maximum diameter 2 meters, maximum single-piece weight 30 tons. Seamless rolled rings: maximum OD 6 meters, maximum single-piece weight 30 tons. ESR ingots: up to 32 tons for high-purity applications.

1.4939 | X12CrNiMo12 | X11CrNiMoN12 Forging Parts | China Professional ISO 9001:2015 Manufacturer

Name: Jiangsu Liangyi Co., Limited
Address: Chengchang Industry Park, Jiangyin City, Jiangsu Province, 214400, CN
Telephone: +86-13585067993
Price range: $$

Jiangsu Liangyi Co., Ltd., founded in 1997 and ISO 9001:2015 certified, is a professional manufacturer based in China specializing in open die forgings and seamless rolled rings made from 1.4939 (X12CrNiMo12 / X11CrNiMoN12).This page serves as a complete technical reference covering chemical composition, physical and thermal properties, elevated-temperature mechanical data, heat treatment, welding and machining recommendations, grade comparisons, delivery conditions, NDT inspection, and proven global application cases. It is intended to support engineering material selection, procurement, and quality assurance for this high-grade martensitic heat-resistant stainless steel.

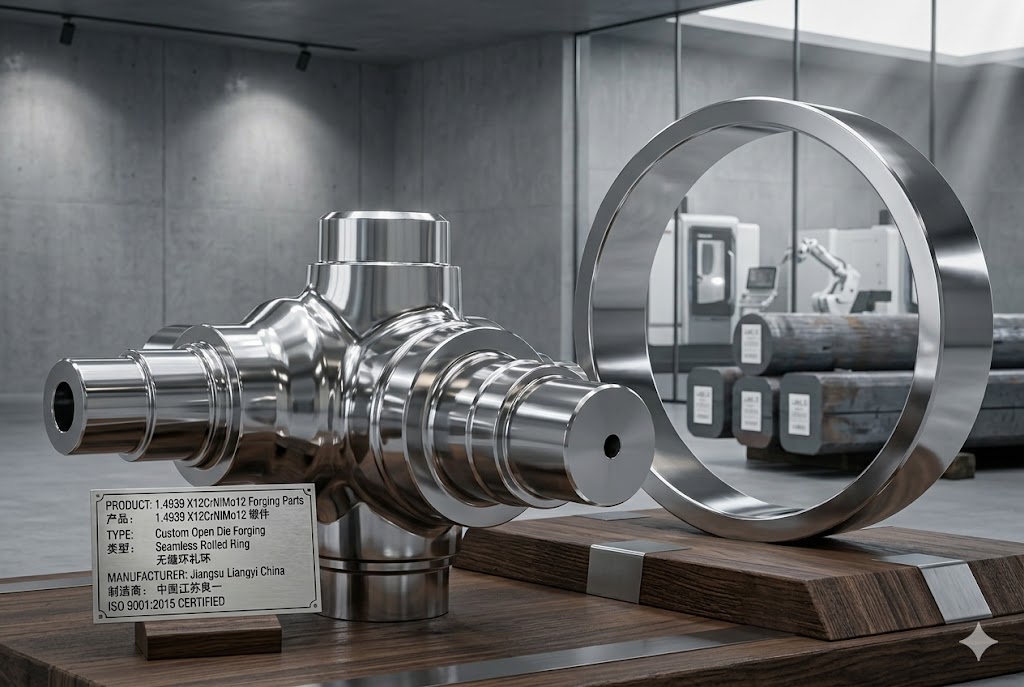

1.4939 X12CrNiMo12 Forging Parts — Custom Open Die Forgings and Seamless Rolled Rings from Jiangsu Liangyi China Manufacturer

Quick Reference: 1.4939 X12CrNiMo12 at a Glance

Material Standard

EN 10302-2008

Density

7.74 g/cm³

Elastic Modulus

216 GPa

Tensile Strength

930–1130 MPa

Yield Strength

≥ 760 MPa

Max Service Temp.

600 °C

Max Ring OD

6 meters

Max Single Weight

30 tons

Certification

ISO 9001:2015

Export Markets

50+ Countries

25+ Years Manufacturing Experience

Specialized open die forging expert since 1997, exporting to over 50 countries worldwide

ISO 9001:2015 Certified Quality

Full compliance with EN, ASTM, DIN, API, NACE international standards

Complete In-House Production

Full control from steel melting, forging, heat treatment to precision machining and NDT inspection

Custom Forging Capability

Single piece weight from 30 kg to 30 tons, fully customized per client drawings and specifications

1.4939 X12CrNiMo12 Forging Steel Product Overview

Jiangsu Liangyi is a top professional manufacturer based in Jiangyin City, Jiangsu Province, China, specializing in high-performance 1.4939 (also designated X12CrNiMo12, X12CrNiMo 12, or X11CrNiMoN12) open die forging parts and seamless rolled forged steel rings. As a premium martensitic heat-resistant stainless steel that fully meets EN 10302-2008 standard, 1.4939 X12CrNiMo12 is widely recognized for its excellent high-temperature strength, corrosion resistance, and superior impact toughness. And it is the best choice material for important parts working in extreme working conditions.

With over 25 years of dedicated experience in the forging industry since 1997, we supply custom 1.4939 forging parts, X12CrNiMo12 forged parts, and X11CrNiMoN12 turbine parts to global clients across Europe, North America, the Middle East, Southeast Asia, Australia, and more than 50 countries worldwide. All our products are made to meet international standards. We provide with full material traceability and mill test certification for every shipment.

Complete Range of 1.4939 X12CrNiMo12 Forged Product Forms

We offer full custom forging solutions for 1.4939 X12CrNiMo12 steel, covering all common industrial shapes and custom-engineered forms produced exactly to client drawings. Following are our main product range:

1.4939 Forged Bars & Rods

We manufacture precision 1.4939 forged round bars, square bars, flat bars, rectangular bars, and hollow bars, with a maximum forging diameter up to 2 meters and single-piece weight up to 30 tons. Our X12CrNiMo12 forged bars fully meet EN 10302-2008 standard, and they are widely used for valve spindles, turbine shafts, high-strength fasteners, and structural parts in high-temperature and high-pressure applications. All bars are available with EN 10204 3.1 / 3.2 Mill Test Certificates (MTC) for full material traceability and quality verification.

X12CrNiMo12 Seamless Rolled Forged Rings

Our X12CrNiMo12 seamless rolled rings are custom-engineered with a maximum outer diameter up to 6 meters and single-piece weight up to 30 tons, and they are the best choice material for important rotating and pressure-bearing applications. We produce a full range of forged rings including gear rings, valve seat rings, seal rings, labyrinth rings, turbine guide rings, and custom contoured rolled rings for the oil & gas, power generation, and petrochemical industries. All rings are given 100% ultrasonic testing to ensure internal soundness and consistent quality.

X11CrNiMoN12 Turbine & Rotating Parts

We make high-precisionX11CrNiMoN12 forged parts for gas and steam turbine systems that is the main application of this advanced material. Our main products include gas turbine rotor shafts, steam turbine blades, turbine impellers, turbine disks, blisks, rotor end rings, and high-strength turbine bolts. These parts are used for extreme rotational stress, high-temperature oxidation, and long-term continuous working conditions. All of them fully meet the stringent design requirements of the power generation industry.

1.4939 Valve & Industrial Forgings

Our 1.4939 forged valve parts are widely used in high-pressure oil & gas and petrochemical applications, including important parts such as valve seats, valve spindles, valve bodies, bonnets, and closure parts. We also supply custom X12CrNiMo12 forged hubs, housings, shells, sleeves, bushes, casings, discs, plates, seamless pipes, and tubing to meet the diverse needs of heavy machinery, marine, mining, and construction industries. All industrial forgings can be made to meet API 6A size and material standards. If you need them for sour service environments, you can also get NACE MR0175 material compliance documentation

Advanced Melting Process & Production Equipment

To guarantee superior quality and excellent material purity of our 1.4939, X12CrNiMo12, and X11CrNiMoN12 forged steel parts, we adopt state-of-the-art melting processes and keep complete in-house production equipment, so that we can control over every step from initial steel melting to final inspection and shipping.

Our standard melting process for 1.4939 steel includes Basic Electric Furnace (EAF) + AOD refining + VOD vacuum degassing, with optional Electroslag Remelting (ESR) available as per client specific high-purity requirements. This advanced melting process guarantees ultra-low impurity content, uniform chemical composition, and excellent internal material quality, which is absolutely important for high-temperature and high-pressure main applications.

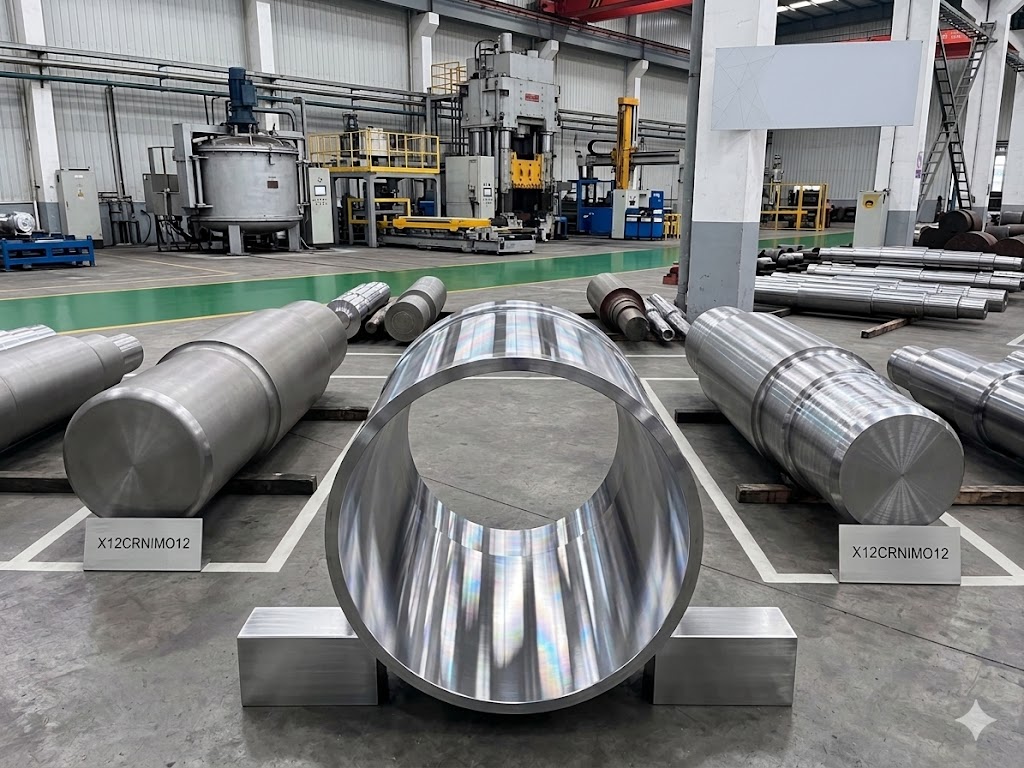

X12CrNiMo12 Forged Steel Production Line — Advanced Forging and Melting Equipment at Jiangsu Liangyi Factory in Jiangyin, China

Following are our main production and melting equipment:

60-ton Electric Arc Furnace (EAF) with 40 MVA power capacity
2 Ladle Furnaces (LF) for precise chemical composition and temperature adjustment
2 VD-VOD type Tank Degassing systems for ultra-low gas and hydrogen content
Specialized bottom pouring pits for improved ingot internal quality
ESR Plant with maximum single-piece weight up to 32 tons for high-purity material requirements
2000T to 6300T hydraulic forging presses, 1T–9T electro-hydraulic forging hammers
1-meter and 5-meter seamless ring rolling machines for large-size forged rings
Ten fully automated heat treatment furnaces with ±5°C temperature uniformity control
Complete NDT, chemical composition, mechanical property, and metallographical testing equipment

Chemical Composition of 1.4939 / X12CrNiMo12 Steel (EN 10302-2008 Standard)

The chemical composition of our 1.4939 X12CrNiMo12 forged steel is strictly controlled in full compliance with EN 10302-2008 standard, with precise management of each element to guarantee consistent and reliable material performance. Following are the element ranges (by weight %) :

Table 1: Chemical Composition of 1.4939 X12CrNiMo12 (EN 10302-2008, wt.%)
Chemical Element	Min (%)	Max (%)	Role in Performance
Carbon (C)	0.08	0.15	Improves hardness and tensile strength; ensures martensitic transformation completeness during quenching
Manganese (Mn)	0.50	0.90	Improves hardenability and deoxidation efficiency; stabilizes austenite prior to transformation
Silicon (Si)	—	0.35	Acts as effective deoxidizer; low content preserves toughness while improving oxidation resistance
Phosphorus (P)	—	0.025	Strictly limited to reduce temper embrittlement susceptibility and preserve grain boundary integrity
Sulfur (S)	—	0.020	Ultra-low content guarantees material cleanliness, superior corrosion resistance, and transverse toughness
Chromium (Cr)	11.0	12.5	Primary element for corrosion resistance; forms stable Cr₂O₃ passive film at high temperature
Nickel (Ni)	2.00	3.00	Significantly improves toughness, ductility, and notch impact resistance; differentiates 1.4939 from lower-Ni sister grades
Molybdenum (Mo)	1.50	2.00	Strengthens the matrix by solid-solution hardening; markedly improves high-temperature creep strength and pitting resistance
Vanadium (V)	0.25	0.40	Forms fine MC-type carbides that pin grain boundaries, refining grain size and elevating high-temperature strength
Nitrogen (N)	0.020	0.040	In X11CrNiMoN12 variant: stabilizes martensite, raises yield strength and pitting resistance without sacrificing toughness

Physical & Thermal Properties of 1.4939 X12CrNiMo12 Steel

Data verified through in-house material testing at Jiangsu Liangyi laboratory. Values represent typical results for quenched and tempered (QT) forgings and are provided as engineering reference data.

Knowing well the physical and thermal properties of 1.4939 X12CrNiMo12 is essential for accurate stress analysis, finite element modeling (FEM), and thermal fatigue calculations in high-temperature rotating equipment. The following data covers the full temperature range from ambient to 600 °C.

Core Physical Properties at Room Temperature (20 °C)

Density

7.74 g/cm³

Consistent across QT and annealed conditions

Elastic Modulus (E)

216 GPa

Young's modulus at 20 °C

Poisson's Ratio (ν)

0.28

Used in stress and FEM calculations

Shear Modulus (G)

84 GPa

Derived from E and ν

Thermal Conductivity

25.5 W/(m·K)

At 20 °C; increases slightly with temperature

Specific Heat Capacity

460 J/(kg·K)

Applicable across 20–400 °C range

Electrical Resistivity

0.70 μΩ·m

At 20 °C

Magnetic Behavior

Ferromagnetic

MT inspection applicable; no special tooling needed

Temperature-Dependent Physical Properties

The following table presents the main physical properties of 1.4939 X12CrNiMo12 across the operating temperature range. These values are important for thermal stress calculations and fatigue life assessment in power generation and petrochemical applications.

Table 2: Physical & Thermal Properties of 1.4939 X12CrNiMo12 vs. Temperature
Temperature	Elastic Modulus E (GPa)	Thermal Conductivity λ (W/m·K)	Mean CTE α (×10⁻⁶/K, from 20°C)	Specific Heat cp (J/kg·K)
20 °C	216	25.5	—	460
100 °C	213	26.0	10.5	465
200 °C	208	26.5	10.8	475
300 °C	202	27.0	11.0	490
400 °C	196	27.5	11.3	505
500 °C	190	28.0	11.5	520
600 °C	182	28.5	11.8	540

Engineering Note — Thermal Expansion Calculation

The mean coefficient of thermal expansion (CTE) values given are measured from 20 °C to the stated temperature. For a turbine shaft operating at 550 °C with a length of 3,000 mm, the expected free thermal expansion is approximately: ΔL = L × α × ΔT = 3000 × 11.6×10⁻⁶ × 530 ≈ 18.5 mm. This must be accommodated in bearing and coupling design to prevent thermal fatigue stress buildup.

Room-Temperature Mechanical Properties of 1.4939 X12CrNiMo12 Forged Steel

Our X12CrNiMo12 forging parts have stable, reliable, and consistent mechanical properties, thoroughly tested and verified via our in-house professional inspection facilities and they all meet EN ISO 6892-1 standard. The main mechanical properties at room temperature (20 °C) for the standard quenched and tempered (+QT) delivery condition are as follows:

Table 3: Mechanical Properties of 1.4939 X12CrNiMo12 at 20 °C (Quenched & Tempered, EN ISO 6892-1)
Property	Symbol	Value	Test Standard / Notes
Tensile Strength	Rm	930 – 1130 MPa	EN ISO 6892-1
Yield Strength (0.2% proof)	Rp0.2	≥ 760 MPa	EN ISO 6892-1
Elongation at fracture	A	≥ 14 %	Gauge L₀ = 5d
Reduction of area	Z	≥ 40 %	—
Charpy V-notch impact energy	KV (20 °C)	≥ 40 J	EN ISO 148-1, average of 3 specimens
Charpy V-notch impact energy	KV (−20 °C)	≥ 27 J	Typical value; test available on request
Hardness (annealed condition)	HB	≤ 260 HB	Brinell, EN ISO 6506-1
Hardness (QT condition)	HB	280 – 330 HB	Typical; varies with tempering temperature

We can customize the mechanical properties of 1.4939 forged parts through targeted heat treatment processes to meet specific performance requirements of different applications, such as improved high-temperature creep resistance, improved low-temperature impact toughness, or specialized surface hardness. Each delivery batch is accompanied by a full mechanical property test report.

High-Temperature Mechanical Properties of 1.4939 X12CrNiMo12 Forgings

The following high-temperature strength data is based on test results conducted at Jiangsu Liangyi's in-house material laboratory and is presented as typical reference values for engineering design purposes. All specimens tested in the standard quenched and tempered (+QT) condition with tempering temperature at 650 °C.

The defining commercial advantage of 1.4939 X12CrNiMo12 over lower-alloy martensitic grades lies precisely in its superior retention of strength at elevated temperatures. While room-temperature performance is comparable to some lower-grade alternatives, 1.4939 maintains a clearly superior strength margin above 400 °C, which directly translates to longer component service life, reduced cross-section requirements, and improved thermodynamic efficiency in rotating machinery.

Elevated Temperature Tensile Properties

Table 4: Tensile Properties of 1.4939 X12CrNiMo12 at Elevated Temperatures (QT Condition, Typical Values)
Test Temperature	Tensile Strength Rm (MPa)	Yield Strength Rp0.2 (MPa)	Elongation A (%)	Design Notes
20 °C (RT)	930–1130	≥ 760	≥ 14	Baseline room-temperature condition
200 °C	880–1050	720–760	≥ 14	Minor strength reduction; still above design minimum
300 °C	840–1000	680–730	≥ 14	Stable strength plateau; good for steam headers
400 °C	780–940	610–650	≥ 15	First significant drop; verify against creep threshold
500 °C	690–840	550–590	≥ 16	Creep mechanism begins to dominate; use creep data
550 °C	630–760	490–530	≥ 17	Upper limit for long-term turbine blade service
600 °C	560–680	430–470	≥ 18	Maximum rated service temperature; time-limited service

Creep Rupture Strength

For parts subjected to sustained loading at high temperature — such as turbine rotor shafts, blades, and pressure vessel closures — the governing design criterion is creep rupture strength rather than short-term tensile yield strength. The following creep rupture values represent the stress needed to cause fracture after 100,000 hours of continuous service at the stated temperature, which is the industry-standard design basis for base-load power generation equipment.

Table 5: Creep Rupture Strength of 1.4939 X12CrNiMo12 — Typical Reference Values (100,000 h Basis)
Service Temperature	Creep Rupture Strength σ (MPa), 100,000 h	Creep Rupture Strength σ (MPa), 200,000 h	Typical Application Context
400 °C	≥ 450	≥ 400	High-pressure steam valve spindles, fasteners
450 °C	≥ 340	≥ 300	Steam turbine blade roots, diaphragm rings
500 °C	≥ 240	≥ 210	Gas turbine compressor disks, industrial turbine rotors
540 °C	≥ 160	≥ 135	Advanced steam turbine HP blades, supercritical headers
560 °C	≥ 110	≥ 90	Near-limit applications; design verification required

Design Advisory — Creep vs. Tensile Strength

Above 450 °C, do not use room-temperature tensile or yield strength values as the governing design criterion for sustained-load components. Creep rupture strength must be used in conjunction with appropriate safety factors (typically 1.5× on stress). Our technical team can provide part-specific creep assessment based on your operating profile.

Heat Treatment Specifications for 1.4939 X12CrNiMo12 Forgings

Heat treatment is the important main process for 1.4939 X12CrNiMo12 forging parts to get the great performance . We provide custom heat treatment solutions tailored to different product forms and application scenarios, with precise temperature control (±5 °C uniformity) and continuous furnace atmosphere monitoring. Following are the standard heat treatment processes :

Softening Annealing (+A): 660 – 690 °C, slow controlled furnace cooling at ≤ 30 °C/h to 400 °C, then air cooling. Reduces hardness to ≤ 260 HB, improves machinability, and relieves residual stress from the forging process. Specified for bars and rings supplied in the pre-machined condition.
Oil Quenching & Cryogenic Tempering (+QT, high hardness variant): Austenitizing at 1030 – 1060 °C (hold time: 1 h per 100 mm cross-section), oil quenching, sub-zero cryogenic treatment at −65 °C for 2–4 hours to eliminate retained austenite, followed by tempering at 220 – 280 °C for ≥ 2 hours. Produces hardness of 46–50 HRC. Ideal for turbine blades and valve parts needing high hardness and excellent wear resistance in corrosive environments.
Air Hardening & High Temperature Tempering (+QT, toughness-optimized variant): Austenitizing at 1040 – 1060 °C with controlled air cooling (or accelerated oil quench for thick sections > 150 mm), followed by tempering at 600 – 700 °C for ≥ 2 h per 50 mm of wall thickness, with slow furnace cooling to below 300 °C. Produces tensile strength 930–1130 MPa with excellent impact toughness ≥ 40 J at 20 °C. Suitable for turbine rotors, shafts, and structural parts needing improved balance of strength, toughness, and thermal stability — this is the most widely used condition for power generation applications.
Carburizing Treatment (surface hardening): Carburizing at about 950 °C in controlled carbon potential atmosphere, followed by quenching and low-temperature tempering at 150 – 200 °C. Surface hardness achieves 58–62 HRC while core remains tough at 30–38 HRC. Used for valve spindles, gear teeth, and parts needing high surface hardness and wear resistance combined with a tough, impact-resistant core.

Welding & Machinability Guide for 1.4939 X12CrNiMo12 Forgings

Engineers and fabricators sourcing 1.4939 X12CrNiMo12 forging parts consistently need reliable guidance on weldability and machining behavior. The following section provides original technical data derived from our production experience with this material across 25+ years of forging operations. This guidance is intended to supplement — not replace — the applicable welding procedure specifications (WPS) and procedure qualification records (PQR) required by your project code.

Weldability Assessment

1.4939 X12CrNiMo12 is weldable with proper procedure control, but it needs significantly more care than austenitic stainless steels. The martensitic microstructure means that weld heat cycles without adequate preheat and PWHT will produce a hard, brittle heat-affected zone (HAZ) that is susceptible to hydrogen-induced cold cracking (HICC) and stress corrosion. The carbon equivalent (CE) of 1.4939 is approximately 0.65–0.75 (IIW formula), classifying it in the "high CE" category where preheat is mandatory, not optional.

⚠ Critical Welding Warning

Welding 1.4939 in the as-forged or quenched-and-tempered state without following the full preheat and PWHT procedure below carries a high risk of delayed hydrogen cracking. This can happen hours or even days after welding is finished, even if there are no visible cracks at the time of inspection. Do not skip or shorten PWHT under any circumstances.

Recommended Welding Procedure — Step by Step

Pre-Weld Hydrogen Control: Bake low-hydrogen electrodes and flux at 300–350 °C for 2 hours prior to use. Keep all filler materials dry and warm during welding operations. Clean base metal to remove oil, moisture, rust, and any contaminants within 25 mm of the weld joint.
Preheat (Mandatory): Preheat the joint area uniformly to 200 – 300 °C before striking the first arc. For sections thicker than 50 mm, use 250–300 °C. Verify preheat temperature with contact pyrometer at 75 mm from the weld center line on both sides. Do not begin welding below 200 °C.
Interpass Temperature Control: Keep interpass temperature between 200 °C (minimum) and 300 °C (maximum) throughout the entire weld sequence. Allow each pass to cool slightly before applying the next pass; do not rush to complete rapid passes that could drive interpass temperature above 300 °C.
Welding Process & Parameters: Preferred processes are GTAW (TIG) for root passes and SMAW (MMA) or SAW for fill and cap passes. Use stringer bead technique; weave beads should not exceed 3× electrode diameter width. Heat input range: 0.8 – 2.5 kJ/mm. Higher heat inputs increase HAZ width and are not recommended.
Post-Weld Hydrogen Bake: Immediately after welding completion (while still at interpass temperature), apply a hydrogen bake at 250 – 300 °C for 2–4 hours before any cooling. This step is mandatory for sections > 25 mm and strongly recommended for all thicknesses. Do not allow the weldment to cool to room temperature before the hydrogen bake.
Post-Weld Heat Treatment (PWHT — Mandatory): After hydrogen bake and controlled cooling, reheat to 650 – 700 °C. Hold time: minimum 1 hour per 25 mm of maximum weld cross-section (minimum total hold time: 2 hours). Heat and cool the furnace slowly through the 400–600 °C range at a rate not exceeding 80 °C/hour. Do not cool faster than 50 °C/hour below 300 °C.
Post-PWHT Inspection: Allow the weldment to fully cool to room temperature before performing NDT. Apply MT or PT to 100% of weld surface. Hardness survey across HAZ is recommended; hardness in HAZ should not exceed 350 HV10 after PWHT.

Recommended Filler Metals for 1.4939 Welding

Table 6: Filler Metal Selection Guide for Welding 1.4939 X12CrNiMo12
Welding Process	Recommended Filler	AWS / EN Classification	Application Scenario
GTAW (TIG)	ER410NiMo or matching 12%Cr-Ni-Mo wire	AWS A5.9 ER410NiMo	Root passes, precision repair welds, thin sections
SMAW (MMA)	Low-hydrogen 12%Cr-Ni-Mo electrode	EN ISO 3580-A: E Z12 2 Mo B 42 H5	Fill and cap passes, field welding, structural joints
SAW	12%Cr-Ni-Mo wire + matching basic flux	AWS A5.23 compatible wire	High-volume production welds, large cross-section joints
FCAW (if required)	Metal-cored wire, 12%Cr-Ni-Mo type	Manufacturer specified	Limited use; GTAW/SMAW preferred for critical joints

Machinability of 1.4939 X12CrNiMo12

1.4939 X12CrNiMo12 has moderate machinability — considerably better than austenitic stainless steels (e.g., 316L, 310S) but more demanding than carbon steels. The primary machining challenge is its tendency toward work hardening in the heat-affected layer and significant tool wear due to abrasive vanadium carbides. The material machines most efficiently in the softening annealed condition (≤ 260 HB). Machining in the QT condition (280–330 HB) requires reduced cutting speeds and more frequent tool indexing.

Table 7: Recommended Machining Parameters for 1.4939 X12CrNiMo12 (Carbide Tooling, +A and +QT Conditions)
Operation	Cutting Speed (m/min) — Annealed	Cutting Speed (m/min) — QT	Feed Rate (mm/rev)	Depth of Cut (mm)
Rough Turning	90–130	70–100	0.20–0.40	2.0–5.0
Finish Turning	110–160	80–120	0.08–0.18	0.3–1.0
Face Milling	80–120	60–90	0.10–0.25 /tooth	1.5–4.0
Drilling	20–35	15–25	0.05–0.15	Full diameter
Boring	80–120	60–90	0.10–0.20	0.5–2.0
Grinding (cylindrical)	Wheel: 28–33 m/s, Work: 18–25 m/min	Same	—	0.005–0.025 per pass

✓ Machining Best Practices

Coolant: Always use water-soluble coolant (emulsion) at high flow rate for turning and milling. Dry machining accelerates tool wear significantly and risks surface oxidation on finish surfaces.

Tool geometry: Use sharp positive rake angles (5–8°) to minimize cutting forces and work hardening. Negative rake inserts suitable for interrupted cuts only.

Work hardening prevention: Maintain consistent depth of cut; never allow the tool to rub or skim the surface. Ensure sufficient DOC to cut below any previously work-hardened layer (typically 0.2–0.4 mm deep).

Grindability: 1.4939 grinds well with aluminum oxide (Al₂O₃) wheels, grade 46-60 grit. CBN wheels are recommended for production grinding of QT-condition parts to extend dress intervals.

Delivery Conditions & Dimensional Tolerances for 1.4939 Forging Parts

Specifying the correct delivery condition and knowing well the applicable dimensional tolerances is essential for downstream processing planning and procurement efficiency. Jiangsu Liangyi supplies 1.4939 X12CrNiMo12 forging parts in a range of standardized heat treatment delivery conditions in accordance with EN 10243 and customer-specific requirements.

Available Delivery Conditions

Table 8: 1.4939 X12CrNiMo12 Forging Delivery Conditions and Typical Hardness Range
Condition Code	Description	Typical Hardness	Recommended For
+AF	As-Forged (no heat treatment applied after forging)	280–380 HB (variable)	Customer requires full heat treatment in their own facility; interim stock
+A	Softening Annealed (660–690 °C, slow cool)	≤ 260 HB	Parts requiring further machining; bars for valve spindle blanks
+N	Normalized (austenitized + air cooled, no tempering)	290–360 HB	Intermediate condition; not recommended for final use without PWHT
+QT	Quenched & Tempered (standard condition per EN 10302-2008)	280–330 HB	Most industrial applications: turbine shafts, valve bodies, rings
+QT+SR	Quenched, Tempered & Stress Relieved (additional SR cycle after rough machining)	280–320 HB	High-precision parts needing tight dimensional stability after machining
+HC	Cryogenically treated (oil quench + −65 °C cryo + low-temp temper)	44–50 HRC	Turbine blades, wear-resistant valve parts, high-hardness applications

Dimensional Tolerances for Forged Bars

Dimensional tolerances for 1.4939 X12CrNiMo12 forged bars are applied in accordance with EN 10243-1 (Steel die and open forgings — Tolerances on dimensions for steel forgings). The following are the standard forging tolerances applicable to forged round bars and rectangular billets:

Table 9: Dimensional Tolerances for 1.4939 X12CrNiMo12 Forged Round Bars — EN 10243-1 (Tolerance Grade T2)
Nominal Diameter (mm)	Diameter Tolerance (mm)	Length Tolerance (mm)	Straightness (mm/m)
Up to 100	+4 / −2	+40 / 0	≤ 4
100 – 250	+5 / −3	+50 / 0	≤ 5
250 – 500	+8 / −4	+60 / 0	≤ 6
500 – 800	+12 / −5	+70 / 0	≤ 8
800 – 1200	+16 / −6	+80 / 0	≤ 10
> 1200	To be agreed	To be agreed	To be agreed

Dimensional Tolerances for Seamless Rolled Rings

Tolerances for 1.4939 X12CrNiMo12 seamless rolled rings are applied per EN 10243-2 and our internal forging standards. For large rings with OD > 2,000 mm, tolerances are negotiated on a project basis based on ring geometry and final machining allowance requirements.

Table 10: Dimensional Tolerances for 1.4939 X12CrNiMo12 Seamless Rolled Rings — EN 10243-2
Ring Parameter	OD up to 1,000 mm	OD 1,000 – 3,000 mm	OD 3,000 – 6,000 mm
Outer Diameter (OD) Tolerance	+6 / −3 mm	±0.5% of OD	To be agreed (typically ±0.4%)
Inner Diameter (ID) Tolerance	+3 / −6 mm	±0.5% of ID	To be agreed
Height Tolerance	+5 / −2 mm	+8 / −3 mm	+12 / −5 mm
Wall Thickness Variation	≤ 5% of wall	≤ 5% of wall	≤ 6% of wall
Out-of-Roundness	≤ 1.0% of OD	≤ 0.8% of OD	To be agreed
Face Flatness (per face)	≤ 3 mm	≤ 5 mm	≤ 8 mm

Machining Allowance Guidance

For parts that need precise final dimensions, we recommend a minimum machining allowance of 5–8 mm per surface for bars and rings with an outer diameter up to 1,000 mm. For rings over 2,000 mm OD, this allowance increases to 10–15 mm per surface.This guarantees full removal of decarburized layers, forging scale, and dimensional variations during final machining. Tighter near-net-shape forging tolerances are available upon request for high-volume production programs.

Steel Grade Comparison: 1.4939 vs. Similar Martensitic & Heat-Resistant Grades

Material choice for high‑temperature forging applications often involves comparing 1.4939 (X12CrNiMo12) with similar European and international grades.Engineers must balance trade‑offs in cost, availability, maximum service temperature, toughness, and corrosion resistance. The comparison below is based on our technical team’s direct production experience with all these grades over 25+ years, and is provided as an objective engineering reference — not a marketing statement.

Key Differentiators of 1.4939 vs. Similar Grades

The five grades most commonly evaluated alongside 1.4939 are: 1.4923 (X22CrMoV12-1), 1.4922 (X20CrMoV12-1), 17-4PH (1.4542), 1.4935 (X12CrMo5), and 1.4913 (X19CrMoNbVN11-1). Each serves a partially overlapping but distinct niche.

Table 11: Comparative Data — 1.4939 X12CrNiMo12 vs. Similar Martensitic Heat-Resistant Steel Grades
Property / Criterion	1.4939 X12CrNiMo12 ★	1.4923 X22CrMoV12-1	1.4922 X20CrMoV12-1	17-4PH (1.4542)	1.4913 X19CrMoNbVN11-1
EN Standard	EN 10302-2008	EN 10302-2008	EN 10302-2008	ASTM A693 / EN 10088	EN 10302-2008
Carbon C (%)	0.08–0.15	0.18–0.24	0.17–0.23	≤ 0.07	0.17–0.23
Chromium Cr (%)	11.0–12.5	11.0–12.5	11.0–12.5	15.0–17.5	10.0–11.5
Nickel Ni (%)	2.00–3.00	0.30–0.80	0.30–0.80	3.00–5.00	0.40–0.90
Molybdenum Mo (%)	1.50–2.00	0.80–1.20	0.80–1.20	—	1.40–1.80
Vanadium V (%)	0.25–0.40	0.25–0.35	0.25–0.35	—	0.25–0.35
Tensile Strength Rm (MPa)	930–1130	850–1000	780–930	930–1000 (H900)	900–1050
Yield Strength Rp0.2 (MPa)	≥ 760	≥ 700	≥ 580	≥ 730 (H900)	≥ 700
Charpy Impact KV at 20°C (J)	≥ 40 J	≥ 27 J	≥ 27 J	≥ 100 J (H900)	≥ 30 J
Max Continuous Service Temp.	600 °C	565 °C	560 °C	300 °C	600 °C
Creep Strength at 500°C (MPa, 100kh)	≥ 240	≥ 180	≥ 160	Not rated	≥ 230
Weldability	Moderate (preheat + PWHT required)	Moderate (preheat + PWHT required)	Moderate (preheat + PWHT required)	Good (lower C; less sensitive)	Moderate
Corrosion Resistance	Good (higher Ni + Mo)	Moderate	Moderate	Excellent (higher Cr)	Moderate
Relative Material Cost	Medium-High	Medium	Medium	Medium-High	Medium-High
Primary Application	Gas turbines, API valves, high-temp shafts	Steam turbine bolts, blades, HP rotors	Steam turbines, HP piping	Aerospace valves, oil industry	Advanced USC steam turbines

When to Choose 1.4939 X12CrNiMo12 Over Its Alternatives

Based on our technical experience, choose 1.4939 X12CrNiMo12 when your application simultaneously demands:

Service temperature exceeding 560 °C — where 1.4922 and 1.4923 reach their practical creep limits, 1.4939 retains a meaningful strength advantage
Impact toughness above 35 J at ambient temperature — the 2–3% Ni content of 1.4939 is the decisive differentiator here over the 0.3–0.8% Ni in 1.4922/1.4923
Sour service or moderately corrosive environments — the higher Mo content (1.5–2.0%) of 1.4939 provides better pitting corrosion resistance than 1.4922 or 1.4923 for applications meeting API 6A / NACE MR0175 requirements
High-pressure rotating parts in combined-cycle power plants — where the combination of creep strength, fatigue resistance, and long-term microstructural stability is required for > 100,000 hours of service

Consider alternatives when: Service temperature is below 450 °C and cost is the primary driver (1.4922 may be sufficient); corrosion resistance is the primary criterion and temperature is below 300 °C (17-4PH may be superior); or ultra-supercritical steam conditions above 600 °C are needed (1.4913 or nickel-based superalloys may be more appropriate).

Quality Control & Nondestructive Testing (NDT)

We provide a full range of quality control process for every 1.4939 X12CrNiMo12 forging part, from raw material incoming inspection to final delivery inspection and packaging, to make sure that all products meet the stringent requirements of international standards and client specifications.

After completion of all heat treatment processes, we perform full nondestructive testing on all forged parts, including:

100% visual inspection on the surface of all 1.4939 forging parts to check for surface defects, cracks, and dimensional deviations
Full-volume ultrasonic testing (UT) on all X12CrNiMo12 forged bars, rings, and parts, performed in strict accordance with SEP 1923 standard, inspection level D3/D2 with dual crystal search unit, adhering to SEP 1923 quality class 2b requirements
Zero tolerance policy for defects exceeding the recording limit; all non-compliant parts are clearly marked and excluded from delivery
Additional magnetic particle testing (MT) per ASTM E165, penetrant testing (PT) per ASTM E1417, and hardness testing available upon client request
Full chemical composition analysis (OES spectrometry), mechanical property testing, and metallographical inspection performed for every heat batch
Third-party inspection by SGS, BV, and other international authoritative institutions is available as per client specific requirements

All 1.4939 X12CrNiMo12 forging parts are supplied with complete EN 10204 3.1 / 3.2 Mill Test Certificates, guaranteeing full material traceability from initial melting to final finished product.

Global Industry Applications & Project Cases

1.4939 (X12CrNiMo12) is a premium martensitic heat-resistant stainless steel, and it is widely used in high-temperature, high-pressure, corrosive, and heavy-load working conditions across multiple industries. Our forged parts have been successfully used for main industrial projects around the globe. Following are real project cases:

Power Generation Industry (Global Thermal & Combined-Cycle Power Plants)

We have supplied 1.4939 gas turbine rotor shafts, turbine blades, turbine disks, and guide rings for numerous large‑scale combined‑cycle thermal power plants across Asia and Europe.These parts are specially engineered to sustain long‑term continuous operation at temperatures up to 600 °C, with outstanding high‑temperature creep resistance and structural stability. Our products fully meet the strict design criteria for power generation equipment, deliver a proven service life beyond industry benchmarks, and have achieved stable operation in customer installations for more than 8 years.

Oil & Gas Industry (Middle East Onshore & Offshore Projects)

Our X12CrNiMo12 forged valve seats, valve spindles, seal rings, and wellhead parts have been deployed in large onshore oilfields and offshore wellhead projects in the UAE, Saudi Arabia, and Kuwait. These products are made to API 6A specifications and can be supplied with NACE MR0175 material compliance documentation for sour service environments, with excellent resistance to H₂S corrosion and high-pressure design up to 15,000 psi. We have supplied valve forgings for multiple Middle East oil and gas projects across our 25+ years of operation.

Petrochemical & Refining Industry (European Refinery Projects)

We have provided custom X11CrNiMoN12 forged sleeves, casings, flanges, and reactor parts for large refineries and petrochemical processing plants in Germany and France. These parts are used for high-temperature hydrocracking units and distillation equipment,and they all have excellent high-temperature oxidation resistance and corrosion resistance to acidic media. All products are made to meet EN 10302-2008 standard and can be supplied with third-party inspection documentation to support our European clients' internal compliance requirements under applicable pressure equipment regulations.

Mining & Heavy Machinery Industry (Australian Mining Projects)

Our 1.4939 forged shafts, rolled rings, and heavy-load structural parts are used for large mining mill equipment and tunnel boring machines for mining projects in Australia. These parts are used for extreme heavy load and impact working conditions, and they all have high tensile strength and excellent low-temperature impact toughness. We supply more than 500 tons annually to Australian mining machinery manufacturers.

Marine & Shipbuilding Industry (Global Shipbuilding Projects)

We supply X12CrNiMo12 forged propeller shafts, valve parts, and structural parts for international shipbuilding companies in Southeast Asia and Europe. These products are made to support third-party approval by big marine classification societies including DNV GL, Lloyd's Register, and Bureau Veritas — our clients handle the final classification submission with their respective society. The material properties, chemical composition, and NDT documentation we provide are prepared to facilitate this process.

Why Choose Jiangsu Liangyi as Your Trusted 1.4939 X12CrNiMo12 Forging Partner?

Professional Material Expertise: 25+ years of specialized focus on heat-resistant stainless steel and superalloy forging, with in-depth technical understanding of 1.4939 X12CrNiMo12 material properties, processing challenges, and application requirements
Complete In-House Production Capability: All processes from steel melting (EAF + AOD + VOD ± ESR), forging, heat treatment to precision machining and inspection are completed in-house at our Jiangyin facility, guaranteeing full quality control and competitive lead times
Strict International Standard Compliance: Products manufactured to EN 10302-2008, ASTM, DIN, API 6A specifications, and NACE MR0175 material requirements; company holds ISO 9001:2015 quality management system certification
Flexible Customization Capability: Fully customized production per client drawings and technical specifications; single-piece weight from 30 kg to 30 tons; from small-batch prototype to large-scale mass production
Rich Global Service Experience: Successfully exporting to more than 50 countries across Europe, North America, Middle East, Southeast Asia, and Australia; familiar with all major project documentation requirements
Comprehensive Quality Assurance: Full material traceability for every product; EN 10204 3.1/3.2 MTC certification; 100% UT + optional MT/PT inspection; third-party inspection (SGS, BV) support available on request

Frequently Asked Questions about 1.4939 X12CrNiMo12 Forging Parts

When engineers, procurement specialists, and project teams choose 1.4939 X12CrNiMo12 forging parts, they often ask the following questions: Based on the requirements of the EN 10302-2008 standard and more than 25 years of direct forging experience with this material, our technical team gives detailed answers.

What is 1.4939 steel (X12CrNiMo12) and what makes it different from regular stainless steel?

1.4939(also called X12CrNiMo12) is a heat-resistant martensitic stainless steel set by the standard EN 10302-2008. Unlike austenitic stainless steels (such as 316L, 310S) that use high nickel and chromium to resist corrosion but have relatively low strength, 1.4939 gets its high strength from a martensitic crystal structure made by quenching at the austenitizing temperature. Its main properties are: tensile strength 930–1130 MPa, yield strength ≥ 760 MPa, density 7.74 g/cm³, elastic modulus 216 GPa, and reliable creep performance up to 600 °C. It has high-temperature strength, medium corrosion resistance, and toughness (≥ 40 J at 20 °C) ,so that it is suitable for important rotating and pressure-containing parts in power generation, oil & gas, and petrochemical industries.

What is the difference between 1.4939, X12CrNiMo12, and X11CrNiMoN12?

1.4939 is the European material number (Werkstoff-Nr.) for X12CrNiMo12 under EN 10302-2008, and both names stand for the same steel grade. X11CrNiMoN12 is a very similar grade with added nitrogen (N: 0.020–0.040%) in the same material group. The extra nitrogen in X11CrNiMoN12 helps stabilize the martensitic structure by controlling carbon behavior, creating a finer and more even internal matrix. This improves strength retention and resistance to pitting corrosion compared to the basic X12CrNiMo12 grade, while keeping toughness at the same level. X11CrNiMoN12 is often chosen for high-precision rotating parts like gas turbine rotor disks and impellers, which need better dimensional stability when temperatures change repeatedly.

How does 1.4939 compare to 1.4923, 1.4922, and 17-4PH for turbine applications?

1.4939 (X12CrNiMo12) is better for turbine use than 1.4923 (X22CrMoV12-1) and 1.4922 (X20CrMoV12-1) in two main ways: it is tougher against impact (≥ 40 J compared to ≥ 27 J at 20 °C, because 1.4939 has 2–3% nickel, which is much higher than 0.3–0.8% in the other two grades) and it can work at higher temperatures (600 °C compared to 560–565 °C for the others). 17-4PH (1.4542) has better corrosion resistance (15–17.5% chromium) and toughness at room temperature, but it can only be used up to about 300 °C, so it doesn't work for turbine parts that need to be able to handle high temperatures. If you need both toughness and resistance to oxidation for jobs above 560 °C, 1.4939 is the best steel grade.

What are the physical properties of 1.4939 X12CrNiMo12 for FEM and stress analysis?

Main physical properties of 1.4939 X12CrNiMo12 for engineering analysis: Density: 7.74 g/cm³. Elastic Modulus (E): 216 GPa (20°C), 208 GPa (200°C), 202 GPa (300°C), 190 GPa (500°C). Poisson's Ratio: 0.28. Shear Modulus: 84 GPa. Thermal Conductivity: 25.5 W/(m·K) at 20°C, increasing to 28.5 W/(m·K) at 600°C. Mean CTE (from 20°C): 10.5×10⁻⁶/K to 100°C, 11.5×10⁻⁶/K to 500°C, 11.8×10⁻⁶/K to 600°C. Specific heat capacity: 460 J/(kg·K) at 20°C, 540 J/(kg·K) at 600°C. These temperature-dependent values are essential for accurate thermal-structural FEM modeling of rotating turbine parts.

What is the creep rupture strength of 1.4939 at 500°C for a 100,000-hour design life?

The creep rupture strength of 1.4939 X12CrNiMo12 (quenched and tempered condition) for a 100,000-hour design basis is about: ≥ 240 MPa at 500 °C and ≥ 160 MPa at 540 °C. For a 200,000-hour basis (relevant for baseload power plants), the values reduce to about 210 MPa at 500°C and 135 MPa at 540°C. Above 450°C, always use creep rupture data — not room-temperature tensile values — as the governing design criterion. Apply a minimum safety factor of 1.5× on stress for critical rotating parts. Our team can provide part-specific creep assessment reports based on your operating profile and design life requirements.

Can 1.4939 X12CrNiMo12 be welded, and what preheat is required?

Yes, 1.4939 X12CrNiMo12 can be welded using GTAW (TIG), SMAW (MMA) or SAW methods, but strict welding rules must be followed. Required preheating temperature: 200–300 °C (at least 250 °C when part thickness is over 50 mm). Maximum interpass temperature: 300 °C. Right after welding, a hydrogen removal heating at 250–300 °C for 2–4 hours is needed before the part cools down. Post-weld heat treatment (PWHT) is needed: heat at 650–700 °C for at least 1 hour for every 25 mm of thickness, with controlled heating and cooling speeds in the furnace (no more than 80 °C/h between 400–600 °C). Recommended filler materials: AWS ER410NiMo for GTAW and matching 12%Cr-Ni-Mo low-hydrogen electrodes for SMAW. Without proper preheating or PWHT, this grade may develop hydrogen cold cracks, which can appear even days after welding.

What delivery conditions and dimensional tolerances are available for 1.4939 forgings?

1.4939 forgings are available in these conditions: +A(Softened Annealed, ≤ 260 HB), +QT (Quenched & Tempered, 280–330 HB, the most widely used), +QT+SR (Quenched, Tempered & Stress Relieved for precision parts), and +AF (As-Forged). For forged bars, dimensional tolerances follow EN 10243-1: ±3–4 mm for outer diameter up to 100 mm, ±5–8 mm for 100–500 mm, and ±12–16 mm for 500–1200 mm. For seamless rolled rings under EN 10243-2: OD tolerance is ±0.5% for rings up to 3,000 mm in outer diameter. Closer tolerances and custom machining allowances can be provided upon request. All forgings come with complete EN 10204 3.1/3.2 Mill Test Certificates.

What NDT inspection is performed on 1.4939 forging parts?

Liangyi's 1.4939 X12CrNiMo12 forging parts all go through a full non-destructive testing process: A full-volume ultrasonic testing (UT) following SEP 1923, inspection level D3/D2 with a dual-crystal probe, quality class 2b; an optional magnetic particle testing (MT) per ASTM E165; an optional penetrant testing (PT) per ASTM E1417; and a Brinell or Vickers hardness test. OES spectrometry checks the chemical makeup of each batch. Every product comes with an EN 10204 3.1/3.2 Mill Test Certificate that shows the results of mechanical tests, chemical analyses, heat treatments, and NDT reports. Third-party inspection by SGS, Bureau Veritas (BV), or other customer-approved organizations can be arranged upon request.

What is the maximum size forging available in 1.4939 X12CrNiMo12 from Jiangsu Liangyi?

Jiangsu Liangyi can manufacture 1.4939 X12CrNiMo12 forged bars with a maximum forging diameter up to 2 meters and maximum single-piece weight up to 30 tons. For seamless rolled forged rings, the maximum outer diameter is up to 6 meters with maximum single-piece weight up to 30 tons. Our ESR plant supports single-piece ingots up to 32 tons for high-purity, high-integrity applications needing ultra-low inclusion content and excellent internal cleanliness. Minimum order size for custom forgings starts from a single piece. Standard lead time is 6–10 weeks depending on specification and quantity.

Inquiry & Contact Information

Jiangsu Liangyi is your trusted professional China manufacturer and supplier of high-quality 1.4939, X12CrNiMo12, X11CrNiMoN12 forging parts and custom forged steel parts. Whether you need standard forged bars and rings, or custom-engineered turbine parts and valve parts that meet EN, API, NACE, or other international standards, we can provide the most competitive pricing and superior quality products backed by complete EN 10204 3.1/3.2 documentation.

Send your custom drawings, material requirements, order quantity, delivery condition, and technical specifications to us for a detailed quotation. Our professional technical and sales team will reply within 24 hours.

Inquiry Email: sales@jnmtforgedparts.com

Phone / WhatsApp: +86-13585067993

Official Website: https://www.jnmtforgedparts.com

Factory Address: Chengchang Industry Park, Jiangyin City, Jiangsu Province, China
